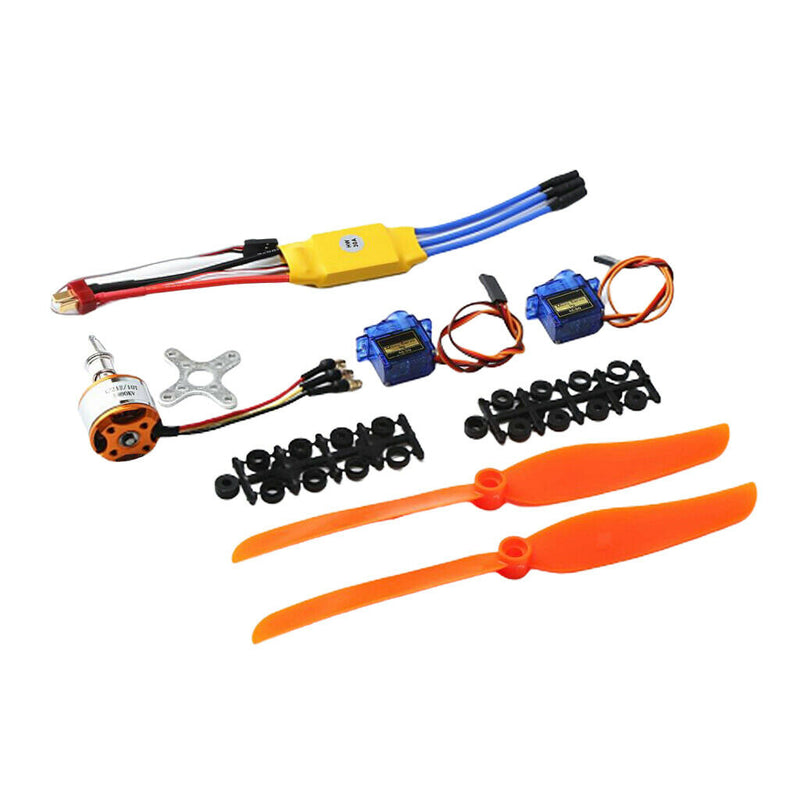

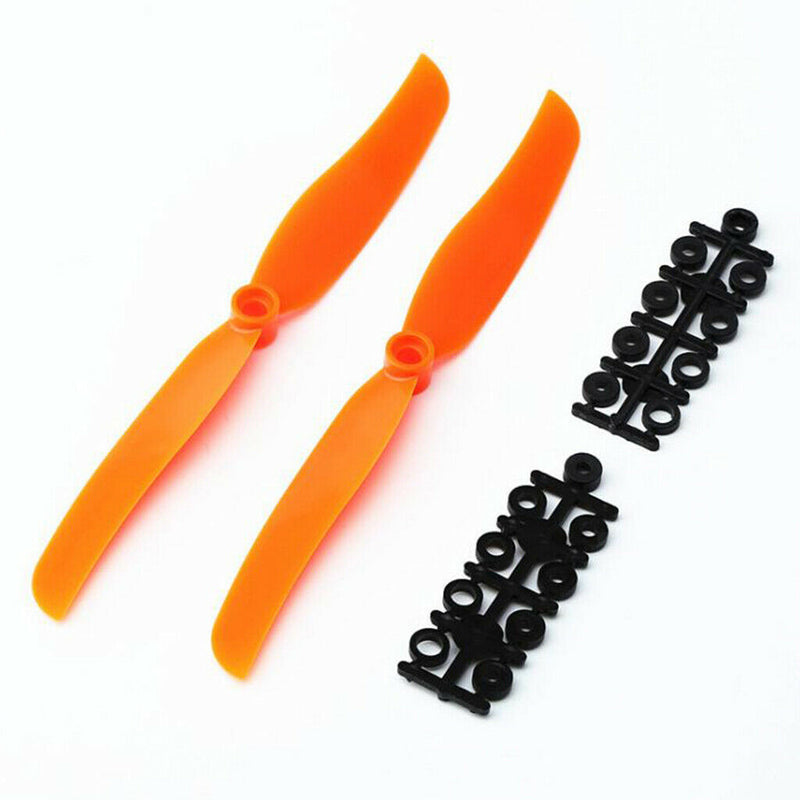

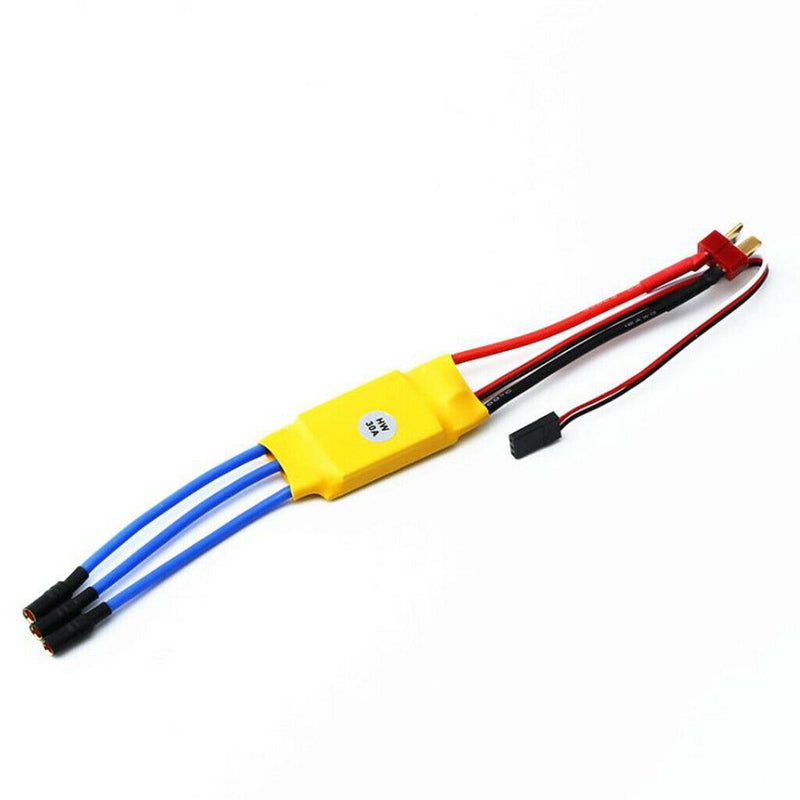

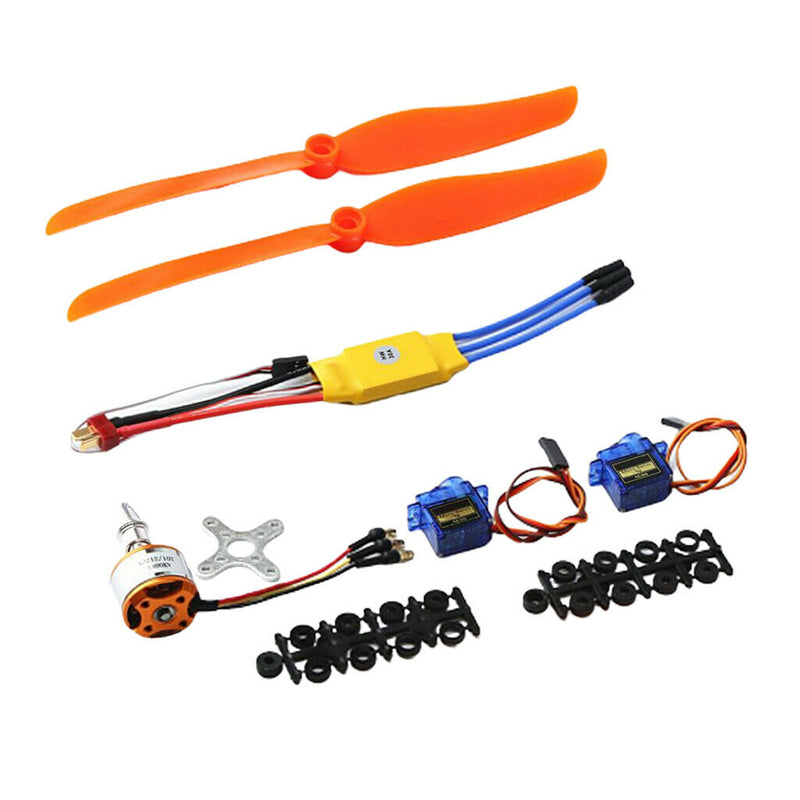

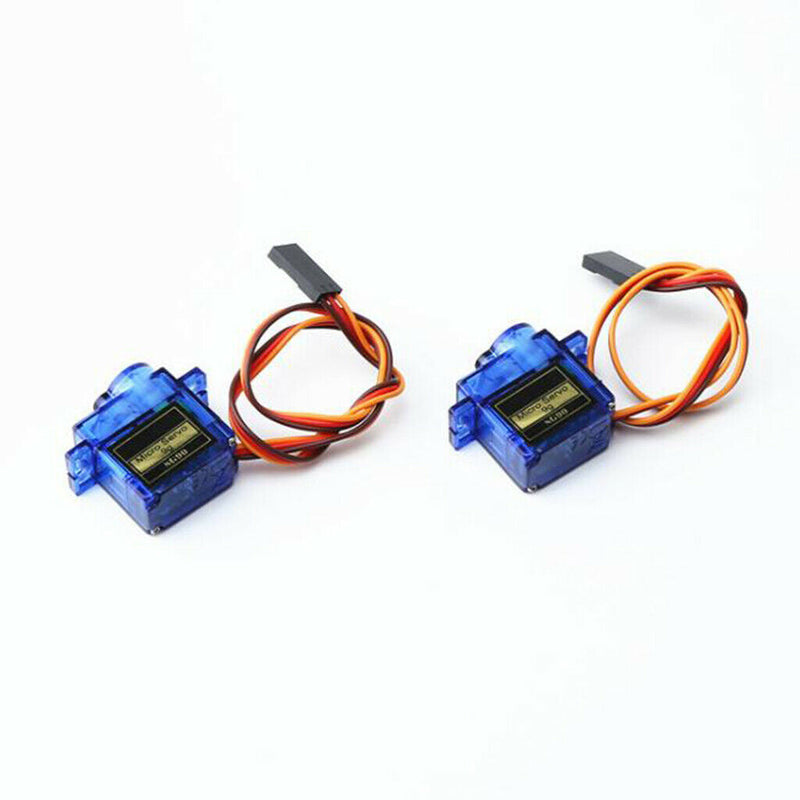

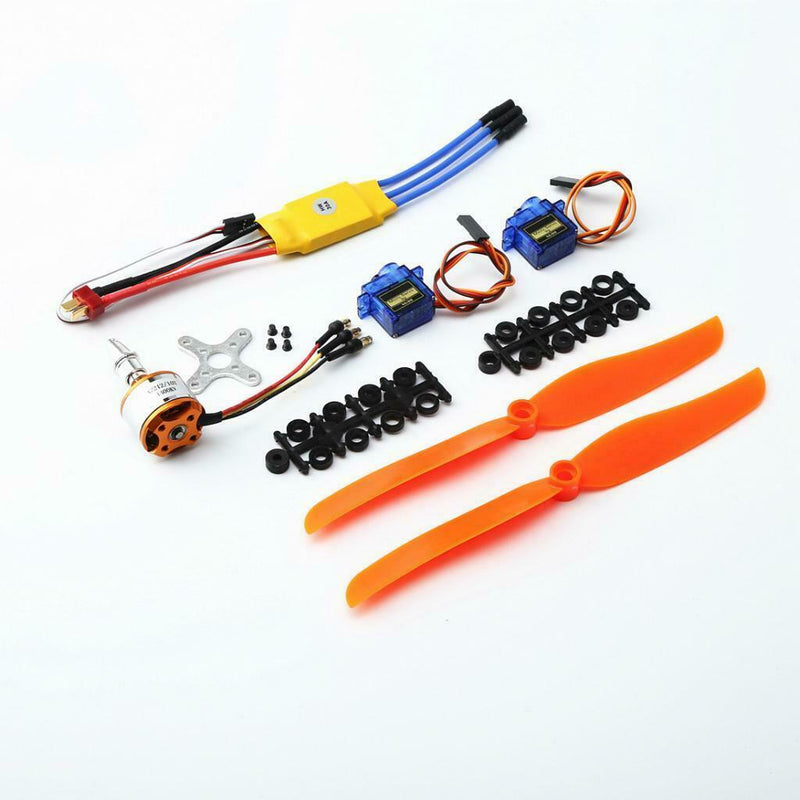

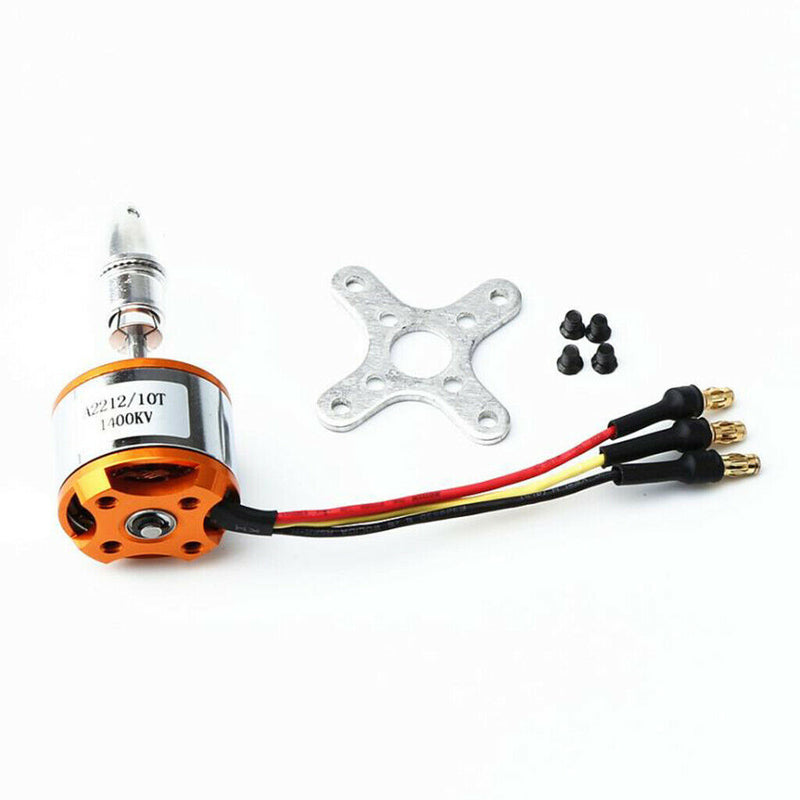

ITEM NAME:A2212 1400KV Brushless Motor+30A ESC+ Servo+Propeller For RC Airplane Part Description: 100% Brand New and High Quality. This is a pack of RC model vehicle parts & accs for RC airplane. Designed to minimize power consumption. Easy and quick Installation. Servo less noise. Specification: SG90A 9G servo Specification: No load speed: 0.12 sec / 60 deg (4.8 V) Locked-rotor torque: 1.5-1.7kg/cm (4.8V-6V) Operating temperature: -30~~+60 degrees Celsius Dead zone setting: 5 microseconds Working voltage: 4.8V-6V Size: 21.5X11.8X22.7mm/0.85x0.46x0.89inch Weight: 9g A2212 1400kv Motor Specification: KV: 1400 Max Efficiency: 80% Max Efficiency Current: 4-10A (>75%) Current Capacity: 12A/60s No Load Current @ 10V: 0.5A No. Of Cells: 2-3 Li-Poly Motor Dimensions: Approx. 27.5x30mm/1.08x1.18inch Shaft Diameter: Approx. 3.17mm/0.12inch Weight: 47g 30A Brushless ESC Specification: Output: Continuous 30A, Burst 40A up to 10 Secs. Input Voltage: 2-3cells lithium battery or 5-9 cells NiCd/NIMh battery. BEC: 2A / 5V (Linear mode). Max Speed: 210,000rpm for 2 Poles BrushLess Motor, 70,000rpm for 6 poles BrushLess Motor, 35,000rpm for 12 poles BrushLess Motor. With T plug and 3.5mm banana connectors Package Includes: 2 Pieces 9G SG90A Servo 1 Piece A2212 KV1400 Brushless Motor 2 Pieces 8060 Propellers 1 Piece 30A Brushless ESC Other Mounting Parts Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Due to manual measurement, there may be 1-2mm error in size. SKU: DMO0008649061032149.A2212 1400kv Motor Specification 1 Piece A2212 KV1400 Brushless Motor. Max Speed: 210,000rpm for 2 Poles BrushLess Motor, 70,000rpm for 6 poles BrushLess Motor, 35,000rpm for 12 poles BrushLess Motor.
