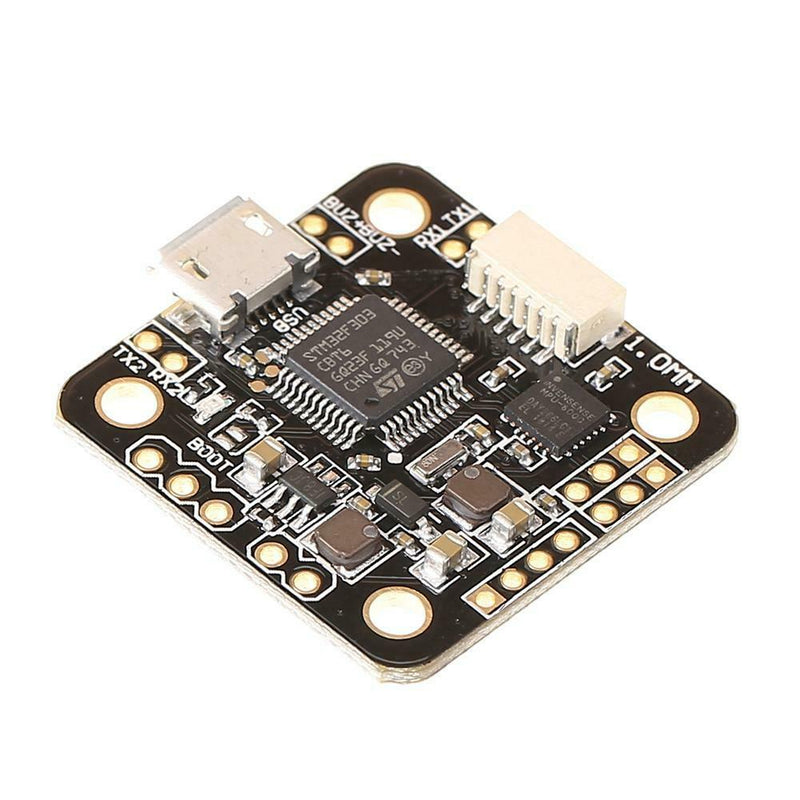

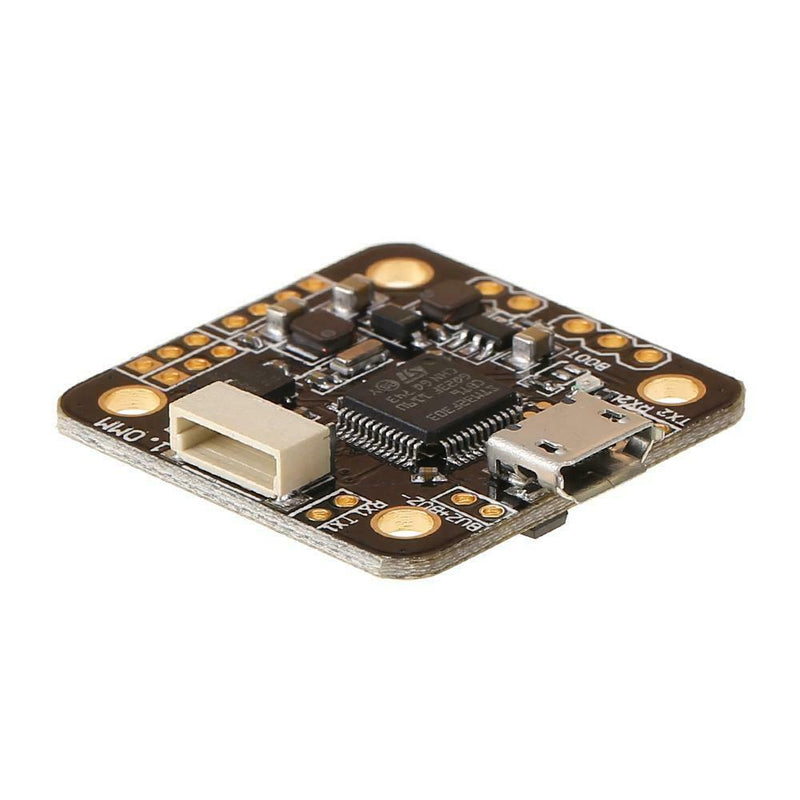

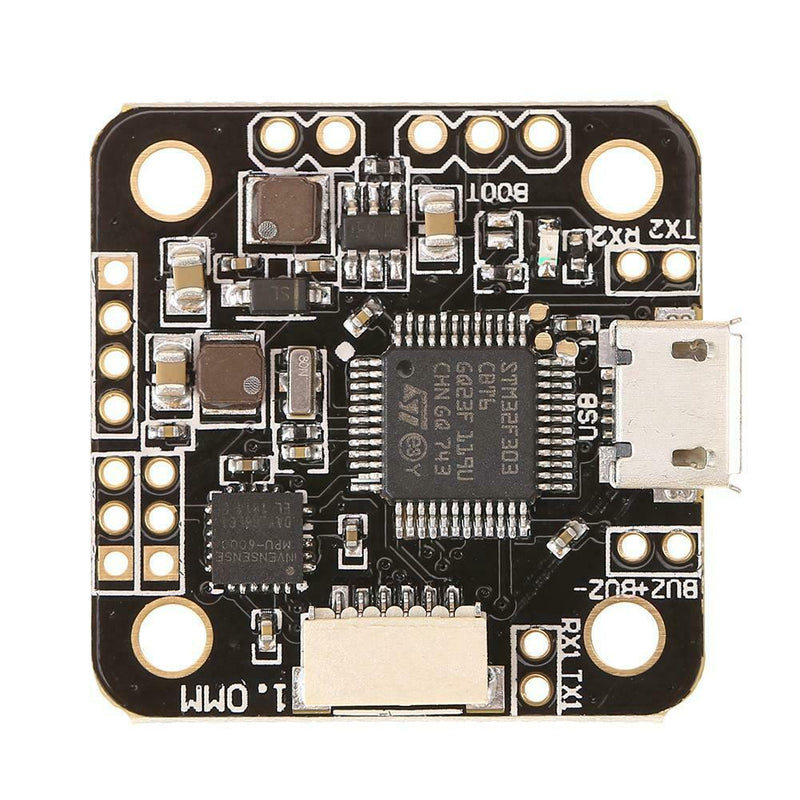

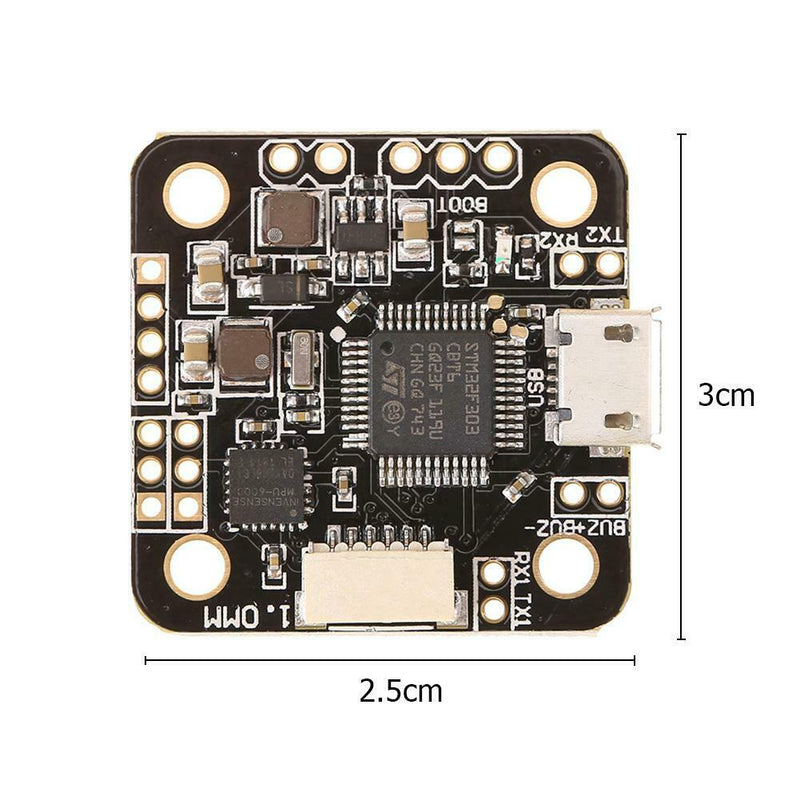

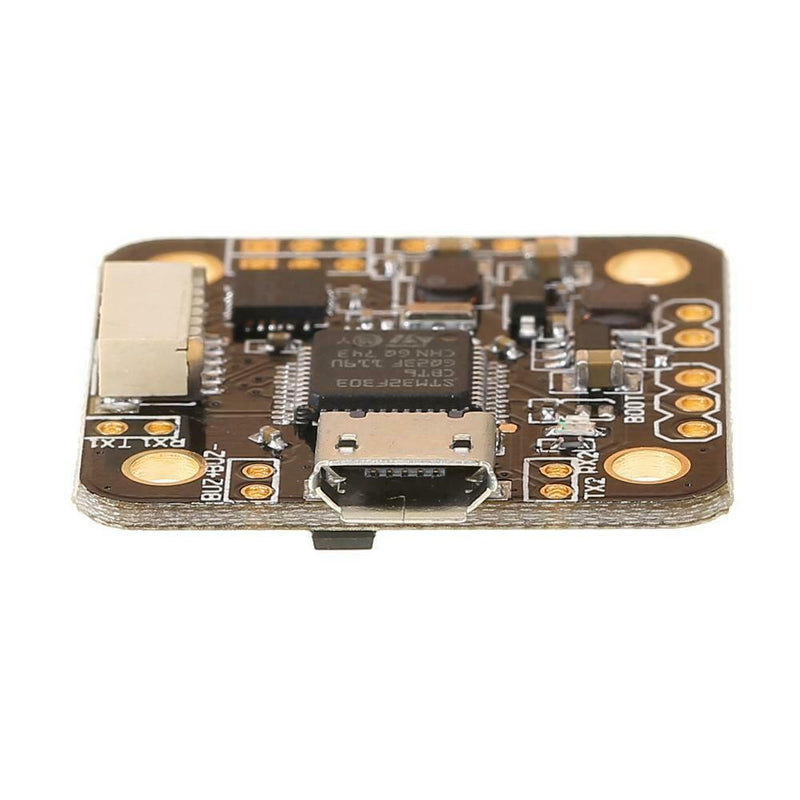

ITEM NAME:Mini F3 Flytower Flight Control Integrated OSD FPV5.8G Flight Controller A#S Product Description Description: Features: The flight control is used to assemble the small four-axis around 80-90, with a motor of 1104 7500KV and a battery of about 2S 400-500mAh. Use a 2 inch paddle with 3 or 4 blades. The receiver then recommends the purchase of micro receiver (FRSKY FLYSKY DSM2, micro receiver). Try to be light and easy! Picture transmission select 25-200 adjustable integrated picture transmission, but picture transmission power must be connected to the power supply. F3(integrated OSD) mini flight control parameters: F3 flight control acceleration equipped with MPU6000 is faster; The BEC with 5V/1A integrated with OSD. (this version is 6DOF, no barometer and electronic compass) 1. It is specially designed for small traversing machines, suitable for the racks with sizes below 280mm, and the racks with sizes of 130mm are more able to give play to the advantages of small and full functions; 2. This board provides all functions with a weight of only 8g and a size of only 27*27mm. The fixed hole position is 20mm (M2.5 hole position); 3. Specially designed for four-axis models, with LC filter built in, supporting BF firmware 4. Connect the SPI interface of MPU6000 sensor with STM32F303 MCU, and the operation rate is faster; 5. Support 2-4s power input; 6. Built-in 5V 1A output BEC; 7. Support mainstream receivers such as SBUS/PPM/DSMX; 8. Buzzer/programmin Specifications: Gross weight: 6 g Size: 3 x 2. 5 cm/1.18 x 0.98" Notes: 1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you! 2. Please allow 1-3cm measuring deviation due to manual measurement. Included: 1 x Flight Controller.This board provides all functions with a weight of only 8g and a size of only 27 27mm. The fixed hole position is 20mm (M2.5 hole position);. Try to be light and easy! Connect the SPI interface of MPU6000 sensor with STM32F303 MCU, and the operation rate is faster;.
