Features

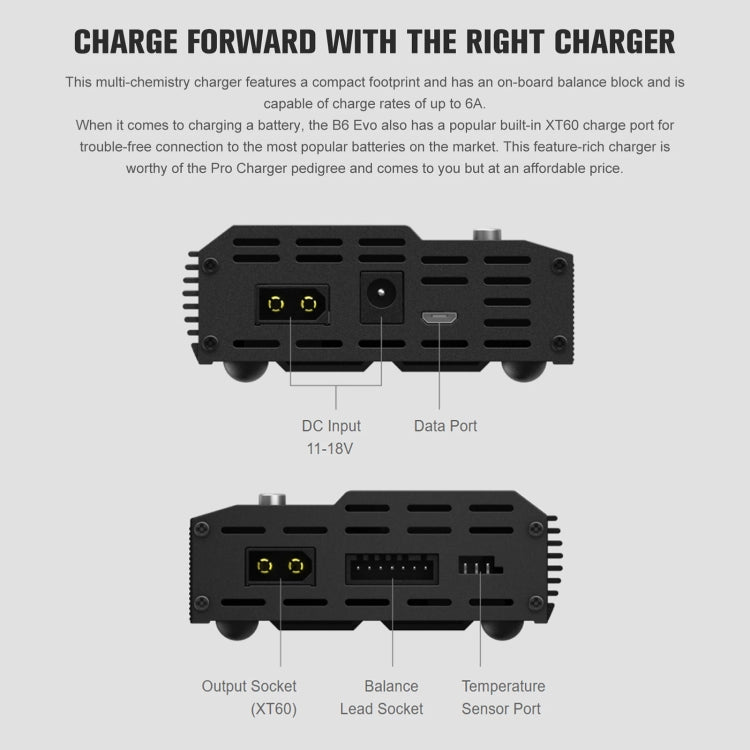

1. This multi-chemistry charger features a compact footprint and has an on-board balance block and is capable of charge rates of up to 6A.
2. When it comes to charging a battery, the B6 Evo also has a popular built-in XT60 charge port for a trouble-free connection to popular batteries on the market.

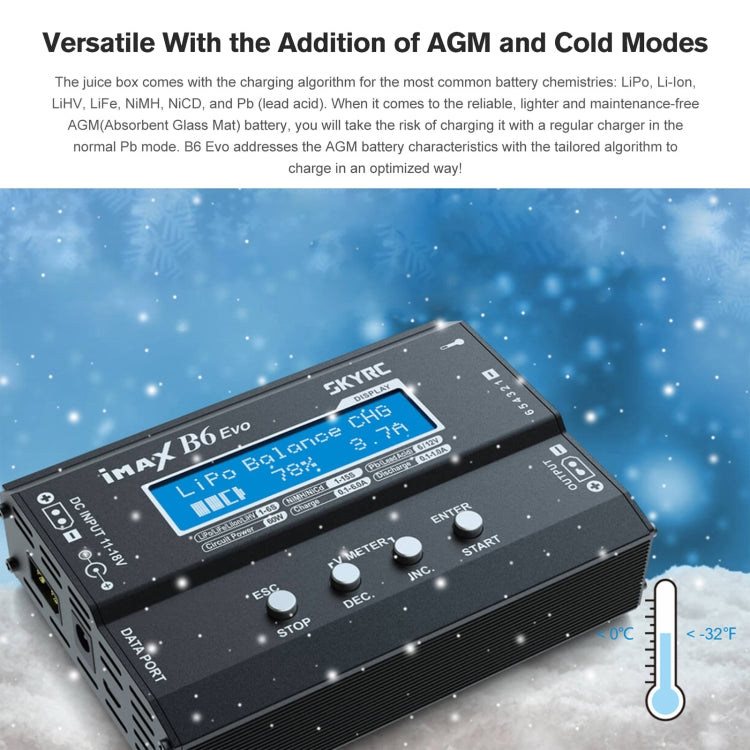

3. The box case comes with the charging algorithm for common battery chemistries: LiPo, Li-Ion, LiHV, LiFe, NiMH, NiCD, and Pb (lead-acid). When it comes to the reliable, lighter and maintenance-free AGM(Absorbent Glass Mat) battery, you will take the risk of charging it with a regular charger in the normal Pb mode. B6 Evo addresses the AGM battery characteristics with the tailored algorithm to charge in an optimized way!

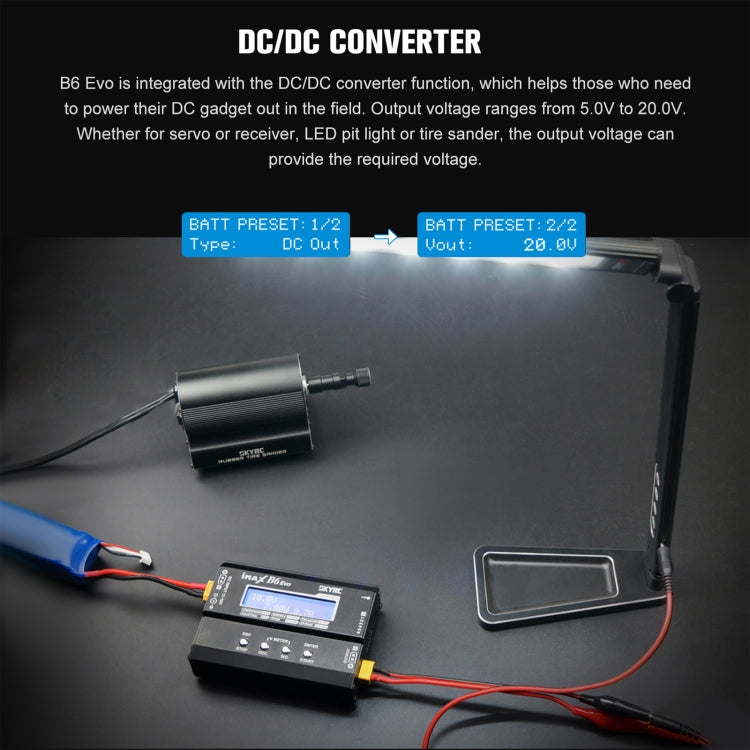

4. DC/DC Converter: B6 Evo is integrated with the DC/DC converter function, which helps those who need to power their DC gadget out in the field. Output voltage ranges from 5.0V to 20.0V. Whether for servo or receiver, LED pit light, or tire sander, the output voltage can provide the required voltage.
5. Calibration: B6 Evo enables RC gurus to calibrate the battery voltage as per their experience or multimeter, maximizing the battery performance in competition. (For the full procedures, please refer to the instruction manuals.)
Specifications
1. Case Material: Aluminium
2. Case Size: 115x84x31mm
3. Weight: 238g
4. Display Type: LCD
5. Display backlight: Blue
6. DC Input: 11-18V
7. Charge Wattage: 60W
8. Discharge Wattage: 5W
9. DC Output Wattage: 60W
10. Battery Types/ Cells: LiPo/LiHV/LiFe/ Li-Ion: 1-6 cells; NiMH/NiCd: 1-15 cells; Pb: 2-20V
11. Battery Capacity Range: NiMH/NiCd/LiPo/LiHV/LiFe/Li-Ion/Pb: 100-50000mAh
12. Charge Current: NiMH/NiCd/LiPo/LiHV/LiFe/Li-Ion/Pb: 0.1-6A
13. Discharge Current: 0.1-1A
14. Balance Cells: 2-6 cells
15. Balance Current: 300mA / cell
16. Safety Timer: 1-120 minutes / off
