Item Name: For Android 11.0 Bluetooth-compatible 4.0 WiFi Set-Top Box Kits (2G+16G EU). Smart TV Box Android Quad Core HDMI 1080P Wifi Streaming Media Player UK

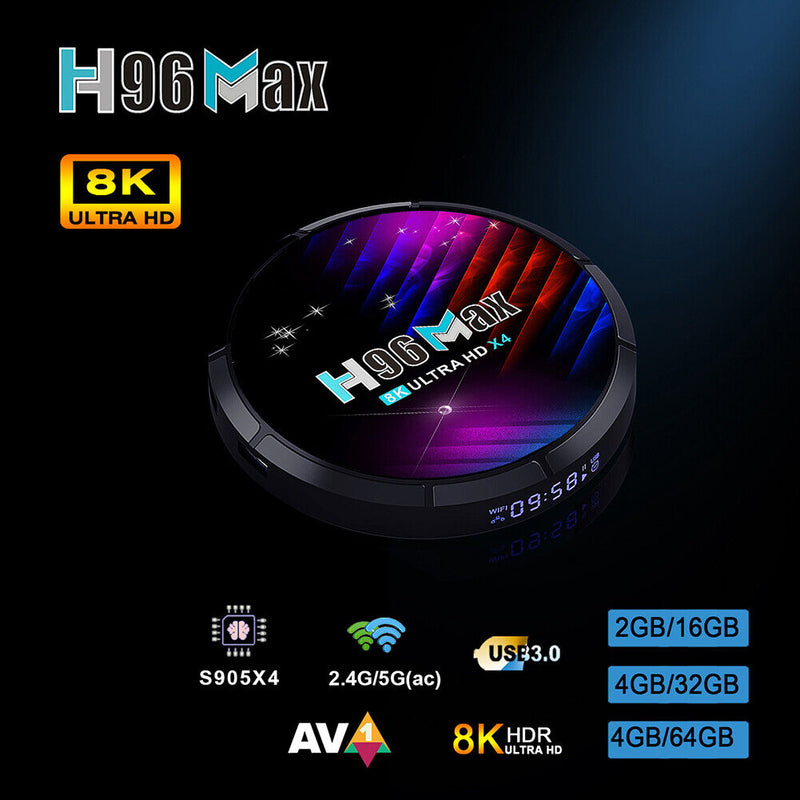

H96 Max X4 Amlogic S905X4 for Android 11.0 64-bit Quad Core Bluetooth-compatible 4.0 TV Box Dual-band WiFi Media Player Set-Top Box Kit with Remote Control
Specification:
CPU: Amlogic S905X4 64-bit quad core ARM Cortex A55 CPU
GPU: G31 MP2 GPU processor
Memory: DDR3: 2GB/4GB
Flash: eMMC: 16GB/32GB/64GB
WiFi: IEEE 802.11 a/b/g/n/ac 2.4G + 5G (ac)
Bluetooth-compatible: BT 4.0 (Support Voice Remote)
Colour: Black
Material: plastic
OS: for Android 11.0
Video:
Video/picture decoding
- AV1 MP-10@L5.1 up to 4Kx2K@60fps
- VP9 Profile 2 to 4Kx2K@60fps
- H, 265 HEVC MP-10@L5.1 up to 4Kx2K@60fps
- AVS2-P2 profile 4Kx2K@60fps
- H, 264 AVCHP@L5.1 up to 4Kx2K@30fps
- MPEG-4ASP@L5 up to 1080P@60fps (ISO-14496)
- WMV/VC-1 SP/MP/AP to 1080P@60fps
- AVS-P16 (AVS+)/AVS-P2 JiZhun profile 1080P@60fps
- MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
- MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
- RealVideo August 9, 2010 to 1080P@60fps
- Multi-language and multi-format subtitle video support
- MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)
- Support JPEG thumbnail, zoom, rotate and transition effects
- Support *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats
Video/picture encoding
- Independent JPEG and H.264 encoders with configurable performance/bitrate
- JPEG image encoding
- H.265 video encoding up to 1080P@60fps with low latency
- H.264 video encoding up to 1080P@30fps with low latency
Audio:
Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable 7.1/5.1 downmix
Low power VAD
Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output
Built-in 3pcs TDM/PCM/I2S ports, TDM/PCM mode up to 384kHz x 32bits x 16ch or 96kHz x 32bits x 32ch, I2S mode up to 384kHz x 32bits x 16ch
Digital microphone PDM input, programmable CIC, LPF and HPF, supports up to 8 DMICs
Built-in stereo audio DAC
Parallel dual audio stereo channel output supporting analog+PCM or I2S+PCM combination
Image: HD JPEG, BMP, GIF, PNG, TIF
Language: English, French, German, Spanish, Italian and other languages
I/O:
1*HDMI-compatible: HDMI-compatible 2.1, supports HDMI-compatible CEC, Dynamic HDR and HDCP 2.2/2.3, 4Kx2K@60 maximum resolution output
1*AV OUT: 480i/576i standard definition output
2*USB: 1*USB 3.0 1*USB 2.0
1* IR Receiver: Remote Receiver Connection
1*RJ45: Ethernet interface, support 100M/1000M
1*TF CARD: Support 4GB/8GB/16GB/32GB/64GB
SPDIF: support
1*DC: 5V/2A
Power supply: DC5V/2A LED indicator, work: blue
Application:
Browse all video sites, support for Netflix / Hulu / Flixster / Youtube and more.
Download apps for free from android market, for amazon app store, etc.
Local media playback, support HDD, U disk, TF card.
Support SKYPE video call, MSN, facebook, twitter, QQ, etc.
Support for email, office suits, and more.
Support DLNA function
Support 2.4G wireless mouse/keyboard
Product weight: 400g
Product size: 114x114x21mm/4.49x4.49x0.83in
Power adapter: US/EU/UK/AU (optional)
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
