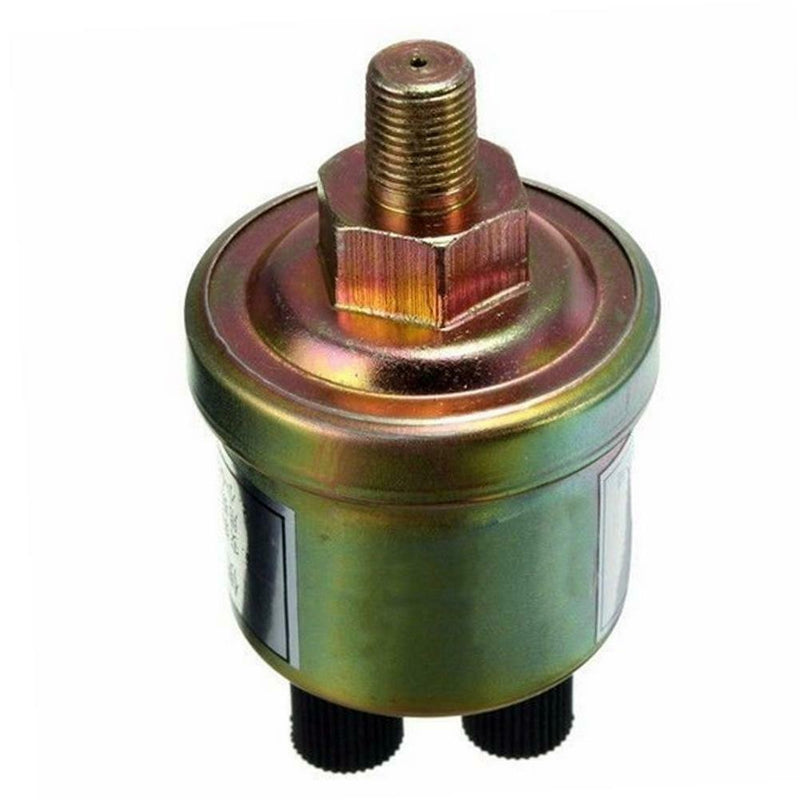

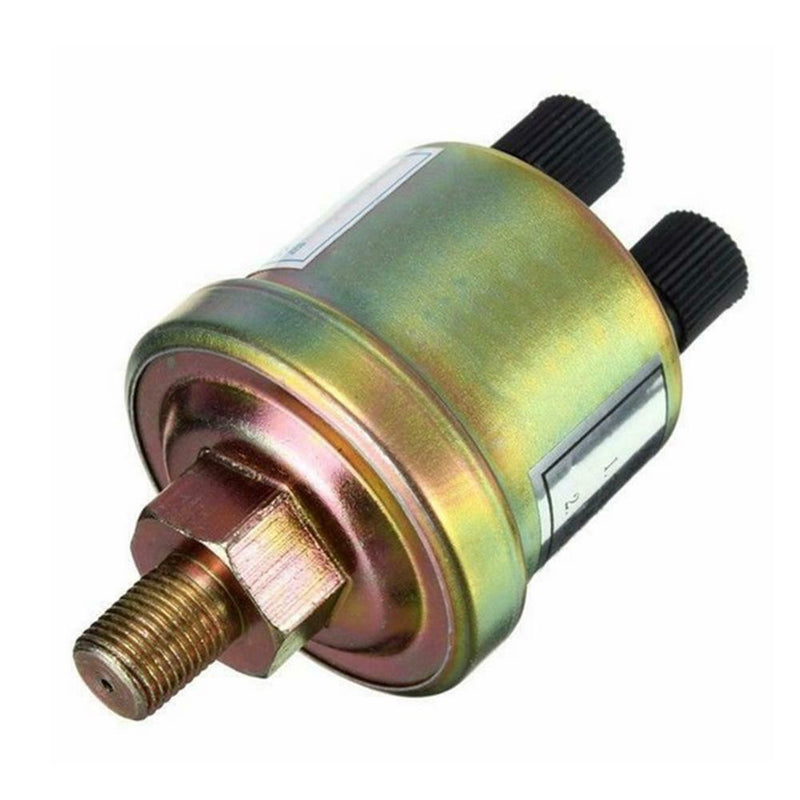

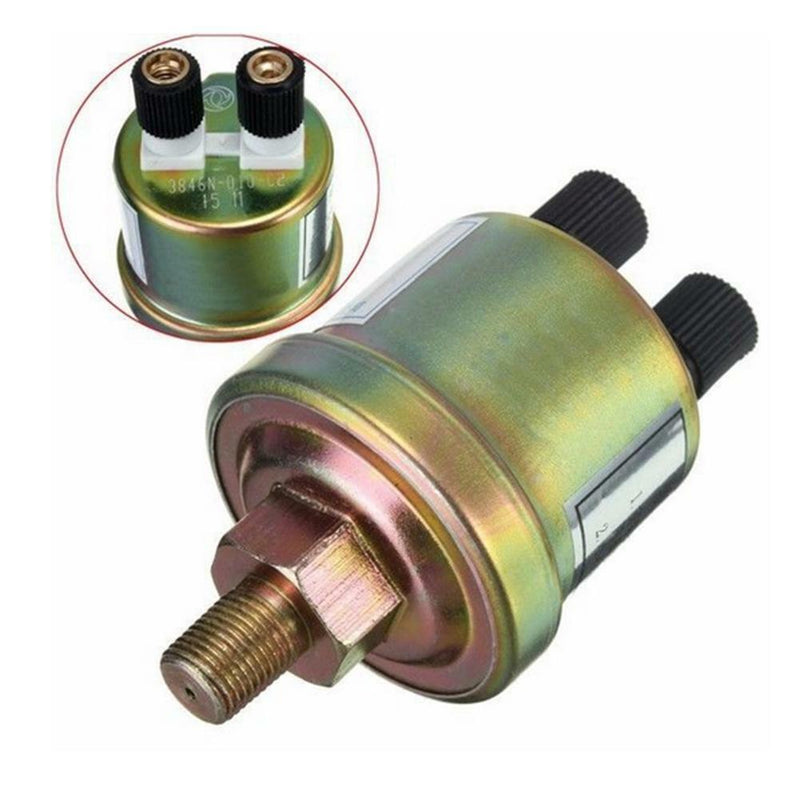

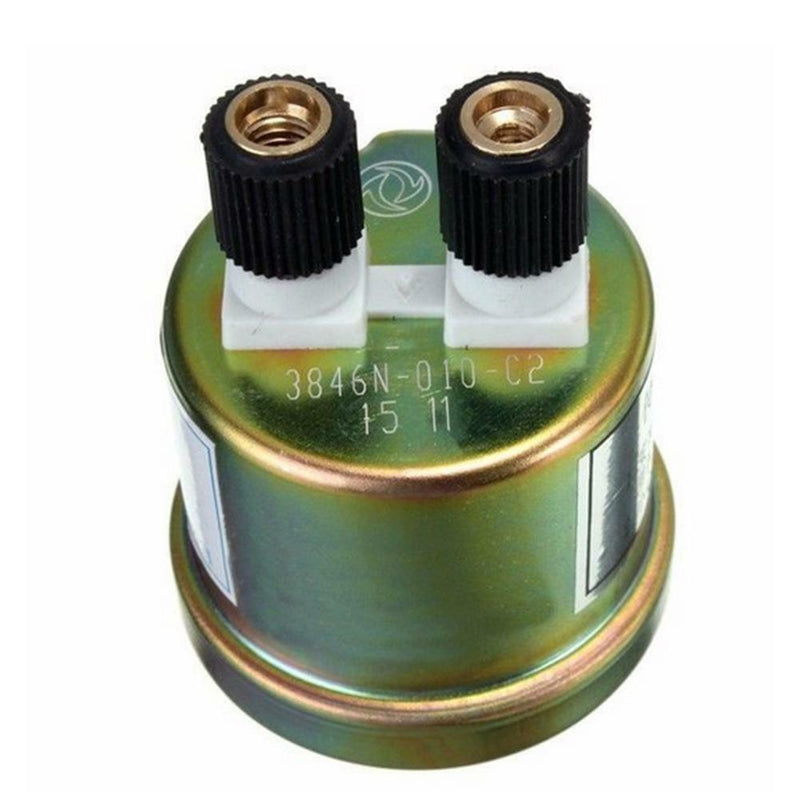

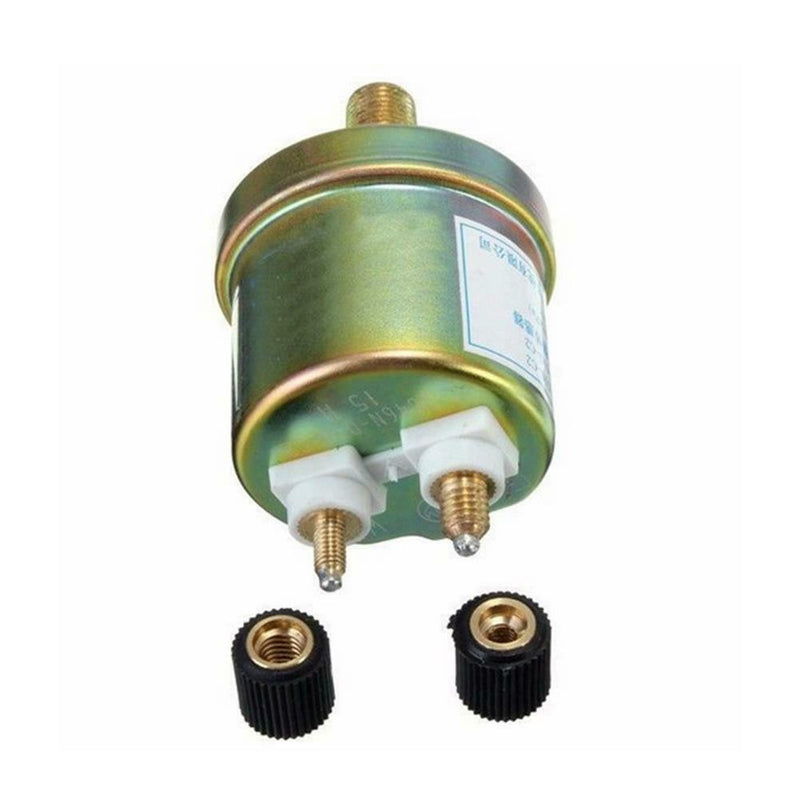

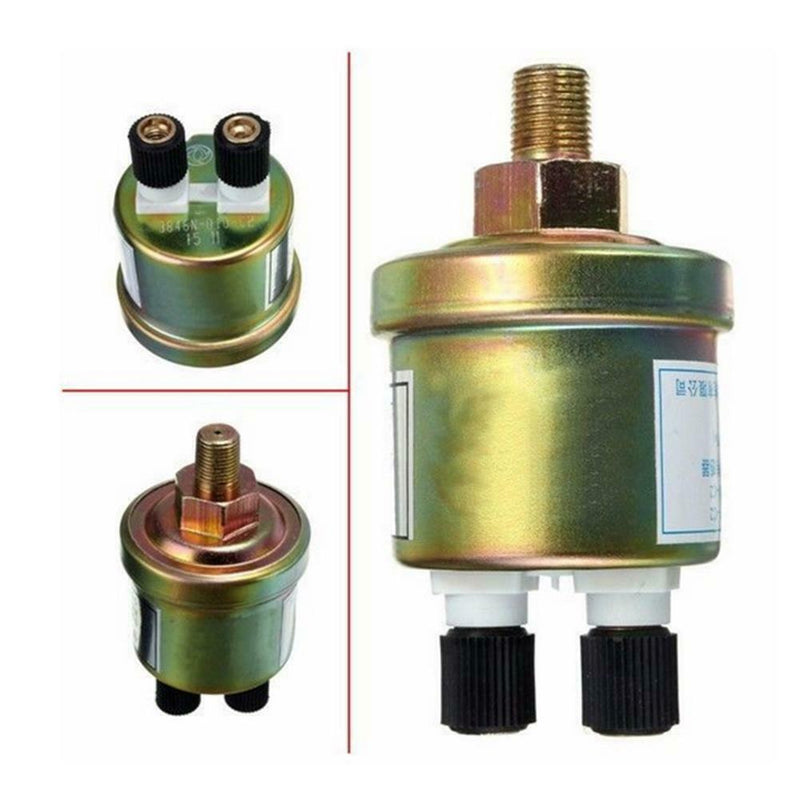

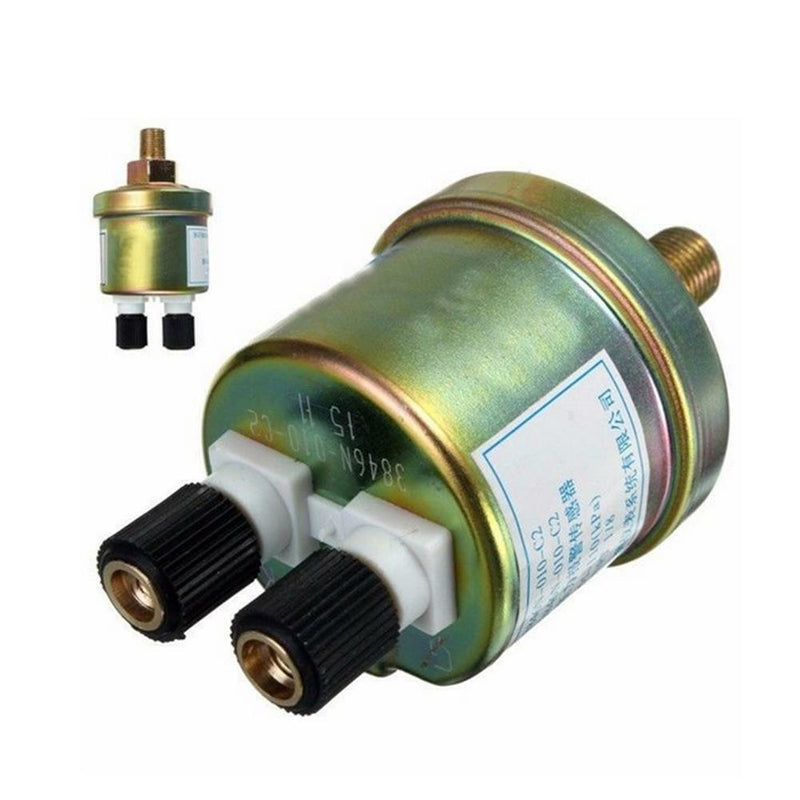

Item Name: 1/8 NPT Engine Oil Pressure Sensor Gauge Sender Switch Sending Unit 80x40mm. Smart TV Box Android Quad Core HDMI 1080P Wifi Streaming Media Player UK
Features:
1. Used with pressure gauge and alarm lamp,sensing the change of engine oil pressure.
2. When the oil pressure is lower than the set value, the warning light is on.
3. Simple structure, convenient installation, stable quality and reliable performance.
Specifications:
Material: metal
Color: gold

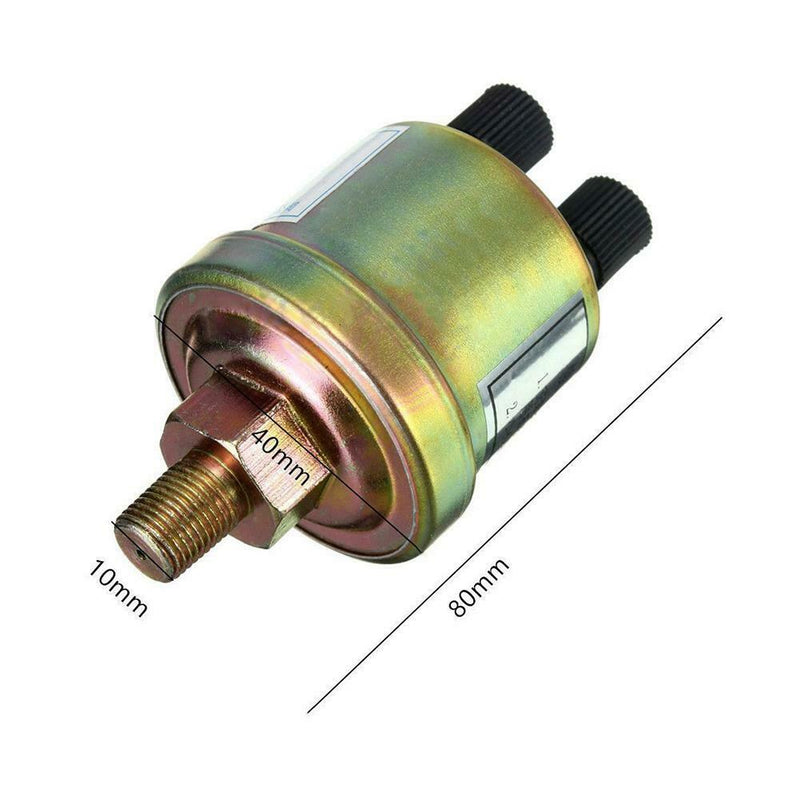

Size: 80 x 40mm/3.15 x 1.57"
Screw size: 10mm/0.39"
Alarm pressure: 0.08 Mpa
Measurement range: 0-1.0Mpa
Mounting screw: 1/8 NPT
Notes:
1. Use the wrench to tighten the engine and the maximum tightening torque is 17N.m
2. The output of the sensor is connected with the wire harness, which ensures the smooth transmission.
