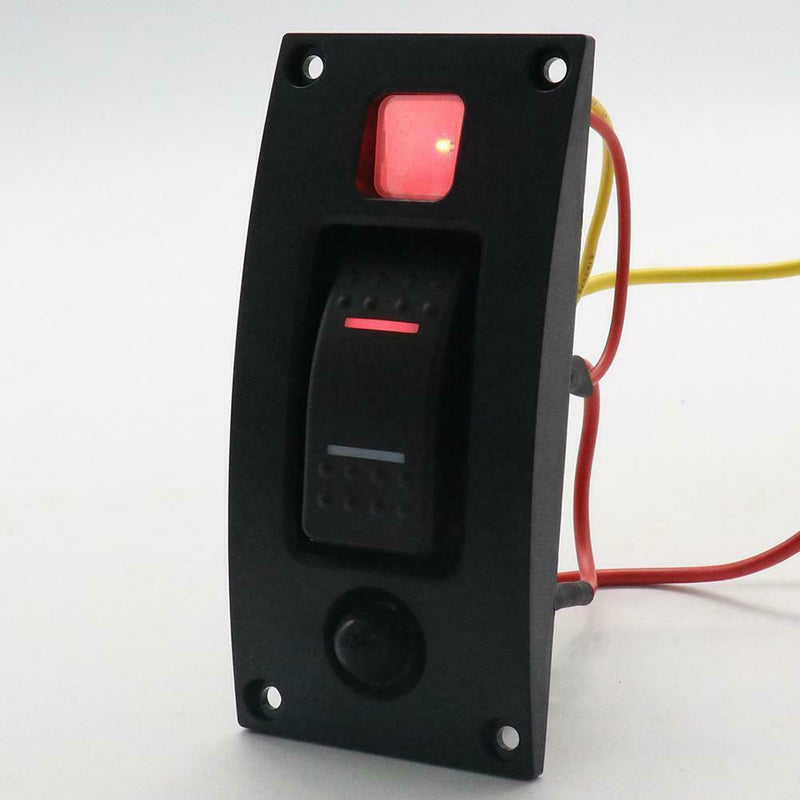

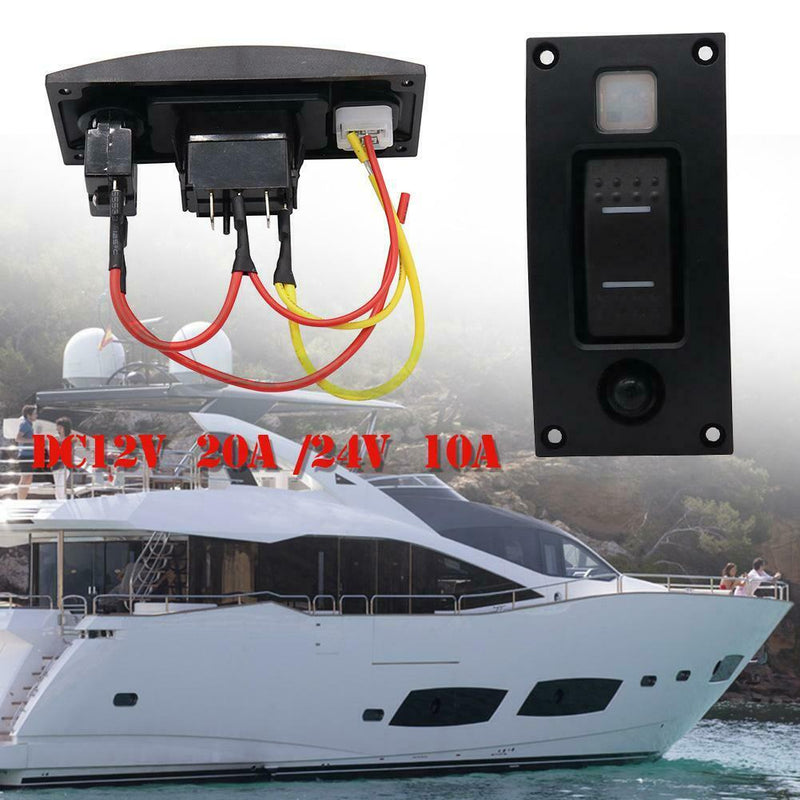

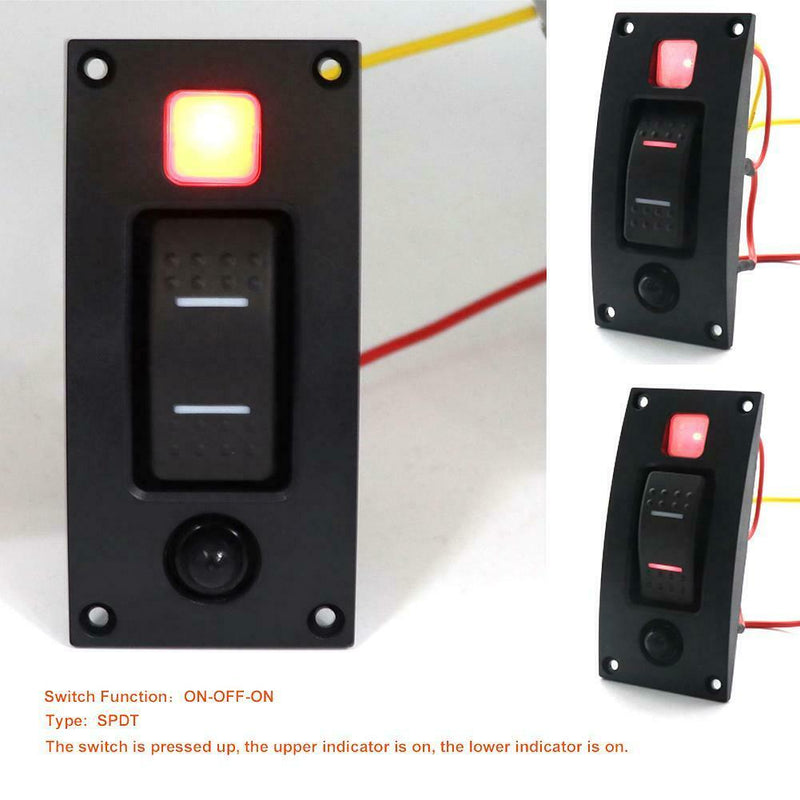

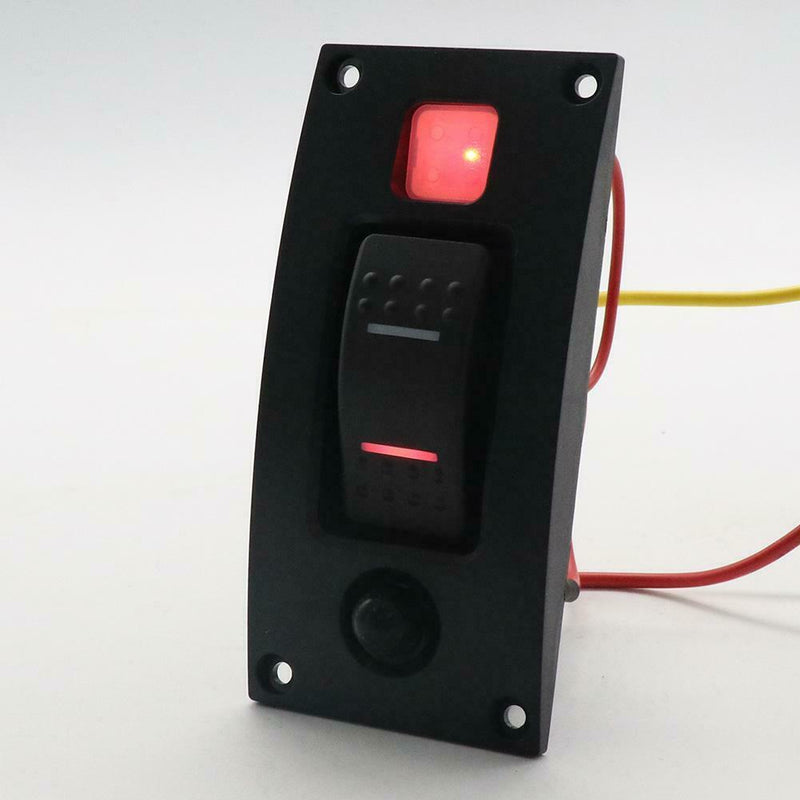

ITEM NAME:1 Gang Boat Marine Switch Panel ON-OFF-ON Rocker Switch with Circuit Breaker Product Description Description: Features: - Blank 1P panel that goes well with other SP33 series panels - C-7 sealed IP66 switch with dual (12-24V) voltage rating - Backlight label module allowing easy recognition in darkness - 5 pcs assorted label stickers included for various switch functions - 3 position ON-OFF-ON switch Specifications: Model: S4126 Material: Curved shaped plastic Product color: black Circuit Protection: 20A Push Reset Circuit Breaker Ratings: DC 12V 20A /24V 10A Switch Function: ON-OFF-ON (SPDT) Panel depth: 7.5cm/2.95" Installation size: 10.3*4.3cm/4.06*1.69" Product size: 5.4*4.8*11.4cm/2.13*1.89*4.49" Packing size: 11.5*7*8.5cm/4.53*2.76*3.35" Product net weight: 91g Product gross weight: 115g Protection level: IP66 Certification: CE Installation Instructions 1. Disconnect all power 2. Cut opening for mounting location using the template provided. 3. Connect the positive wire (red) to the DC power source (the batteries) and the LED negative wire (yellow) to a DC negative wire. 4. Connect switch load terminals to the desired device as illustrated. 5. Connect the negative wires of the devices to a negative wire. 6. Mount the switch panel with the included self-tapping screws. 7. Reconnect all the AC & DC powers. Turn on and off all branch circuits to check if the panel works normally. Notes: 1. There may be slight size deviations due to manual measurement, different measuring methods and tools. 2. The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor. Included: 1 X Switch Panel 1 Bag X Screws 1 X Manual.Circuit Protection: 20A Push Reset Circuit Breaker. - Blank 1P panel that goes well with other SP33 series panels. Panel depth: 7.5cm/2.95". - 5 pcs assorted label stickers included for various switch functions.
