12V 24V 32V Automatic Boat Submersible Bilge Pump Float Switch Leak Proof On Off Controller Electric Bilge Switches for Marine Yacht Accessories
Feature:

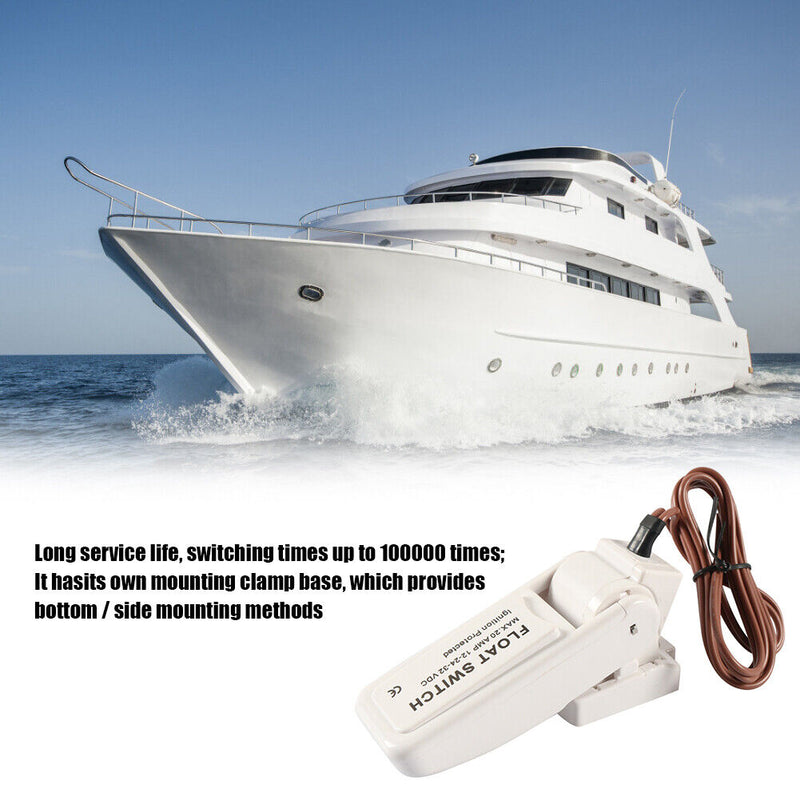

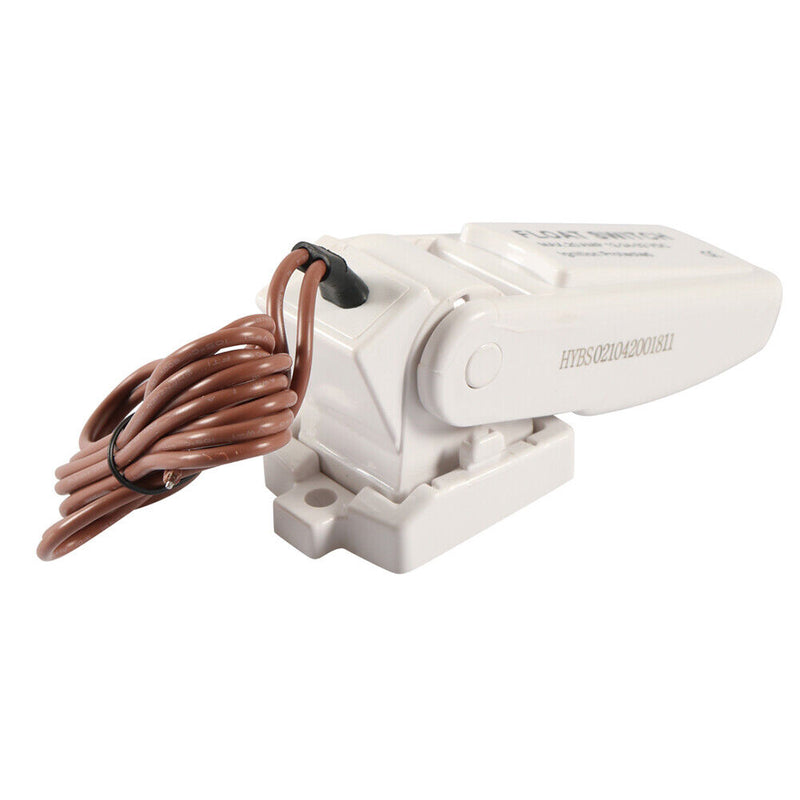

1. Long service life, up to 100,000 times of switching self-contained installation card holder, providing bottom/side two installation methods
2. The horizontal plane 55mm/2.17in is automatically turned on 25mm/0.98in is automatically turned off and the thickness of the pad material under the installation base can be increased/decreased to meet the positioning requirements of different liquid level heights
3. Use high-quality copper cable connection with a diameter of 3.5mm (the internal copper wire diameter is up to 2mm) to ensure that it can work normally even if a large current of up to 30A passes through
4. Ultrasonic welding is adopted, and the sealing is formed at one time, which is reliable and safe, and will not leak water
5. The shell is made of high-quality ABS material, and the internal metal contacts ensure reliable start/stop
6. With the water pump, an automatic shutdown/start system can be formed to prevent the water pump from idling, dry-running, burning or causing malfunctions it can realize automatic duty without labor and time-consuming guarding.
Specification:

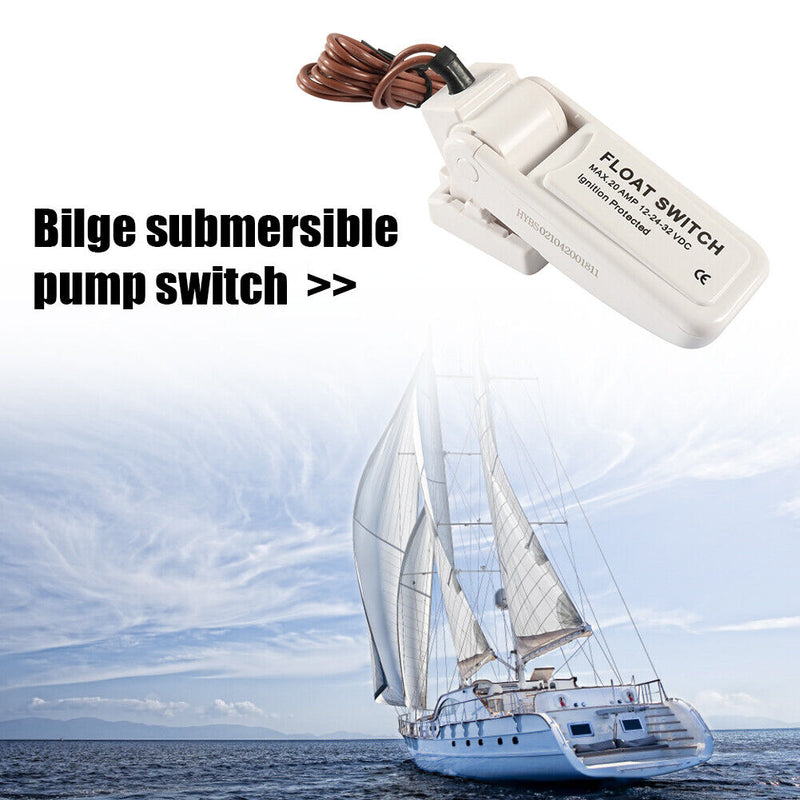

Product name: Bilge submersible pump switch
Product material: ABS
Product color: White
Applicable current:
Max Amps 12Volts-20A
Max Amps 24Volts-10A
Max Amps 32Volts-8A
Applicable voltage: 12-24-32V
Product line length: 1m/3.28ft
Product wire gauge: 18AWG
Starting water level: The water level is higher than 5cm/1.97in
Shutdown water level: The water level is lower than 2cm/0.79in
Installation location: Bottom of the cabin
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2mm measuring deviation due to manual measurement.
