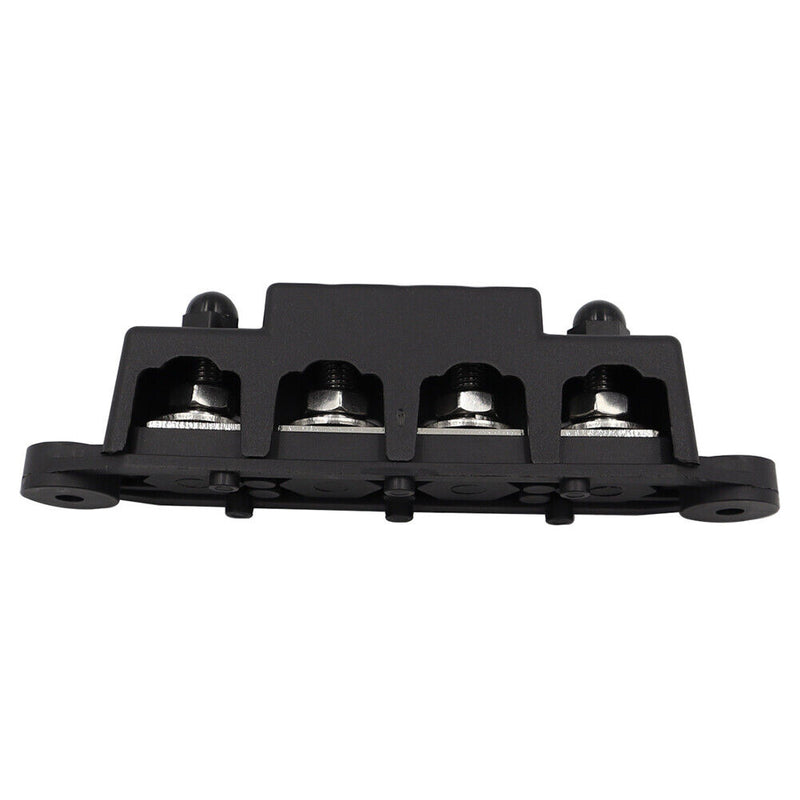

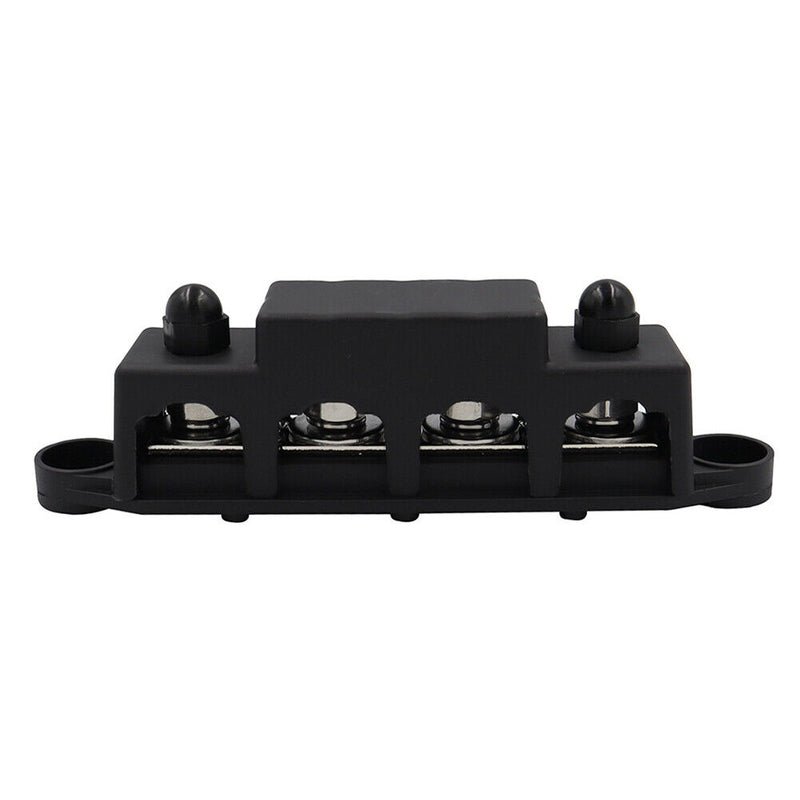

Item Name: 4 Post Power Distribution Block Bus Bar Battery Junction Block (M10 Black) Newly. Smart TV Box Android Quad Core HDMI 1080P Wifi Streaming Media Player UK
4 Post Power Distribution Block Terminal Screw Bus Bar M8 M10 High Current Wiring Stud Battery Junction Block for RV Ship Car Marine Boat
Specification:

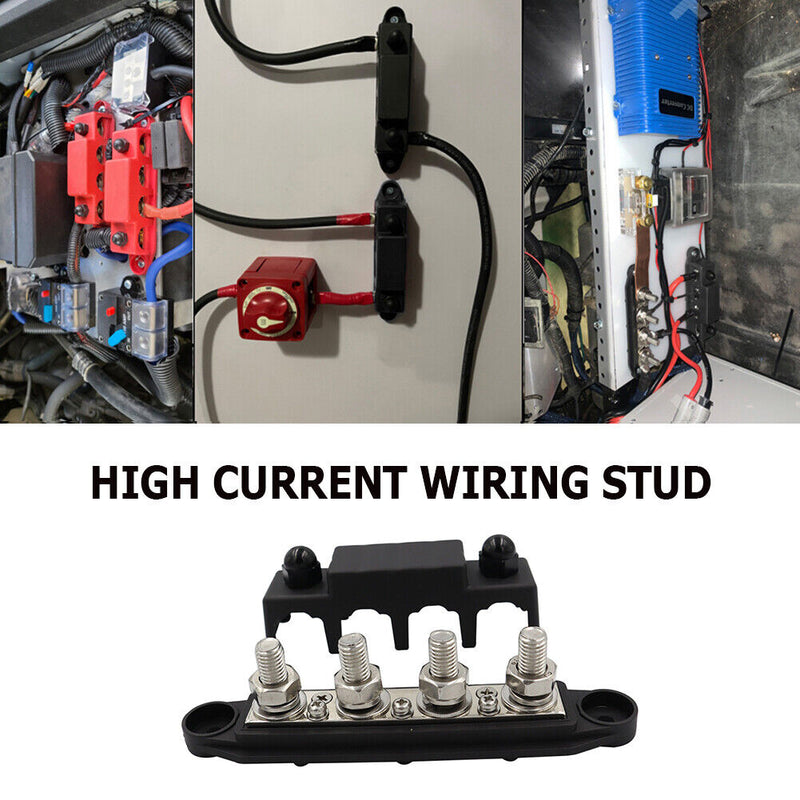

Name: High Current Wiring Stud Bus Bar
Weight: M8 stud: about 210G, M10 stud: about 250G
Color: Black, Red
Package: Neutral carton

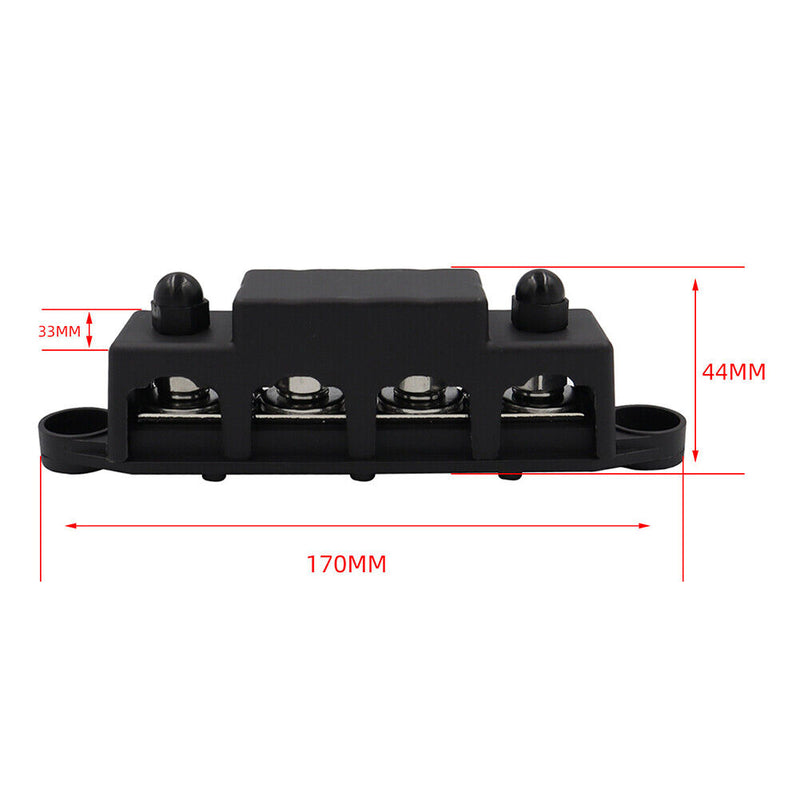

Product size: about 170*44*33mm/6.69*1.73*1.30 inch
product material: ABS, zinc alloy, brass
Maximum voltage: 48V DC
Rated current of each stud: 62.5A
Rated current of the entire electric block: 250A
Auxiliary terminal screw current: 20A
Product function: Bring the wire harnesses together to reasonably store the wires inside the vehicle and boat.

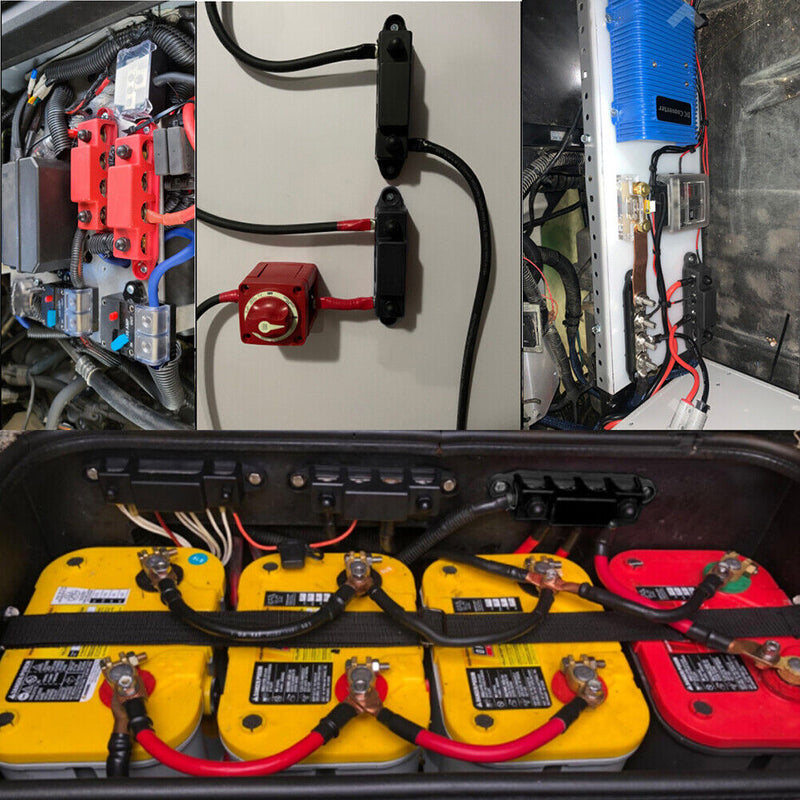

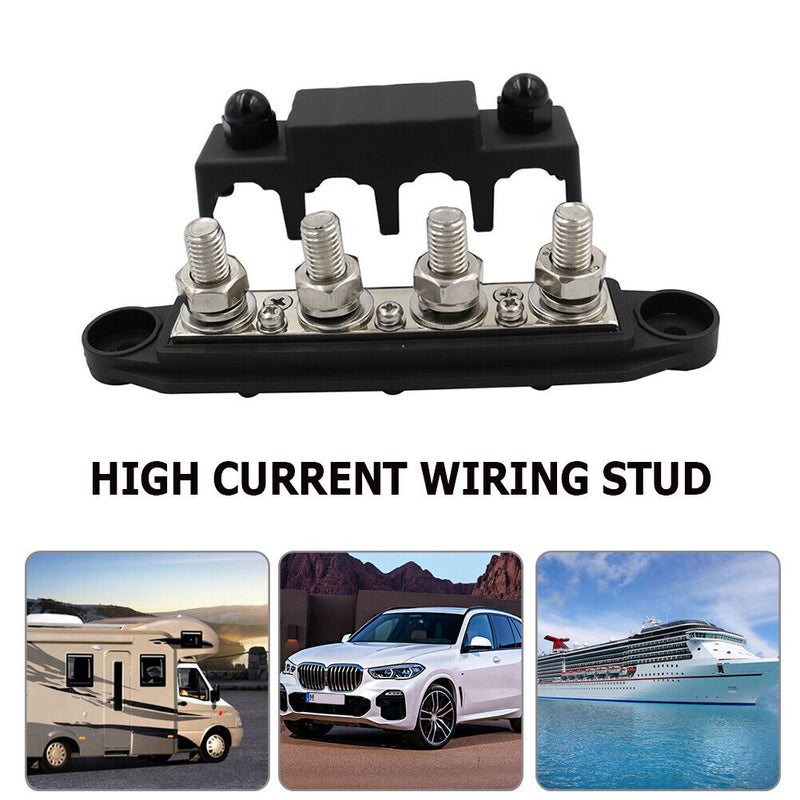

Scope of application: In the power system of automobiles, RVs, ships, yachts, etc.
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
