Item Name: 90pcs Circuit Cable Tester Automotive Lead Test Diagnostic Repair Tools Kit. Smart TV Box Android Quad Core HDMI 1080P Wifi Streaming Media Player UK
90pcs Circuit Cables Tester Automotive Lead Test Diagnostic Repair Hand Tools Kits with Terminals Alligator Clip
Feature:
1. When testing the component, it can be directly measured from the rear of the wire harness plug terminal without damaging the line, reducing the damage of the line insulation rubber, thereby reducing the impedance caused by the rust of the line.
2. Applicable to any meter, extension of the oscilloscope probe, reduce the trouble of wiring when checking the line, help fast detection.
3. When measuring current, it is not necessary to cut or disconnect the wire, and the wire with resistance can be connected to the circuit in series.
4. The variable resistor can be like the water temperature sensor plug, the hypothetical signal of the throttle position sensor component to the computer, saving the risk of replacement.
5. Equipped with two LED lights, can monitor Hall, photoelectric signal, fuel injector, solenoid valve, automatic transmission shift solenoid valve and other actuator control signals.
6. SRS replacement resistors, can simulate airbags, seat belt tensioners, to avoid accidents and misjudgments during maintenance.
7. Various wire resistances in the box can be applied to plug terminals of various European, American and Asian car systems, with high versatility and convenient operation.
8. Turn your test and measurement equipment into a powerful diagnostic tool.
9. Fault finding for more and more sensors, actuators and electronic circuits found on today's vehicles.
10. Used to track, inspect, capture or repair complex vehicle circuits.

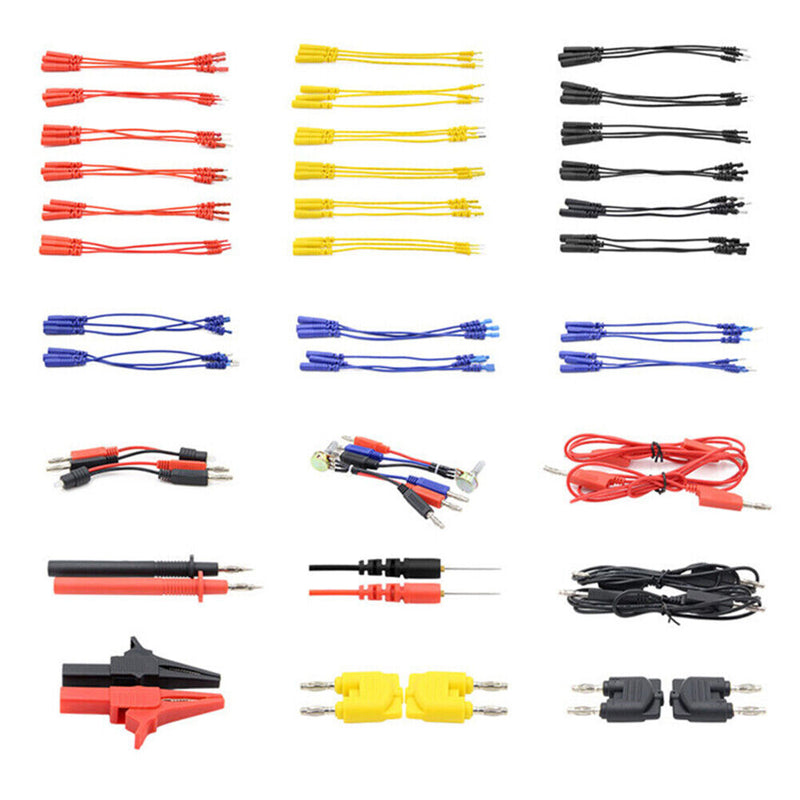

11. Basic test aids containing 90 pieces of lightweight packaging.
Specification:
Material: Plastic
Color: Red + Black + Blue + Yellow
Weight: 3kg
Packing size: 380x250x100mm/14.96x9.84x3.94in

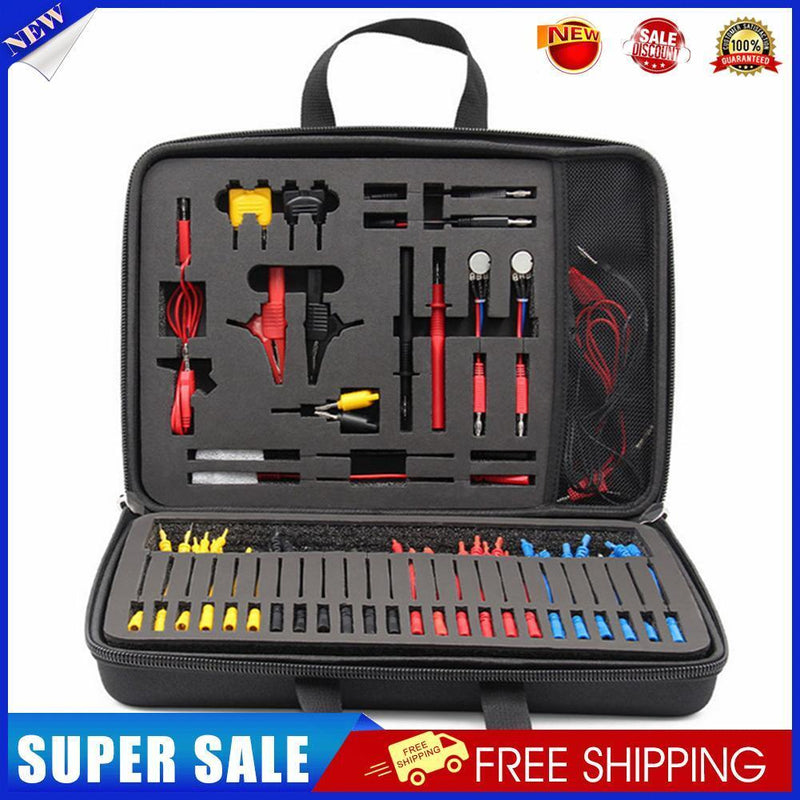

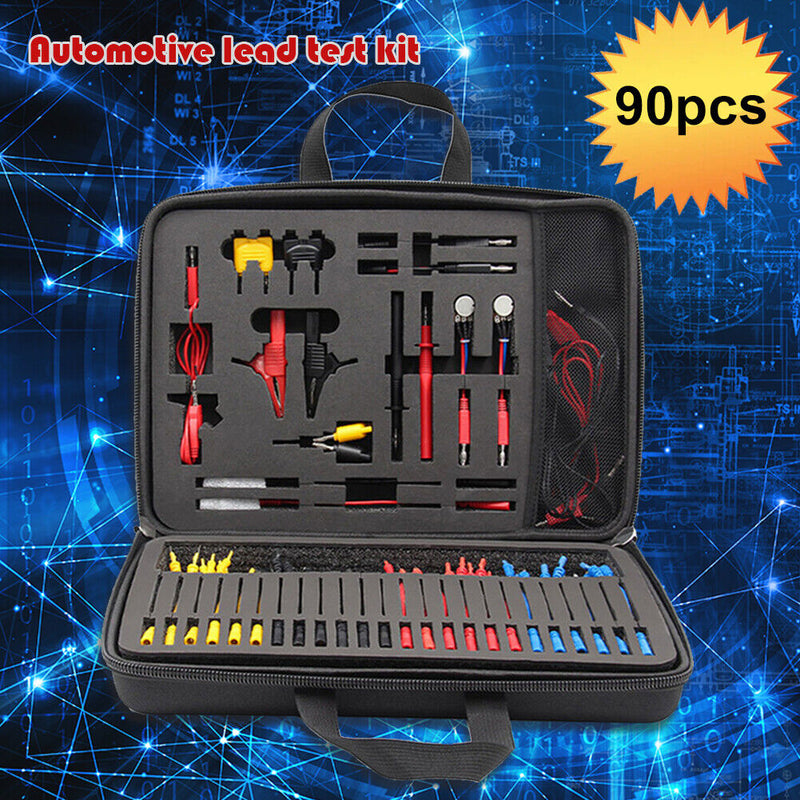

Automotive lead test kit:
The test set includes a variety of test terminals, which is convenient for the maintenance technician to arrange and use.
It can diagnose and test the electronic control system of the car, and it is convenient for the connection box to obtain the output and input signals of the automobile sensor and the electric device, so as to facilitate the connection of the automobile electrical connector. Box test equipment.
Application:
Easy to connect the terminals of the car sensor and car ECU
Easy to test sensor pulse and power device signal
Easy to connect test instruments to obtain test signals

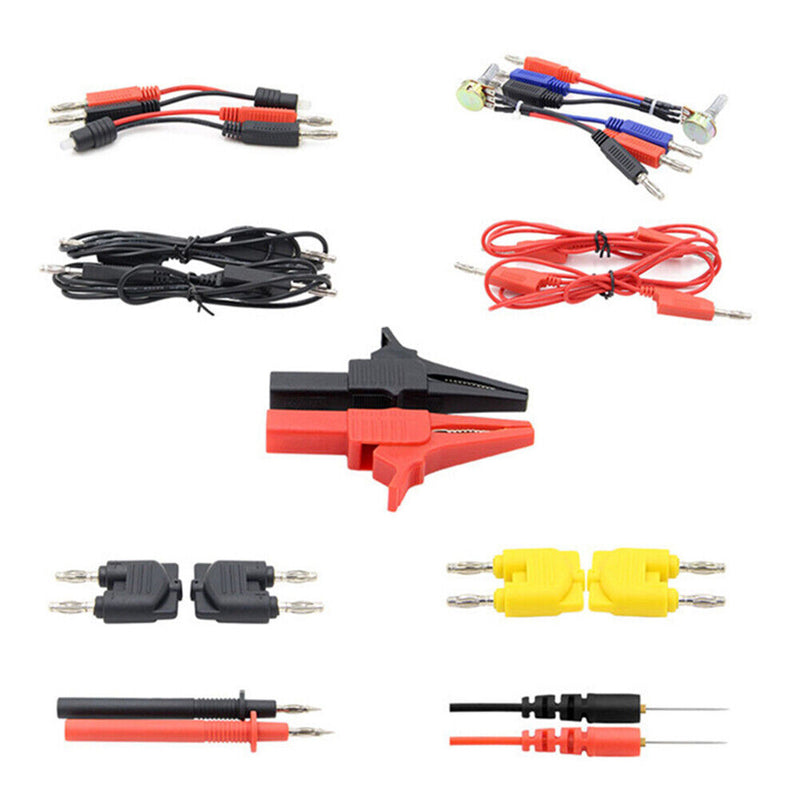

Analog resistance signal and airbag

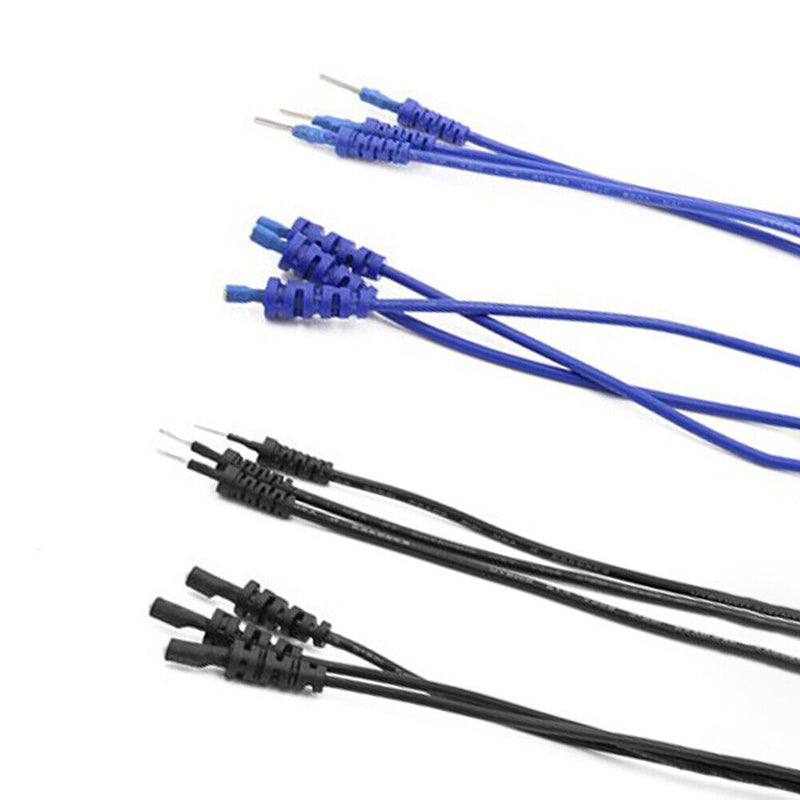

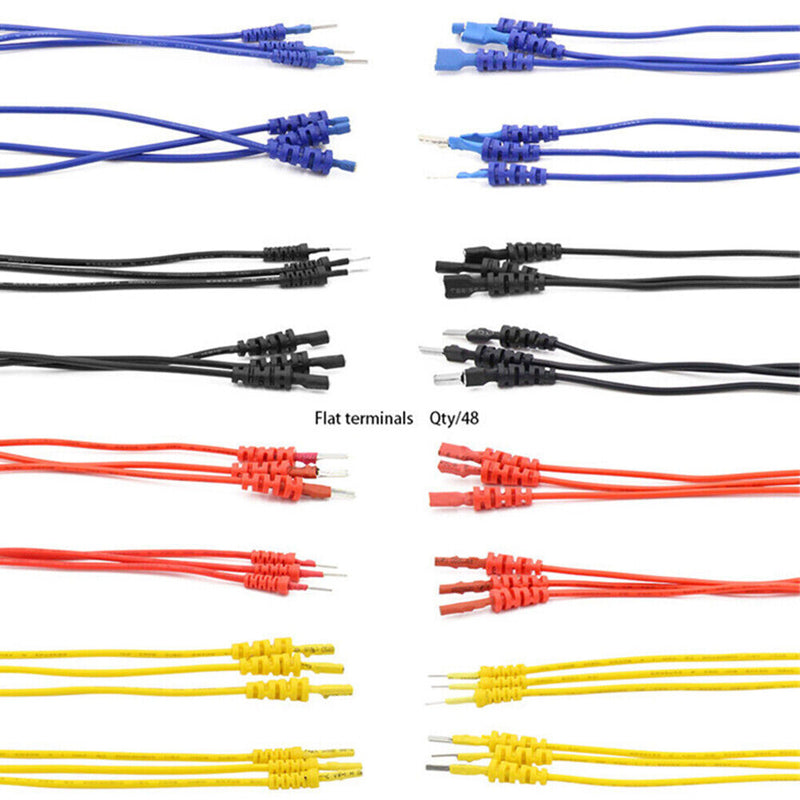

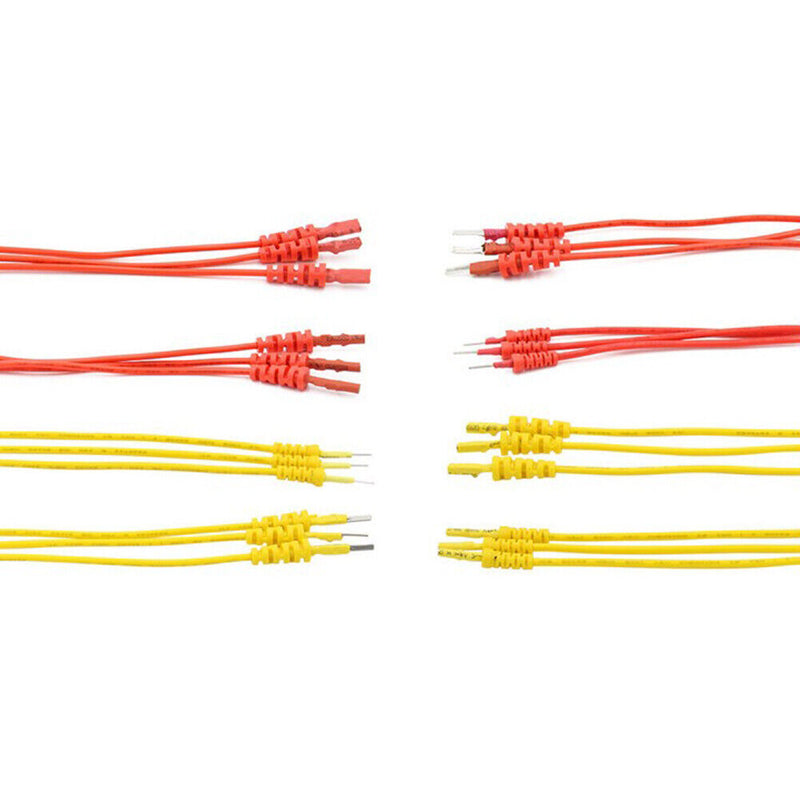

The automotive test terminals contain various male and female terminals for diagnostic and test connections of automotive electronic control systems.
It is convenient for auto service technicians to connect car ECUs and electronic connector terminals.
Banana jacks are easy to connect with automotive test instruments. Service technicians save time and increase work efficiency.
Descriptions:
This test leads contain most of male and female terminals for connecting cars electronic system and your testing tools. It is easily connect car and test equipment through these sets of leads.
Work with this set leads can save time and convenient. It's an indispensable test aid for car diagnostics.
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
