Item Name: AN-01D Car Solar TPMS Clock Auto Tyre Pressure Monitoring System (External). Smart TV Box Android Quad Core HDMI 1080P Wifi Streaming Media Player UK

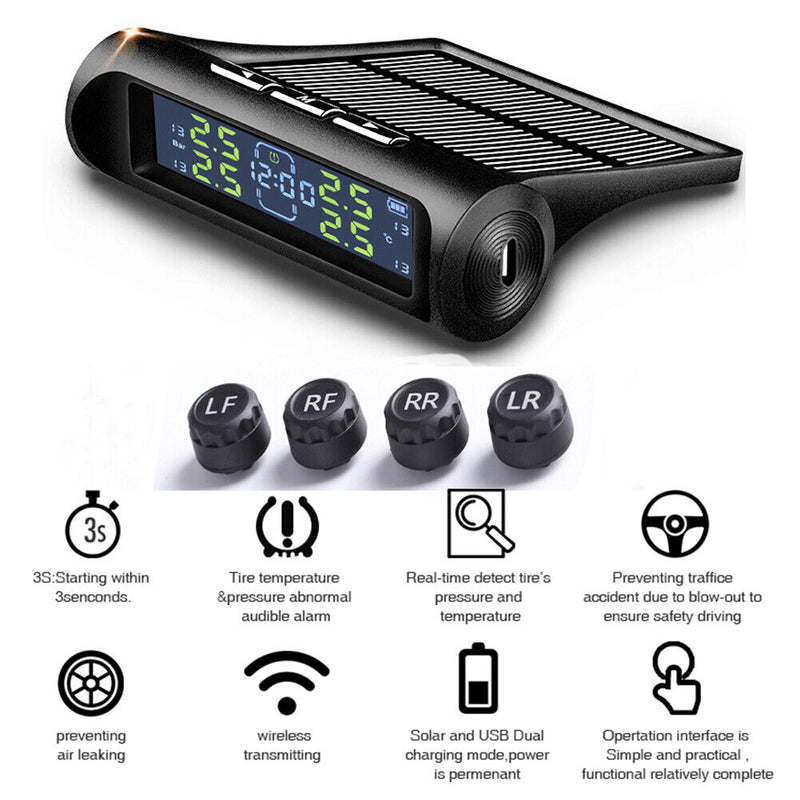

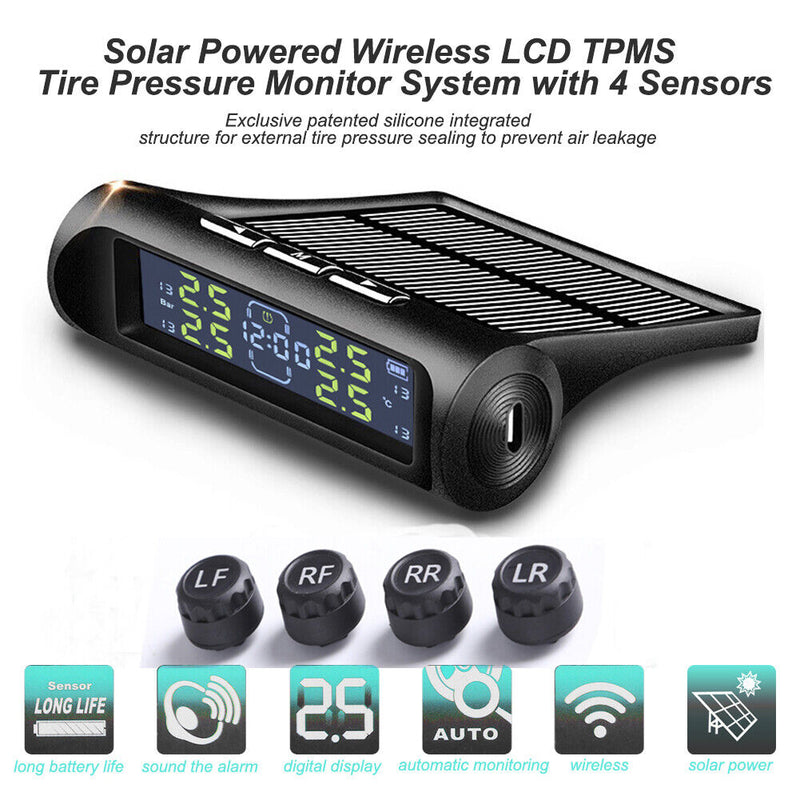

AN-01D 2 in 1 Car Solar TPMS Clock LCD Display Auto Tyre Pressure Temperature Monitoring Alarm System with 4 Sensors
Description:

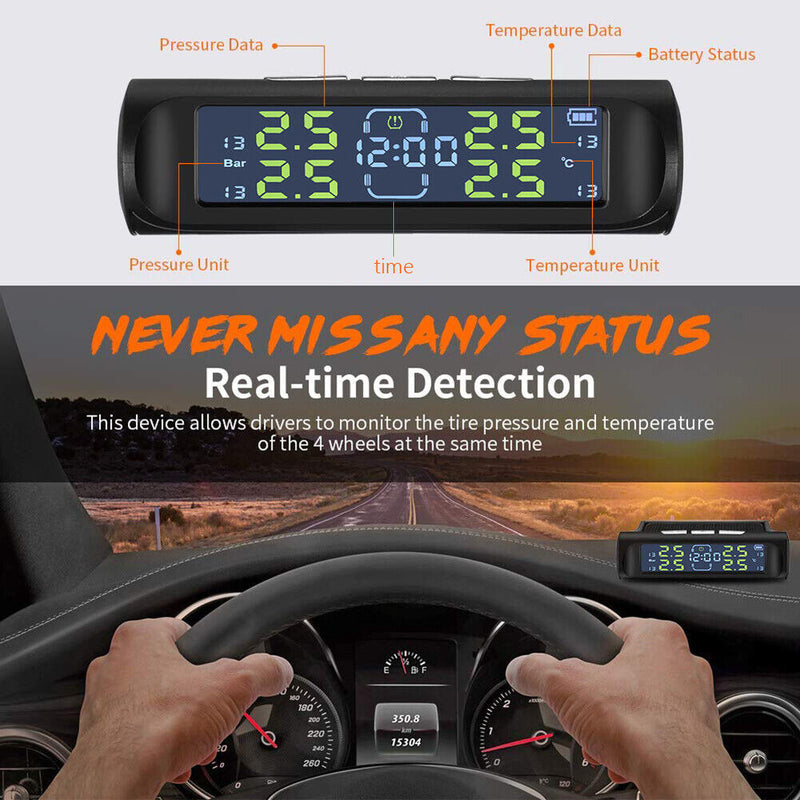

Real-time monitoring function: Whether the vehicle is driving or stationary, the pressure and temperature status of each tire can be monitored, and the tire status is under control.

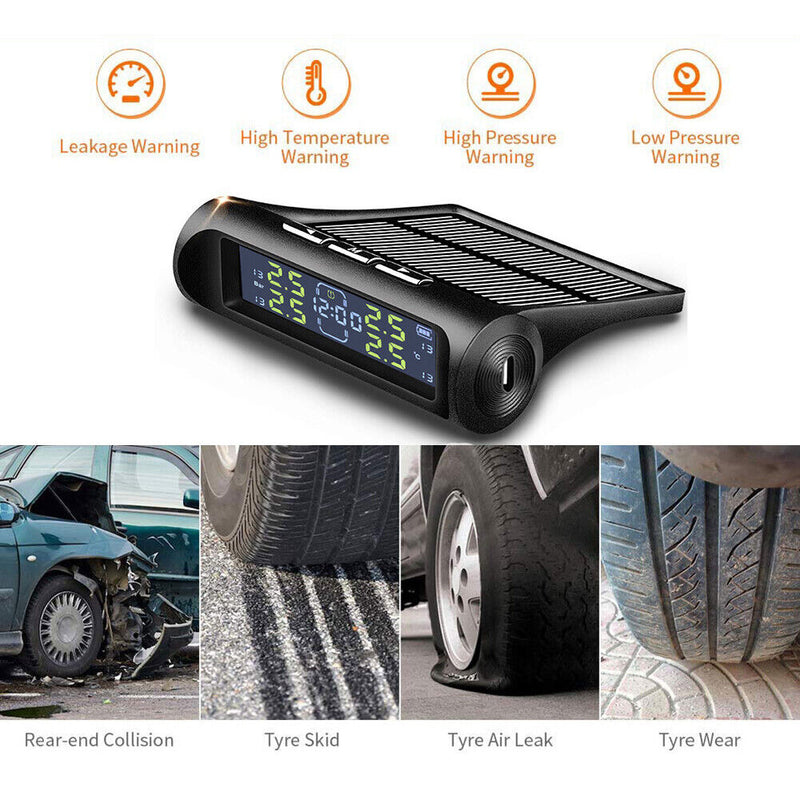

High/low pressure alarm function: When the tire pressure is higher or lower than the set value, the system will alarm.
Air leak alarm function: If a foreign object penetrates the tire to cause air leak, the system will alarm.
High temperature alarm function: When the tire temperature exceeds 80, the system will alarm.
Ultra-low energy consumption function: extremely optimized working mode, system battery life up to 5 years.
Feature:

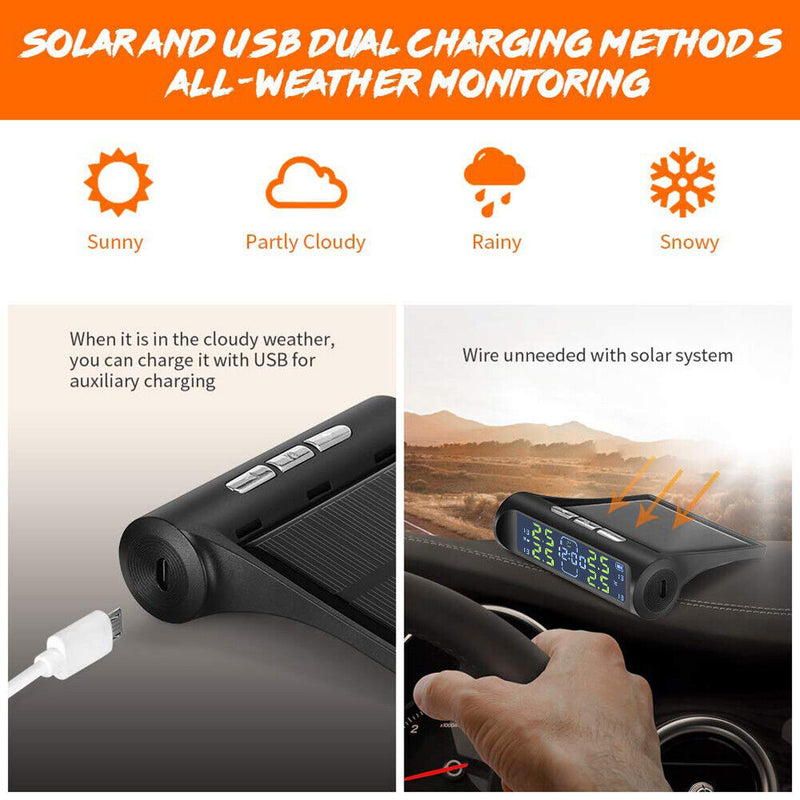

High-efficiency solar panel, super battery life.
Large-capacity built-in metal lithium battery, unimpeded battery life in cloudy days.
Accurately monitor tire pressure stability throughout the process.
LCD high precision liquid crystal display.
High volume alarm sound warning.
Multiple tire pressure units are available.
Long receiving distance, stable signal.
Support tire position interchange.
Tire pressure detection system.
Tire pressure alarm, solar charging, wireless transmission.
Monitor 4 tires at the same time, color screen display.
Built-in high-precision clock chip, 12/24 hour format.

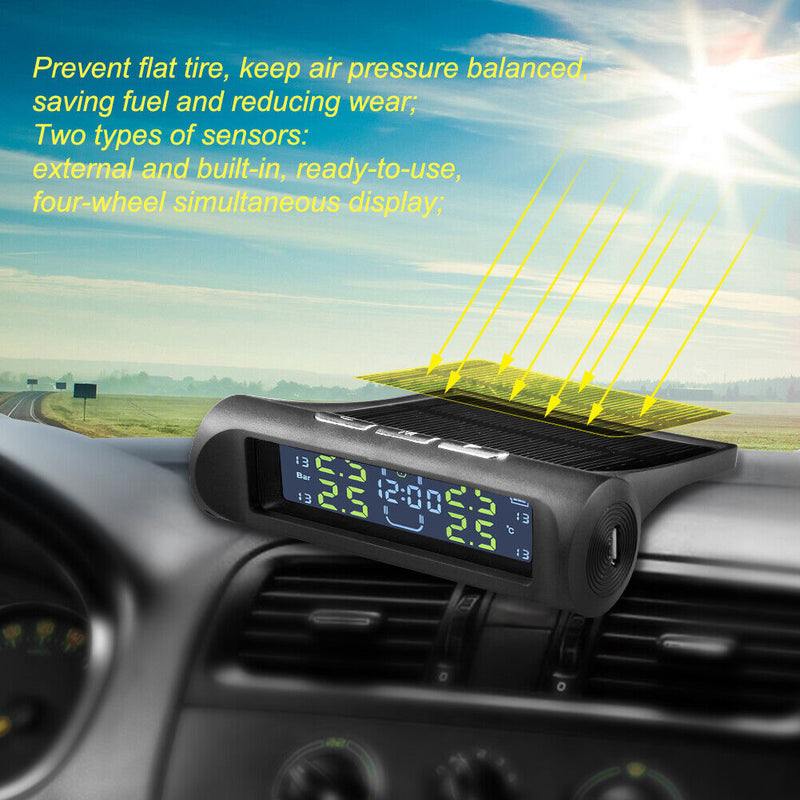

Prevent problems before they occur: prevent flat tire, air leaks, balance air pressure, save fuel, and reduce wear.
Two types of sensors: external, built-in, ready to use, four wheels with the same display
External sensor
Battery life is about two years, replaceable (installed on valve core).
The surface of the shell adopts anti-corrosion coating.
Use hexagonal nut anti-theft patent.
Adopting a unique external tire pressure sealing and ventilation mechanism patented silicone integrated molding structure to prevent air leakage
Internal sensor
The battery life is about five years, and the battery can be replaced (replace the valve core of the original car and balance it after installation.)
Adopt aviation road alloy material nozzle.
Battery from Japan.
The shell is made of nylon chemical fiber material to prevent corrosion.
An adjustable angle link is used between the air nozzle and the sensor to ensure that the angle is adjusted to be flush with the edge of the groove of the wheel during installation.
Specification:
Sensor type: Internal, External (Optional)
Sensor communication failure alarm time: 10min
Battery model: CR2450HR (550mAh)
RF frequency: 433.920.1MHz
Average working current without radio frequency emission: 1A
Maximum working current of radio frequency emission: 15mA
High frequency transmitting power: 7~9dBm at 50
High frequency modulation method: FSK (9.6kbps)
Low frequency receiving frequency: 1255 kHz
Low frequency receiving mode: ASK (3.9Kbps)
Low frequency signal receiving sensitivity: 1~50mVp-p
Pressure measurement range: 0~3.5Bar
Pressure measurement resolution: 25mBar
Temperature measurement resolution: 2
Pressure measurement accuracy: 75 mBar at -20~+70, 150 mBar at -40~+120
Temperature measurement accuracy: 4 at -20~+70
Resistance to rotation acceleration: 1500g
Operating temperature range: -40~+105
Storage temperature range: -40~+125
Size: 90*75*25mm/3.54*2.95*0.98"
Weight: 68g
Note:
1. There may be slight size deviations due to manual measurement, different measuring methods and tools.
2. The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor.
