CS-095D1 22mm 7/8 inch Motorcycle Handlebar Electric Heated Silicone Grips Motorbike ATV Handlebar Warmer
Feature:

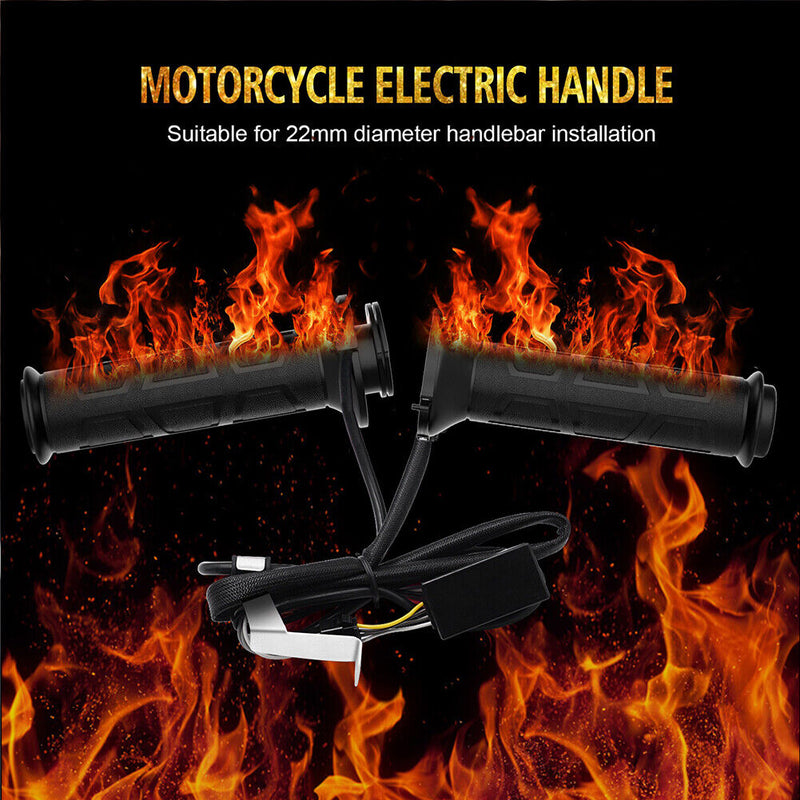

1. 12V voltage, suitable for 22mm diameter motorcycle handlebars

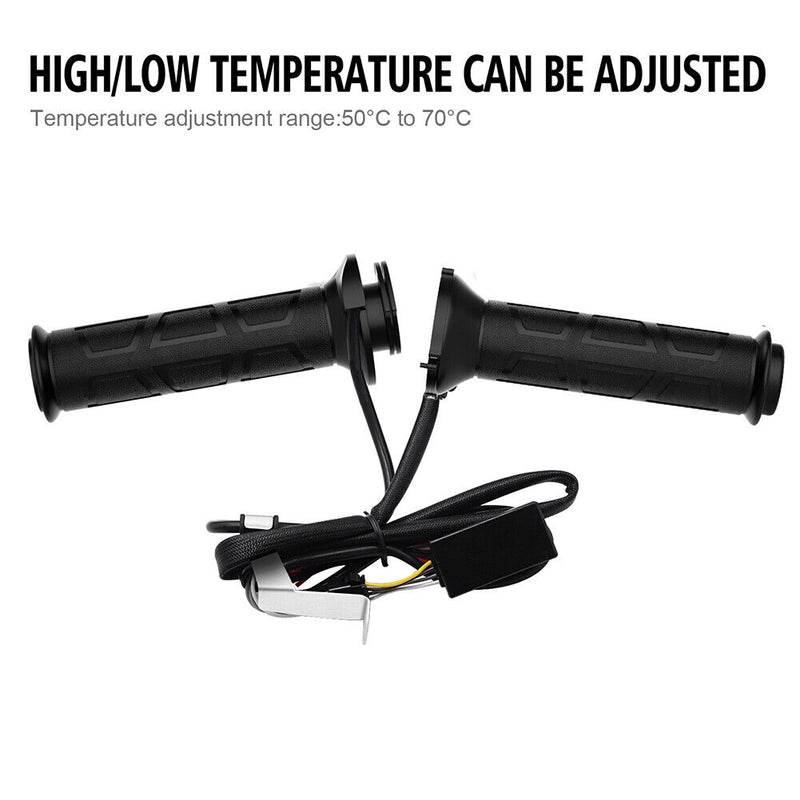

2. The product is equipped with high and low gear switches, and the handle temperature can be adjusted at will (50-70 adjustable)
3. Double throttle cable buckle, wider installation range
4. The design can be sealed and can be pierced, which does not affect the installation of the handle outside the handle, and then the lights and other decorative accessories are more beautiful and convenient
Specification:
Product model: CS-095D1
Product net weight: 236g
Product gross weight: 260g
Product color: black
Grip size: 143*36mm/5.63*1.42" (left)
127*36mm/5.00*1.42" (right)
Grip inner diameter: 22mm (7/8 inch)
Input voltage: 12V
Product power: 15W-35W adjustable
Grip temperature: 50-70 adjustable
Switch type: multi-temperature adjustable switch

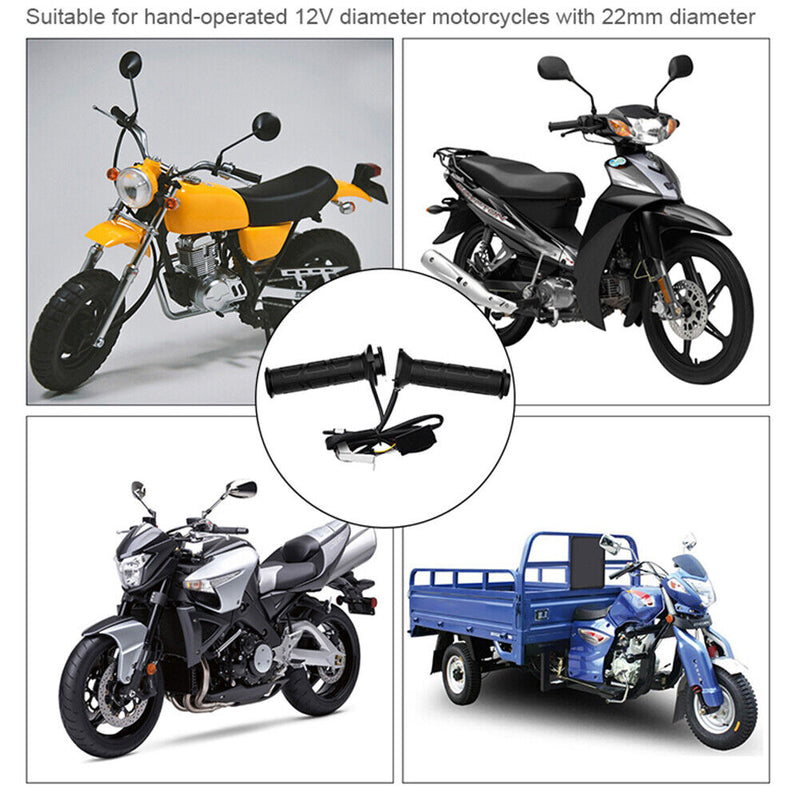

Applicable model: for 12V motorcycles with handlebar diameter of 22mm (7/8 inch)
Installation note:
1. Remove the original handlebar grip.
2. Use your left hand to moisten the inner hole with soapy water. The twist angle should not be too large during installation.
3. When installing the balance iron on the left grip, adjust the position of the balance iron to be slightly separated from the grip, and do not squeeze the grip when tightening the screw.
4. If you use the left grip to slide on a steel pipe, remove the balance iron and fix it with a few drops of 502 glue from the end of the grip.
5. The power cord, the red wire is connected to the positive pole, and the black wire is connected to the negative pole. The temperature cannot be adjusted when reversed.
6. When installing the left-hand grip, the power cord should be left enough for rotation.
Precaution:
1. When installing the left grip, do not twist the grip too much. Excessive twisting will cause the heating wire to shift.
2. For models with balance iron, please adjust the installation position of the balance iron. Do not squeeze the grip when tightening the screws. The balance iron is slightly separated from the grip. If the installation position of the balance iron cannot be adjusted, please add a spacer between the balance iron and the grip. Excessive squeezing of the grip may cause difficulty in turning the grip switch, and abnormal damage such as the heating wire squeezing out of the grip surface.
Note:
1. There may be slight size deviations due to manual measurement, different measuring methods and tools.
2. The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor.
