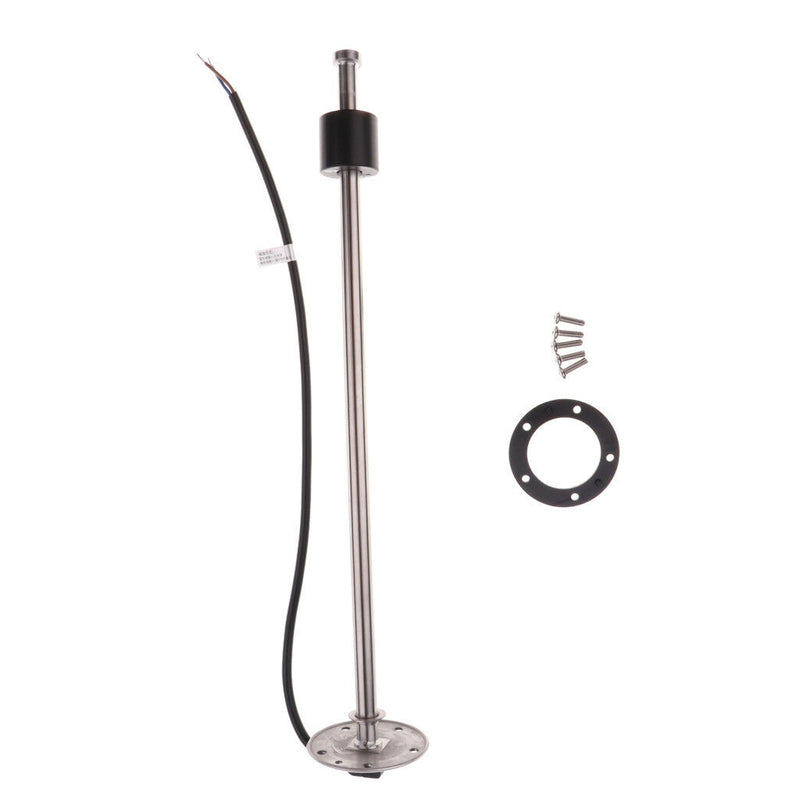

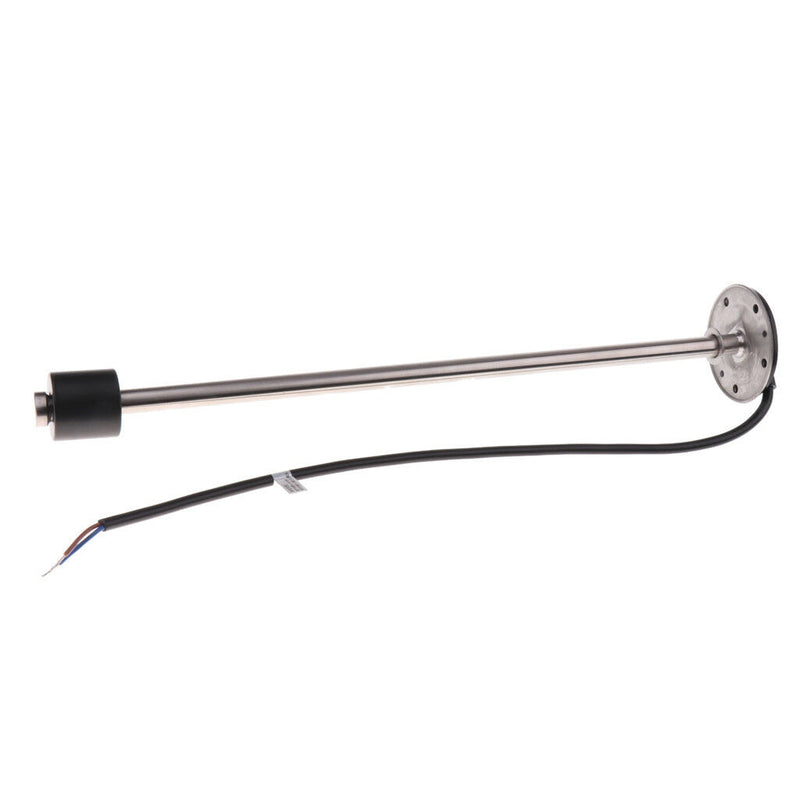

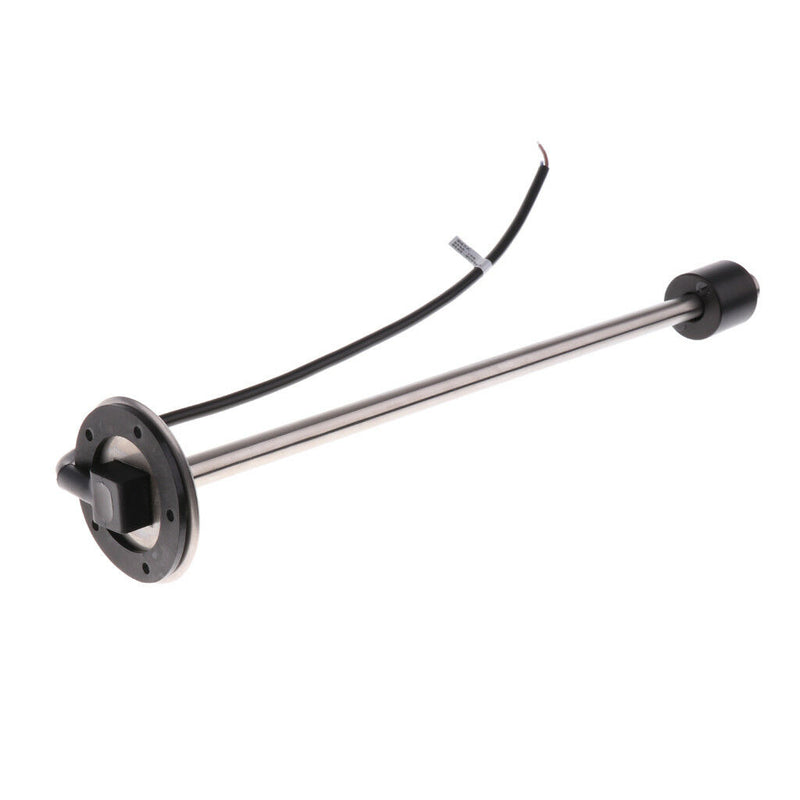

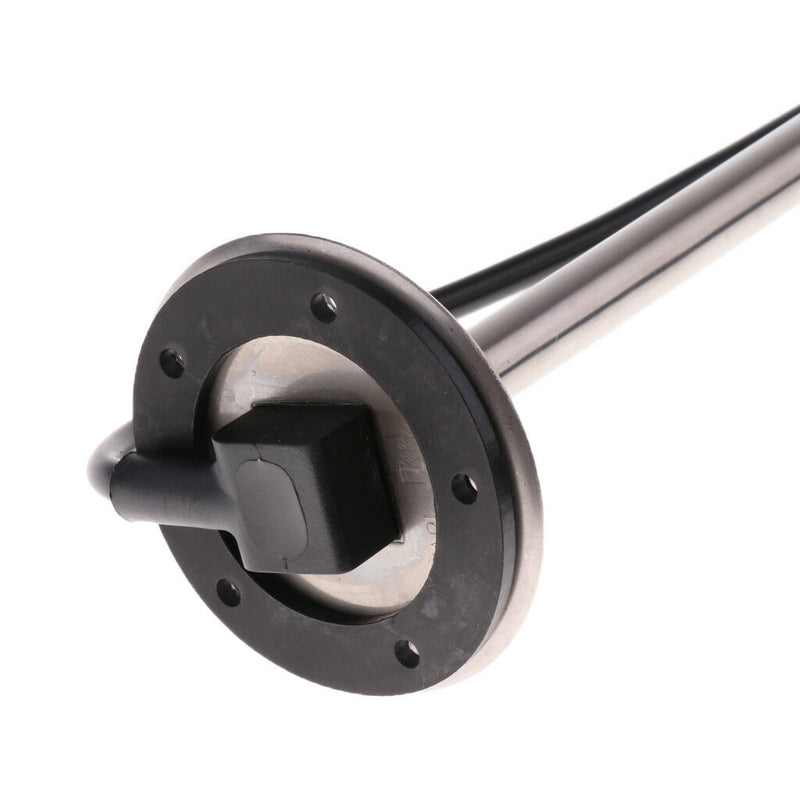

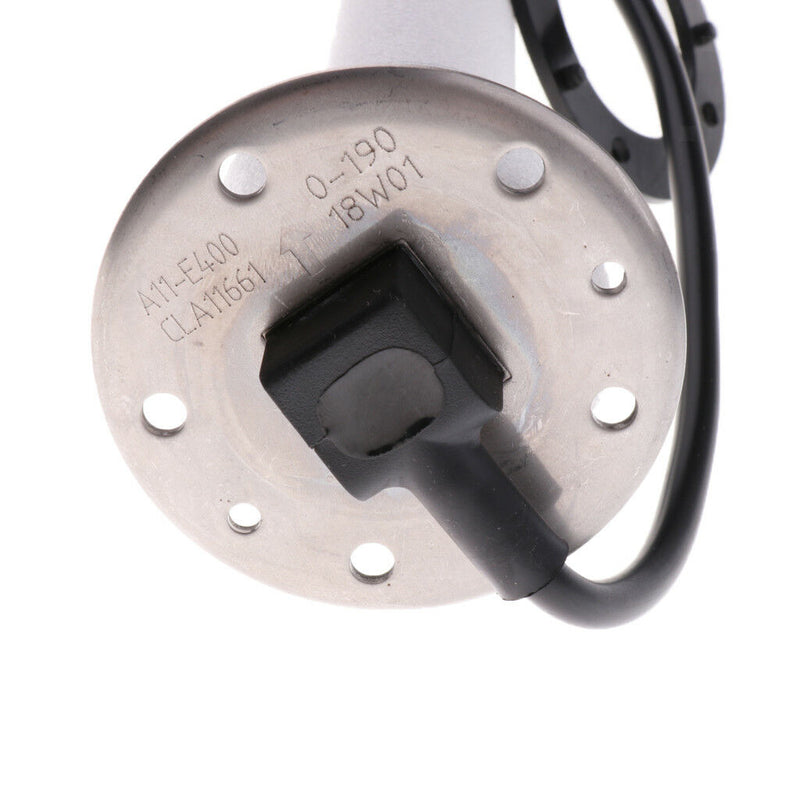

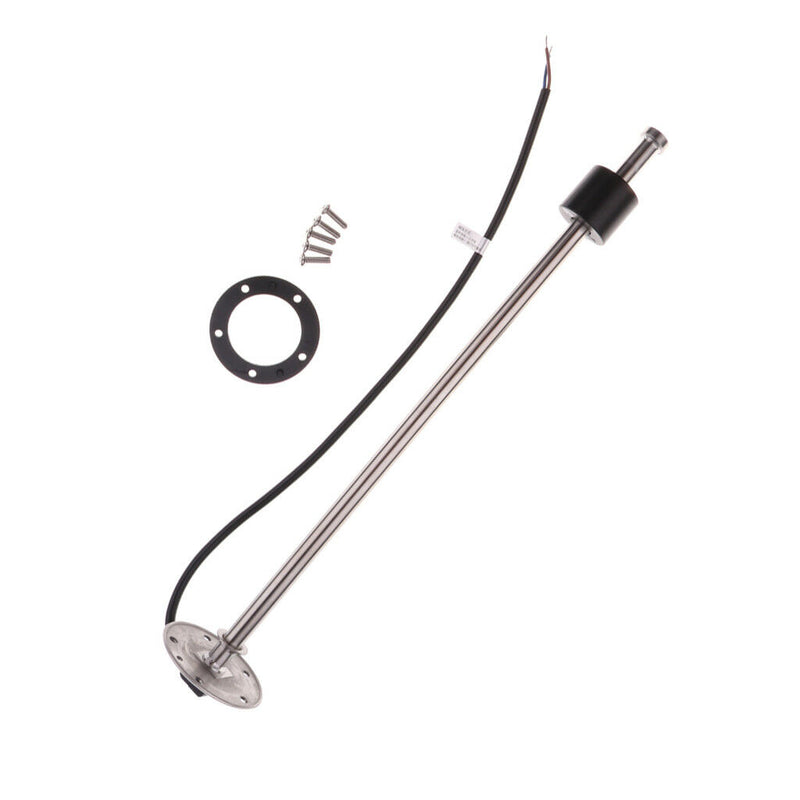

ITEM NAME:Easy Install Safety Car Oil Level Sensor Fuel Liquid Monitoring 400mm Description: Easy to install Corrosion resistance, wear resistance Non-contact measurement, safe and reliable Good seismic performance, impact resistance The service life is long Specification: Main body is made of stainless steel SUS316 or SUS304 Assembly: the SAE standard 5 holes This product is equipped with five M5 thread and 2 mm thick NBR gasket, if used on gasoline tank, suggested that equipped with 2 mm thick FPM gasket Protection grade: IP67 This product USES magnetic field control principle of dry reed pipe contacts on and off, has the characteristics of long service life and aseismatic explosion-proof Rated power: 125 mw Alarm switch current rating: 500 ma Wire: PVC material (can choose PA corrugated tube protector) Connector: can choose according to D elphi, tyco, etc Output signals: 0 ~ 190 ÃŽ © (standard), Precision range: 10 ~ 40 mm Working temperature: - 40 Â ° ~ + 85 Â ° Use scope: All kinds of vehicle fuel tank oil level test Industry in a variety of liquid detection Package Includes: 1 Piece Oil Level Sensor.This product is equipped with five M5 thread and 2 mm thick NBR gasket, if used on gasoline tank, suggested that equipped with 2 mm thick FPM gasket. Corrosion resistance, wear resistance. Industry in a variety of liquid detection.
