Name: 1.14 Inch TFT Display IPS LCD Screen ST7789 HD LCD Display Module
Brand: Banggood
SKU: U2I-BG-1549906
Price: 1,864.00 INR
Availability: InStock

SKU: U2I-BG-1549906

Share this product

Feature:

Size	1.14 inch
Material	HD IPS color screen, the color is more vivid than ordinary TFT LCD
Resolution	135*240 display direction can be adjusted, support horizontal and vertical screen
Control chip	ST7789
Display area	14.864(H) x 24.912(V)mm
Physical size	28(H) x 31.4(V)mm
Interface Type	4-wire SPI interface
Number of pins	8PIN (the pin is not soldered by default)
Viewing direction	Full view
Operating temperature	-20~70°C

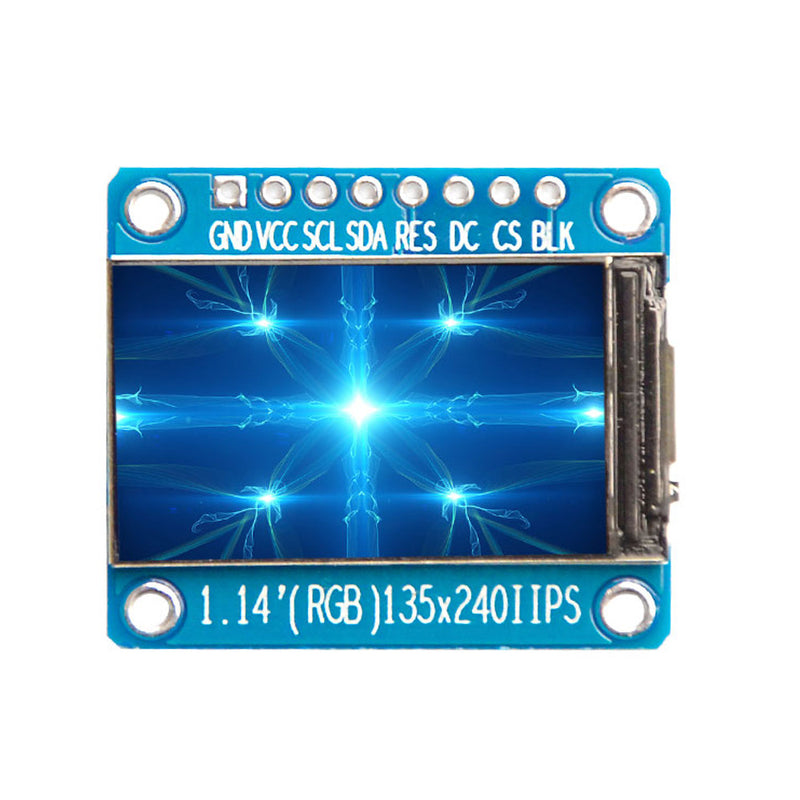

PIN Descriptions:

Number	Pin	Description
1	GND	Power ground
2	VCC	Power supply is 3.3V
3	SCL	SPI clock line
4	SDA	SPI data line
5	RES	Display reset pin
6	DC	SPI data / command selection foot
7	CS	SPI data chip select, active low
8	BLK	LCD backlight control, the default can be left floating, low level to turn off the backlight

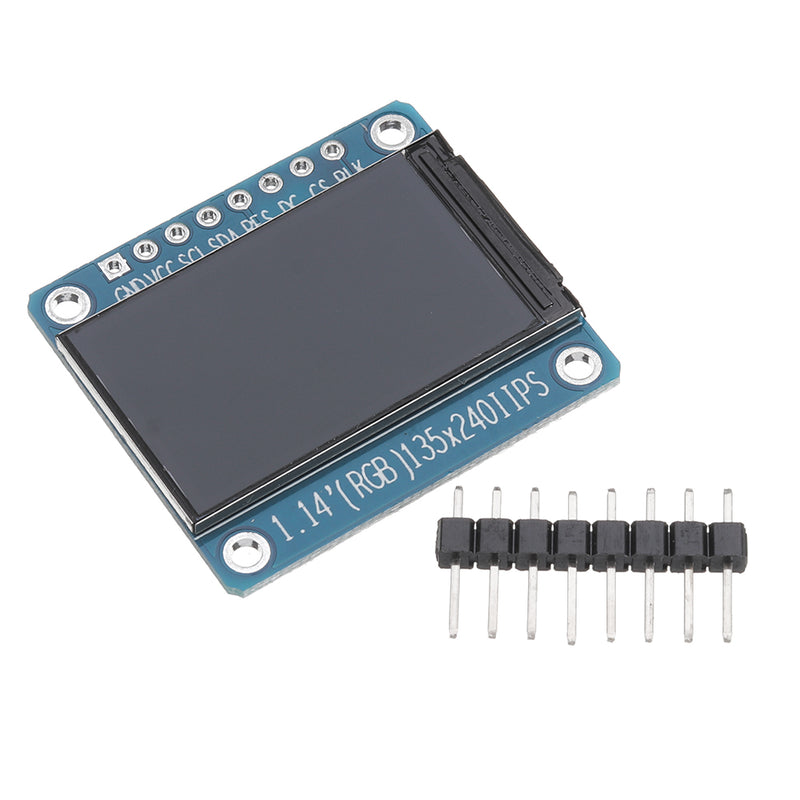

Package includes:

1 x LCD screen board
