* Main Features
-Low power consumption, low cost
-Use in TV meeting, picture phone, visible doorbell, PC multimedia playing, treatment instrument, etc.
-Output pattern: CCIR/ELA (PAL/NTSC)standard visual frequency signal
-Camera lens focus and visual angle: 6mm, 93? °
-Differentitating rate: 380TV line
-Supply voltage/power consumption: 9V 100mA
* Specification
-Camera shot: 1/3 picture sensors
-TV System: PAL/CCIR NTSC/EIA
-Effective element:
PAL: 628x582
NTSC:510x492
-Picture area:
Pal: 5.78x4.19
NTSC: 4.69x3.45
-Definition: >= 300lines
-Scanning frequency: PAL/CCIR:50HZ NTSC/EIA:60HZ
-Minimum illumination: 0LUX
-Scan frequency: +18Db-AGC ON-OFF
-Signal Noise Ratio: >= 40dB
-Electronic Shutter Time: 1/60 ~ 1/15000 second
-Noise: <0.03% peak value
-Power supply: DC +6V ~ 9V
-Power consumption: =< 640mW

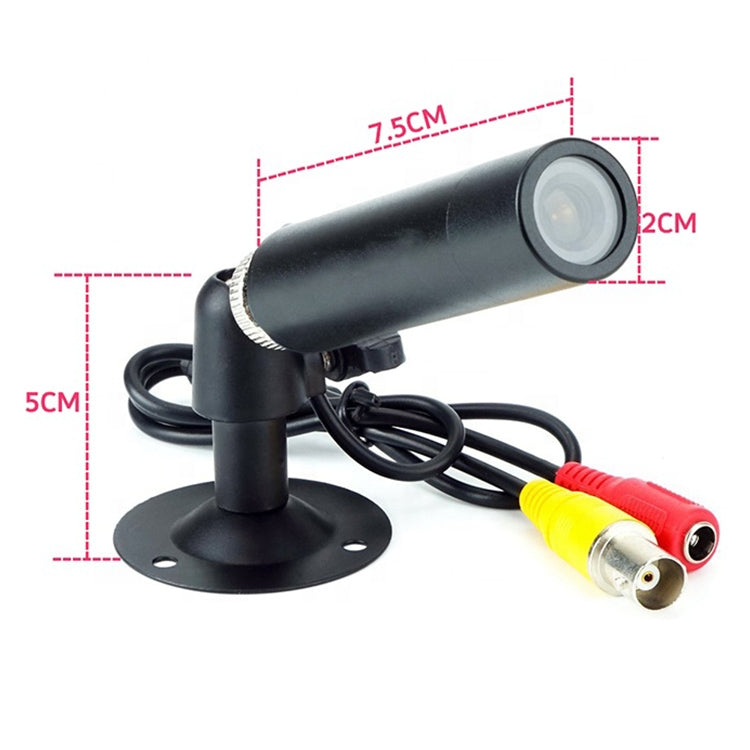

-Size: 80x20x20mm
