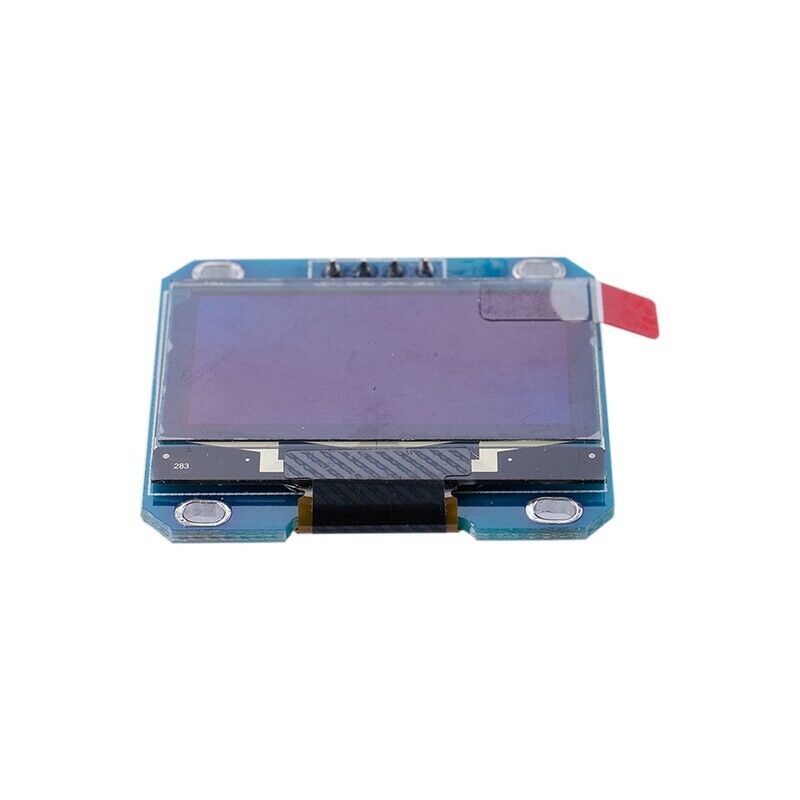

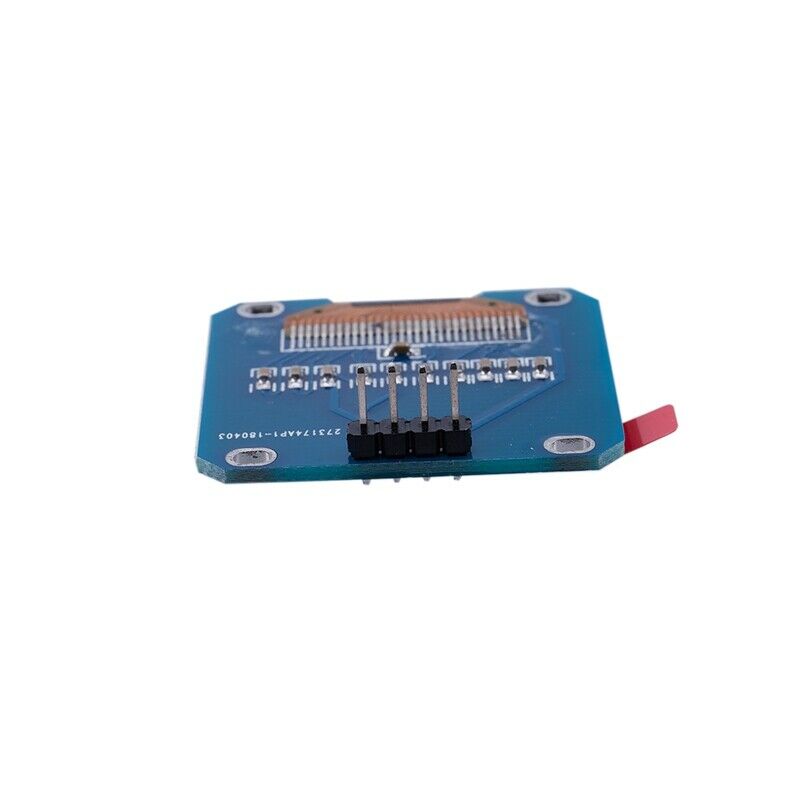

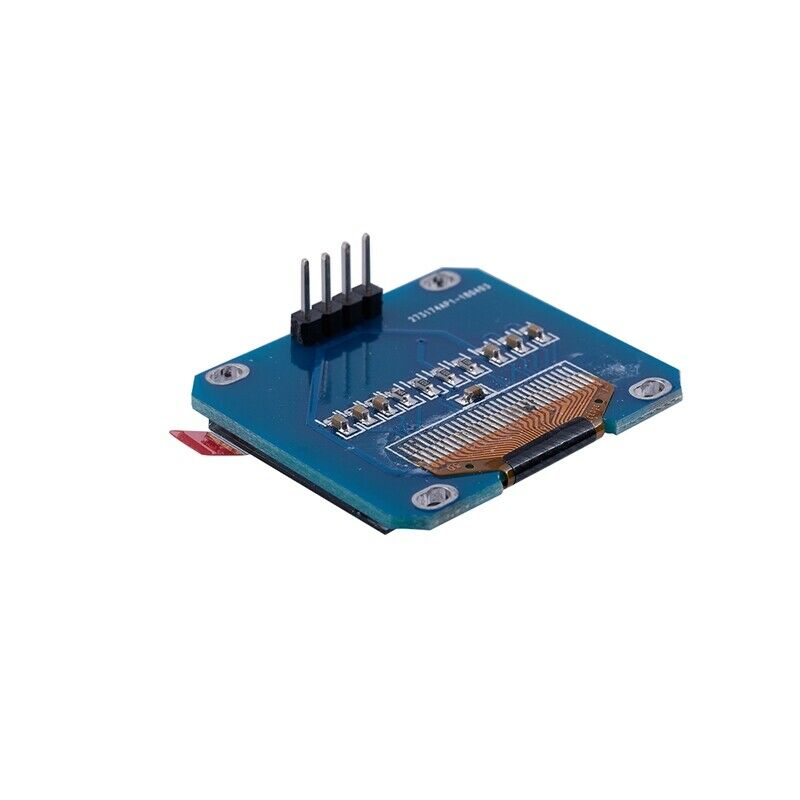

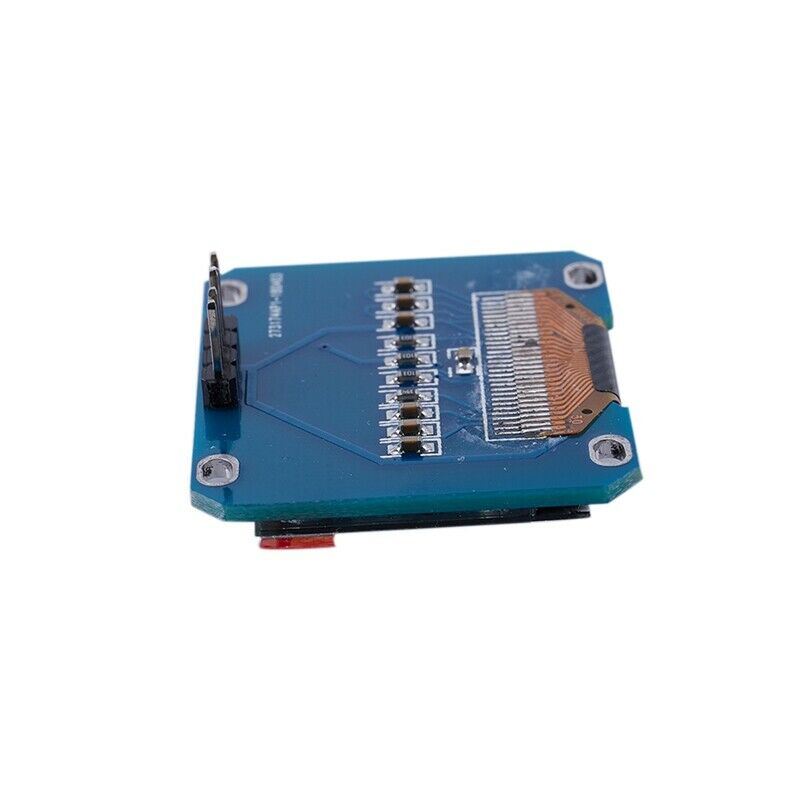

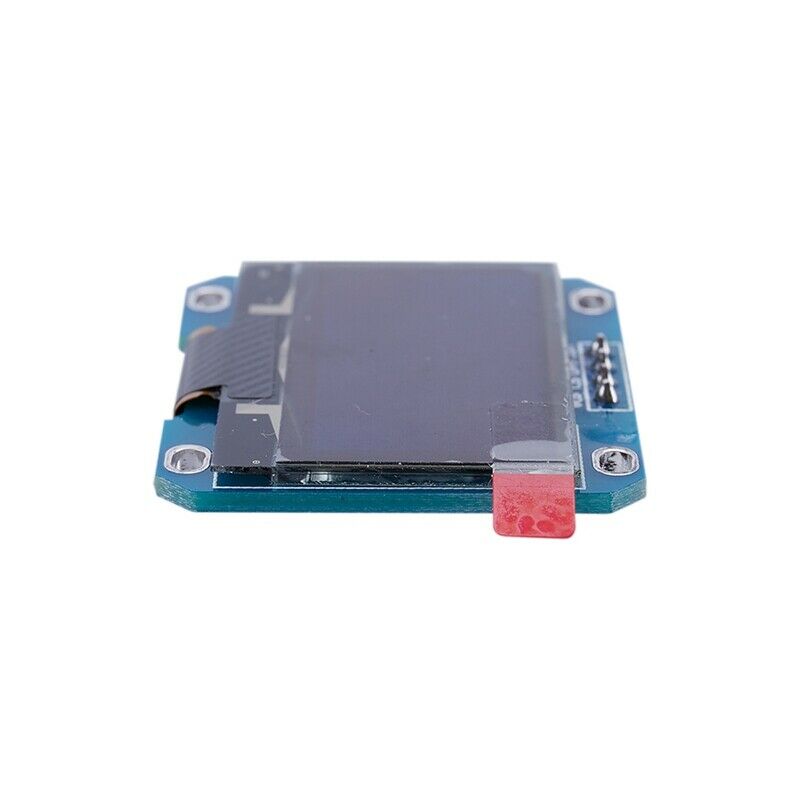

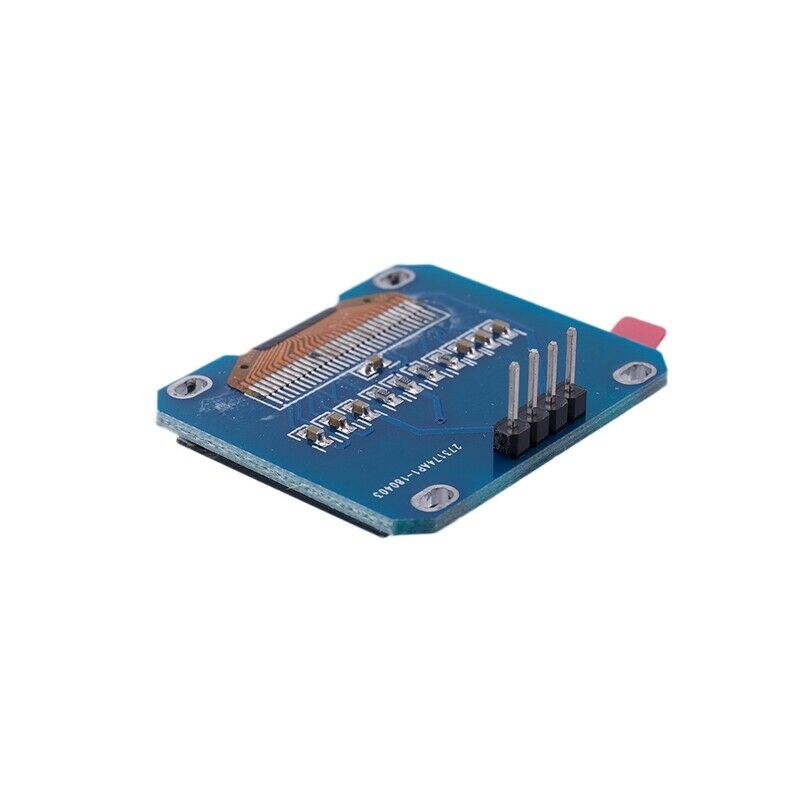

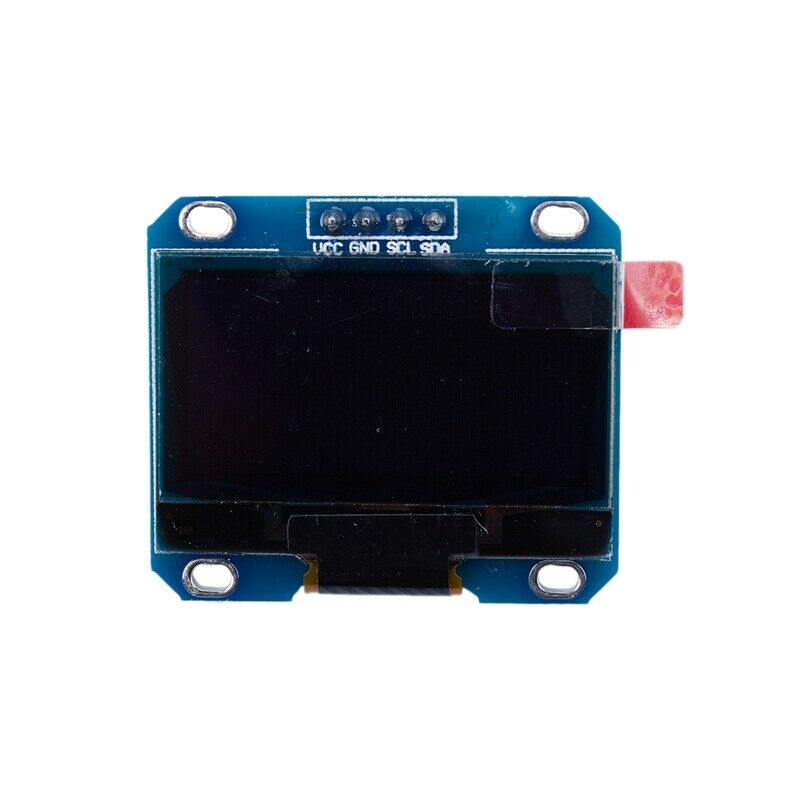

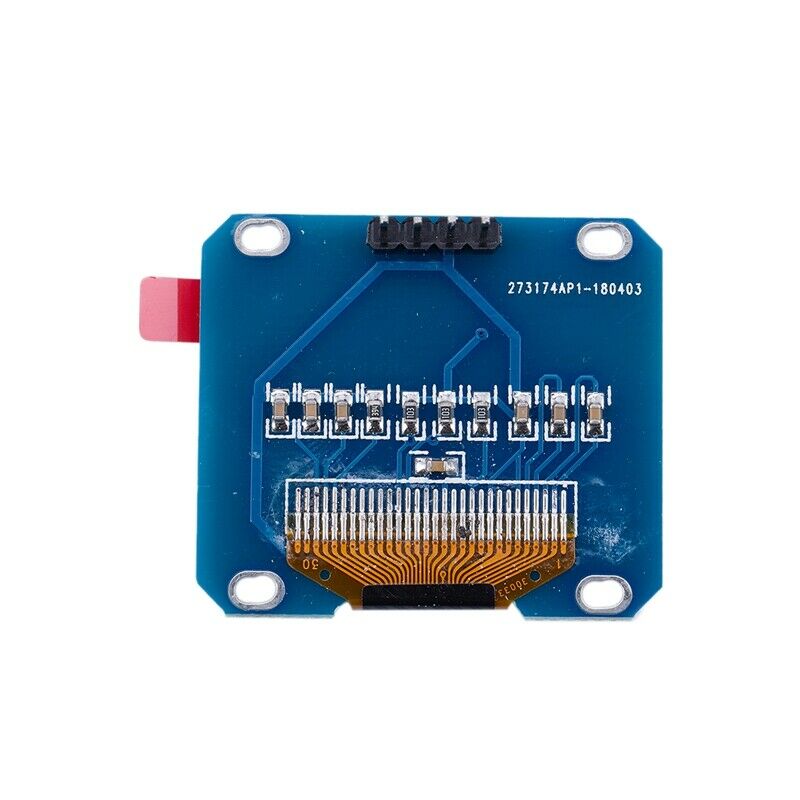

ITEM NAME:1.3 Inch 4Pin White OLED LCD Display 128*64 IIC I2C Interface Module For C5X5 1.3 Inch 4Pin White OLED LCD Display 128*64 IIC I2C Interface Module For C5X5 About control chip SSH1106: SSG1106 compatible with SSD1306 basic, difference is that SSH1106 control chip RAM space is 132*64, while SSD1306 space is 128*64. The 1.3-inch OLED 128*64 dot matrix, so in the middle of the screen production took 128 row. When using SSD1306 program point SSH1106 screen, only need to change address to 0x02 row to start. Color:blue Material:CCL Resolution: 128*64 Control chip: SSH1106 Display area: 29.42mm x 14.7mm Driving voltage: 3.3-5V Operating temperature: -40 Degrees Celsius to 70 Degrees Celsius Interface type: IIC/I2C interface Pin definitions: 1 Greater than GND (power ground) 2 Greater than VCC (positive power supply) 3 Greater than SCL (clock line) 4 Greater than SDA (data line) Package includes: 1 x 1.3 Inch White OLED IIC I2C Module Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
