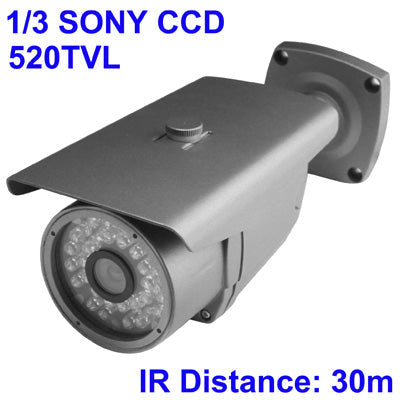

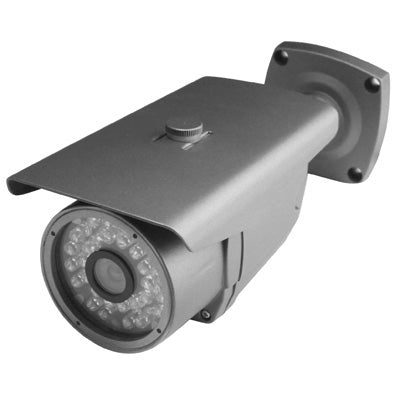

1) Adopt 1/3" SONY II Super HAD CCD, max horizontal resolution reach 520TVL.
2) 30pcs Ф5 LED, IR view distance 30m.
3) CDS light control design. Auto light test for control IR parts switch and brightness.
4) Nice Streamline design, waterproof grade IP 65.
** Specification:
1) CCD TYPE: 1/3"SONY CCD
2) Pixels: PAL: 512H x 582V NTSC: 512H x 492V
3) Scanning System: PAL/NTSC
4) Horizontal Resolution: 520TVL
5) Minimum Illumination: 0LUX/F1.2
6) S/N Ratio: ≥48dB
7) Video Output: 1.0Vp-p/75ohm
8) AGC: Auto
9) White Balance: Auto
10) Backlight Compensation: Auto
11) Exposure Mode: EE
12) Electronic Shutter: PAL: 1/50-- 1/100000sec, NTSC: 1/60--1/100000sec
13) Gamma Correction: 0.45
14) Sync. System: Internal Synchronization
15) Lens: 6mm
16) IR View Distance: 30m
17) Focusing Mode: Auto/Manual
18) Power Supply: DC12V ±5%
19) Operation Temperature: -10℃--50℃
20) Net Weight: 350g
