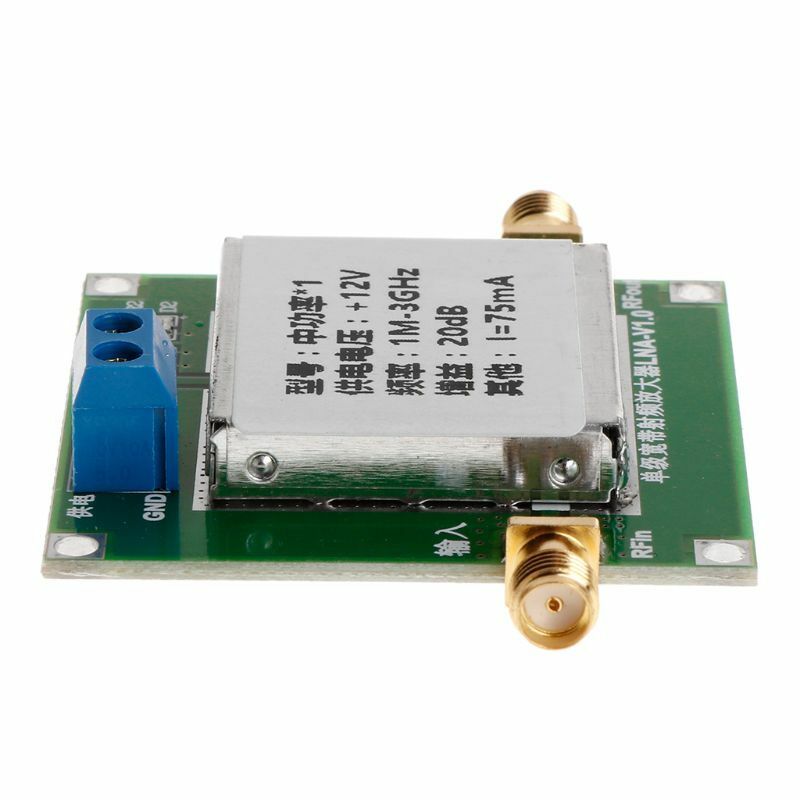

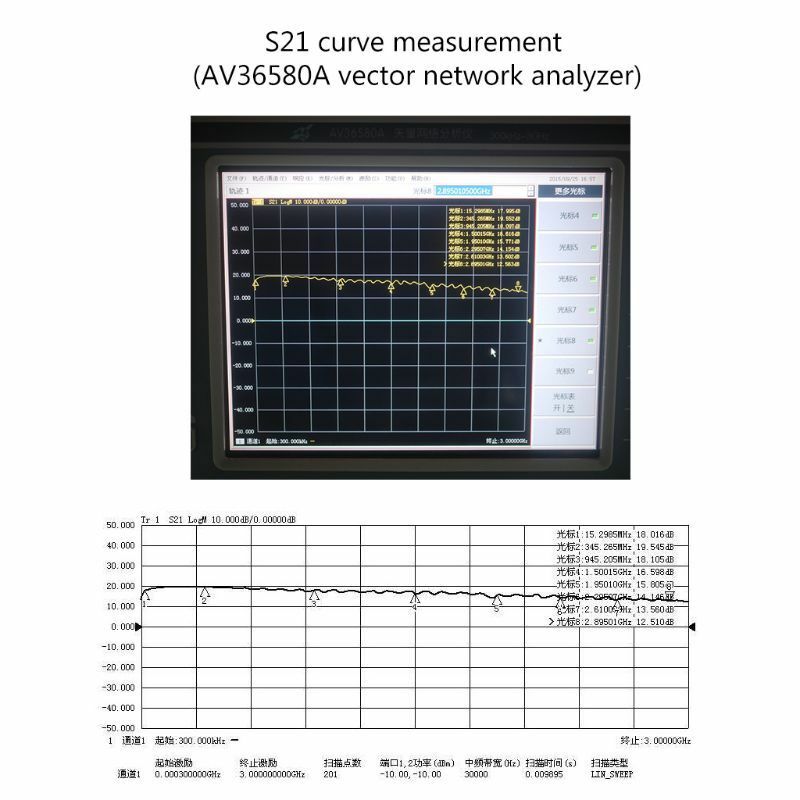

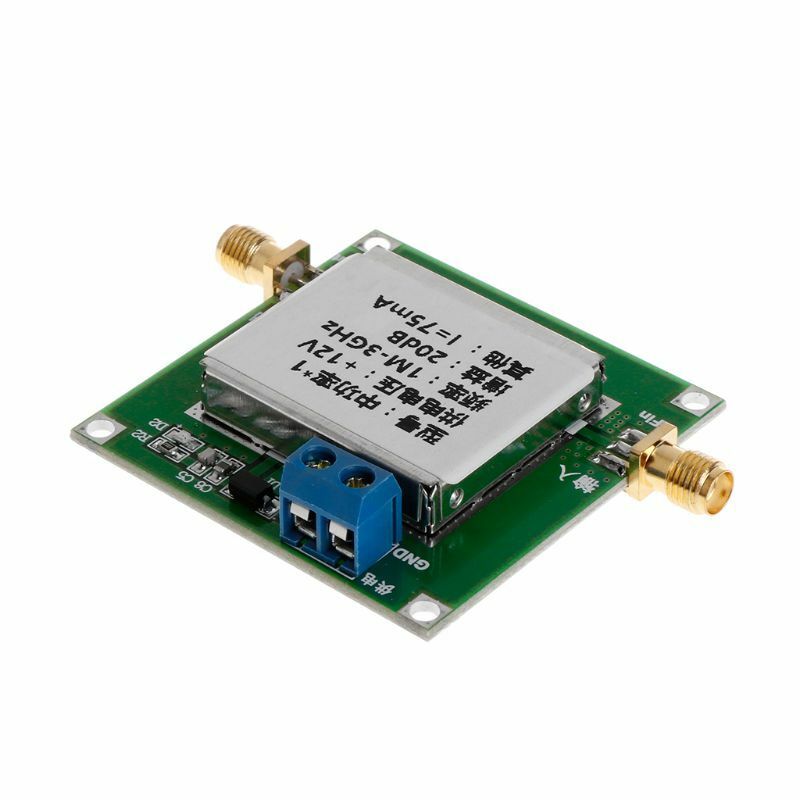

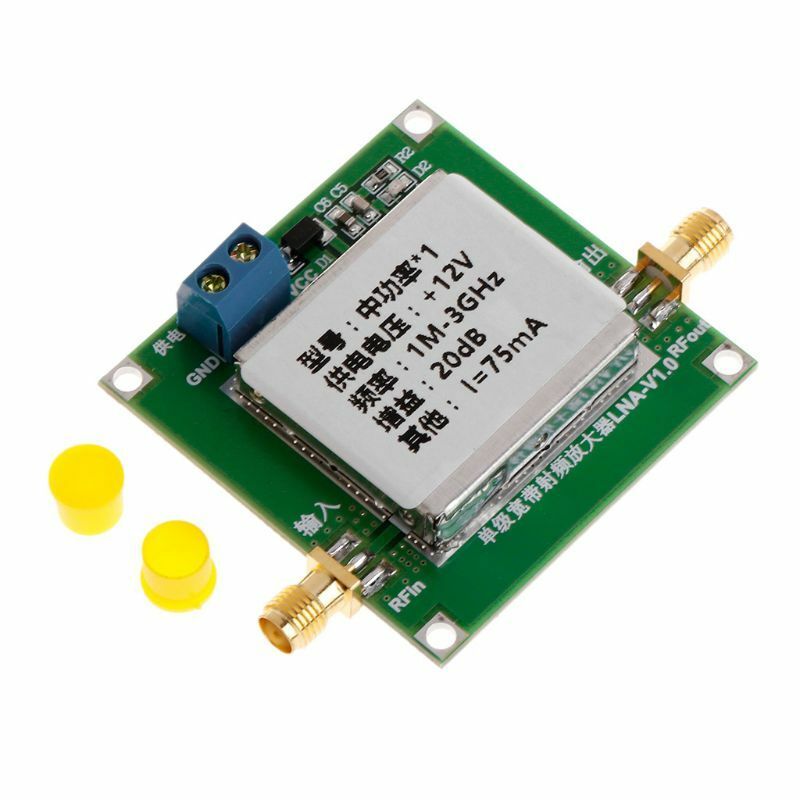

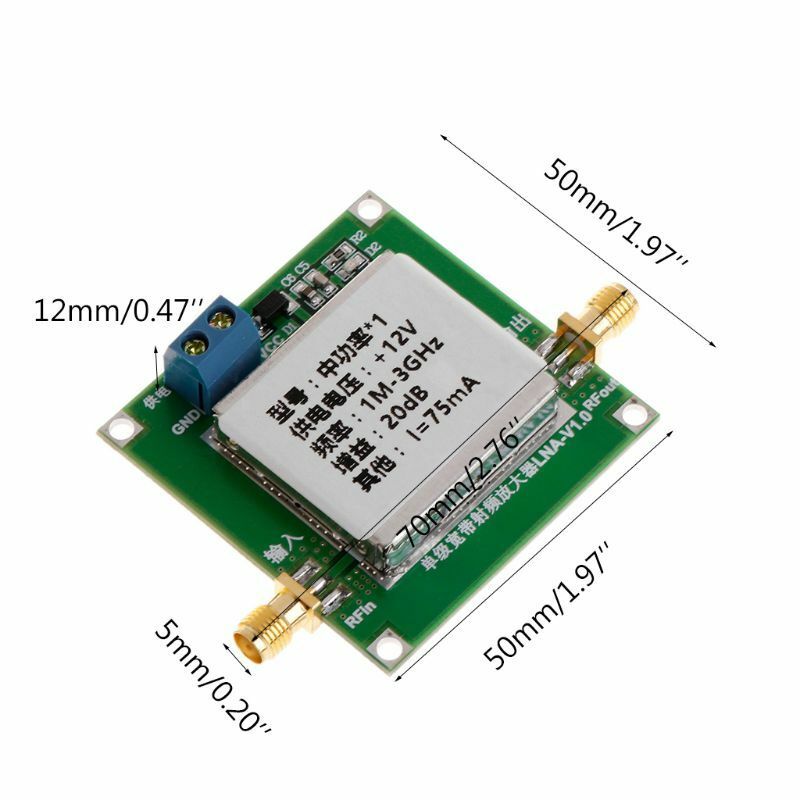

ITEM NAME:1-3000MHz 2.4GHz 20dB LNA RF Broadband Low Noise Amplifier Module UHF HF VHF New 100% brand new and high quality Specifications: Power supply voltage: DC 12V (Current 75mA) with shielded enclosure Input Output Impedance: 50 Ohm Maximum output power: 19.5dBmï ¼Ë†2VPP\50Ohm loadï ¼â€° Input signal: ≠¤0 DBMï ¼Ë†Ã¯ ¼Å¾0 DBM Input, the output signal has been distorted.) Bandwidth: 1 MHZ ~3GHZ (gain is different under different frequency, specific please refer to the curve of S21 indicators.) Noise factor: 2dB (1.5 GHz case measurement) With metal casing shield. Other: Whenever you need a different gain value, can reduce the supply voltage. Noise figure: F=15.2MHZ GAIN=17.99DB F=345.2MHZ GAIN=19.55DB F=945.2MHZ GAIN=18.09DB F=1.500GHZ GAIN=16.16DB F=1.955GHZ GAIN=15.77DB F=2.295 GHZ GAIN=14.11DB F=2.610 GHZ GAIN=13.60DB F=2.895MHZ GAIN=12.56DB Dimensions: 50x70x12mm/1.97x2.76x0.47inch Color: Green Quantity: 1 Pc Note: 1.Please allow 0-1cm error due to manual measurement..Find many great new & used options and get the best deals for 1-3000MHz 2.4GHz 20dB LNA RF Broadband Low Noise Amplifier Module UHF HF VHF New at the best online prices at shop2india!
