Features:
-The low pressure is provided by the air cap, making the coating softer, easier to control and less over-sprayed at high transfer efficiency. It is suitable for spraying primers, varnishes and other high viscosity coatings such as extreme high or polyester primers, thick lacquers, latex paints, chip protectors, metal sheets, gelcoats, liquid masks and the like.

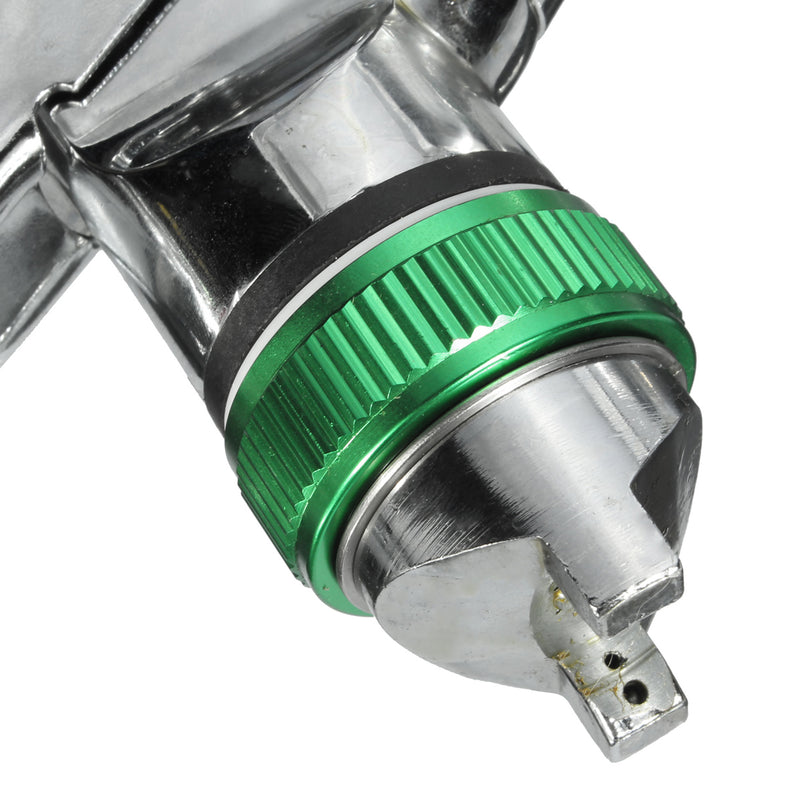

-Stainless steel needle and nozzle to adapt to various coatings.
-Lightweight, ergonomic design and easy to trigger pivot to reduce operator fatigue.

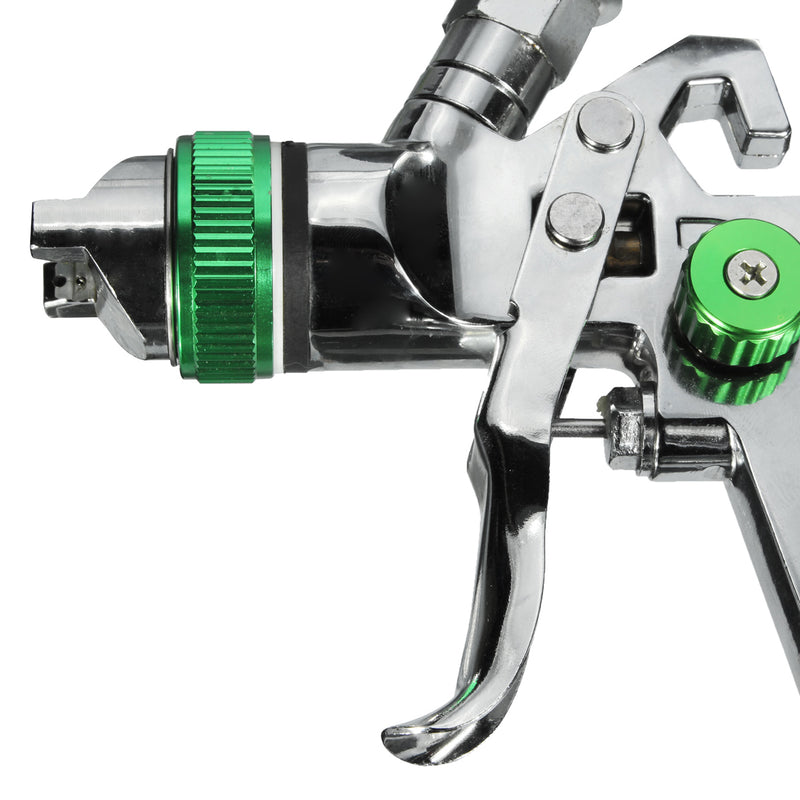

-3 Full adjustment knob: Fluid, pattern and air pressure control.
-By adjusting the pattern adjustment knob and the fluid adjustment knob, it is possible to easily obtain a desired pattern and fine atomization.
-Pattern adjustment: Rotate the pattern adjustment knob to the right until the spray pattern is rounded or rotated to the left to make the spray pattern oval.
-Fluid adjustment: Rotate the fluid adjustment knob clockwise to decrease the fluid output and counterclockwise to increase the fluid output.
Specifications:

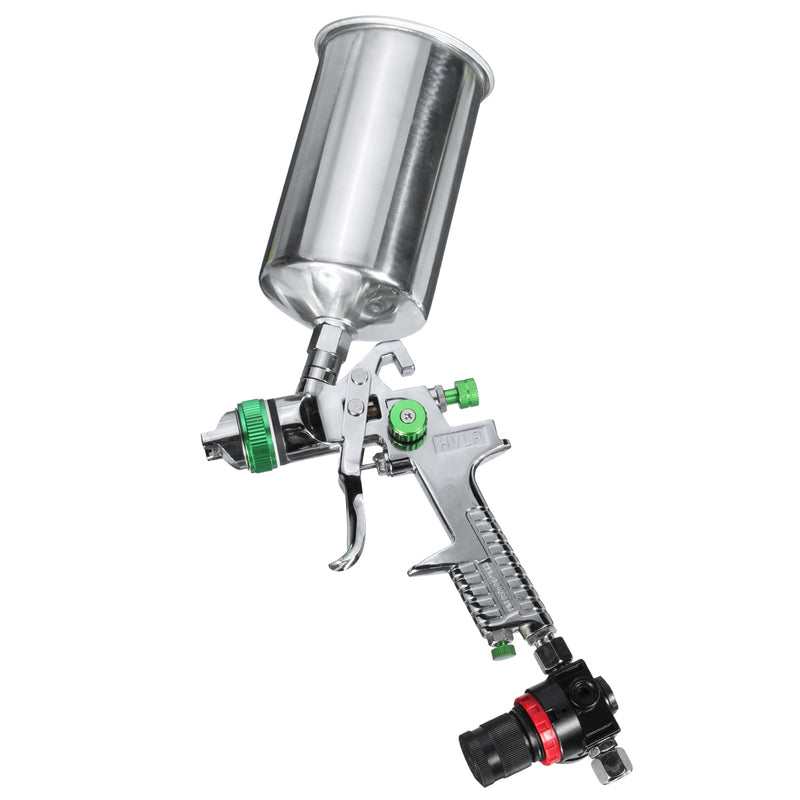

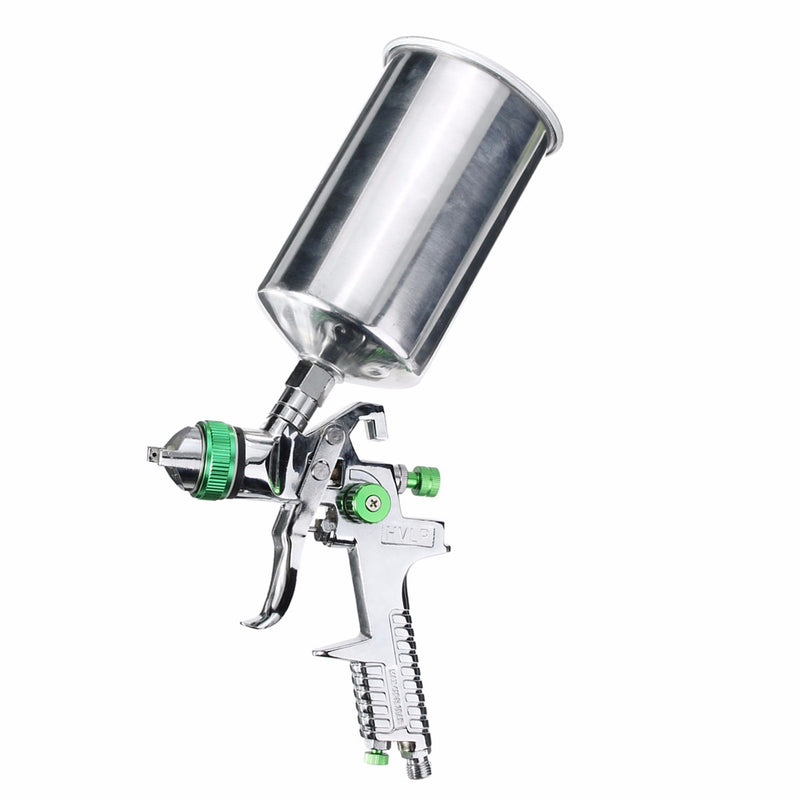

Product name: Spray Gun Set
Material: Aluminum
Color: Silver
Size of the spray gun: Approx. 200 x 150mm/7.87" x 5.9"
Air Inler: 1/4 NPT or 1/4 BSP
Nozzle size:1.4mm
Cup Volume: 1L
Operating Pressure: 50-70PSI
Air Consumption: 1.6-4.0 CFM
Compressor Required: 2-3HP
Weight: 1070g

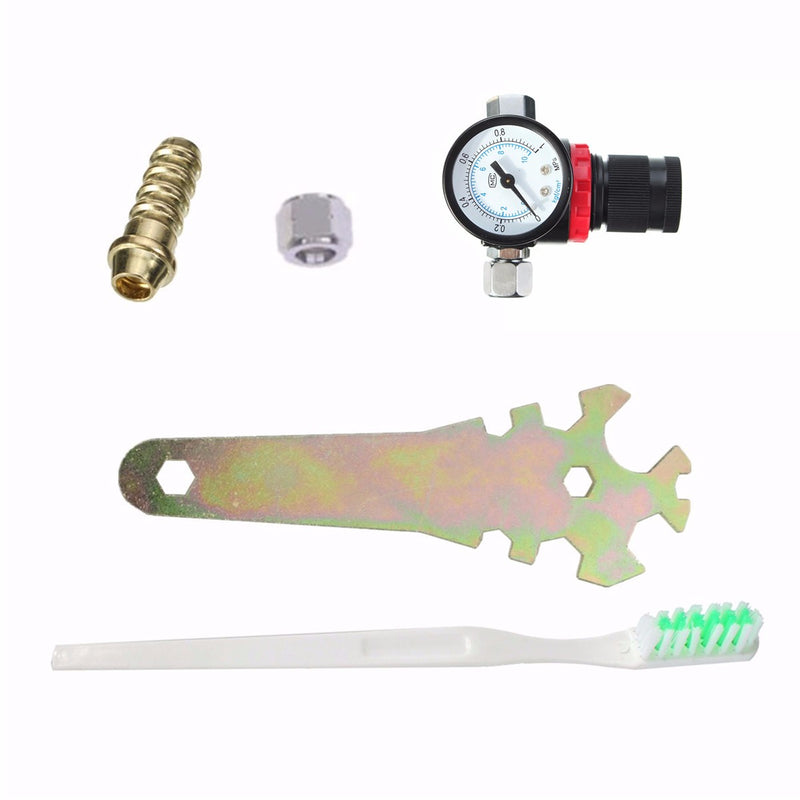

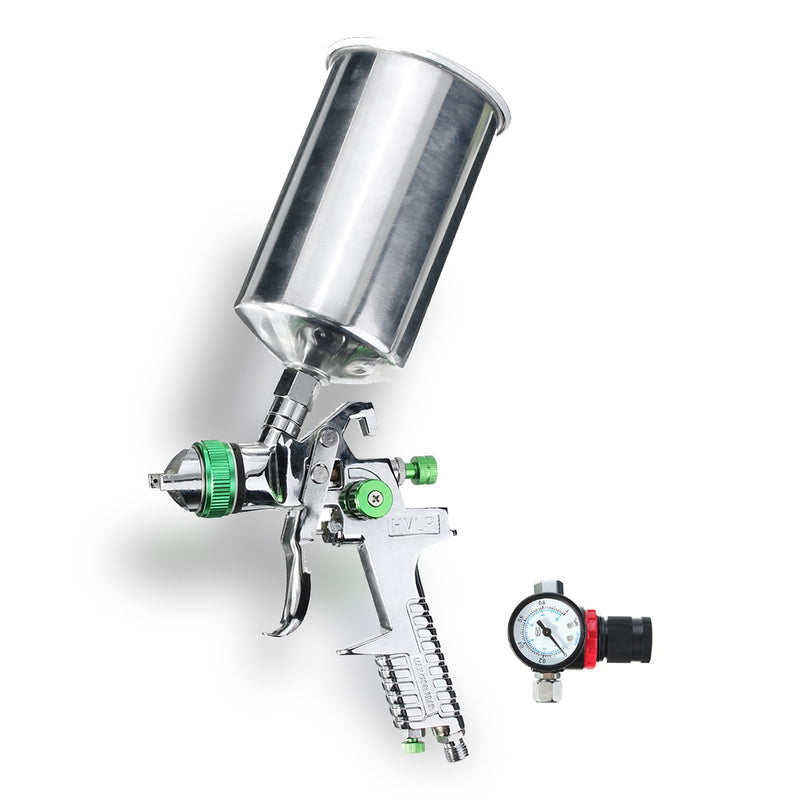

Package Included:
1 x Spray Gun
1 x 1L Aluminum cup

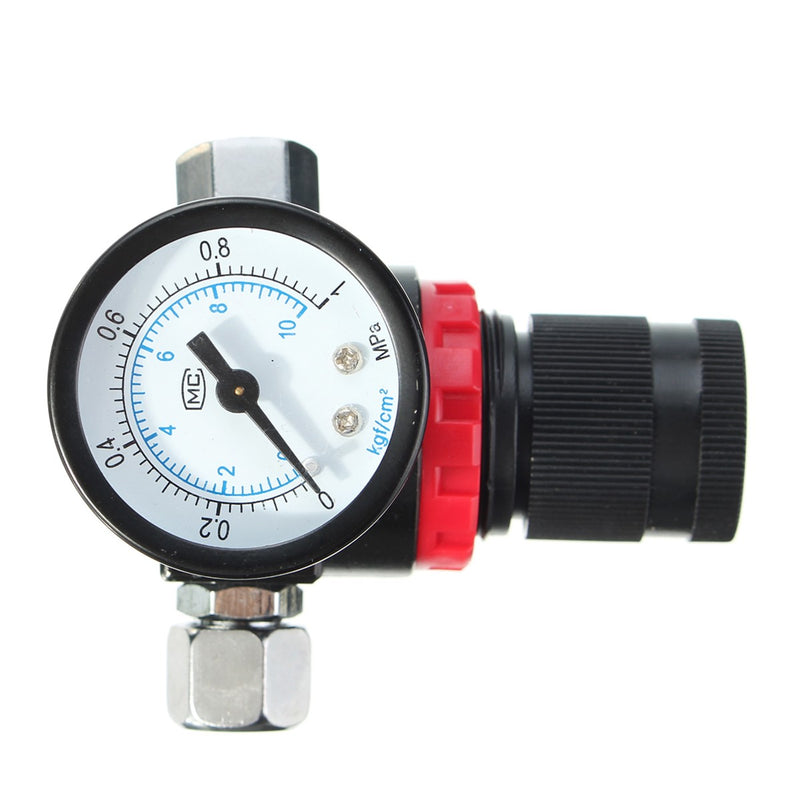

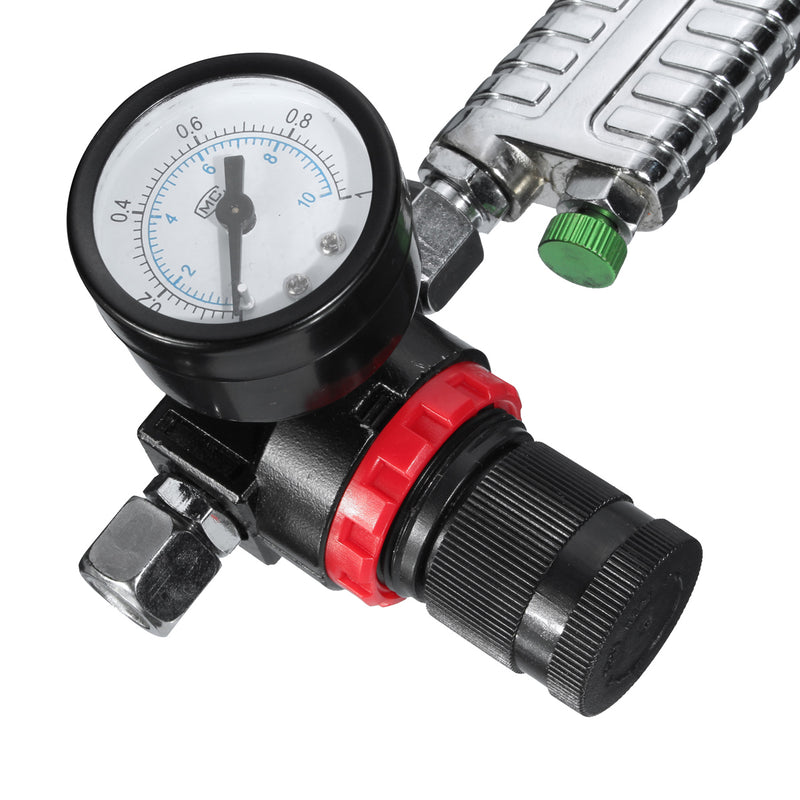

1 x Locking air pressure regulator
1 x Wrench
1 x Screws

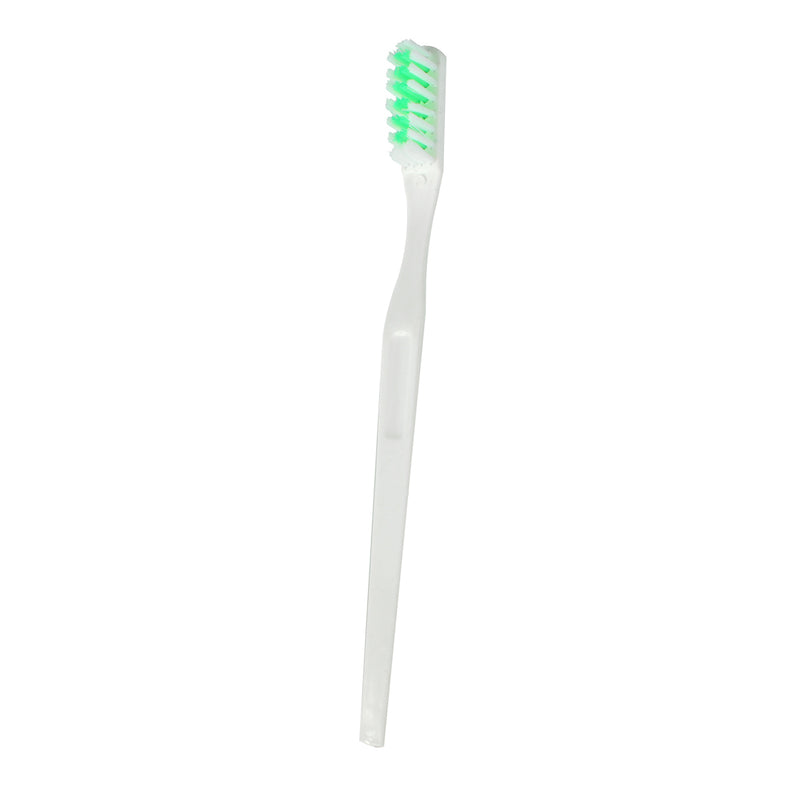

1 x Brush
2 x Filter
1 x User manual
