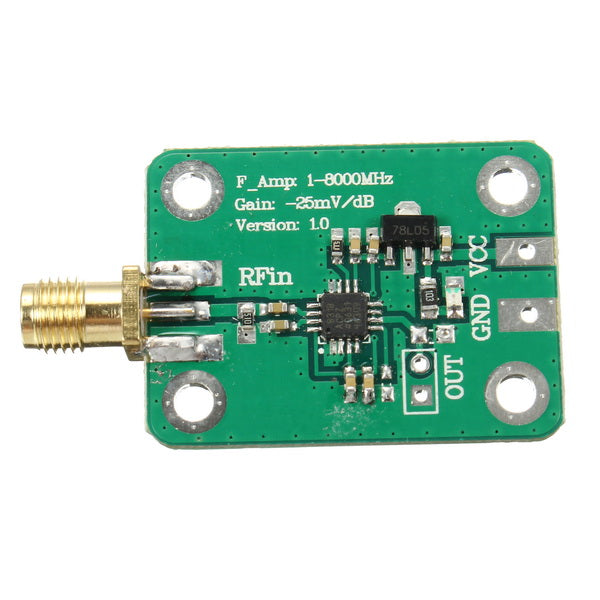

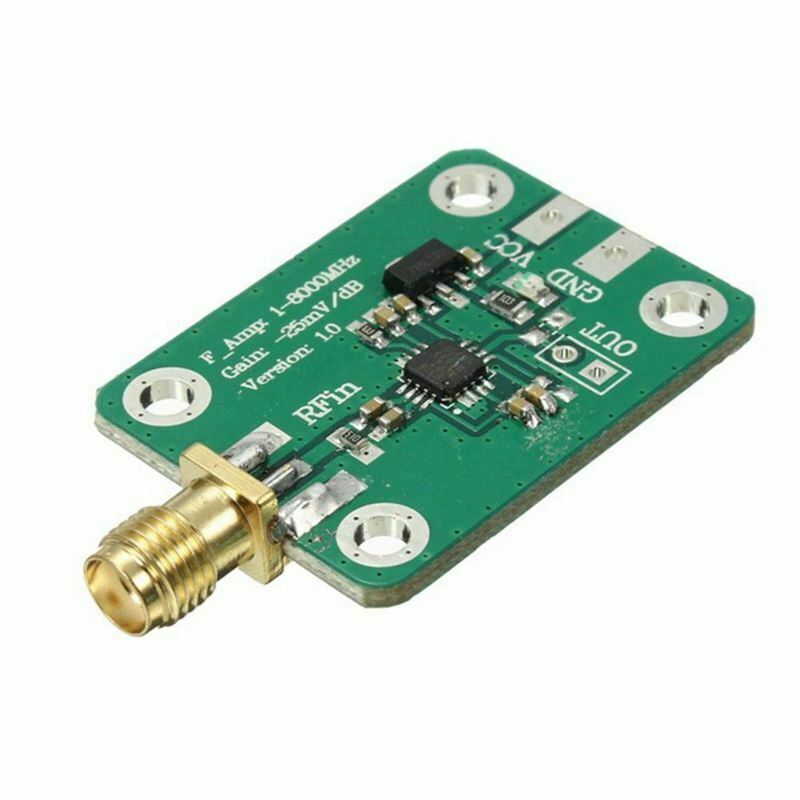

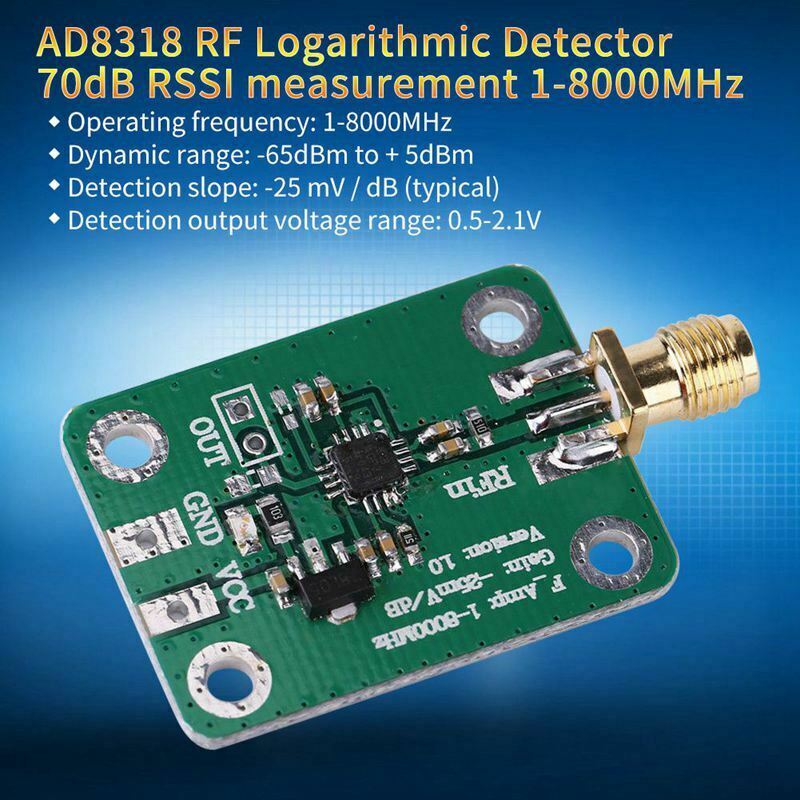

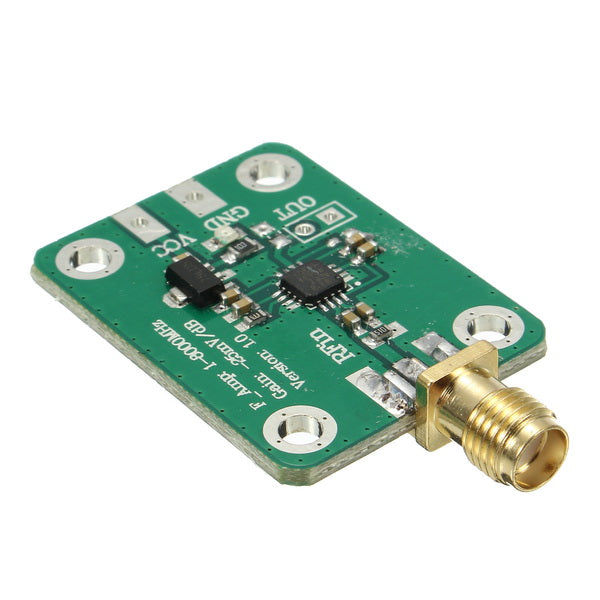

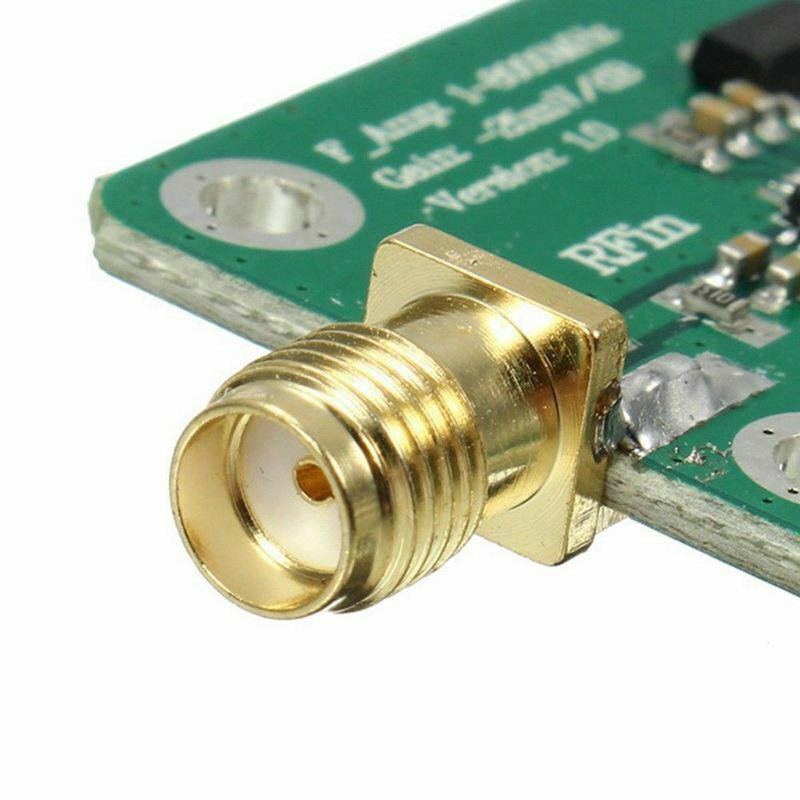

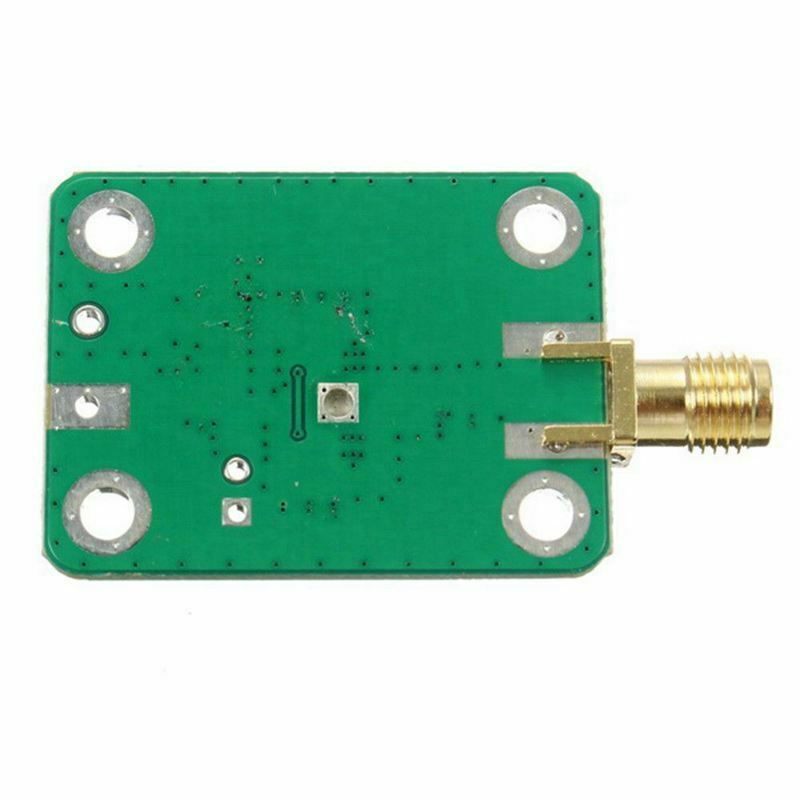

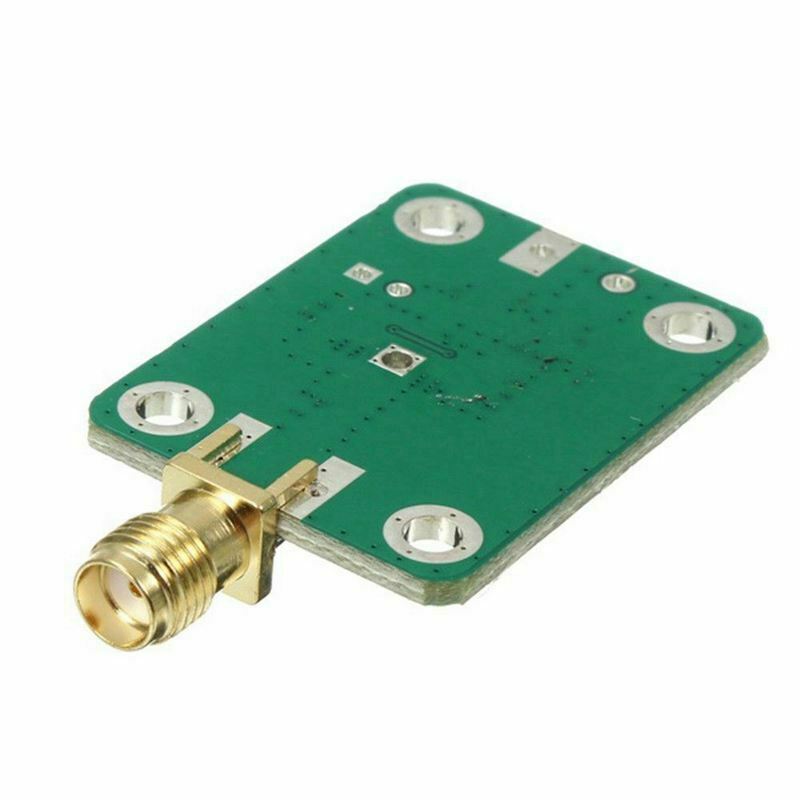

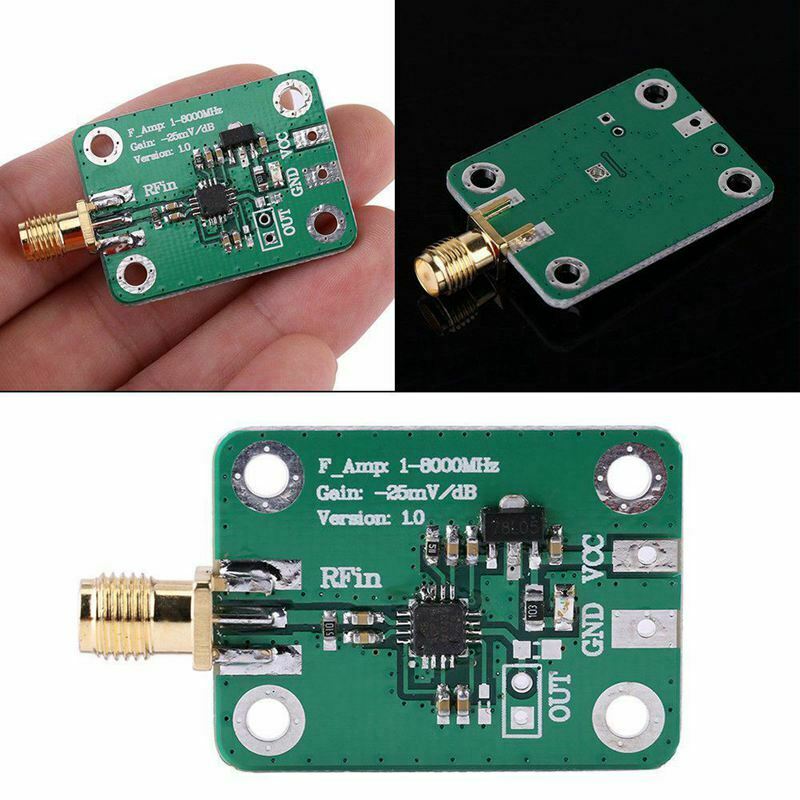

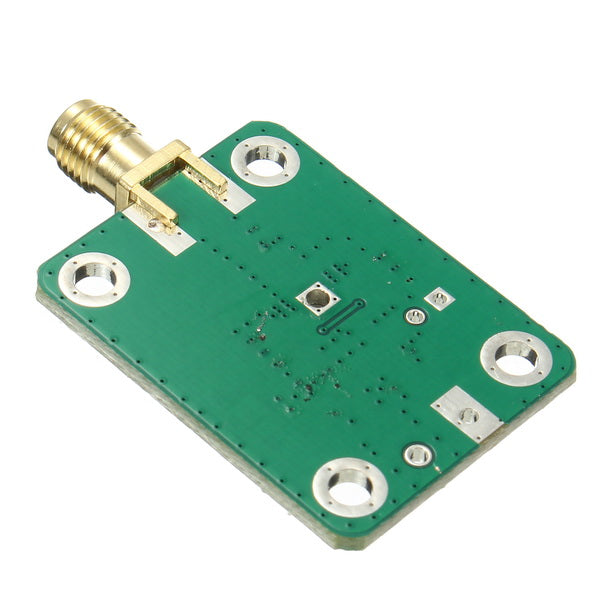

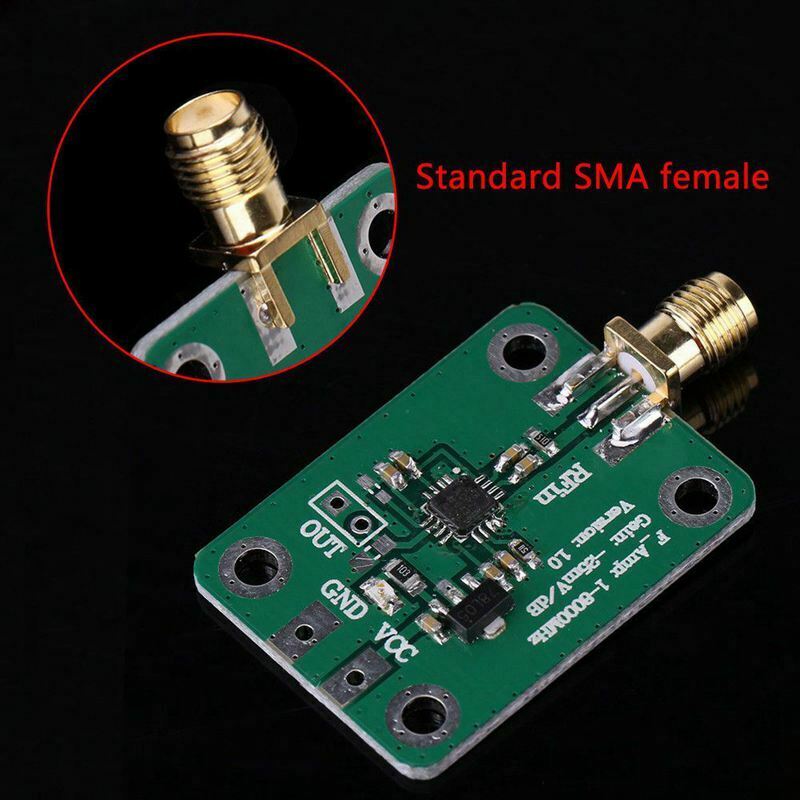

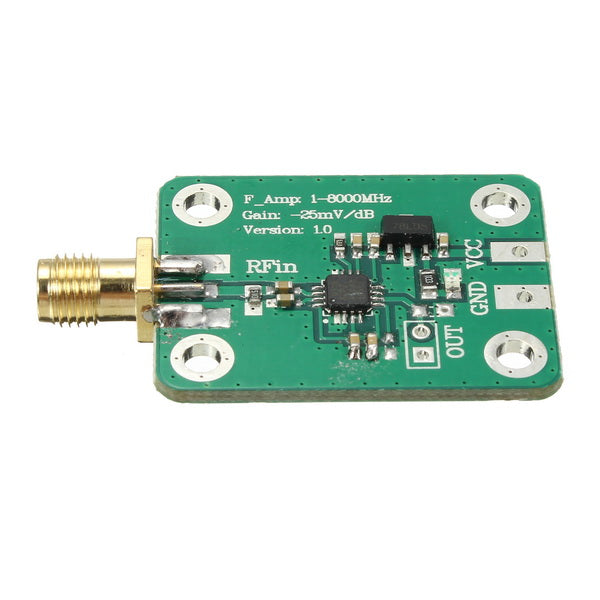

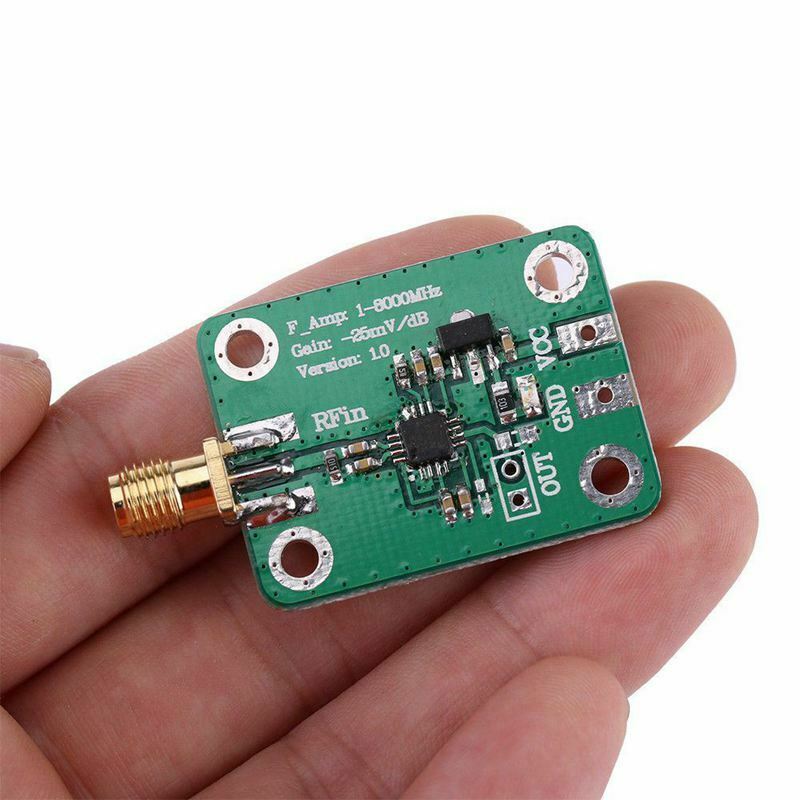

ITEM NAME:1-8000MHz AD8318 RF Logarithmic Detector 70dB RSSI Measurement Power Meter F5S5 1-8000MHz AD8318 RF Logarithmic Detector 70dB RSSI Measurement Power Meter F5S5 The RF detector is made of AD8318 chip, the design of the power supply voltage regulator circuit such that the detection accuracy tends to official data.The operating frequency range is 1-8000MHz, can detect -65 to 5dBm RF signal and with DC voltage output the detected signal strength (in dBm, logarithmic detection). The RF signal is converted into a DC voltage output. RF signal corresponding to the amplitude or power of the output voltage.You can do signal strength indicator RSSI, spectrum analyzer, gain control.It has very good sensitivity. The detection slope: -25 mV / dB (Typical values);The detection output voltage range: 0.5--2.1V;Power supply voltage: 7-15VDC (containing the power regulator circuit);The input impedance: 50 ohms RF interface: standard SMA female Color: green Material: PC + metal Product size: 2.8*2.3cm Package Contents: 1*Power Meter Board
