Descriptions:
1-Cell(1S) Version:
Input voltage : DC 4.5V-5.5V(Recommend DC 5V)
Charging voltage about : 1.35V-1.7V
Charging current about : 231mA-240mA
2-Cell(2S) Version:
Input voltage : DC 4.5V-5.5V(Recommend DC 5V)
Charging voltage about : 2.7V-3.4V
Charging current about :230mA-240mA
3-Cell(3S) Version:
Input voltage : DC 4.5V-5.5V(Recommend DC 5V)
Charging voltage about : 4.05V-5.1V
Charging current about : 230mA-240mA
4-Cell(4S) Version:
Input voltage : DC 4.5V-5.5V(Recommend DC 5V)
Charging voltage about : 5.7V-6.8V
Charging current about : 230mA-240mA
5-Cell(5S) Version:
Input voltage : DC 4.5V-5.5V(Recommend DC 5V)
Charging voltage about : 6.75V-8.5V
Charging current about : 230mA-240mA
6-Cell(6S) Version:
Input voltage : DC 4.5V-5.5V(Recommend DC 5V)
Charging voltage about : 8.1V-10.2V
Charging current about : 230mA-240mA
7-Cell(7S) Version:
Input voltage : DC 4.5V-5.5V(Recommend DC 5V)
Charging voltage about : 9.45V-11.9V
Charging current about : 190mA-210mA
8-Cell(8S) Version:
Input voltage : DC 4.5V-5.5V(Recommend DC 5V)
Charging voltage about : 10.8V-13.6V
Charging current about : 190mA-210mA
USB power protection
Short circuit protection and zero volt battery activation
Battery protection
Operating ambient temperature : -40° to +85°
Storage temperature : -65° to +125°
Size: 30x 15 x 4mm
Note:
The output voltage cannot be measured with a multimeter without a battery. But can be observed with an oscilloscope.
Applications:
kids toys car
Digital Cameras
Solar charging
Bluetooth Applications
Audio equipment
Digital Camera
Electronic Dictionary
Portable Devices
Mobile power, UPS
1-8Cell Nickel Metal Hydride Battery Charger
1-8Cell NiCd Battery Charger
Package Included:

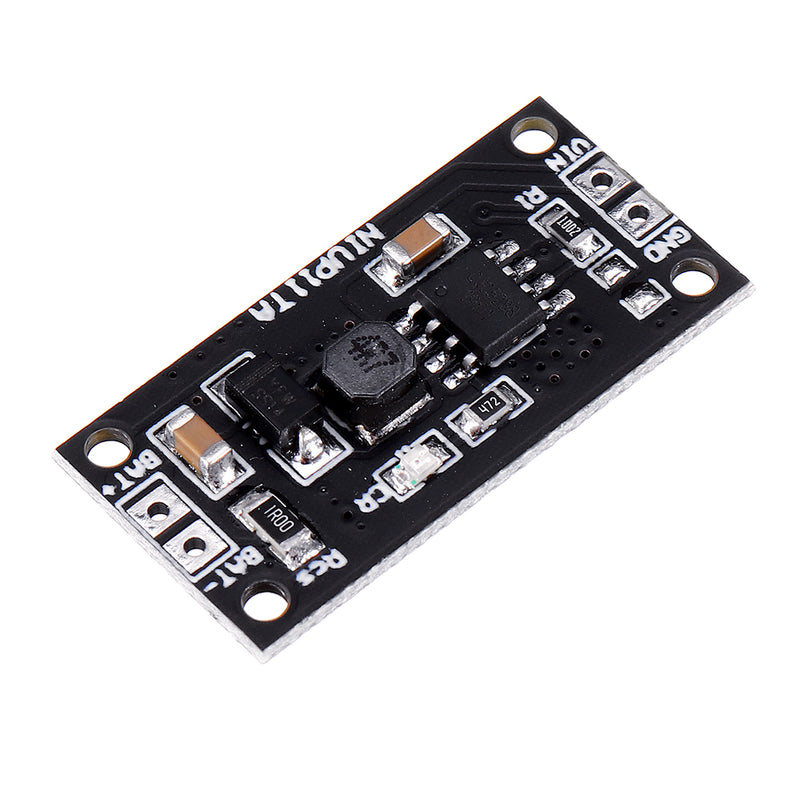

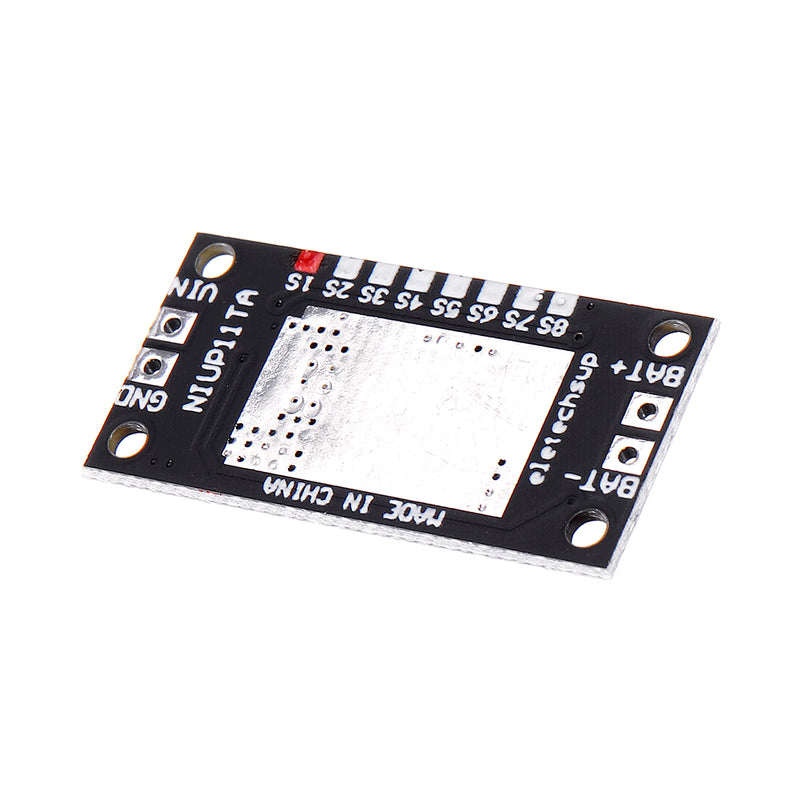

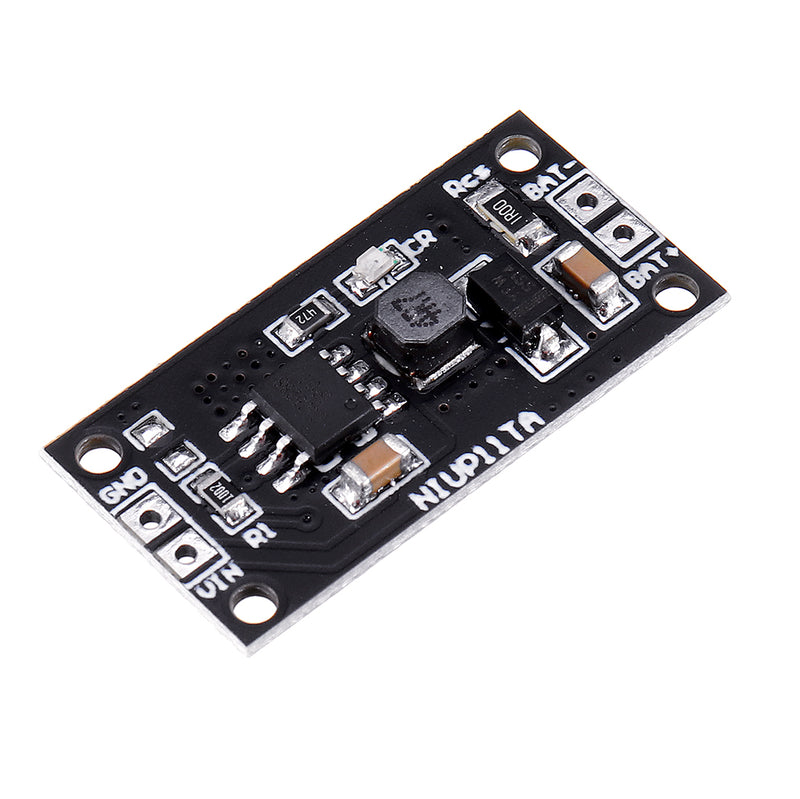

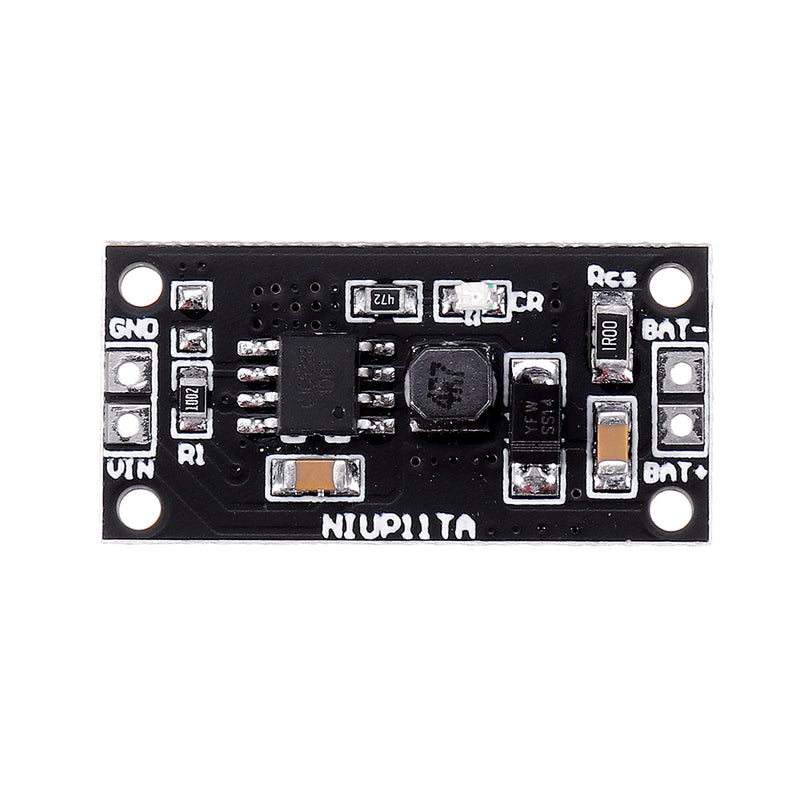

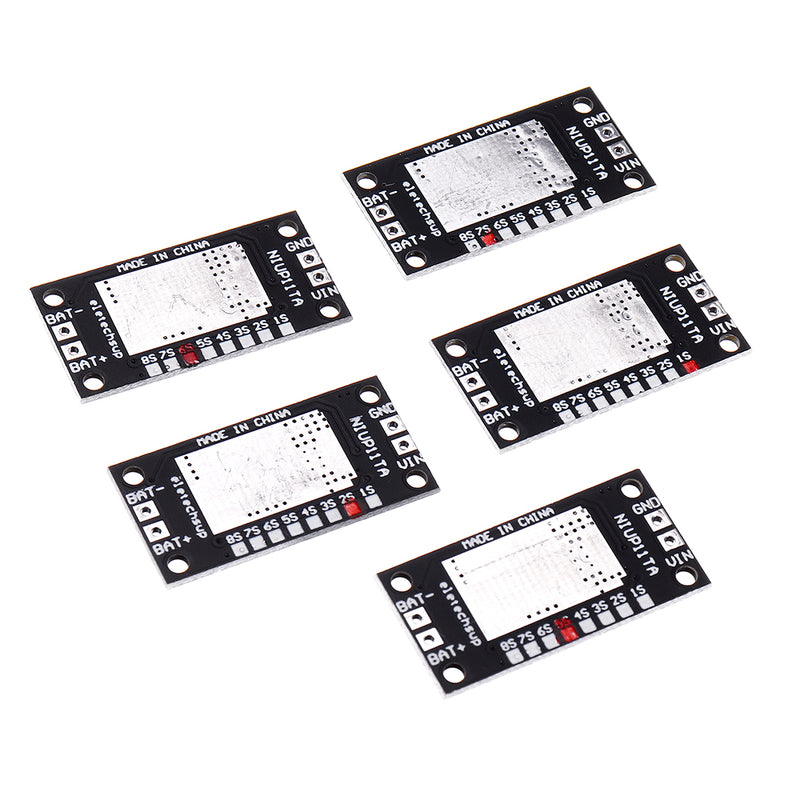

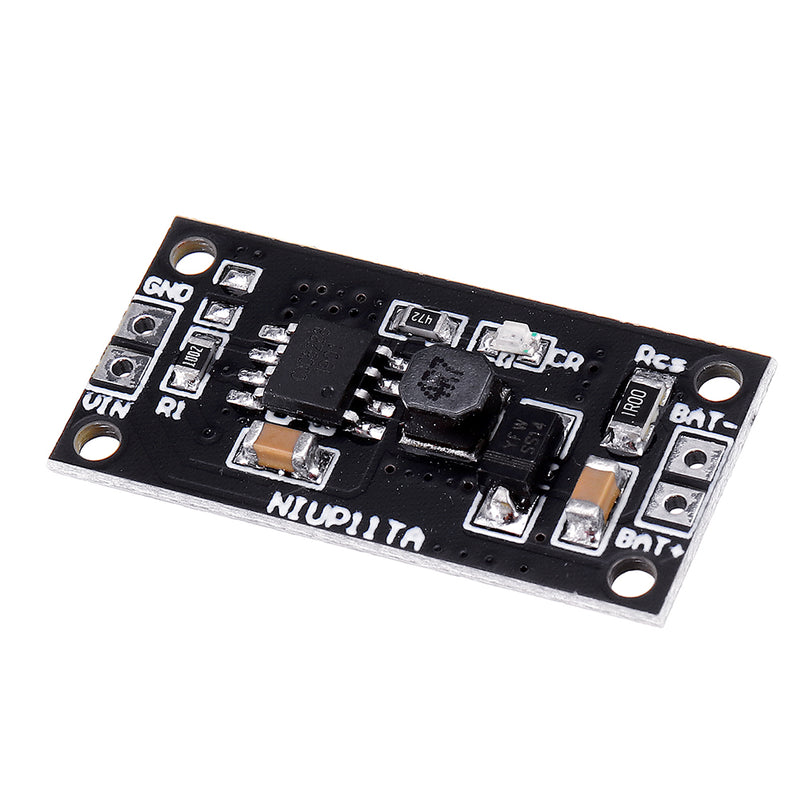

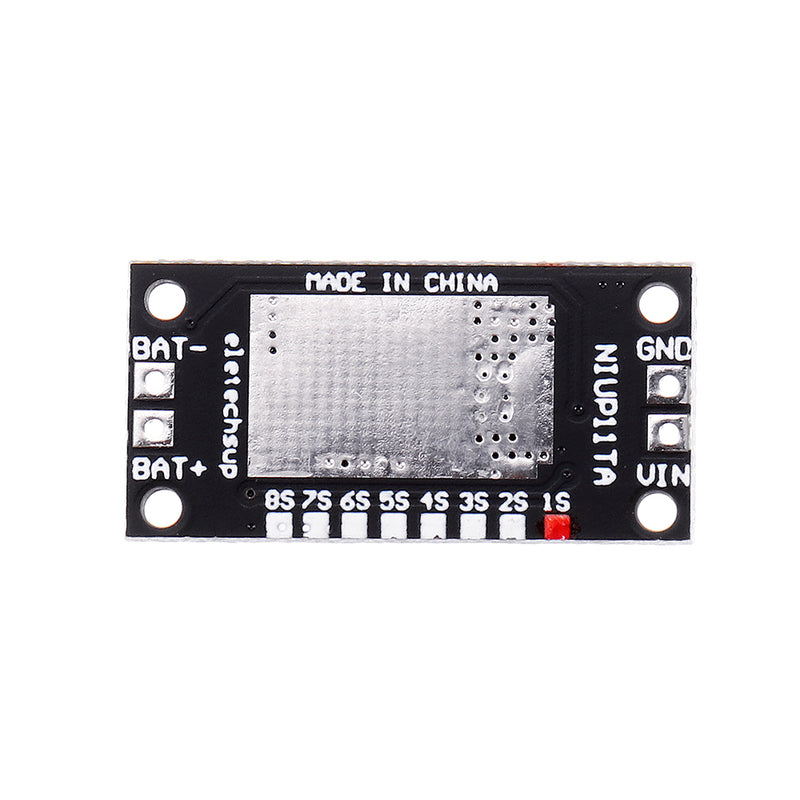

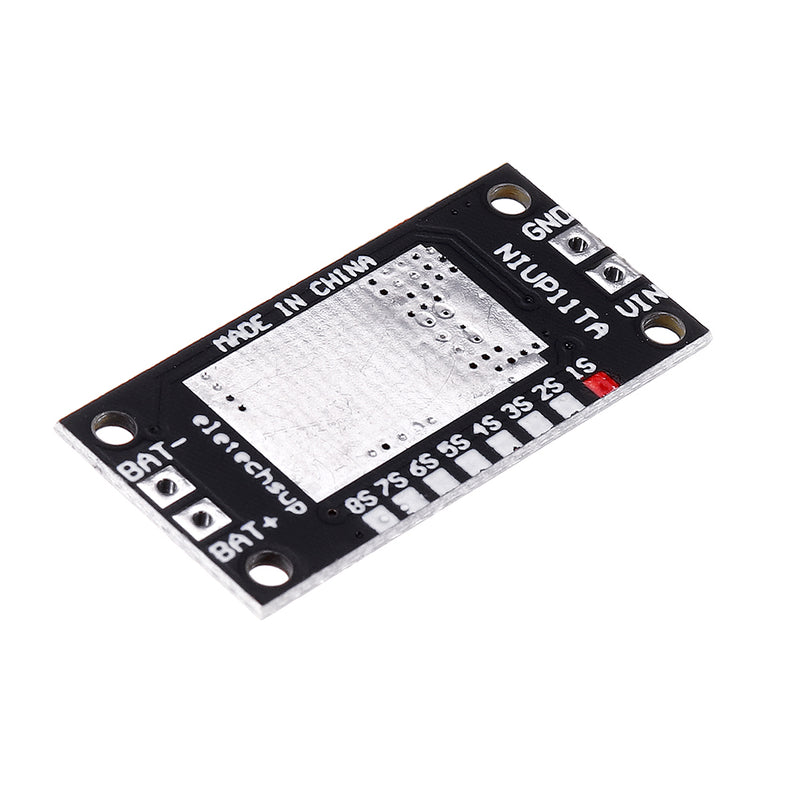

1 x 1-8S 1.2V-9.6V NiMH NiCd Rechargeable Battery Charger Charging Module
