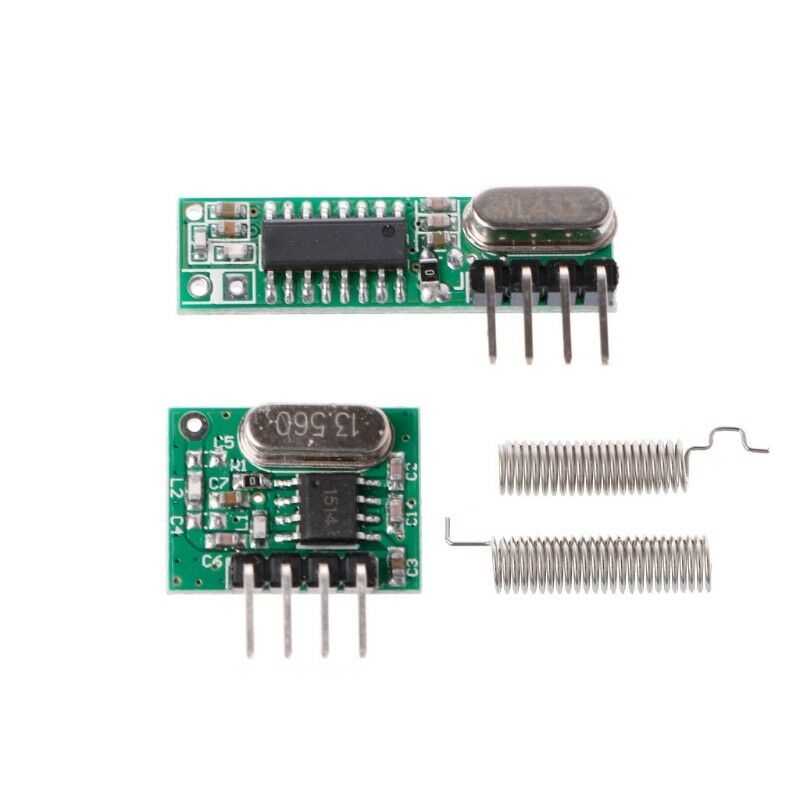

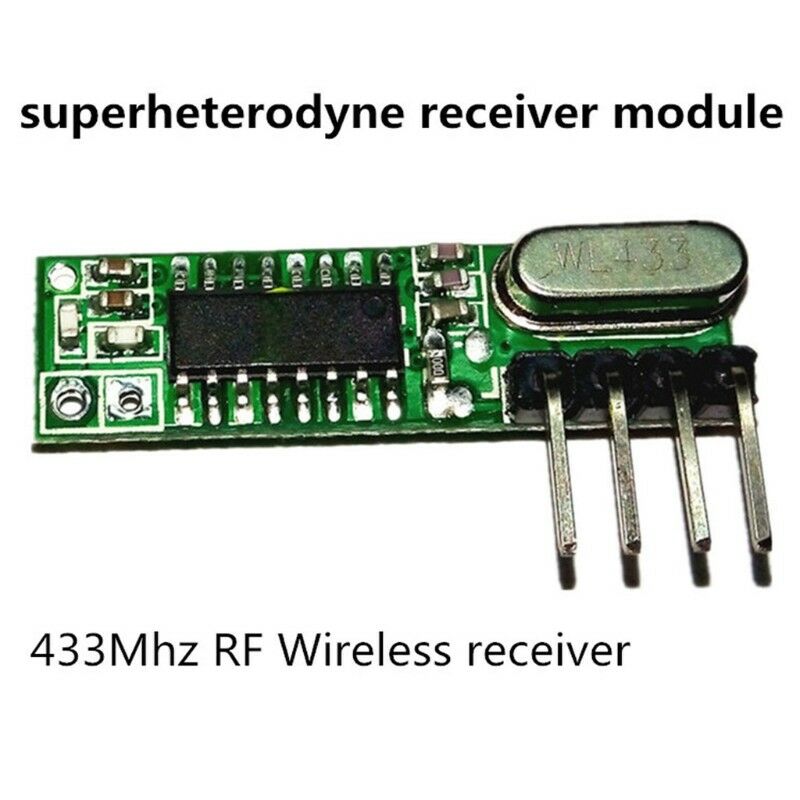

ITEM NAME:1 Set 433Mhz RF Superheterodyne Receiver Transmitter Module Kits With 2 Antenna 1. Receiver Module: Features: WL101-341 superheterodyne wireless receiver module is receiving UHF ASK demodulators supporting ASK and OOK modulation. The receiver module has high sensitivity (-110dBm), Low-power performance, along with high dynamic range (greater than 60dB). Module uses highly integrated chip, built front-end low-noise amplifier, mixers, filters, frequency synthesizer circuit, etc., can maximize the signal optimization. Low power consumption Good selectivity and spurious radiation suppression. Good local oscillator radiation suppression, multiple receiver module to work with (ie, more than single income) and will not interfere with each other, used together without affecting the receiving distance. Multiple transmission rates, the general module for 2KHz, up to 10KHz. Application environment: Remote control switch, receiver module, motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars, remote control MP3. Specifications: Model: WL101-341 Material: Plastic + Metal Color: shown as pictures Size: 30.25×8.5×1mm Operating frequency: 433.92 MHz Bandwidth: about  ± 150KHz; Mains input voltage range: 3.0V-5V; Working current: Type: 5.0mA (Requirement:VDD=5V) ; Type: 6.0mA (Requirement:VDD=3V) Quiescent Current: 1uA Temperature range: -40℃ï ½Å¾85℃ External antenna: 32cm single core wire, wound into a spiral Receiver Module PIN definition: pin function: 1. ANT: Antenna pin 2. GND: Power ground pin 3. VIN(VDD): Power input pin 4. DO(DATA): Data output pin 5. DO.WL101-341 superheterodyne wireless receiver module is receiving UHF ASK demodulators supporting ASK and OOK modulation. Good selectivity and spurious radiation suppression. Module uses highly integrated chip, built front-end low-noise amplifier, mixers, filters, frequency synthesizer circuit, etc., can maximize the signal optimization.
