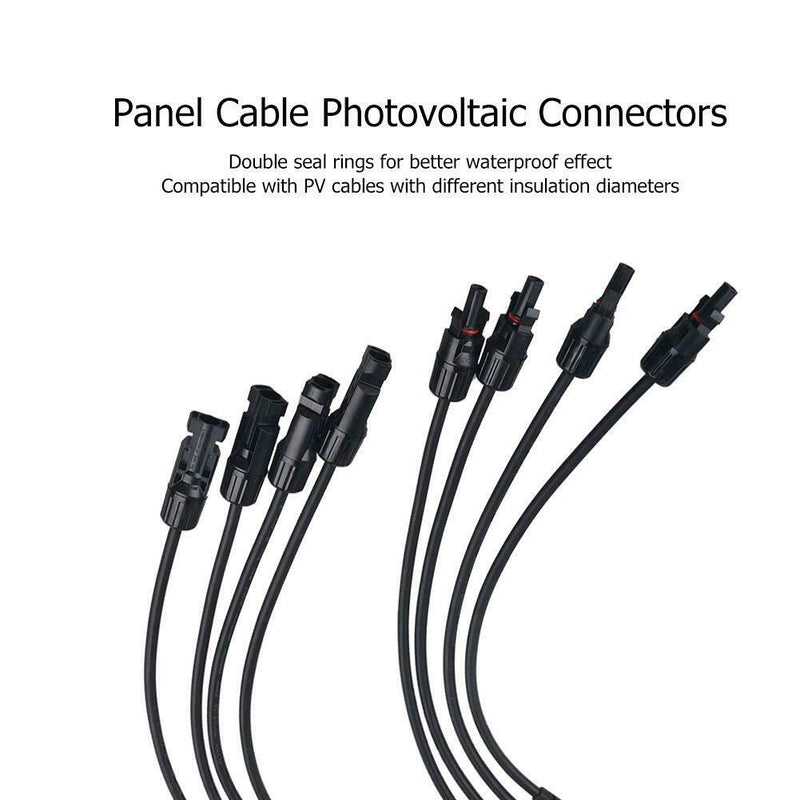

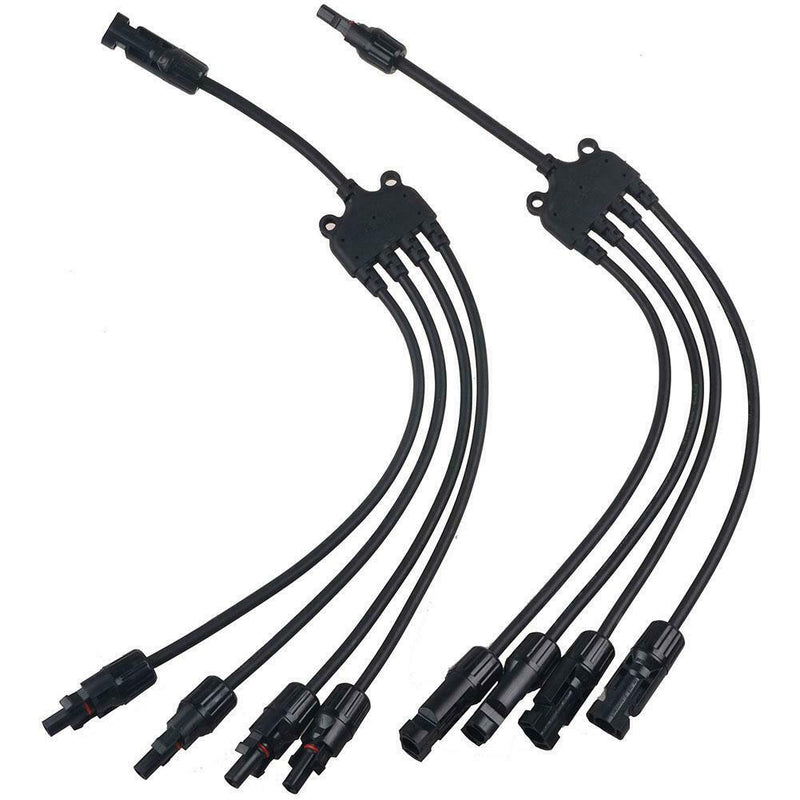

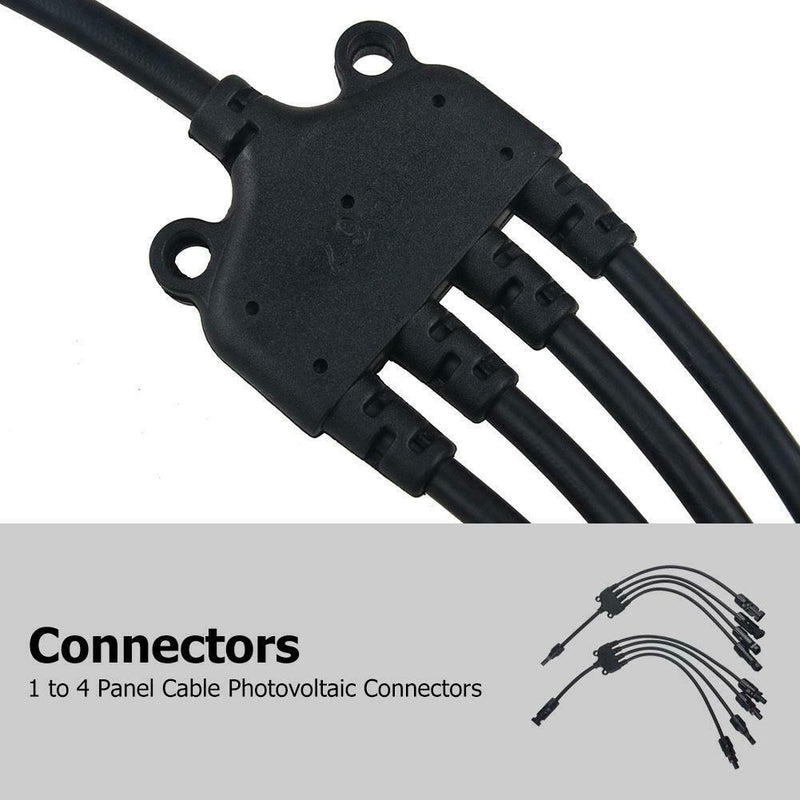

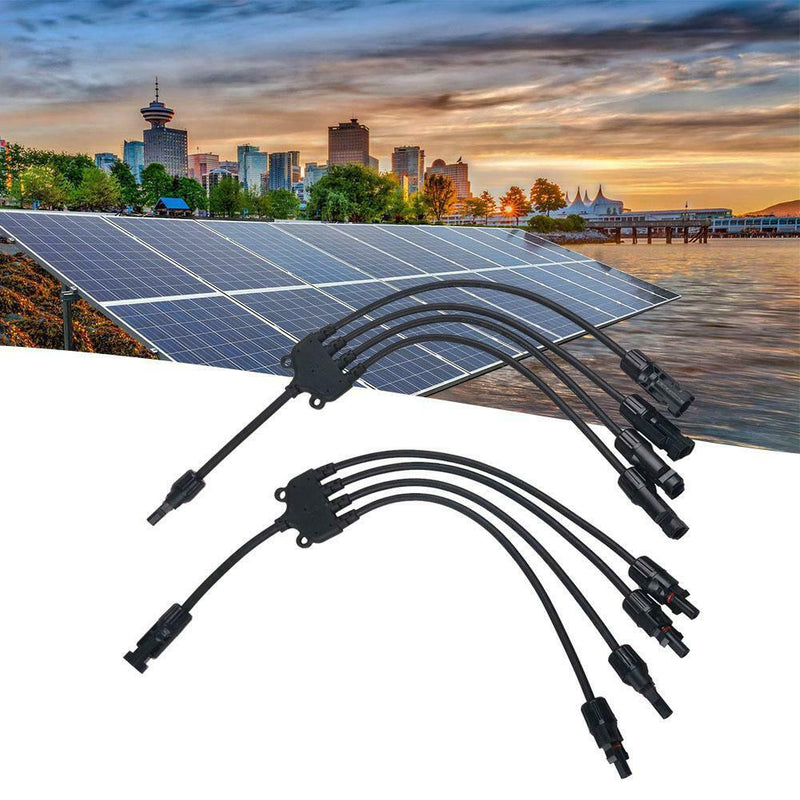

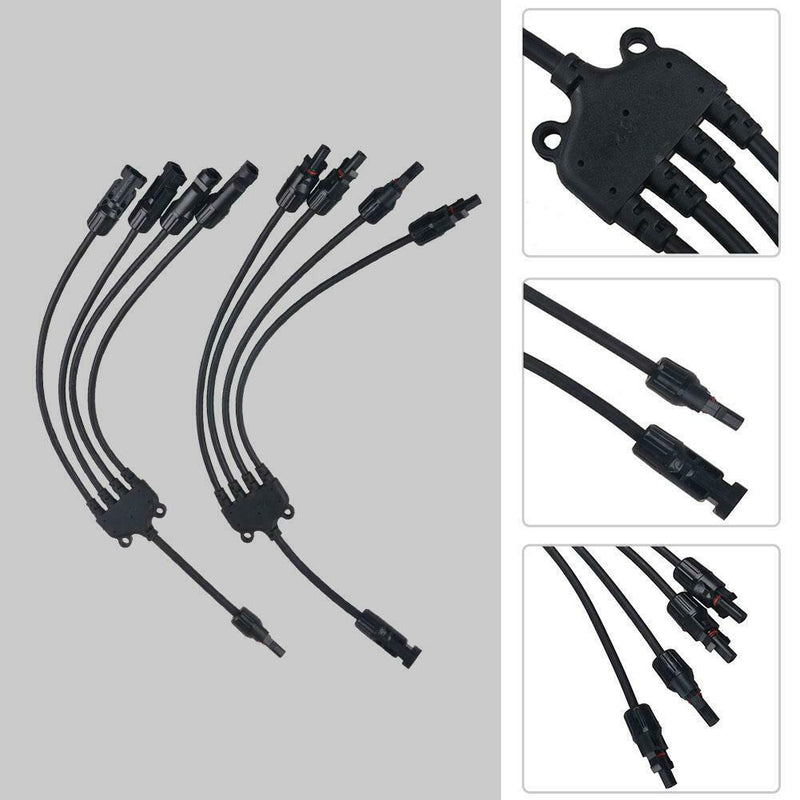

ITEM NAME:1 Set Solar Style Y Branch 1 to 4 Panel Cable Photovoltaic Connectors Product Description Description: 1 Set Solar Style Y Branch 1 to 4 Male and Female Panel Cable Photovoltaic Connector Adapter Description: This Y Style compatible Solar Cable Connector Set is a perfect solution to parallel connect multiple panels together in a solar field, and is typically used in parallel applications. It also has the feature of waterproof, so you don't worry about the rain. Feature: 2. Double seal rings for better waterproof effect. 3. Compatible with PV cables with different insulation diameters. 4. It can be used in harsh environment. 5. With excellent aging resistance and UV endurance. 6. Created seal, design of dust proof. 7. Load capability with big current and high voltage. 8. Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument. 9. Strong pulling force capability. 10. Resistance of extra high & low temperature and fireproof. 11. Lower contact resistance. Specification: Insulation material: PPO Rated current: 20-30A Rated voltage: 1000V(TUV)&600V(UL) Test voltage: 6kV(50Hz,lmin) Typical contact resistance: ≠¤5mÃŽ © Contact material: Copper, silver plated Degree of protection: IP68 Safety degree: ll Flame class: UL94-V0 Material RTl: 110℃ Ambient temperature range: -40℃ until+85℃ Main cable specification: 6mm2 (AWG10) Branch cable specification: 4mm2 (AWG12) Insertion force: ≠¤50N Withdrawal force: ≠¥ 50N Cable length: 74.5cm/29.3'' Gross weight: 0.36 kg Product size: 36.0 cm * 23.0 cm * 5.0 cm/14.17*9.05*1.96'' Note: Please allow 1-3cm differs due to manual measurement. Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding. Included: 1 x Set Y Branch Connectors.This Y Style compatible Solar Cable Connector Set is a perfect solution to parallel connect multiple panels together in a solar field, and is typically used in parallel applications. Branch cable specification: 4mm2 (AWG12).
