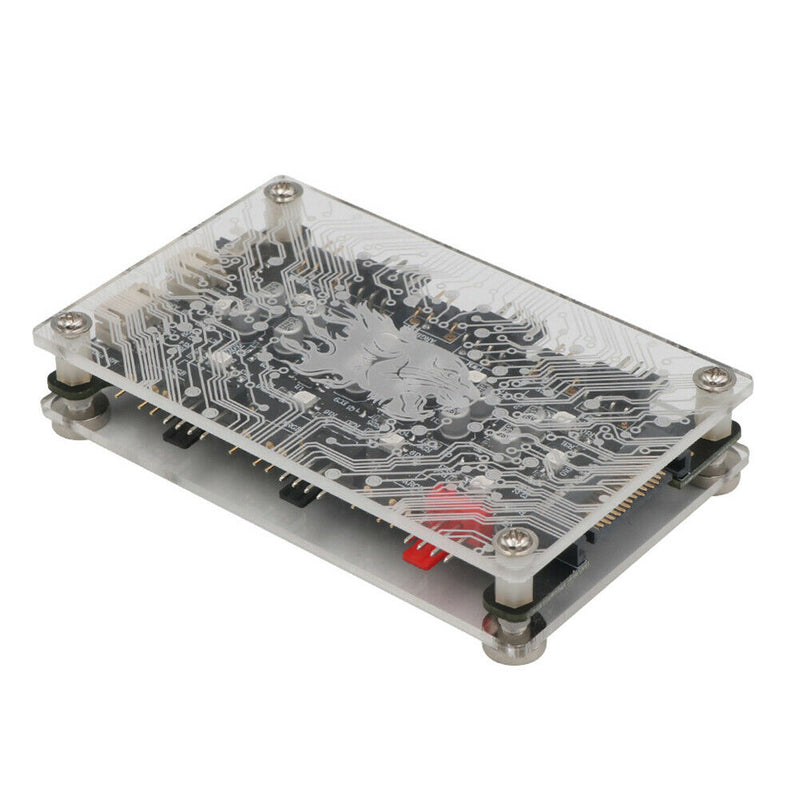

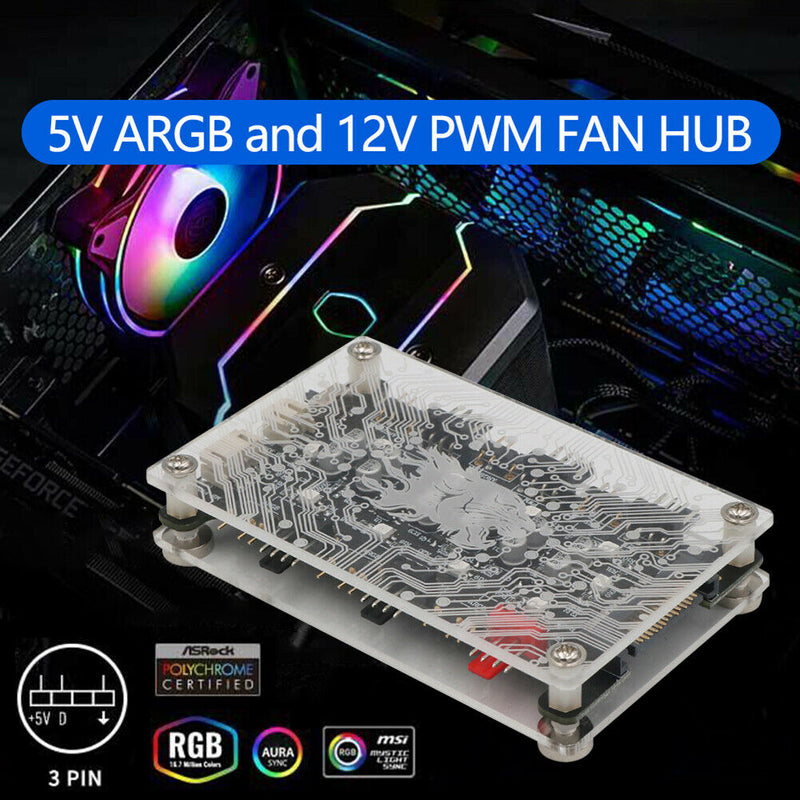

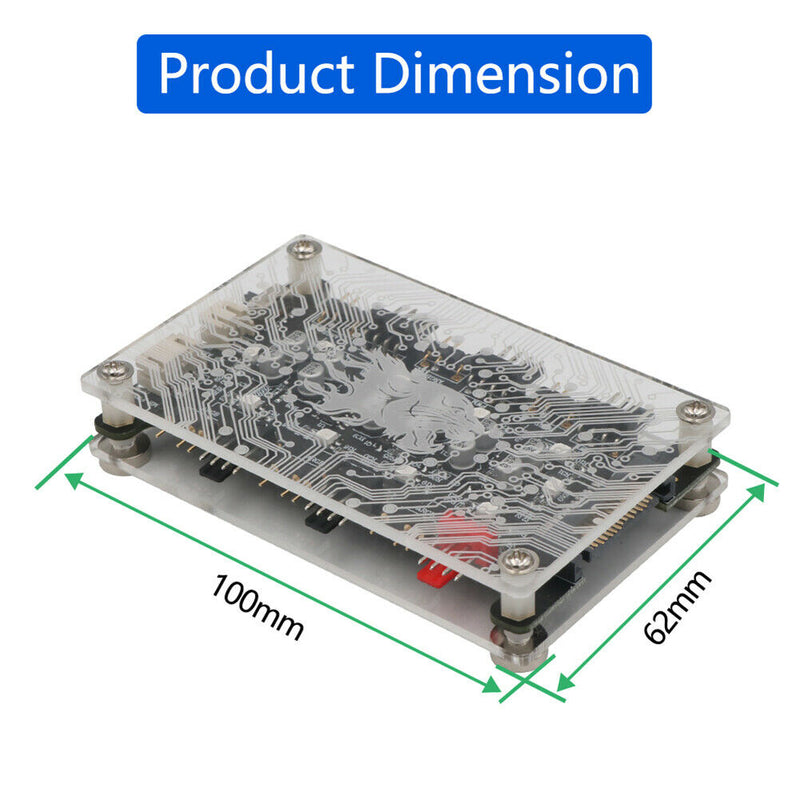

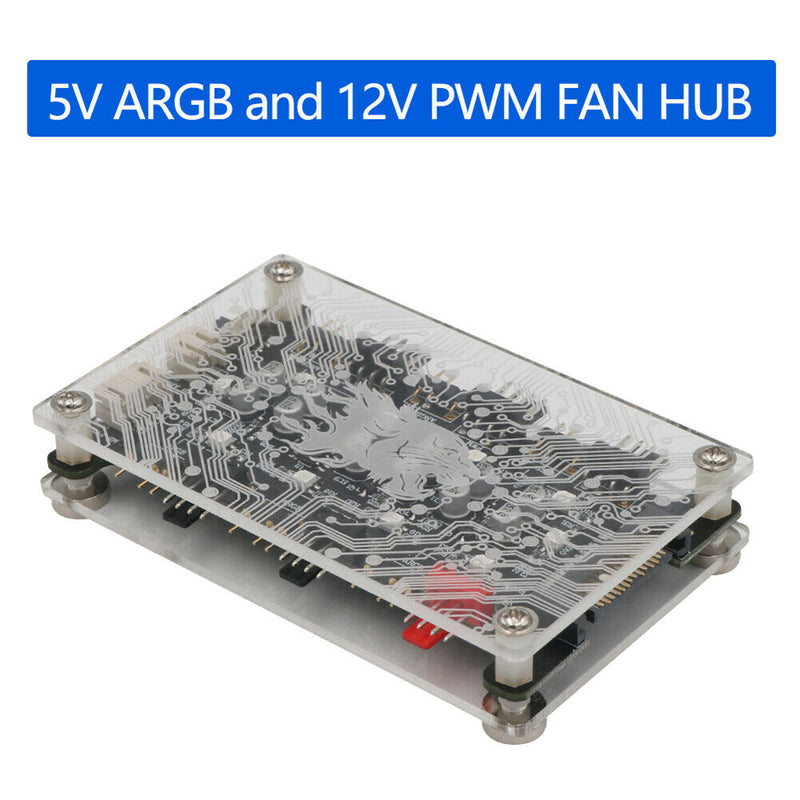

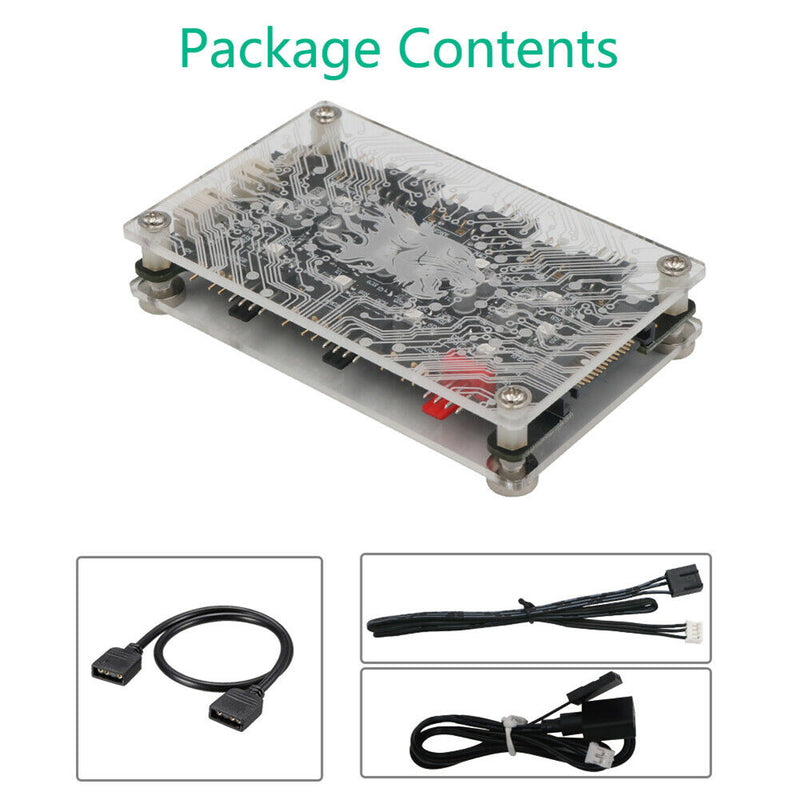

ITEM NAME:1 to 6 Multi Way Splitter HUB 5V ARGB LED 12V PWM 4Pin/3Pin Fan Adapter Product Description Description: 1 to 6 Multi Way Splitter HUB 2 in 1 5V ARGB LED Strip 12V PWM 4Pin/3Pin Cooling Fan Adapter Controller Feature: 1. This 3-pin RGB and 4-pin PWM HUB can simultaneously expand any 5V addressable RGB products and connect to an RGB cable on the motherboard at the same time. 2. This HUB is only compatible with 3 Pin 5V addressable RGB connector or controller. Cannot connect to 12V RGB light bar or M/B. 3. 6x PWM 4-pin header connector, compatible with 3-pin cable (Speed control function is not applicable to 3-pin fan), the red 4-pin 90Â ° connector is only connected to CPU fan. 4. Expand the 4-pin fan interface to solve the problem of insufficient motherboard fan interface. Specially designed for 12V 4-Pin 3-Pin fans, supporting up to 10 channels of fans to be activated at the same time. 5. In the HUB interface, the RED CPU interface is a dedicated interface for the CPU fan (with speed detection function). Since the motherboard can only receive one speed signal, the remaining 9 conventional fan interfaces have PWM function, but no speed signal. 6. Suitable for 4-pin and 3-pin fans. Please note that the speed of the 4Pin fan can be adjusted by temperature control. Also can be used for 3Pin fan, but because 3Pin has no PWM function, it is at a fixed speed after plugging in. 7. The magnetic bracket design can easily fix the HUB in the chassis. Specification: Product Size: 100 X 62 X 16mm/3.94 X 2.44 X 0.63" RGB Cable Length: 60cm/23.62" Note: 1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you! 2. Please allow 1-3mm measuring deviation due to manual measurement. Included: 1 X Fan Splitter HUB 1 X LED Controller Cable 1 X PWM Controller Cable 1 X Manual.Suitable for 4-pin and 3-pin fans. Also can be used for 3Pin fan, but because 3Pin has no PWM function, it is at a fixed speed after plugging in. In the HUB interface, the RED CPU interface is a dedicated interface for the CPU fan (with speed detection function).
