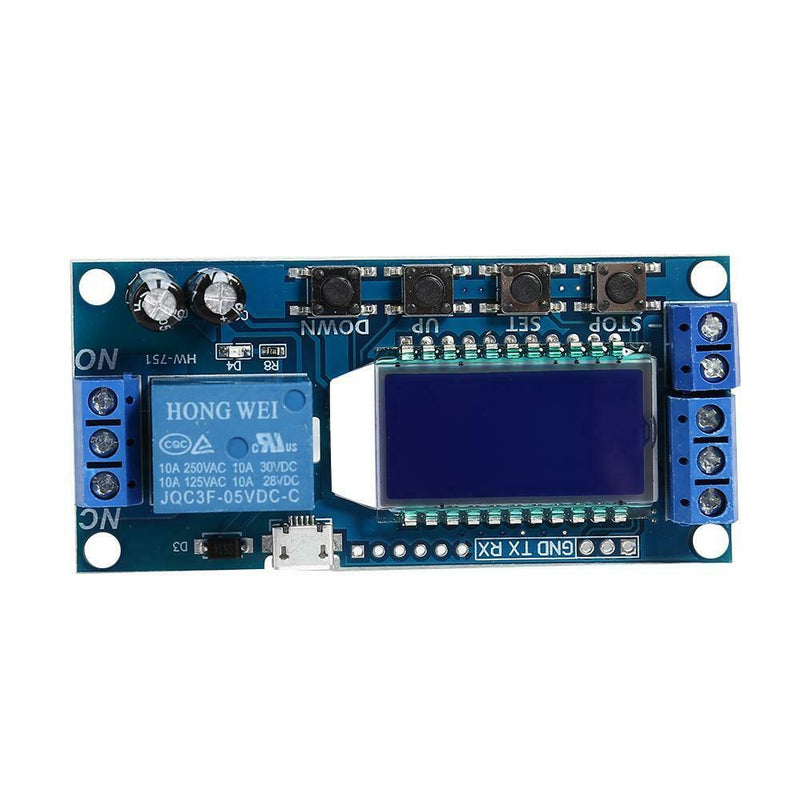

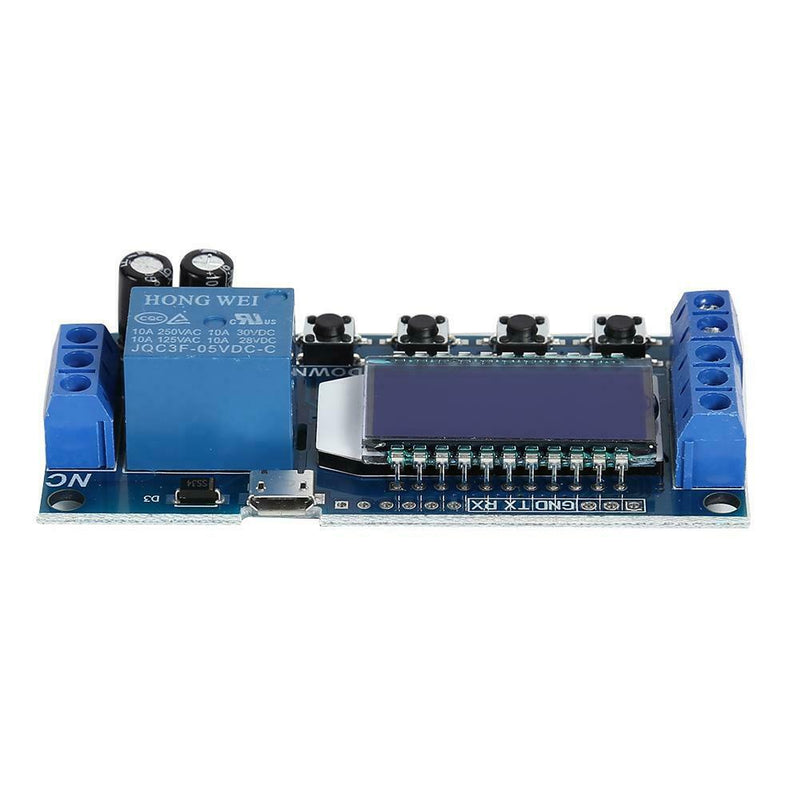

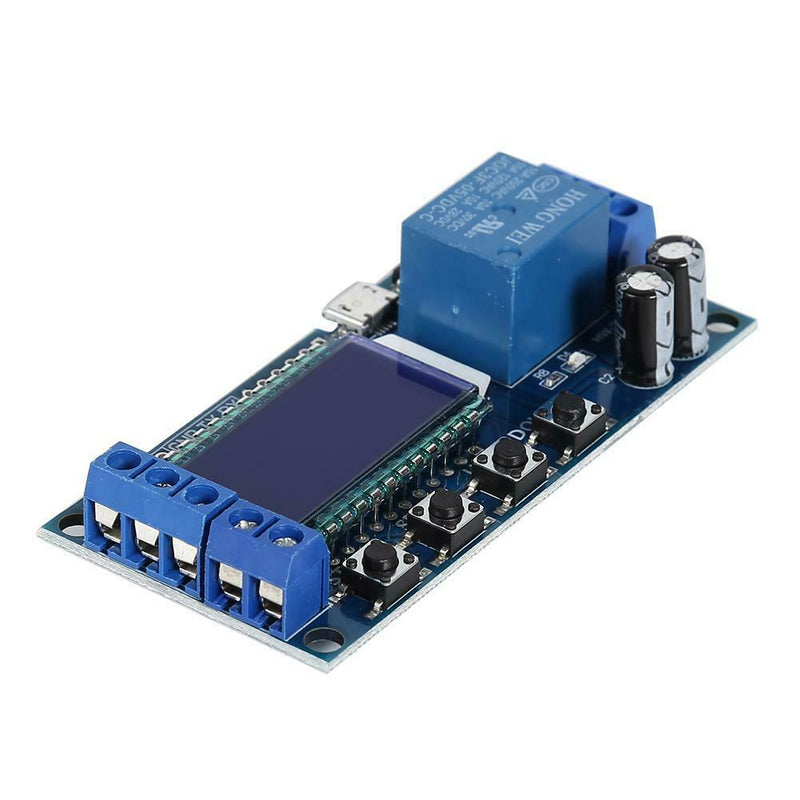

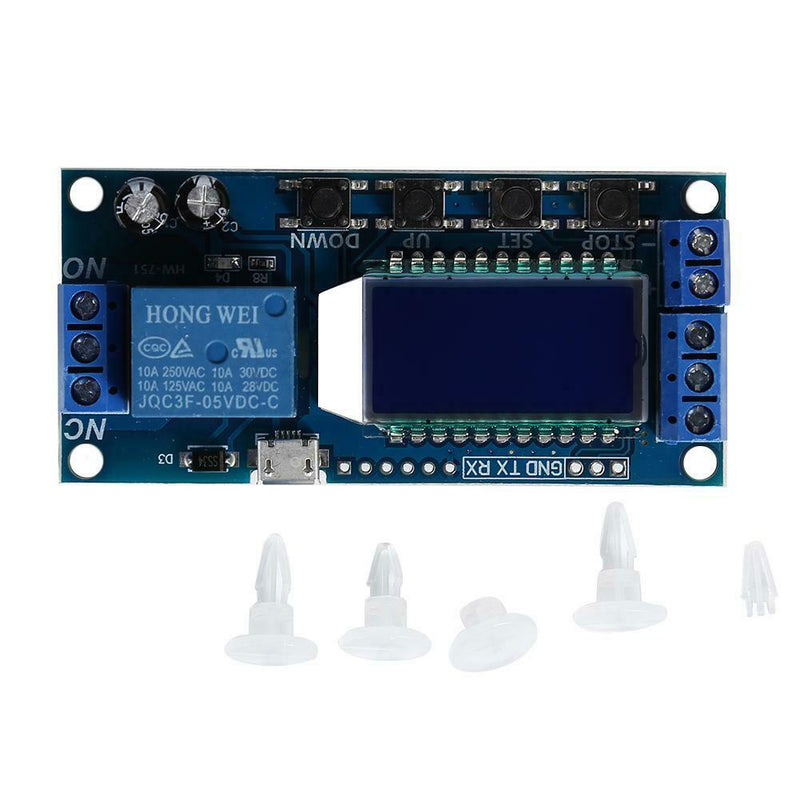

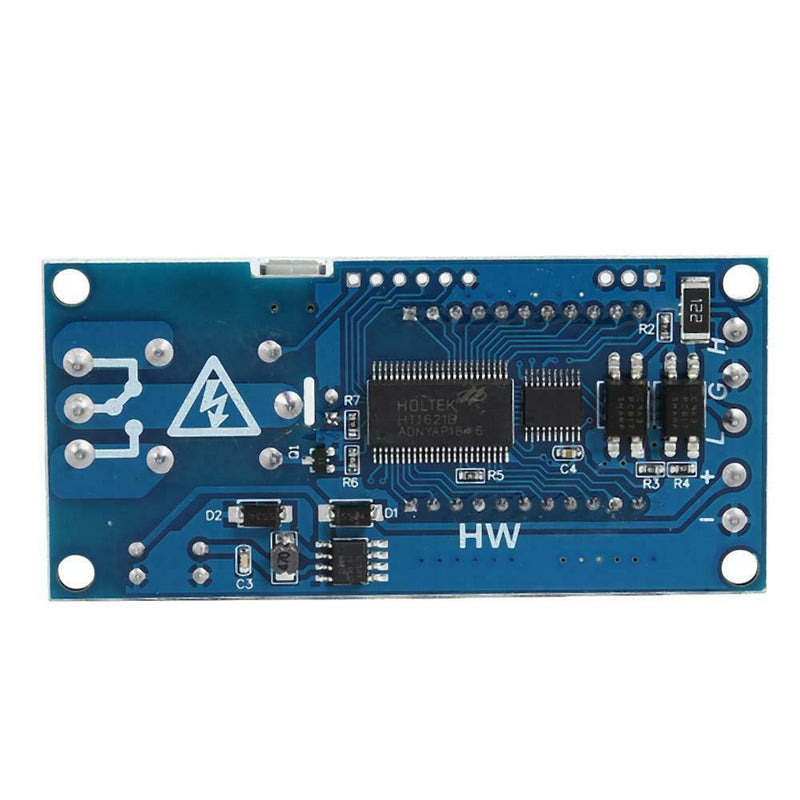

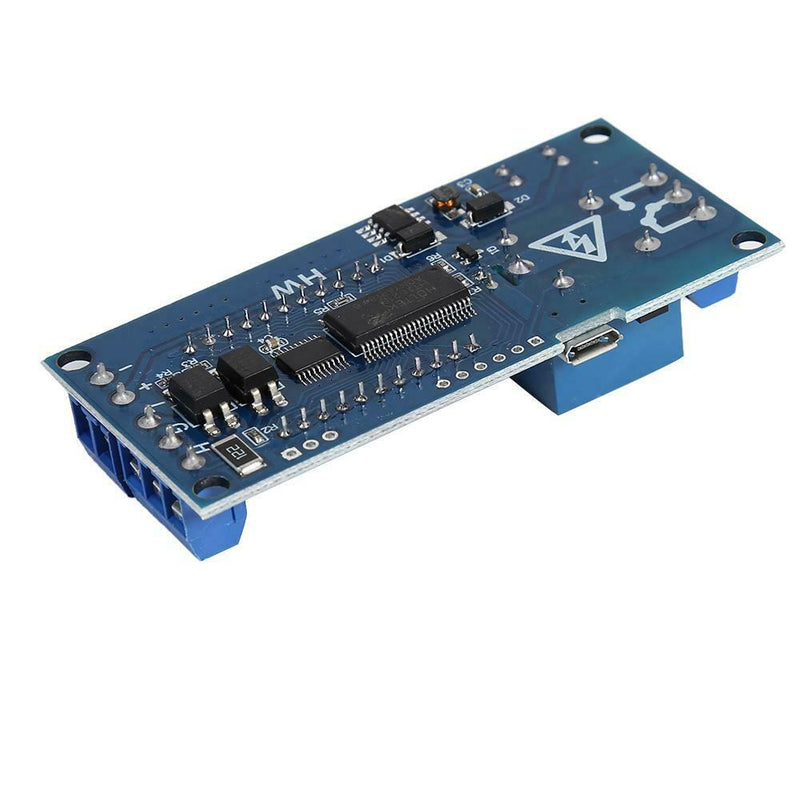

ITEM NAME:1 Way Relay Module Time Delay Power off Trigger Cycle Timer Circuit Switch #gib Product Description Description: Feature: 1. With LCD display, the current mode and parameters are clear at a glance, very clear, simple and practical. 2. Supporting high and low level triggering, switch control, suitable for most occasions. 3. Wide voltage power supply (6-30V) supports micro USB 5.0V power supply, which is very convenient to use. 4. Support UART data upload and parameter setting. 5. Has a key emergency stop function (STOP key), with reverse connection protection, reverse connection does not burn. 6. Increased sleep mode, after use, no operation within 5 minutes, automatically turn off the LCD backlight; any key to wake up. 7. Different OP, CL and LOP parameters can be set. These parameters are independent and stored separately. 8. All setting parameters are automatically saved after power failure. 9. With optocoupler isolation, enhance anti-jamming ability, industrial grade circuit board, set parameters after power off forever memory. Specification: Working Voltage: 6-30V Supports Micro USB 5.0V Power Supply Trigger signal source: high level trigger (3.0V-24V), low level trigger (0.0V-0.2V), switch control (passive switch). Output capacity: can control equipment within 30 V 5A DC or 220 V 5A AC Static current: 15 mA Working current: 50mA Service life: more than 100,000 times Working temperature: -40~85℃ Product size: 80mm*37mm*15mm/3.14*1.45*0.59'' Packing weight: 37g Note: Please allow 1-3mm differs due to manual measurement. Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understand. Included: 1 X 1 Channel Relay Module.Increased sleep mode, after use, no operation within 5 minutes, automatically turn off the LCD backlight; any key to wake up. Included: 1 X 1 Channel Relay Module. Due to the different display and different light, the picture may not show the actual color of the item.
