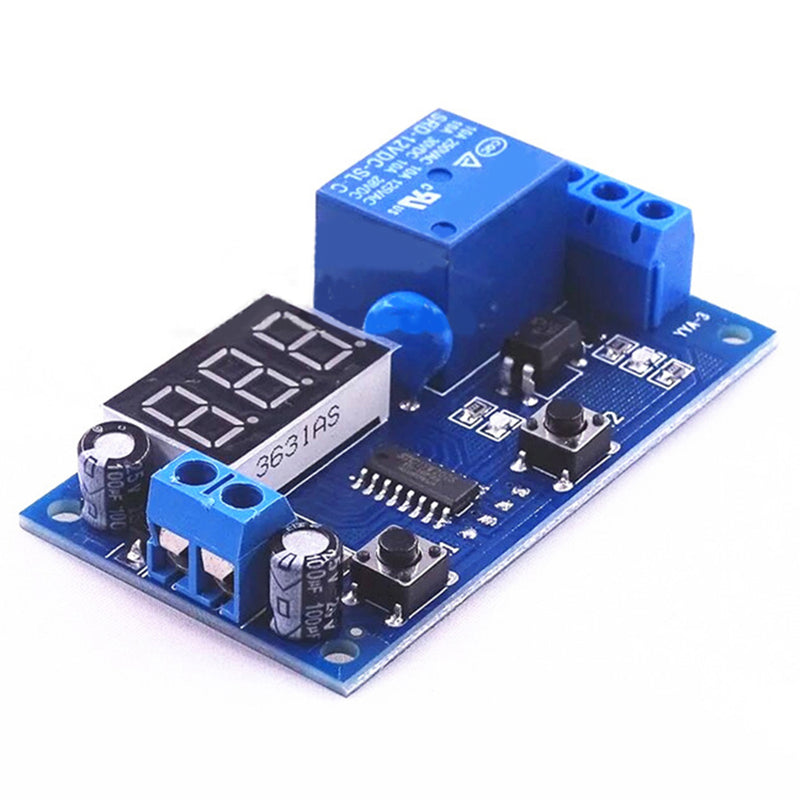

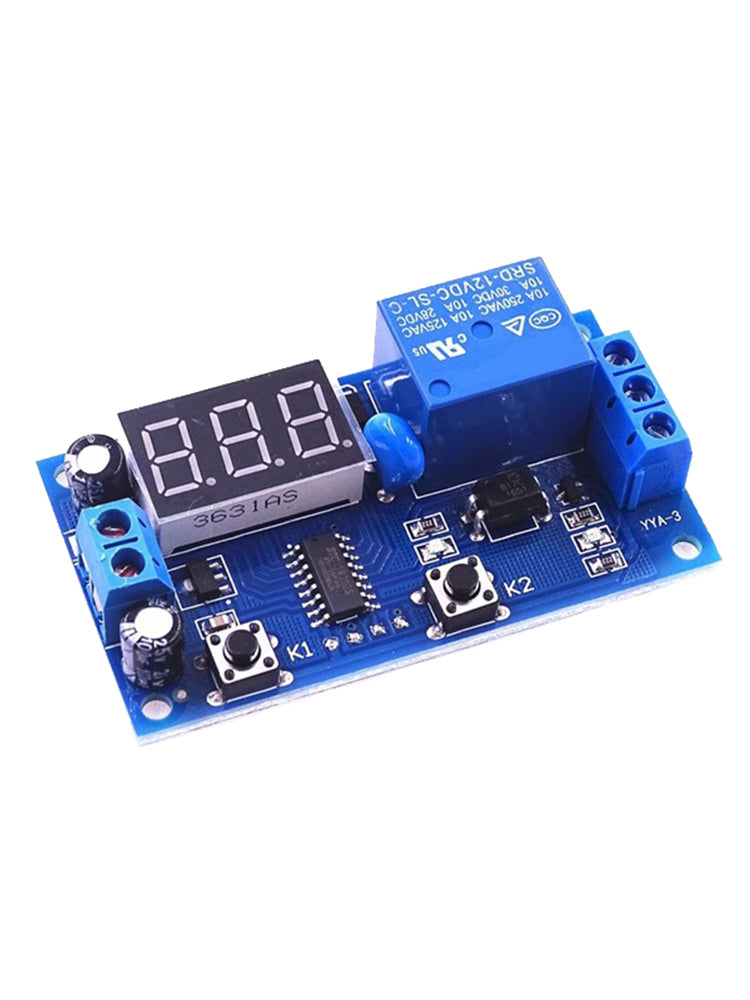

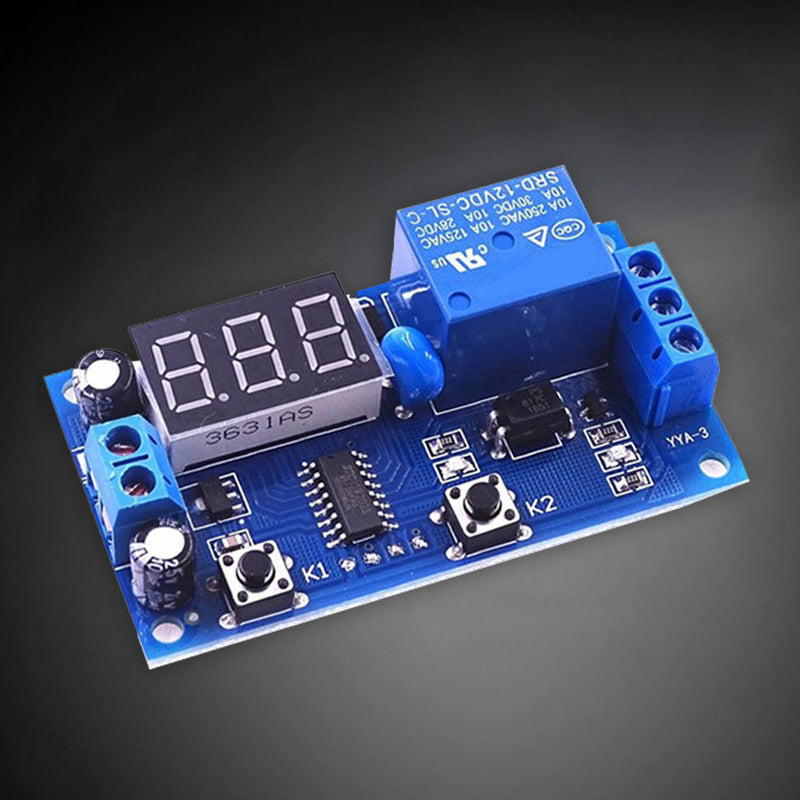

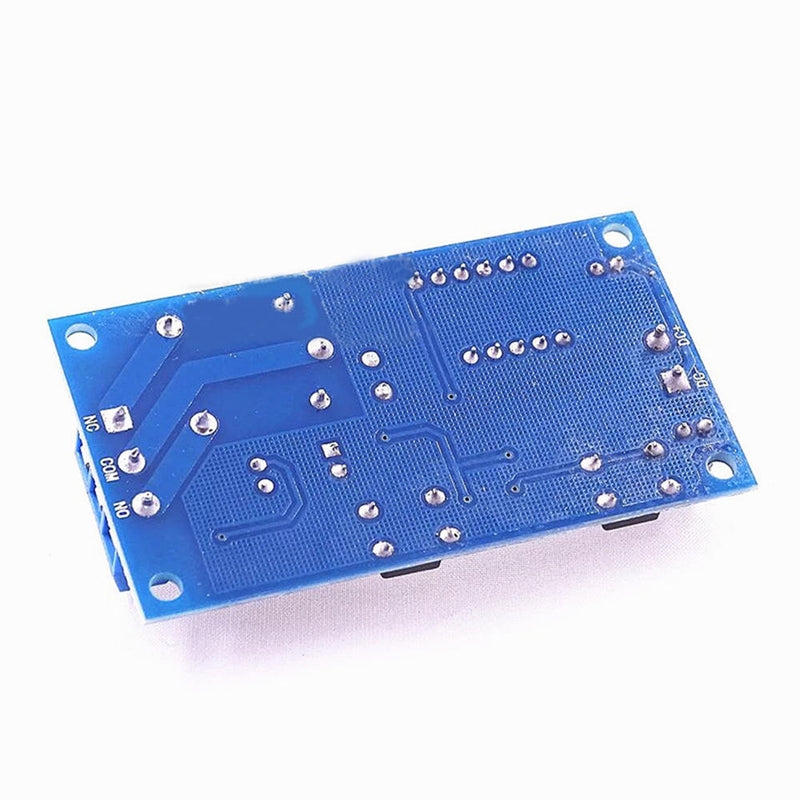

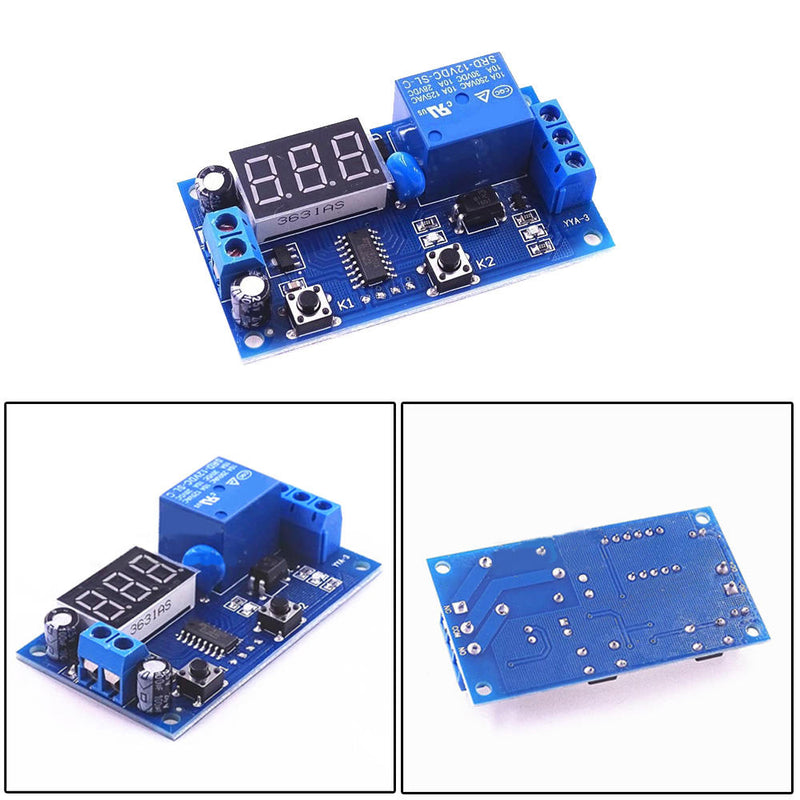

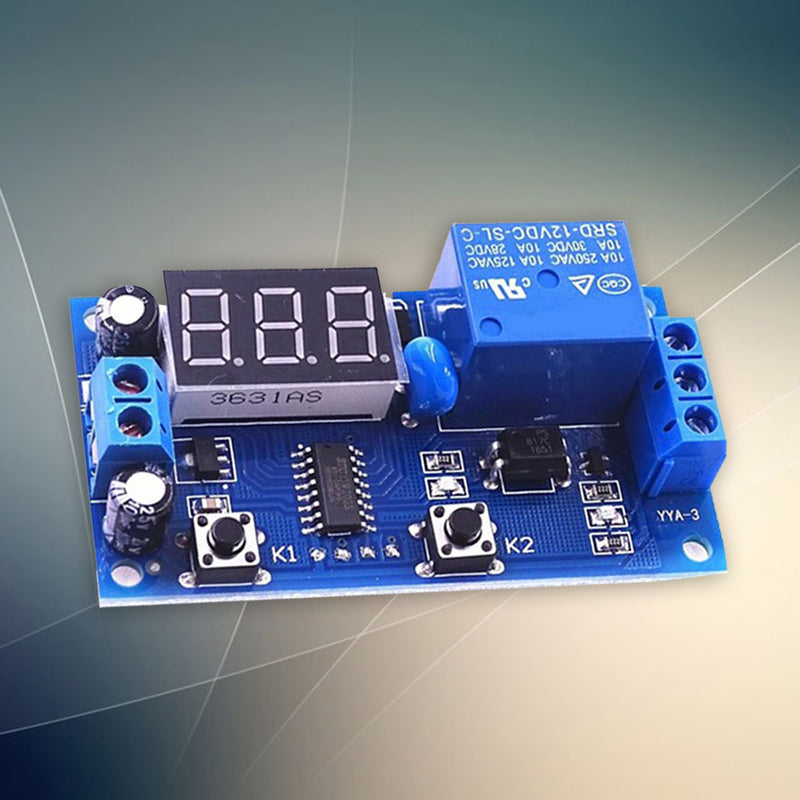

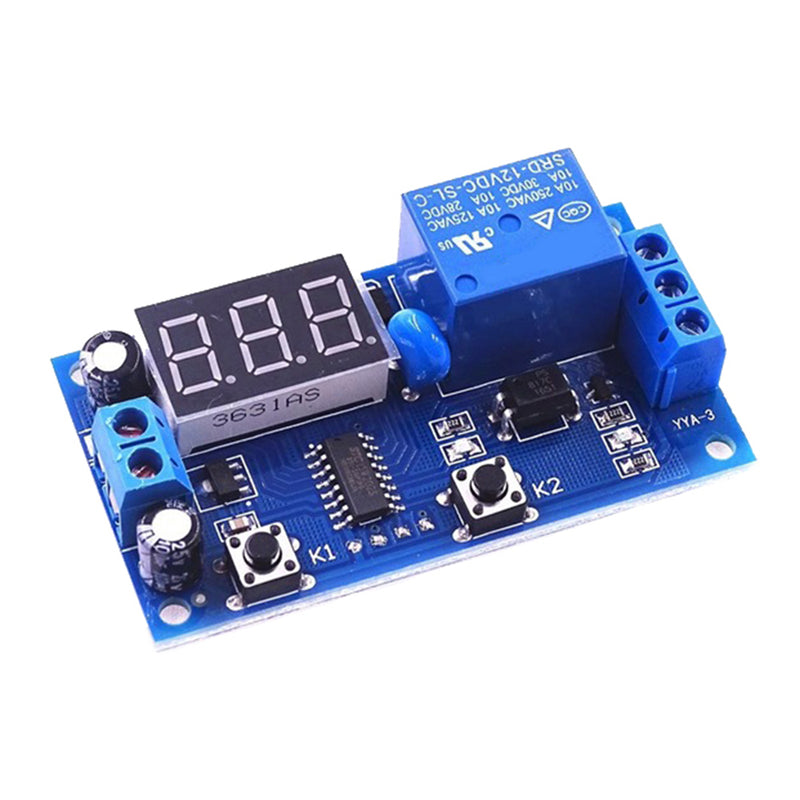

1 xDC 12V Digital LED Cycle Timer Delay Switch Turn Off/On Time Relay Module Hot

ITEM NAME:1 xDC 12V Digital LED Cycle Timer Delay Switch Turn Off/On Time Relay Module Hot Descriptio n Description: Product working mode: after power on for a period of time, disconnect for a period of time, infinite loop (with normally open normally closed contact) (time range: 0.1 seconds to 999 minutes adjustable) 1: Size: 65mm*36mm*18mm 2: Output capacity: DC DC 5~30V AC 220V10A 3: Quiescent current: 20mA Operating current: 50mA 4: Working voltage: DC12V (fluctuation between 10V and 16V will not be affected) 5: Service life: more than 100,000 times Working temperature: -40~85'C 6: The output adopts optocoupler isolation to enhance the anti-interference ability power consumption, ensure stability, industrial grade circuit board, PLC-like, set parameters can be remembered forever after power off. Button setting instructions: The power-on display “————† means to enter the standby state; Press K1 for the first time (more than 1 second is required to prevent false triggering) Screen display: P -11: K2 adjusts the main mode, K3 and K4 adjustment functions Press the second time K1, the screen displays: A001: K2 and K3 adjust the first time A, K4 adjust the decimal point (time unit) Pressing the third K1, the screen displays: B001: K2 and K3 adjust the second time B, K4 adjusts the decimal point (time unit) Pressing the fourth K1, “————† means entering the standby state; Press K4 in standby mode to permanently turn off/on the display and switch the low power mode. X.XX decimal point in hundred, timing range: 0.01 seconds to 9.99 seconds XX.X decimal point in ten, timing range: 0.1 seconds to 99.9 seconds XXX has no decimal point, timing range: 1 second ~ 999 seconds XXX. The decimal point is in one place, the time range is from 1 minute to 999 minutes. Specifications: Material: Circuit Board Color: As Shown Package Included: 1 * Time Relay Module Note: 1.Due to the manual measurement and different measurement methods, the actual size could be slightly different. 2.Plea.Find many great new & used options and get the best deals for 1 xDC 12V Digital LED Cycle Timer Delay Switch Turn Off/On Time Relay Module Hot at the best online prices at shop2india!
