Specification:

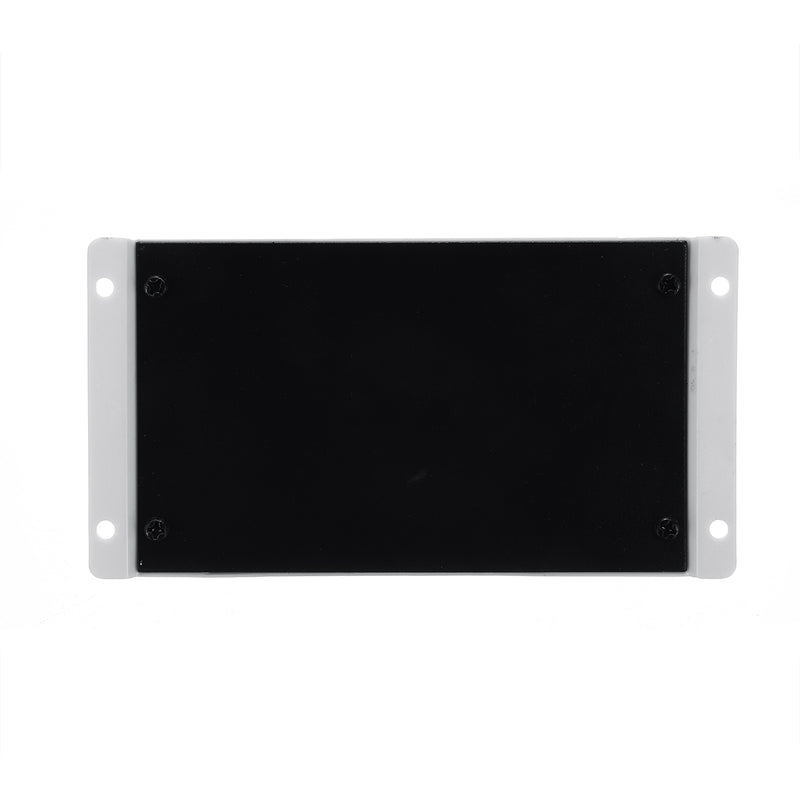

Name:10A 12V/24V LCD Display PWM Solar Panel Charge Controller
Rated voltage:12/24V AUTO
Charge current:10A
Discharge current:10A
Max.PV input power:130W(12V),260W(24V)
Max solar input:
12V battery,the highest 23V
24V battery when the highest 46V
Equalization
Ternary lithium battery(L1):12.0V
Lithium iron phosphate battery(L2):13.8V
Lead acid battery:13.7V
Undervoltage protection
Ternary lithium battery:10V(Adjustable range: 9.0-11.0V)
Lithium iron phosphate battery:12V(Adjustable range:10.3-12.8V)
Lead acid battery:10.7V (Adjustable range:9.5-11.5V)
Disstarge reconnect:
Ternary lithium battery:11.6V(Adjustable range:11.0-11.7V)
Lithium iron phosphate battery:13.5V(Adjustable range:12.8-13.8V)
Lead acid battery:12.6V (Adjustable range:11.5-13.0V)
USB output:2 way USB output,5V/2A(Max.)
Self-consume:<10mA
Operationg temperature:-35-60℃
Color:Black
Size:133mmx70mmx33mm
Features:
Build-in industrial micro controller.
Big LCD display,all adjustable parameter.
Fully 3-stage PWM charge management.
Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.
Dual mosfet reverse current protection,low heat production.
There are lithium battery and lead-acid battery switching function (at the battery type interface,3second into the switch settings),the default is lithium battery.
System Connection:
1.Connect he battery to the charge regulator-plus and minus.
2.Connect the photovoltaic module to the regulator-plus and minus.
3.Connect the consumer to the charge regulator-plus and minus.
Package Included:
1 x 10A PWM Solar Charge Controller
1 x Screwdriver
1 x Manual
