Specification:
Article number: MC4
Rated voltage 1000 V
Rated impulse voltage: 1000 V
Test voltage: 6 kV (50Hz)
Suitable for cables: 10, 12, 14 AWG (2.5mm2 / 4mm2 / 6mm 2;)
Rated current: 24 A-14 AWG (2.5mm 2;), 30A-12 and 10 AWG (4mm 2; and 6mm 2;)
Protection class: IP67
Contact material: copper, silver plated
Insulation material: PC / PA
Operating temperature: -40 ° C + 90 ° C
The security class: II
Flame Class: UL94-V0
Contact resistance: ≤5mΩ
Insertion / withdrawal force: 50N / 50N
Locking system: snap fit
Package included:

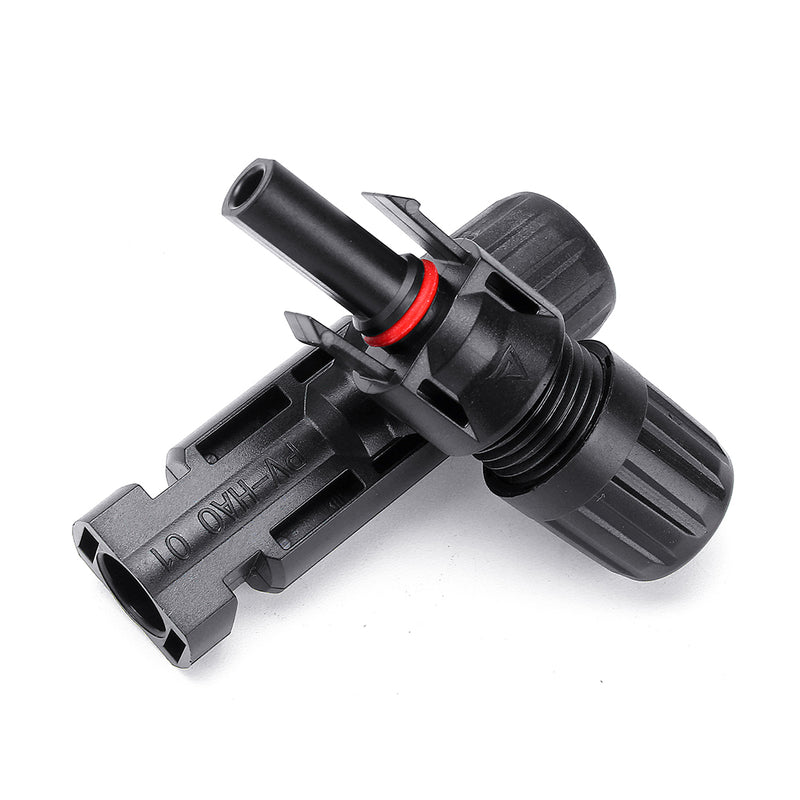

10 x Male And Female MC4 Solar Panel Connector
