Specifications:
Model: HX - 2S - D20
Overcharging range: 4.25-4.35V ( ±0.05V)
Over voltage range: 2.5-3.0V (± 0.05 V)
Maximum working current: 13A
Working temperature: - 40 - 50 ℃
Maximum instantaneous current: 20A
Storage conditions: - 40 - 80 ℃
Static current: less than 10uA
Resistance: less than 300 m Ω
Short circuit protection: to protect and restore must charge
Charging Voltage: 8.4 V - 9V

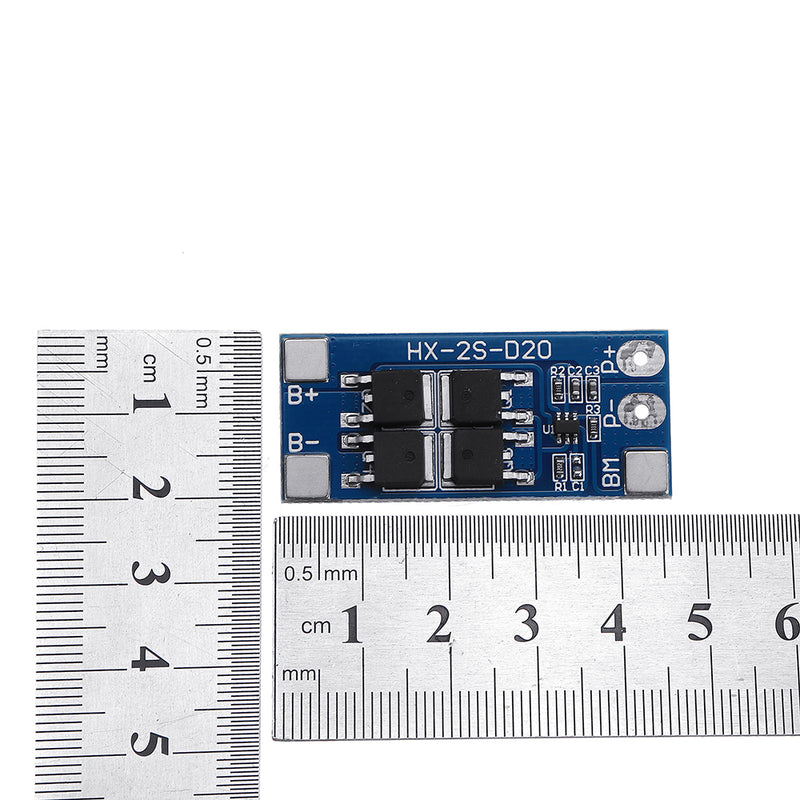

Board Size : 46 x 20 x 3.6 mm

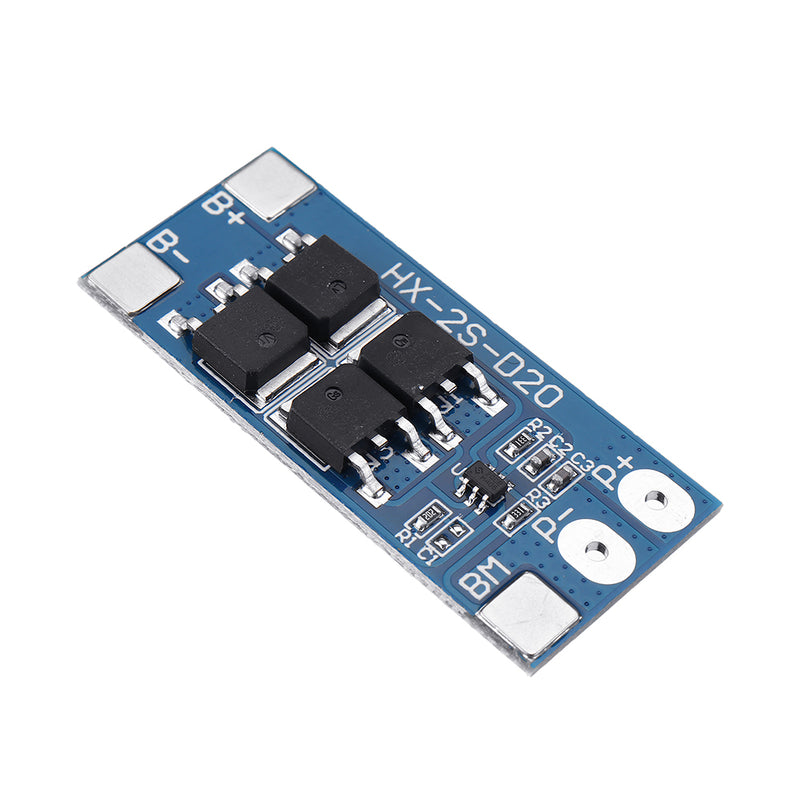

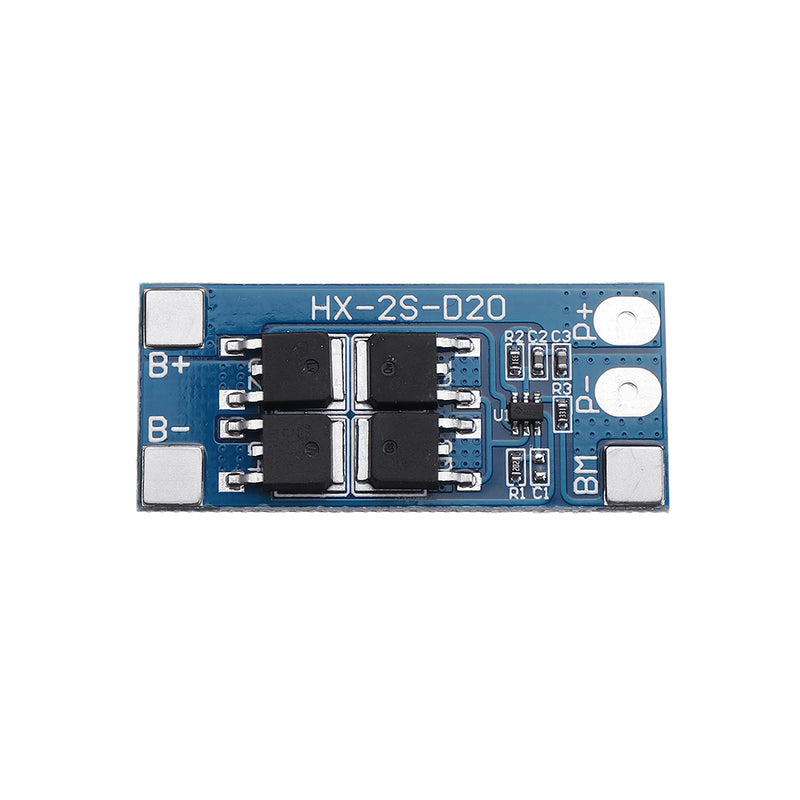

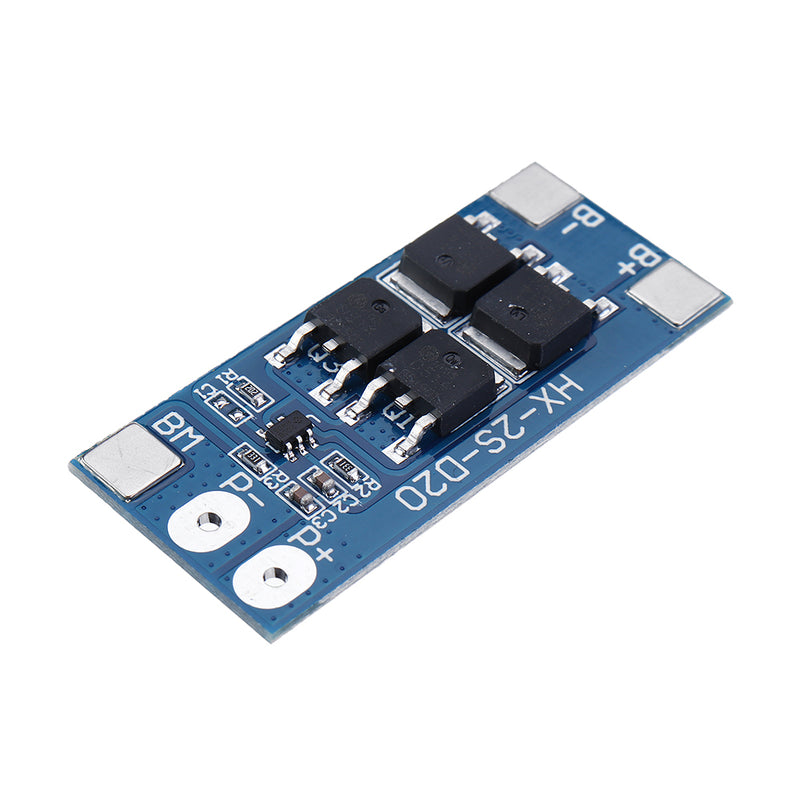

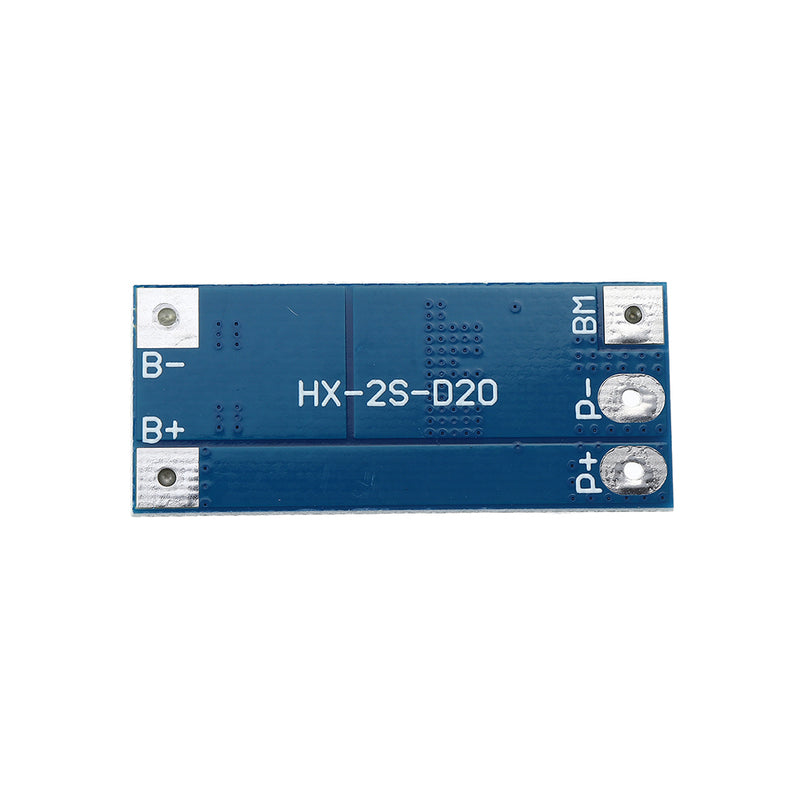

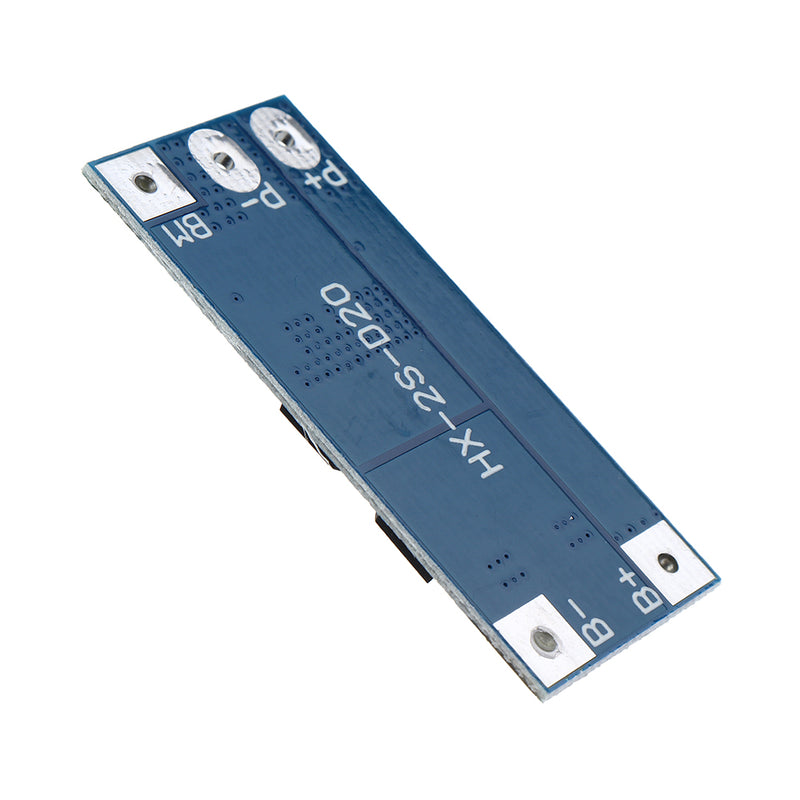

Welding Point:
B : battery anode;
B -: connect battery negative terminal;
MMB :connect battery 1 to battery 2;
P : charging/discharge correct poles (charging end/discharge end sharing);
P -: charging/discharge terminal negative terminal (charging end/discharge end sharing).
Note:
This can not be used in lithium iron phosphate battery protection board, hernia lamp, hand electric drill battery, electric fish electromechanical ChiZu, electric bicycle batteries, car batteries, children (4 A) more than 775 motor, fisheye 1W LED lamp, used for
the combined purchase customers please note!
Package Included:
10 x 2S 10A 7.4V 8.4V 18650 Lithium Battery Protection Board
