Features:
- High-accuracy voltage detection circuit
- Terminal of the charger using high voltage device
- Built-in three-stage over-current detection circuit (over-current 1, over-current 2, or
load short circuit)
- MOS transistor can control the battery charge and discharge
- Low standby current consumption
Specification:
Over charge voltage:4.25-4.35V±0.05V
Over dishcarge voltage: 2.3-3.0V±0.05V
Max continuous current:3A
Max peak current:5A
Working temperature: -40 to +50 ℃
Storage Temperature: -40 to +80 ℃
Small current:less than 3uA
Resistance:Less than 45m
Short cut protection :Yes,charge can repair

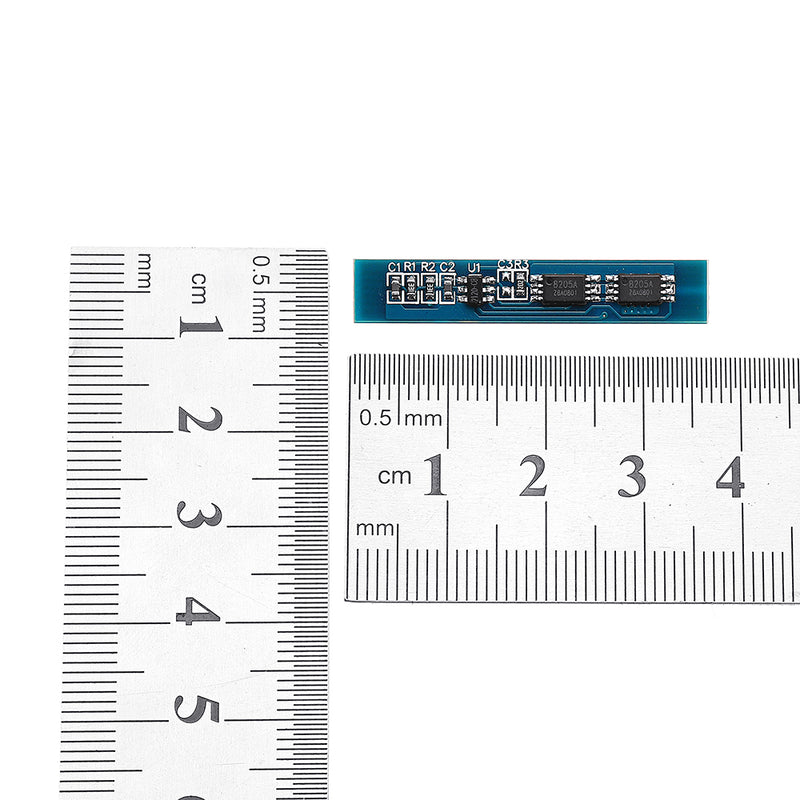

Size: 36 x 6 x 1.0mm
Package Included:
10 x 18650 Charger Protection Board
