Features:
1) high-accuracy voltage detection circuit;
2) terminal of the charger using high voltage device;
3) Built-in three-stage over-current detection circuit (over-current 1, over-current 2, or load short circuit);
4) MOS transistor can control the battery charge and discharge;
5) low standby current consumption.
Specificaions:
Over charge voltage:4.25-4.35v±0.05v
Over dishcarge voltage: 2.3-3.0v±0.05v
Max continuous current:3A
Max peak current:5A
Working temperature:-40---+50
Storage Temperature:-40-- +80
Small current:less than 3uA
Life cycle :more than 50000hours
Resistance:Less than 45m
Short cut protection :Protectable,charge can repair
Package Included:

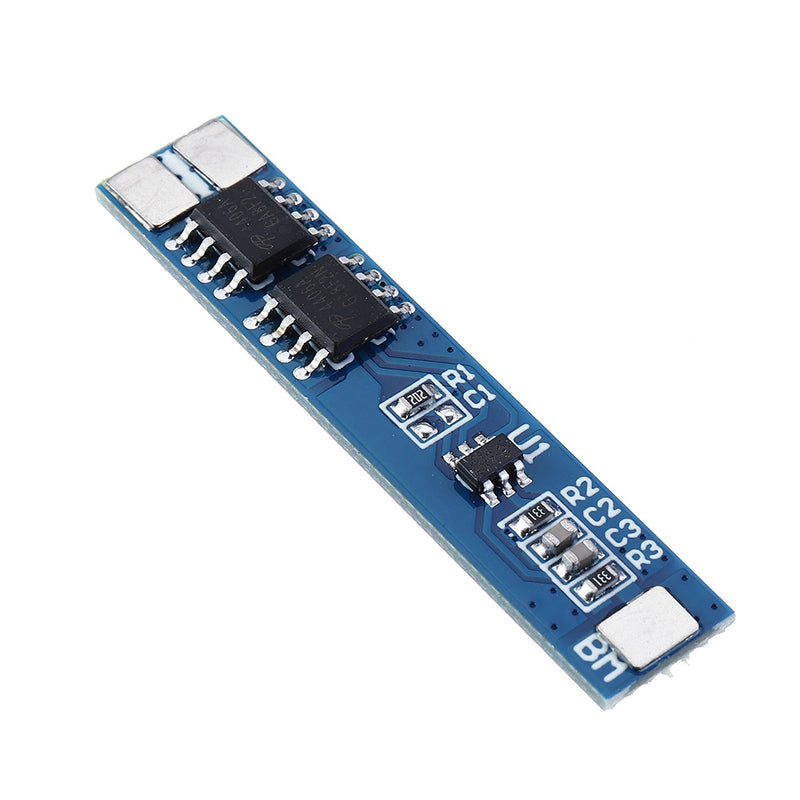

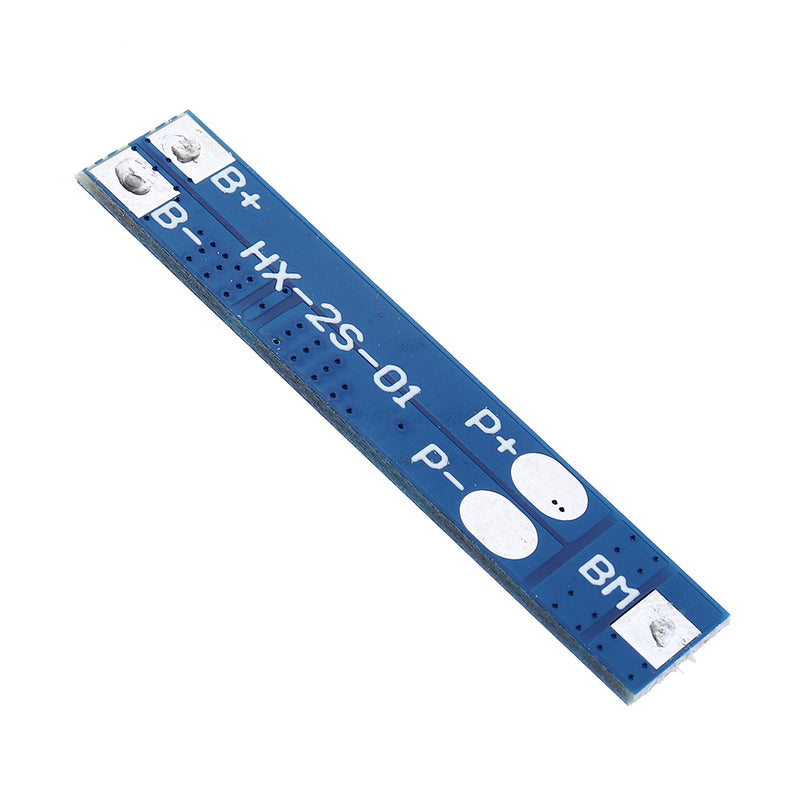

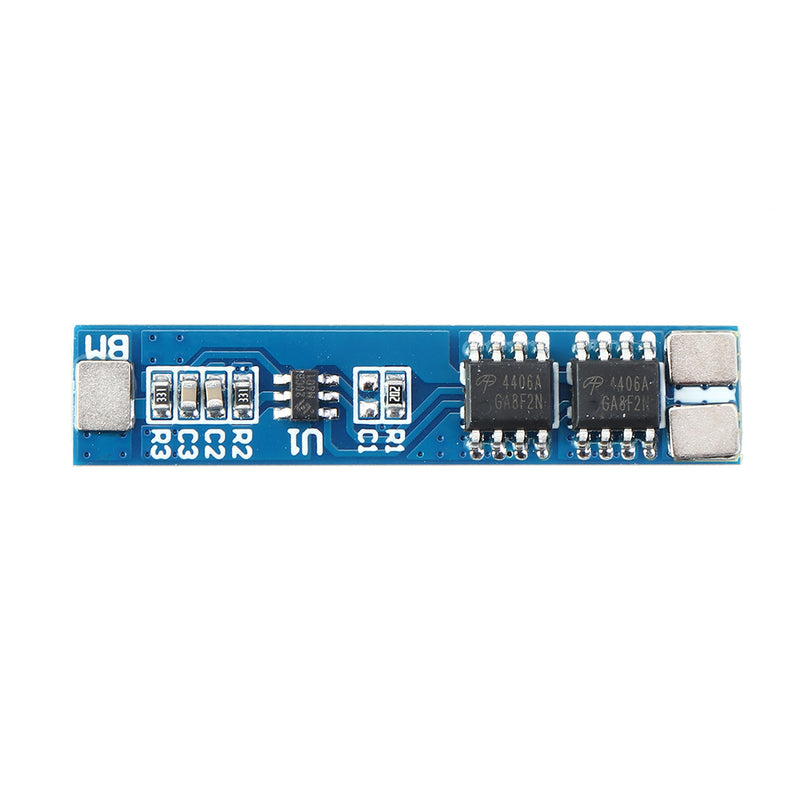

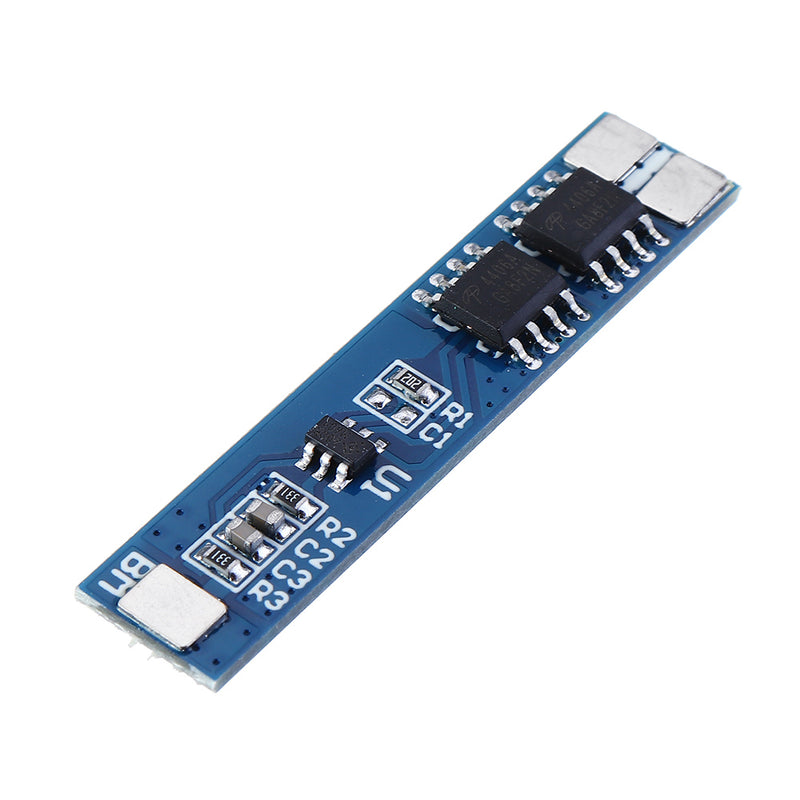

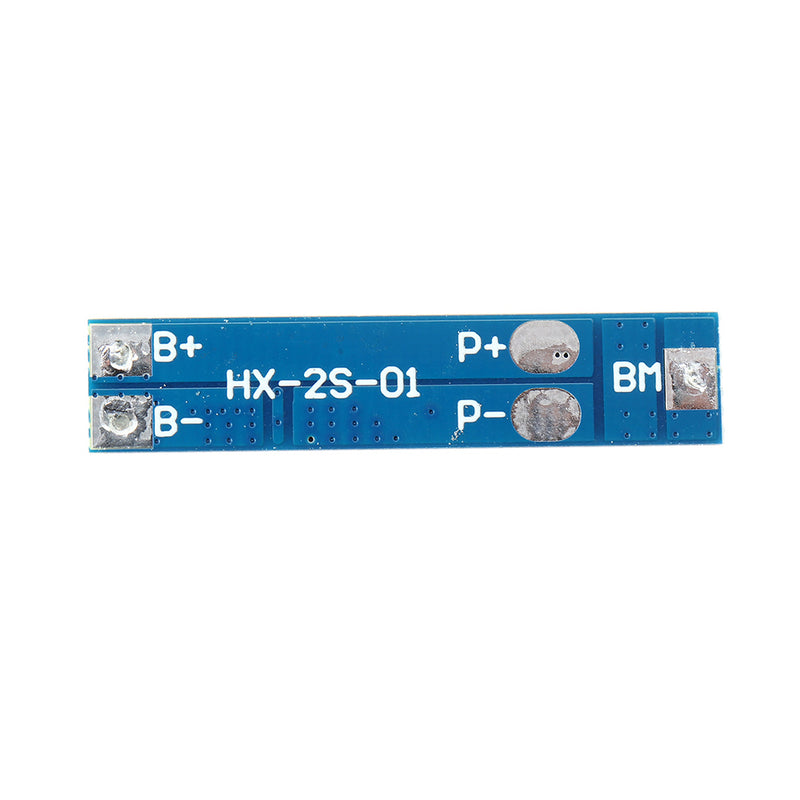

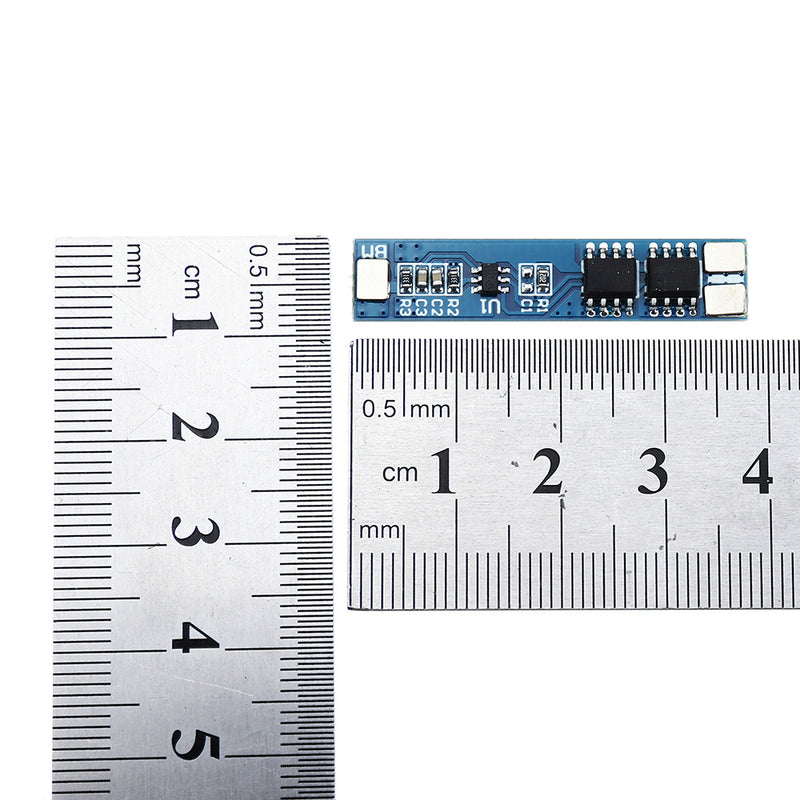

10 x 2S 3A Li-ion Lithium Battery Protection Board
