Features:
With optocoupler isolation, the control signal and the power of the controlled device are isolated, which greatly increases the rigidity of the interference.
Compatible with MCU and control board, 3V or 5V signal
High level start, low level stop, PWM speed regulation
Widely used to control the start and stop of the motor, solenoid valve and other tributary equipment
The signal input side can be welded to the terminal or pin itself, compatible breadboard
Output can be soldered to the terminal or direct wire
Module size 23mm x 16mm There are two 2mm diameter screw holes, hole spacing 8mm
Specifications of MOS tube: 30V 161A
Package Included:

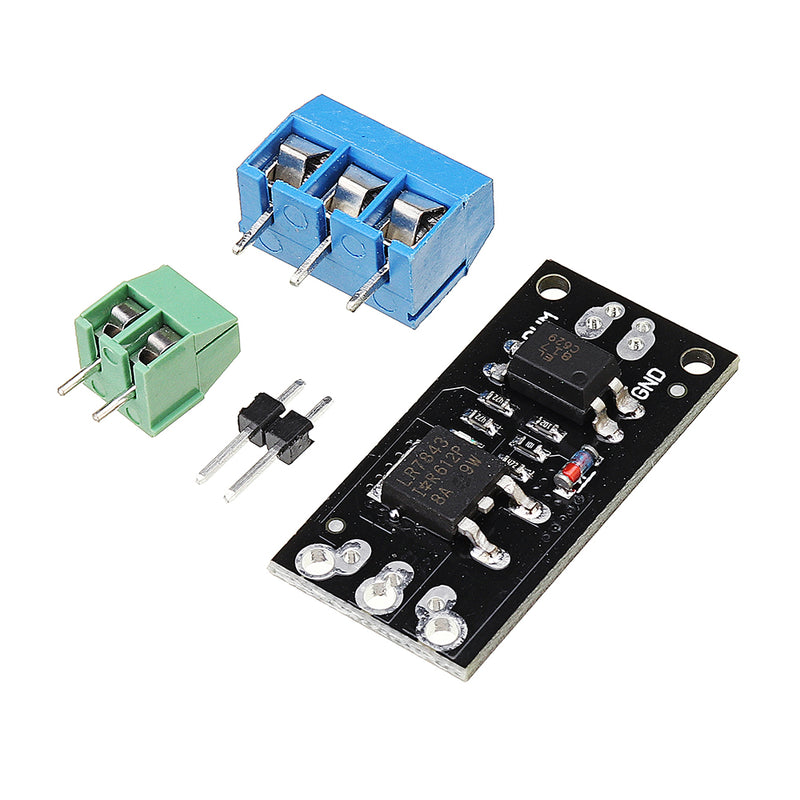

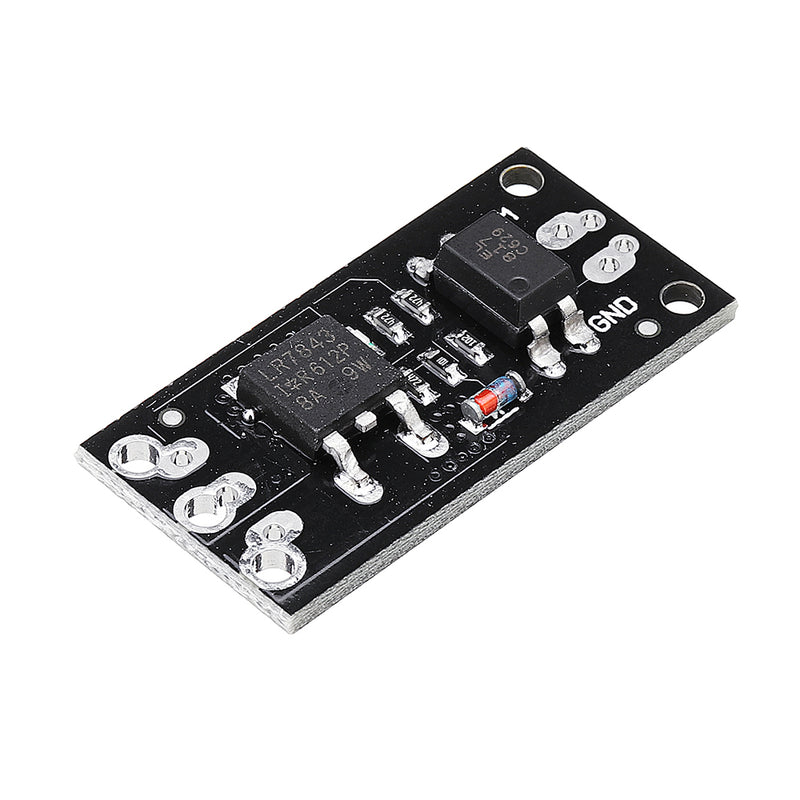

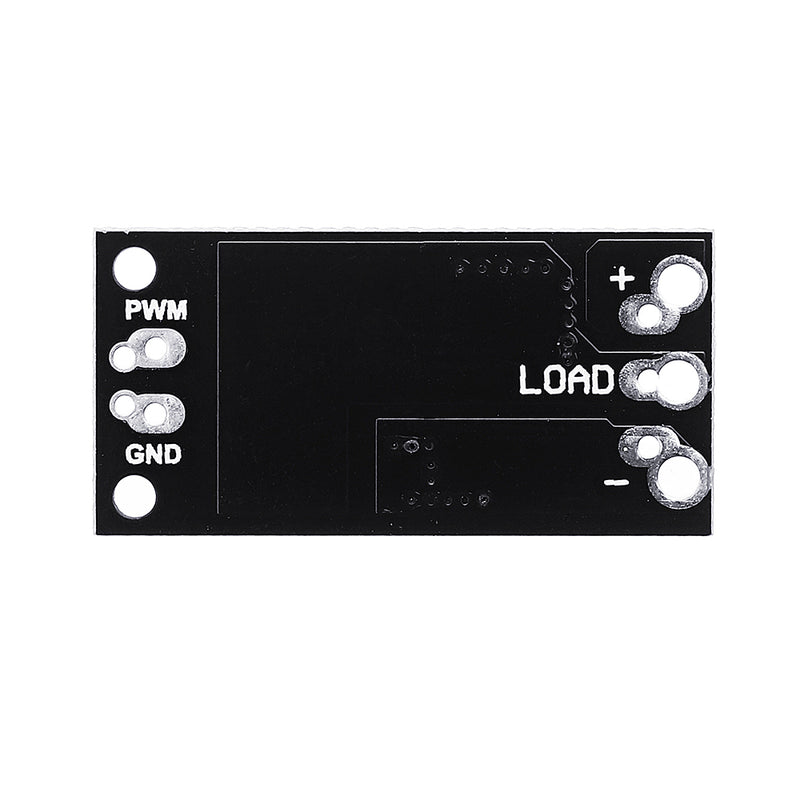

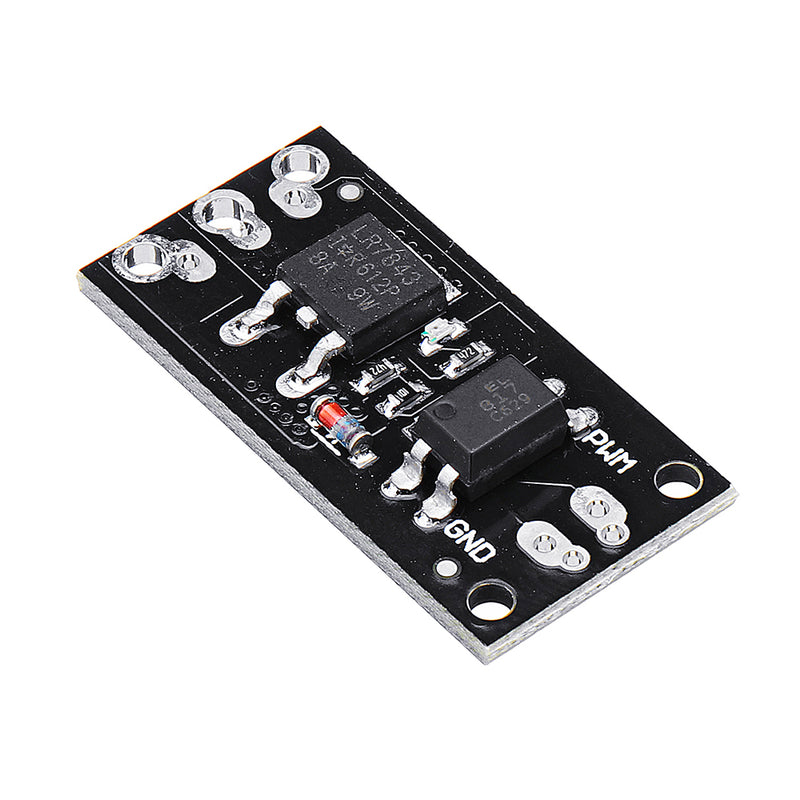

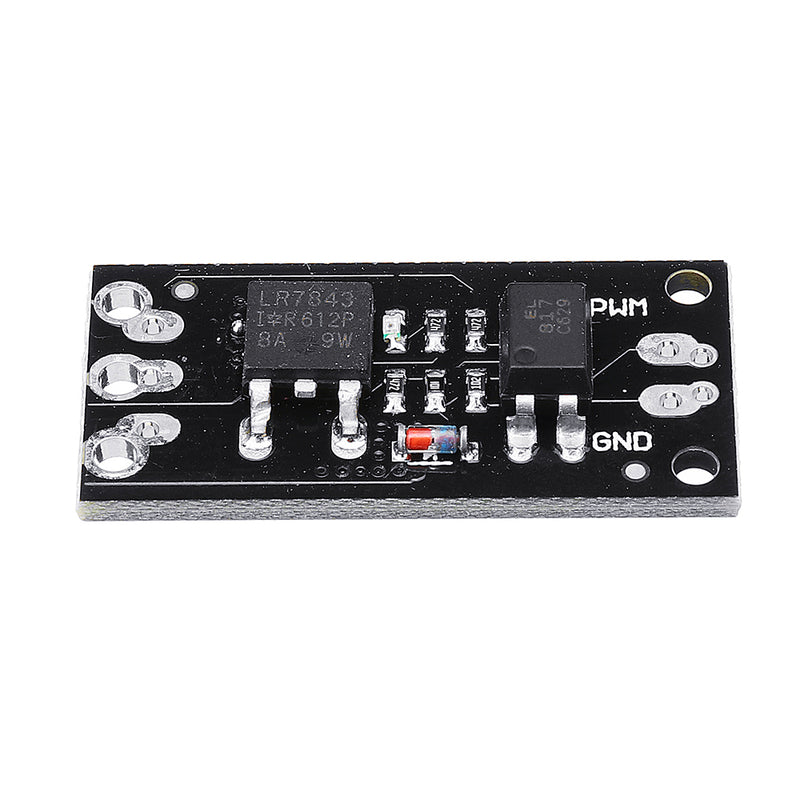

10 x LR7843 Isolated MOSFET MOS Tube FET Relay Module
