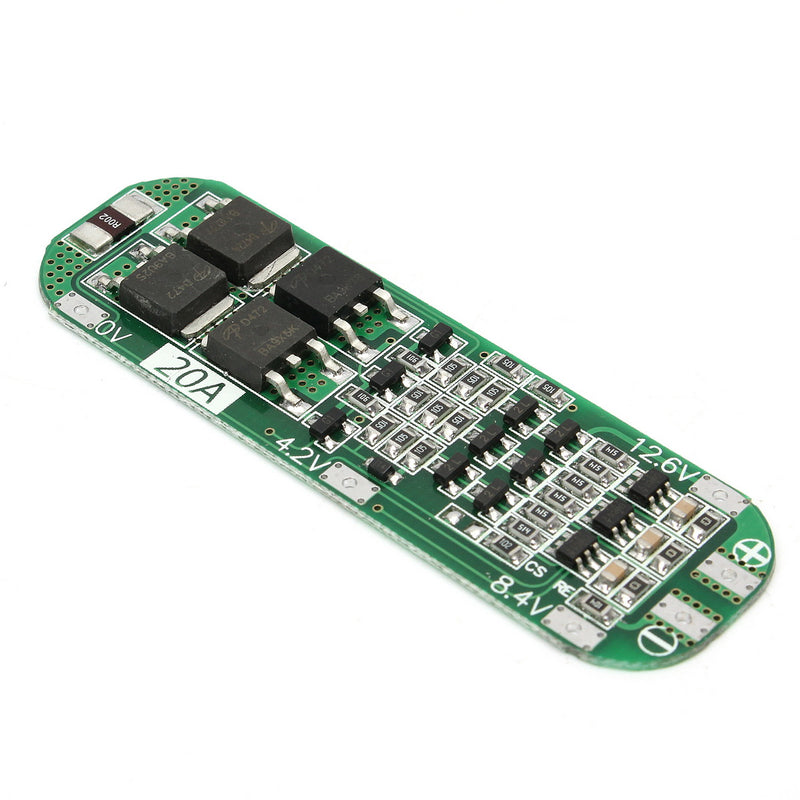

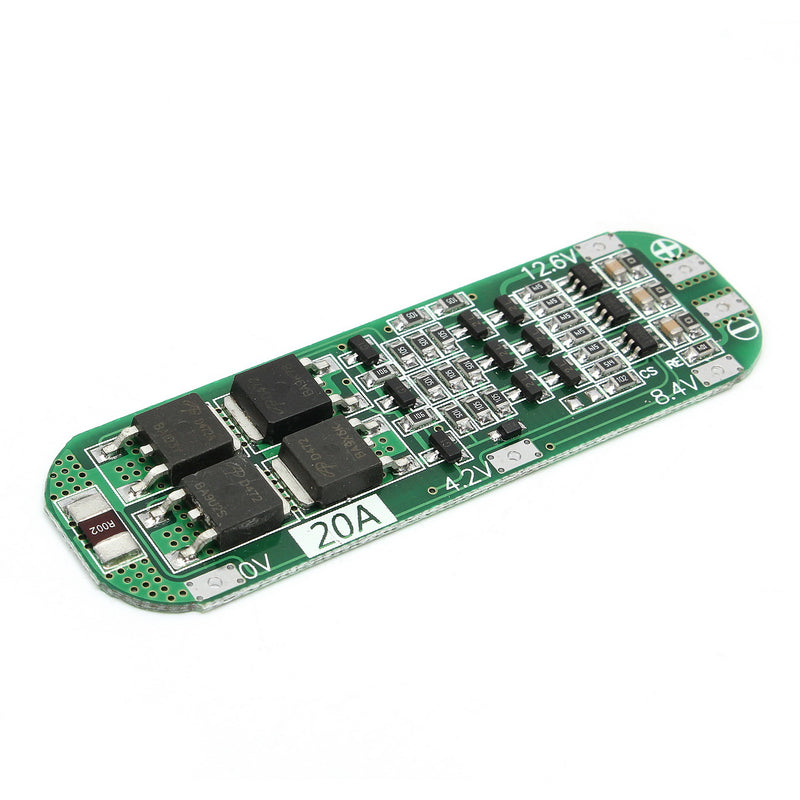

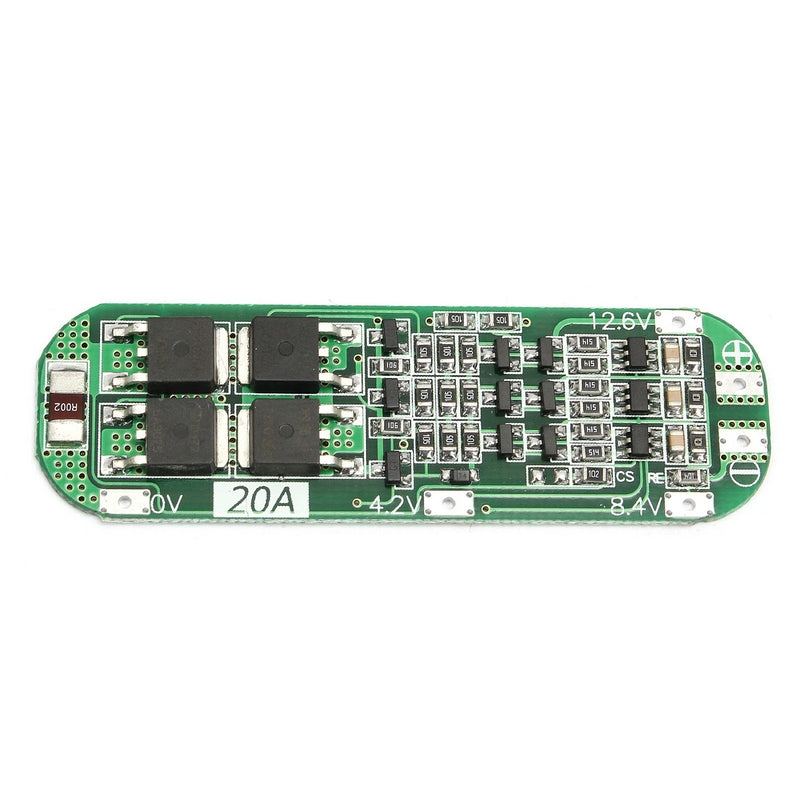

Suitable range: For nominal voltage 3.6V 3.7V lithium battery(Including 18650,26650, lithium polymer batteries) Product Size: 64mmx20mmx3.4mm Material:Metal Charging voltage: 12.6V Maximum output current: 20A Maximum output power / charging power: 252W
Electrical Parameters
Item
Minimum
Typical
Maximum
Unit
Consumable Current
12
18
24
uA
Over charge protection voltage
4.2
4.25
4.3
V
Over charge recovery voltage
4.1
4.16
4.2
V
Over charge delay time
500
1000
1500
ms
Over discharge protection voltage
2.35
2.5
2.7
V
Over discharge recovery voltage
2.9
3.2
3.3
V
Over discharge delav time
50
100
150
ms
Conduction resistance
10
12
14
mΩ
Overcurrent protection current
37
40
43
A
Ovcrcurrcnt delay time
5
10
15
ms
Normal operating current
0
20
20
A
Transient current (<10ms)
18
20
22
A
Ambient temperature
-40
25
85
°C
Note:

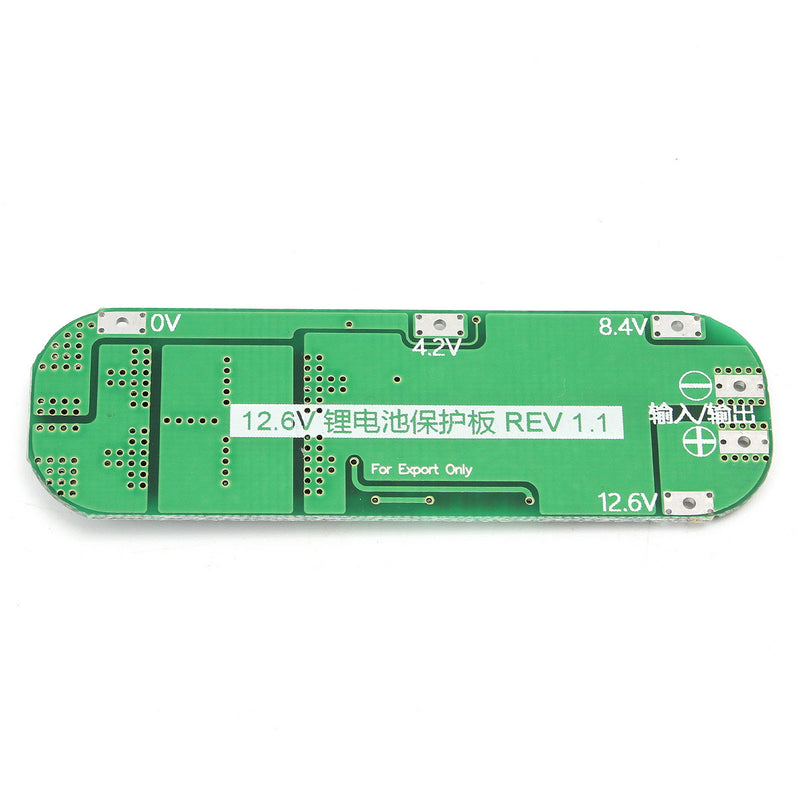

1. Strictly according to the diagram wiring: 0V/4.2V/8.4V/12.6V,Otherwise it will cause damage to the chip. 2. After connection,it need to first charge activation, then will have the output. 3. Do not mix the good battery and poor battery to use.The internal resistance of 3 battery capacity are closer will be better.Please buyers know the professional knowledge of this module before buying
Package Included:
10 x PCB Protection Board
