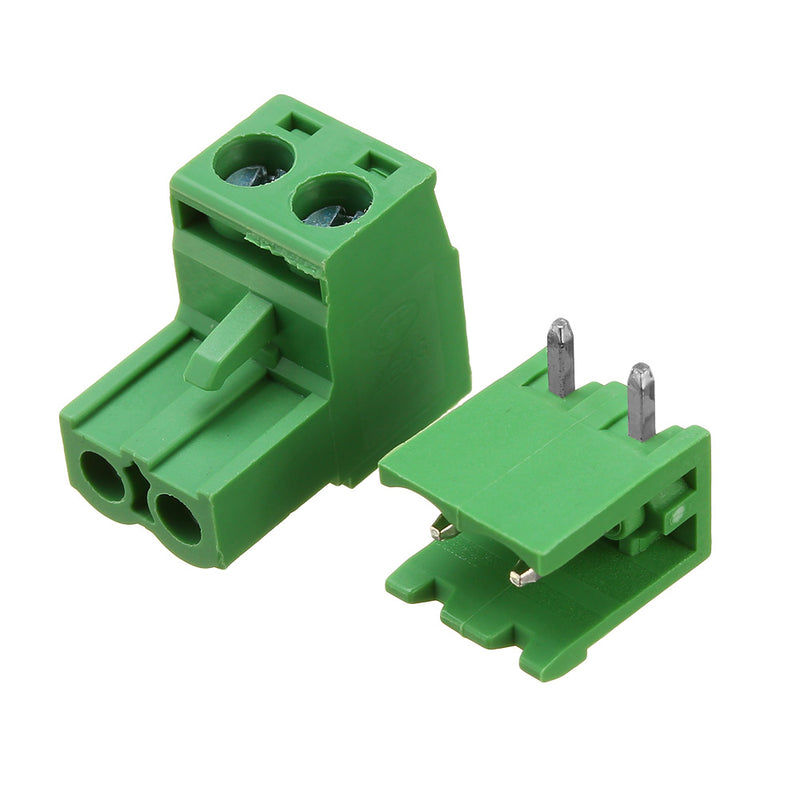

10Pcs 5.08mm Pitch 2Pin Plug in Screw PCB Dupont Cable Terminal Block Connector Right Angle

10Pcs 5.08mm Pitch 2Pin Plug in Screw PCB Dupont Cable Terminal Block Connector Right Angle

Name: 10Pcs 5.08mm Pitch 2Pin Plug in Screw PCB Dupont Cable Terminal Block Connector Right Angle
Brand: Banggood
SKU: U2I-BG-1433599
Price: 1,953.00 INR
Availability: InStock

SKU: U2I-BG-1433599

Share this product

Features:

It is used in PCB for connecting power source or other wires.
90 degrees angle design, suitable for PCB space shortage or in need of using 90 degrees angle.
Good insulating property, never worried about getting an electric shock, safe and reliable.

Specifications:

1. Pitch: 5.08mm
2. Pin header: Brass Tin plated
3. Housing: PA66.UL94V-0
4. Poles: 2 Pin
5. Rated voltage: 300V 10A
6. Model: 2EDGKA
7. Rated current: IEC:15A; UL:10A
8. Withstanding voltage: AC2500V/Min
9. Temperature range: -40 degrees Celsius~105 degrees Celsius
10. MAX soldering: +250 degrees Celsius for 5 sec.

Package included:

10 x 2Pin Pluggable Terminal Block
