Specification:
Color: as shown in picture

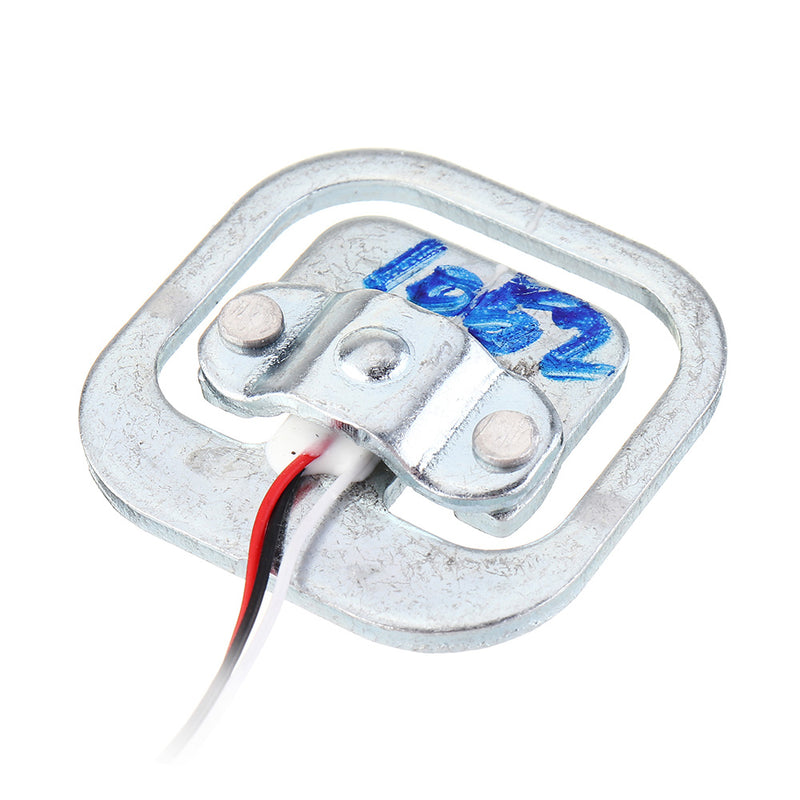

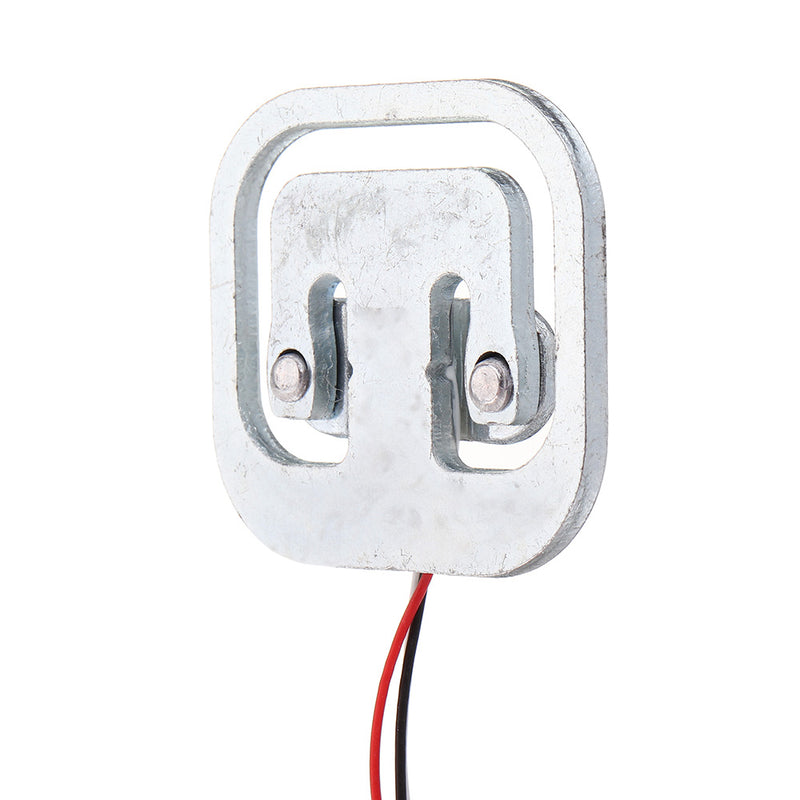

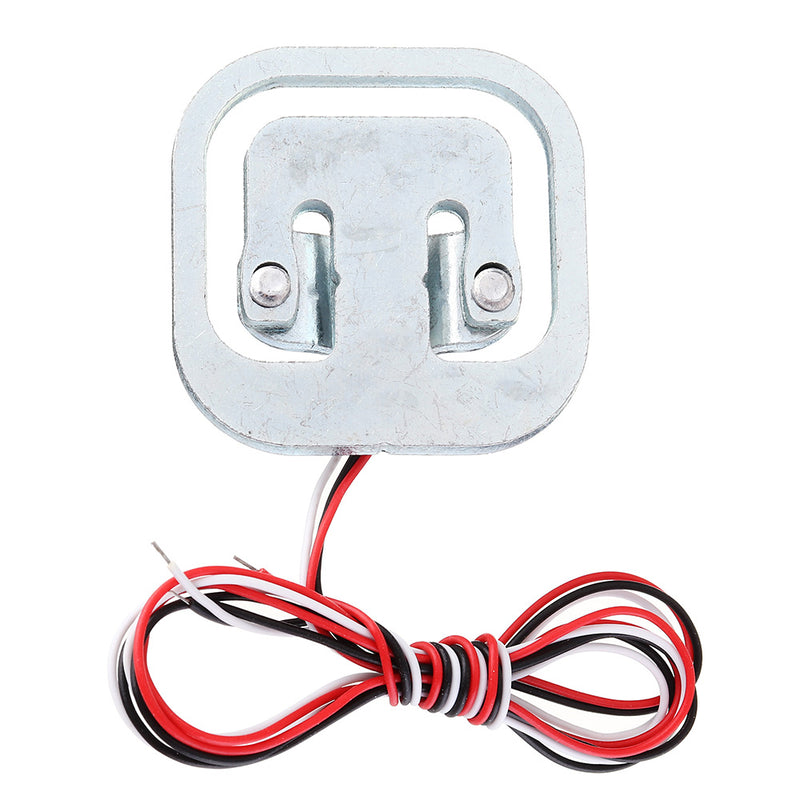

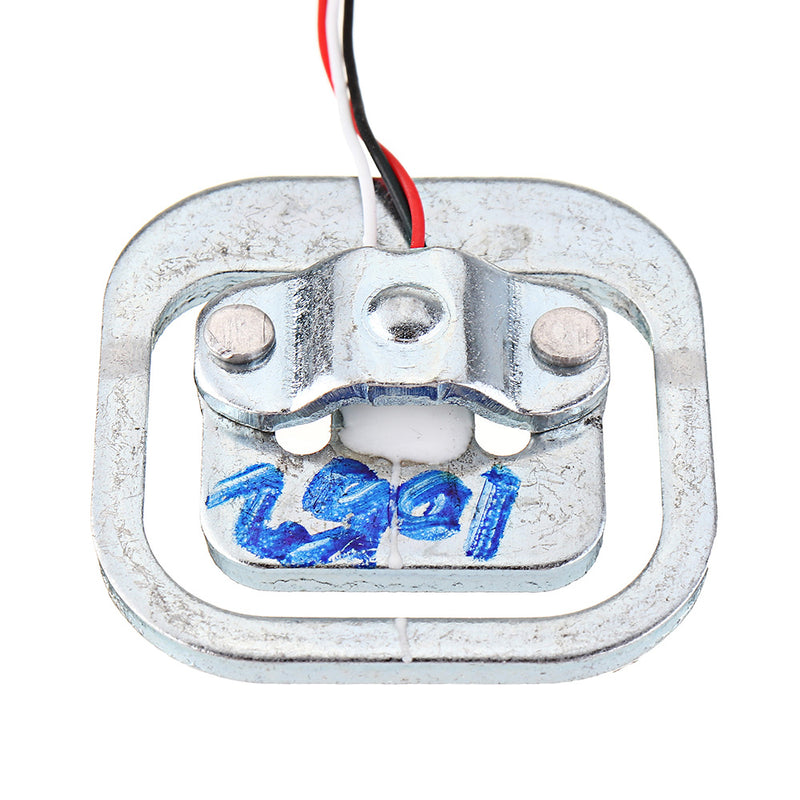

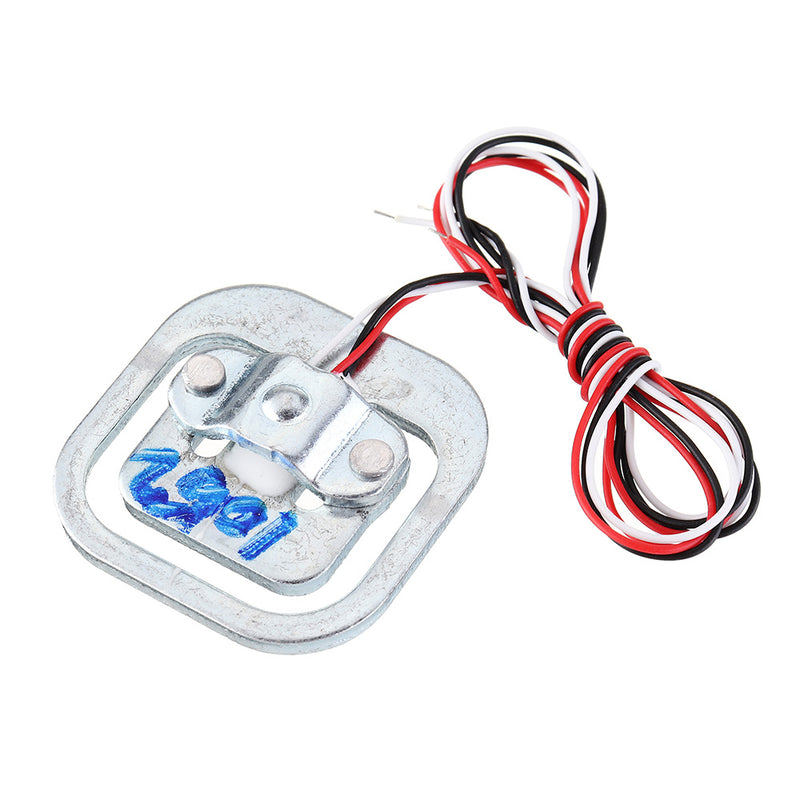

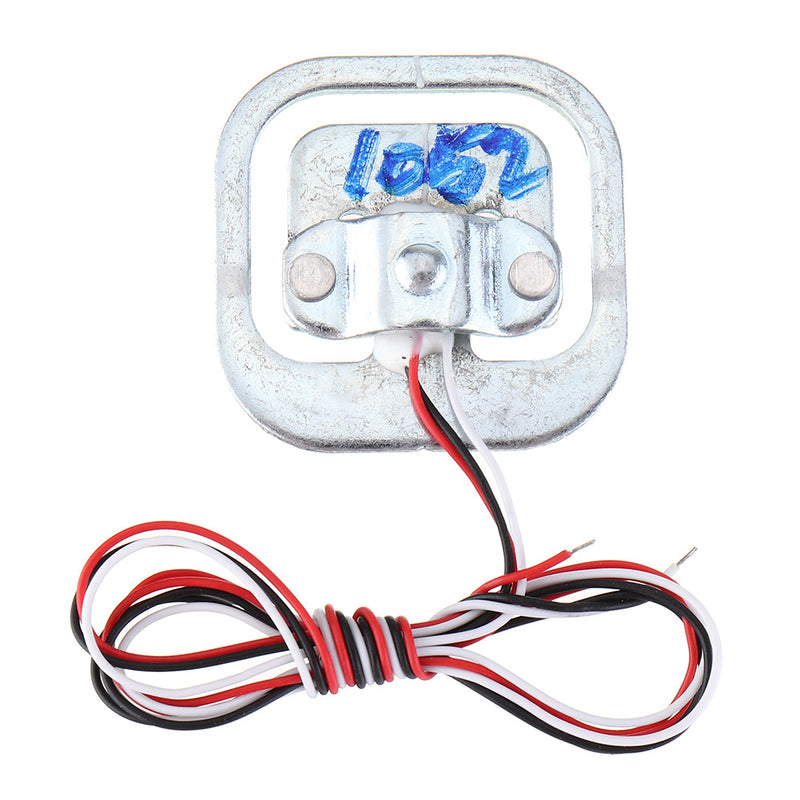

This load sensor, sometimes called a strain gauge, is the same one found in digital bathroom scales.
The sensor is a group of half-bridge strain gauge.
Fine workmanship and good performance.
Easy to use.
3 Ways to Use it:
1. Use one sensor with an external resistor to form a full-bridge measurement, the range of a sensor range: 50kg. External resistance on the higher requirements.
2. Use two sensors to form a full-bridge measurement, measuring range for the sum of the two sensors: 50kgx2 = 100kg
3. Use four sensors to form a full-bridge measurement, measuring range for the sum of four sensors: 50kgx4 = 200kg
Package Included:
10 x Human Scale Load Cell 50kg
