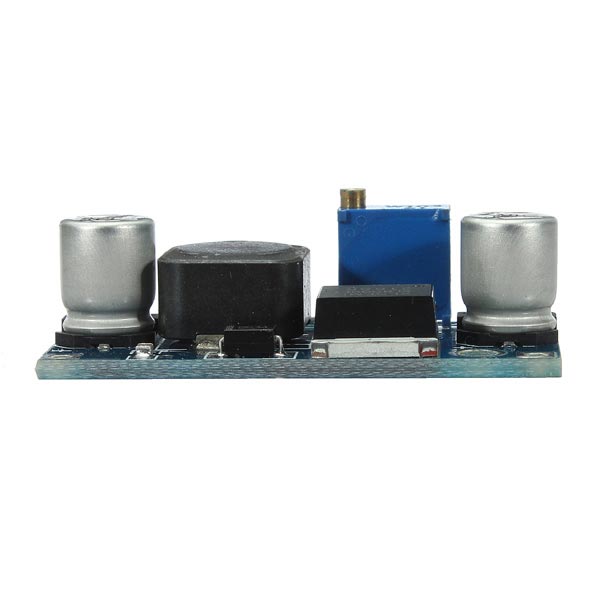

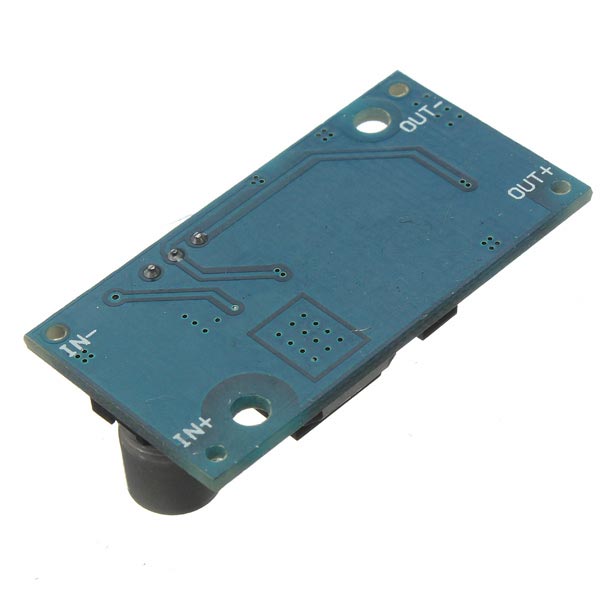

10Pcs Adjustable XL6009 Step Up Boost Voltage Power Supply Module Converter Regulator
Feature:
Solidly-structured
Built-4A efficient MOSFET switch, so that the efficiency up to 94%
Ultra-high switching frequency, you can use a small-capacity filter capacitors that can achieve very good results
Specification:
Input voltage: 3.5V ~ 32V
Output voltage: 5V ~ 35V
Output current: rated current is 2.5A, maximum 3A (Additional heatsink is required)
Load regulation: ±0.5%
Voltage regulation: ±0.5%
Work Temperature: -40°C ~ +125°C
Maximum power: 10W
Size: 4.1 x 2.1 x 1.3cm
Note:
This can't be used to step down voltage
Package included:
10 x XL6009 step up voltage module
