Overview:
The B_S-1WR2 & B_D-1WR2 series are specifically designed for applications in the board power system that require a set of voltages that are isolated from the input supply. This product is suitable for
to:
1. The input power supply voltage is relatively stable (voltage variation range ±10% Vin);
2. Requirements isolation between input and output (isolation voltage ≤ 1500VDC);
3. The output voltage stability and output ripple noise are not high.
Features:
- Sustainable short circuit protection
- Up to 80% efficiency
- Operating temperature range: -40°C to +105°C
- Small SIP / DIP package
- International standard pin mode
- Isolation voltage 1500VDC
- Passed EN60950, UL60950, IEC60950 certification
Specifications:
Input voltage: 21.6-26.4V DC
Output voltage: 5V DC
Output current: ±200/20mA (max/min)
Full load efficiency: 76/80
Maximum capacitive load:220uF
Package Included:

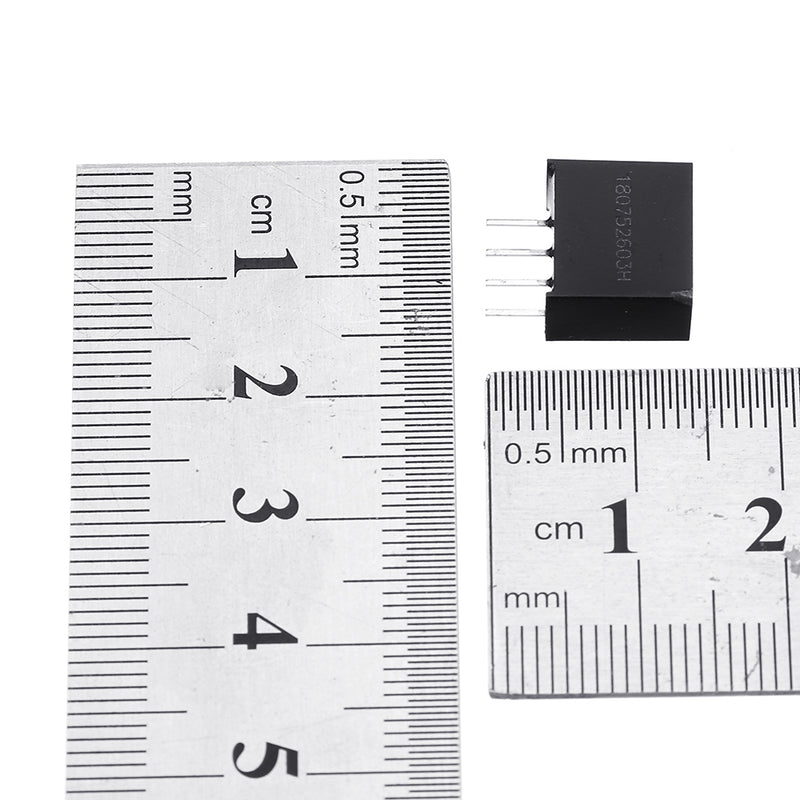

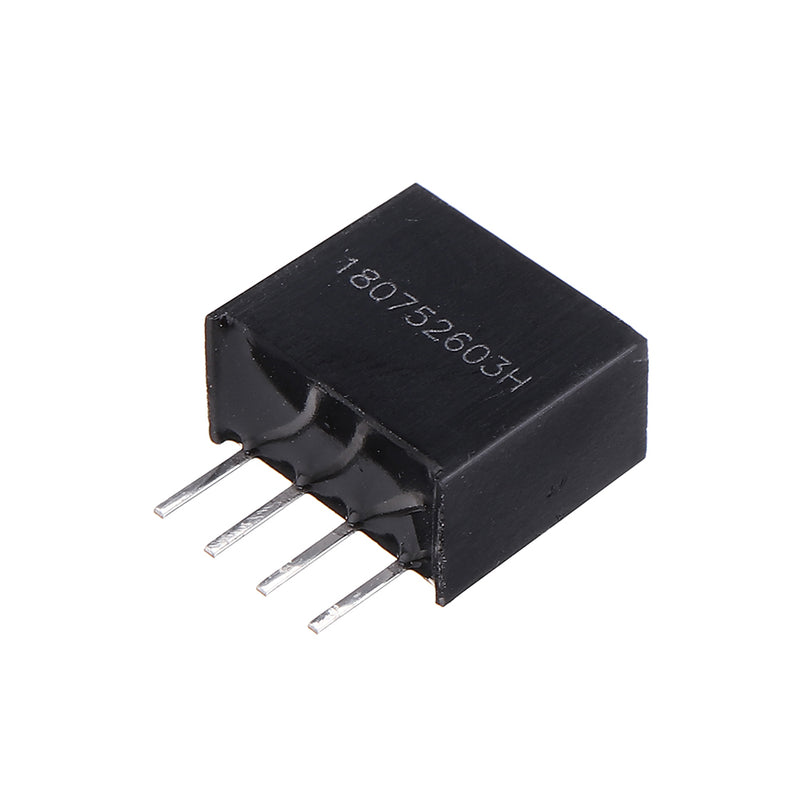

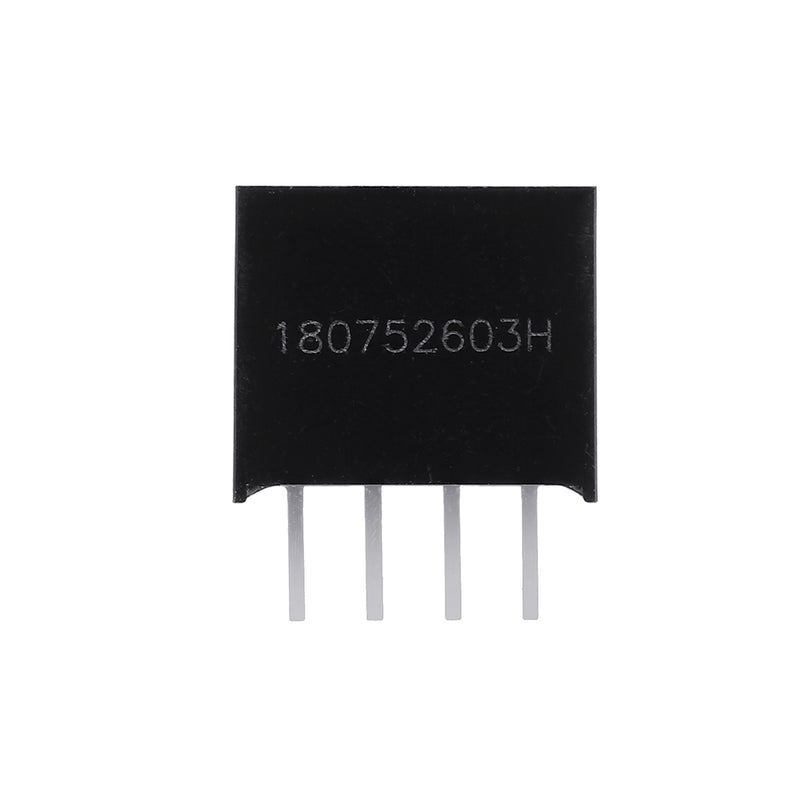

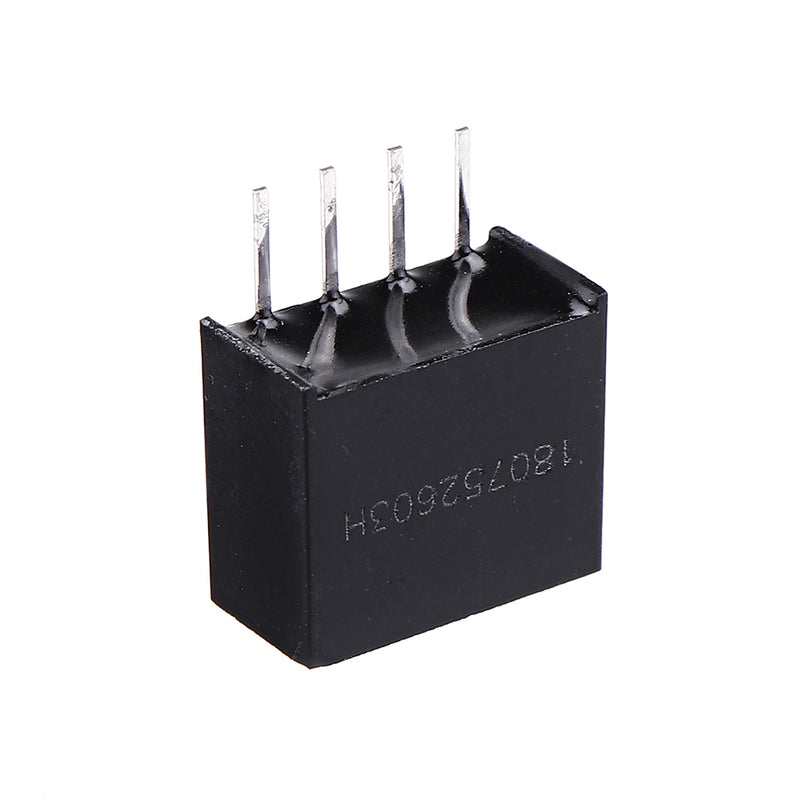

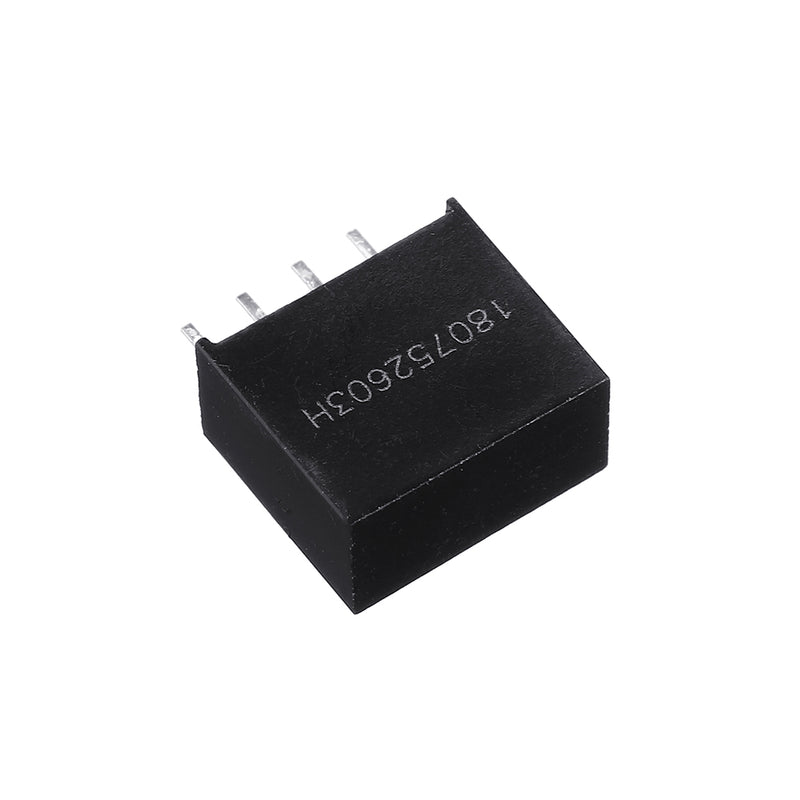

10 x B2405S-1WR2 DC-DC 24V to 5V Isolation Power Supply Module
