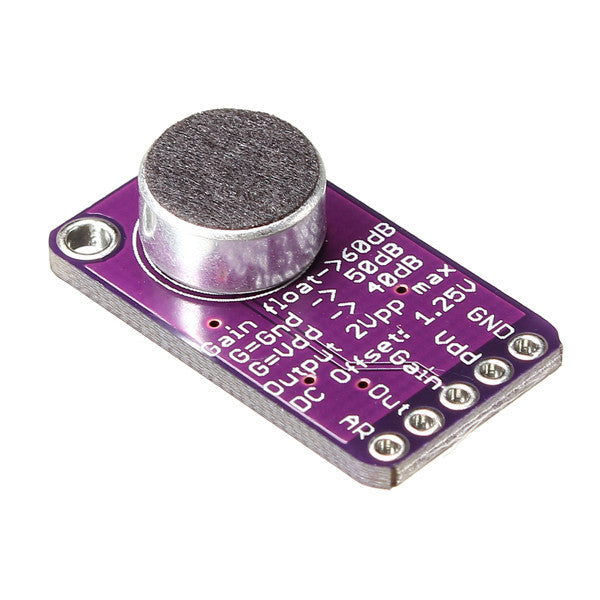

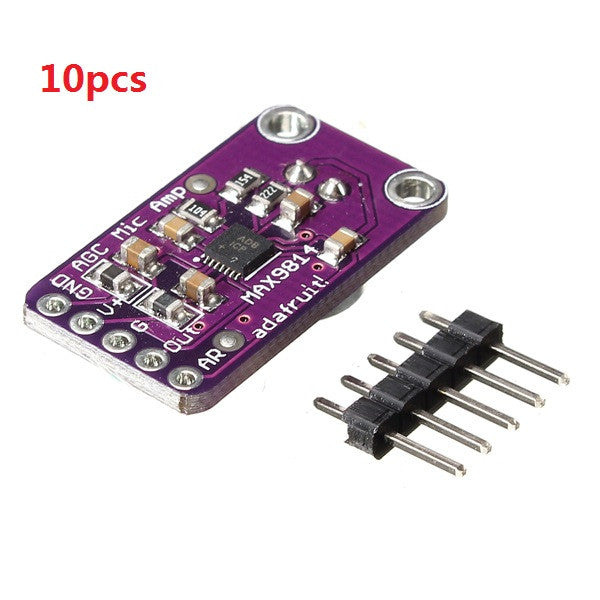

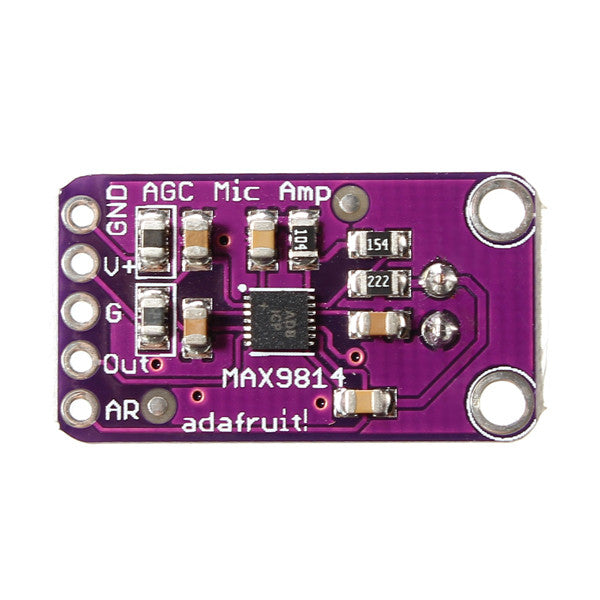

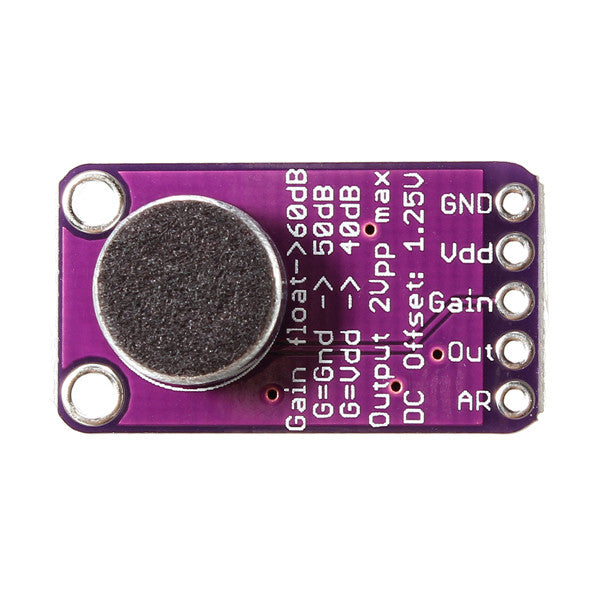

10pcs CJMCU MAX9814 High Performance Microphone AGC Amplifier Module CMA-4544PF-W For
Save 0
SKU: U2I-BG-1106005
Share this product
Description
Specifications:
- Supply Voltage: 2.7v-5.5v @ 3mA current - Output: 2Vpp on 1.25V bias - Frequency Response: 20Hz - 20KHz - Programmable Attack and Release Ratio - Automatic gain, selectable max from 40dB, 50dB or 60dB - Low Input-Referred Noise Density of 30nV/ - Low THD: 0.04% (typ) - Low Power Shutdown Mode - Built-in 2V low-noise microphone bias - -40°C ~ +85°C extended temperature range
Package included:
10 x Microphone AGC Amplifier Module
,,
