Specifications:
Chip: BH1750FVI
Power supply: 3-5V
Illuminance range: 0-65535 Lux
The sensor has a built-in 16bit AD converter
Direct digital output, omitting complex calculations and calibration
No distinction between ambient light sources
Spectral characteristics close to visual sensitivity
High-precision measurement of 1 lux for a wide range of brightness
Standard NXP IIC communication protocol
The module contains communication level conversion and is directly connected with 5V IO
Provide STC 51 C language test code
Provide C8051F340 C language test code
Provide AVR M16 C language test code
Dimension: 32.6 x 15.1mm
Package included:

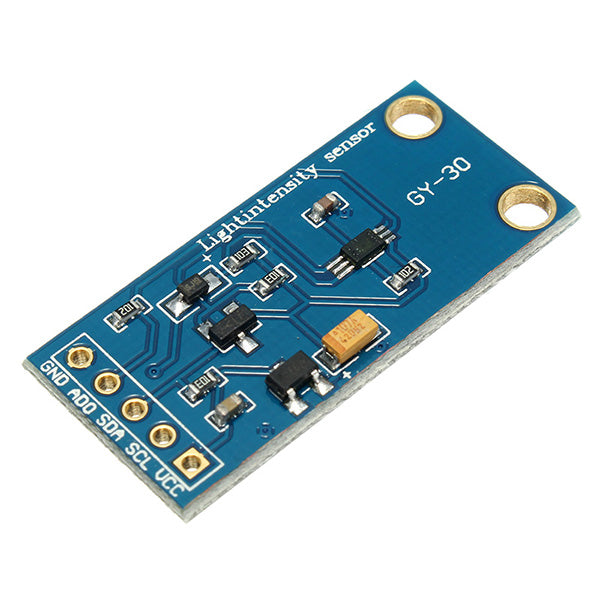

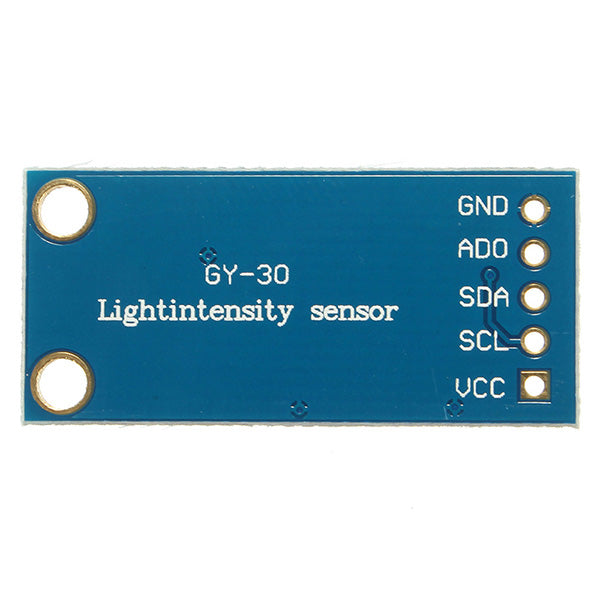

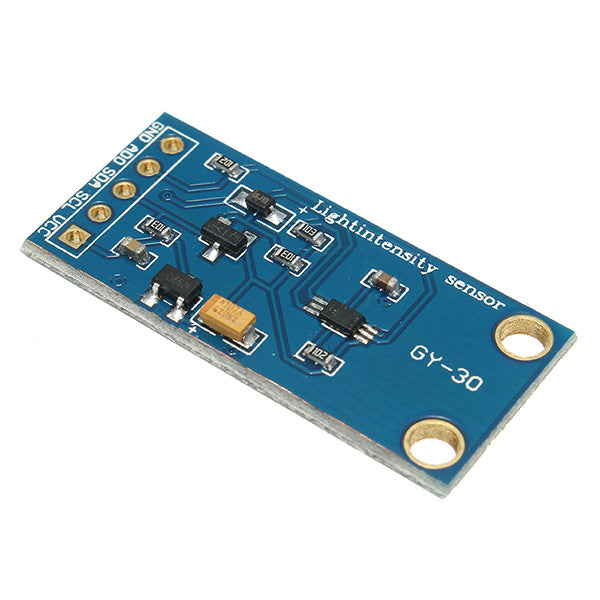

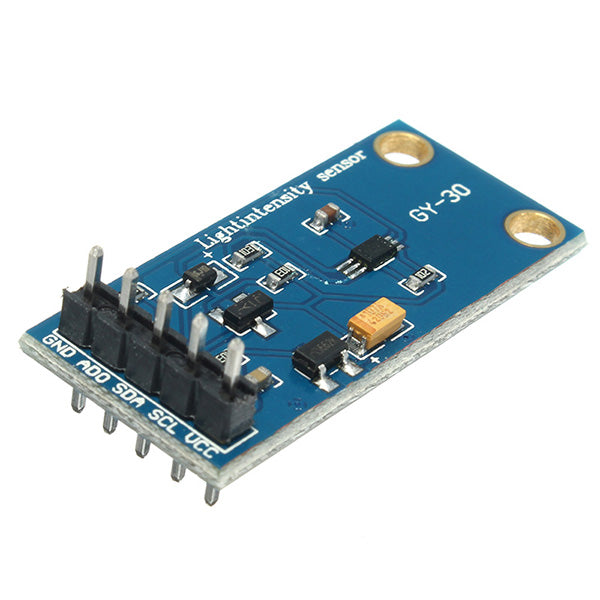

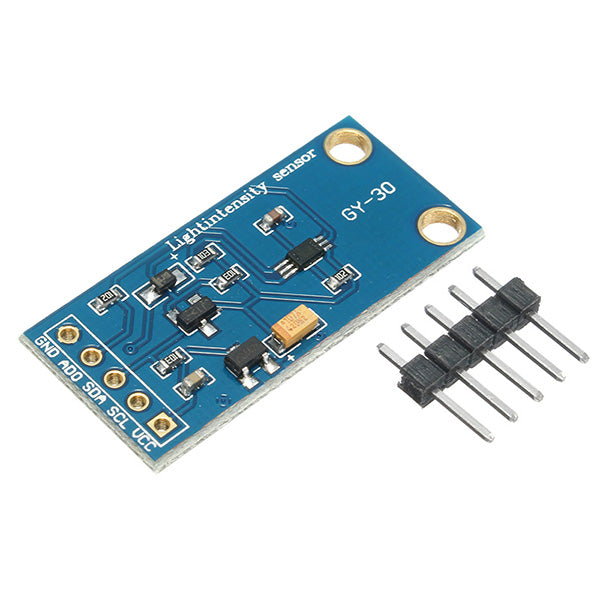

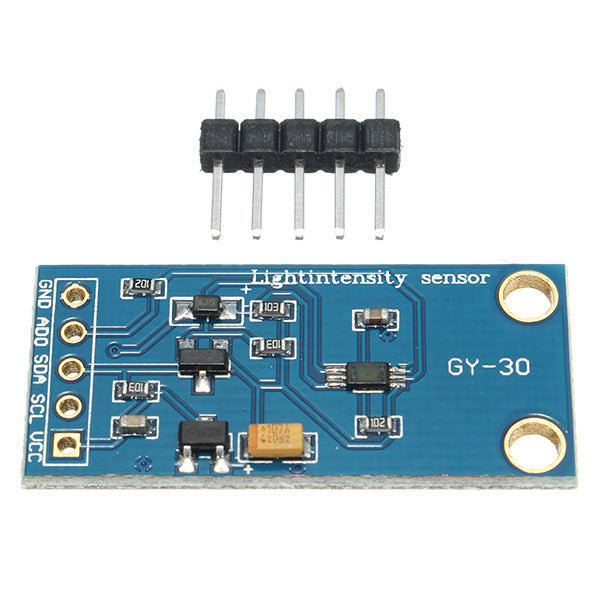

10 x GY-30 3-5V 0-65535Lux digital light intensity sensor
,,,
