Overview:
The IB_LD-1W & IB_LS-1W series are specifically designed for power applications in distributed power systems on the board that require isolation from the input supply. This product is suitable for:
1) The input power supply voltage changes ≤ ± 5%;
2) The isolation voltage between input and output is required to be ≤1000VDC;
3) High requirements for output voltage stability and output ripple noise.
Specifications:
Input voltage: 4.75-5.25V DC
Output voltage: ±5V DC
Output current: ±200/20mA (max/min)
Input current: 30-299mA
Full load efficiency: 63/67
Maximum capacitive load: 100uF
Package Included:

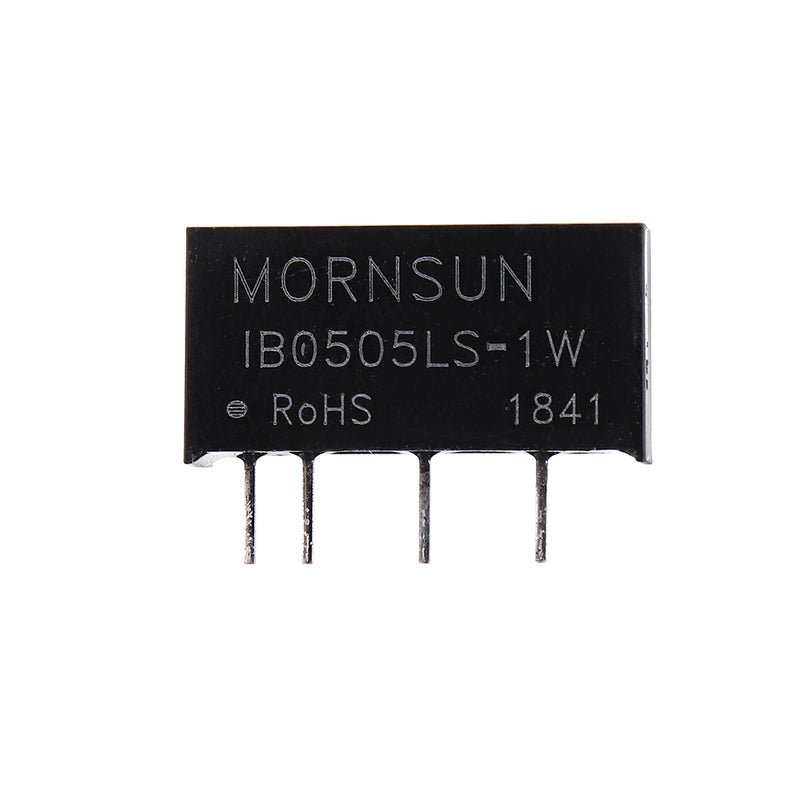

10 x IB0505LS-1W DC-DC 5V to 5V Isolation Power Supply Module Input 4.75-5.25V Output ±5V
