Features:
1: The input and output voltage can be alternately displayed.
2 : Power status can be freely defined.
3: with key shutdown feature that reduces power consumption.
4: ON/0FF output working conditions, high representative Close output, active low output represents open .
NOTE: HIGH (3.3V) Maximum output 5ma current.
Specifications:
Input voltage range :4.5-28V Note : 28V to limit the maximum voltage , be sure to use too aggressive or they will damag the
Output voltage range:1.3V-25V( Step-down mode, the input must be greater than the output 2V )
Output Current: 1.5A Continuous Output Power : Max 15W
Ripple frequency : 150Khz about peak to peak ripple : 100mV or so
Size : 62mm * 26mm * 14mm Weight: 20 grams / only
Voltmeter Accuracy : ± (5 ‰ +1 words )
Static power consumption : Typical 20ma or so ( with the input voltage and the digital color output voltage is closely related to the actual current will exist deviation )
IN +: Input Positive IN-: negative input OUT +: Positive output OUT-: Negative output
Package Included:

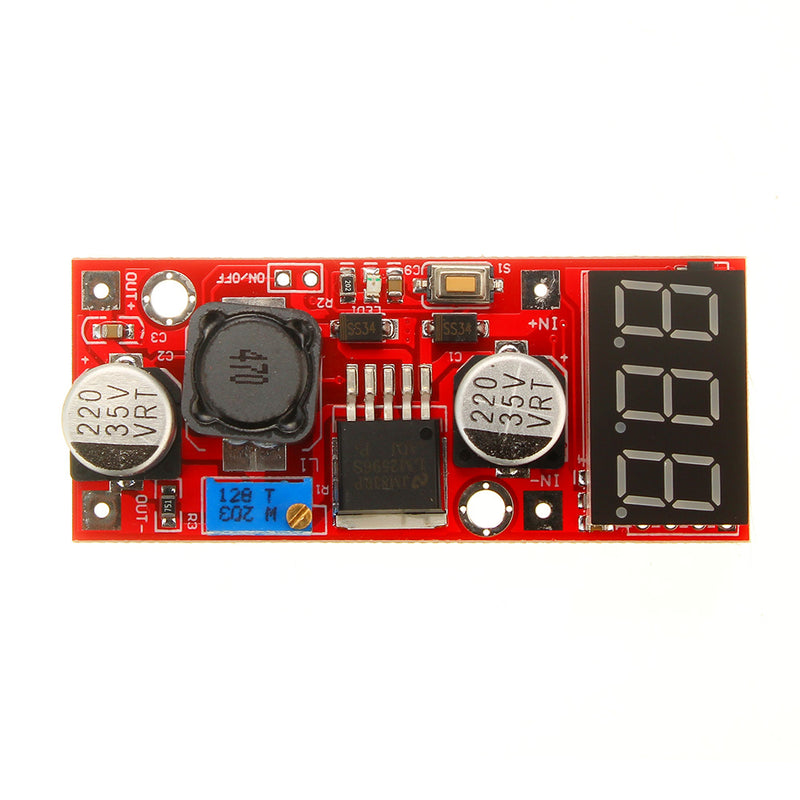

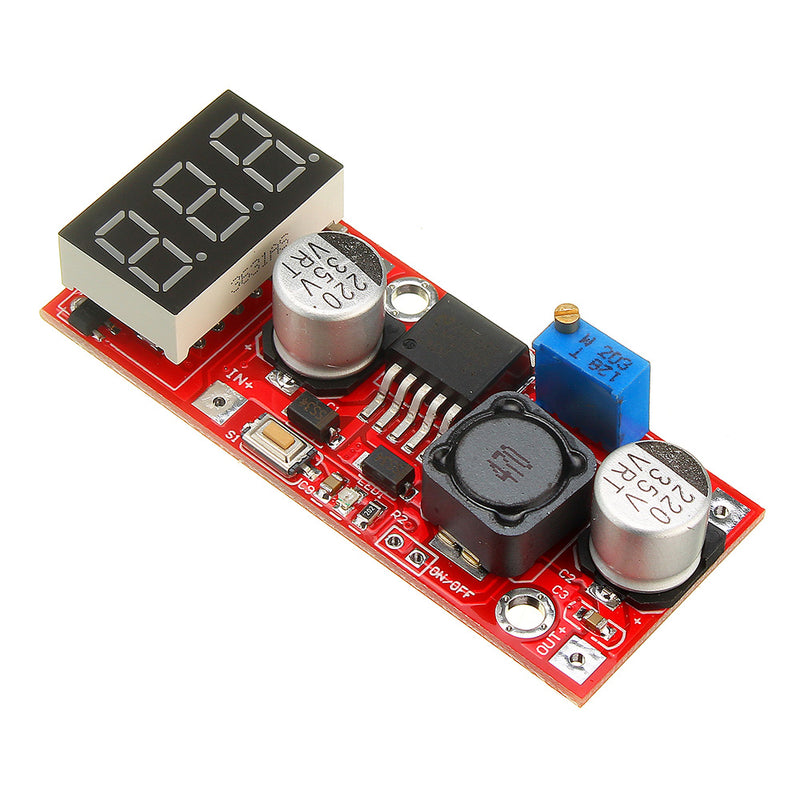

10 x LM2596 DC-DC Adjustable Voltage Regulator Module
