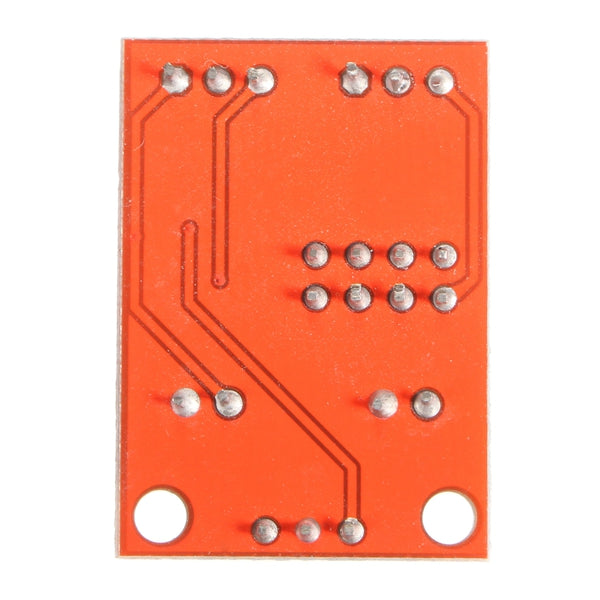

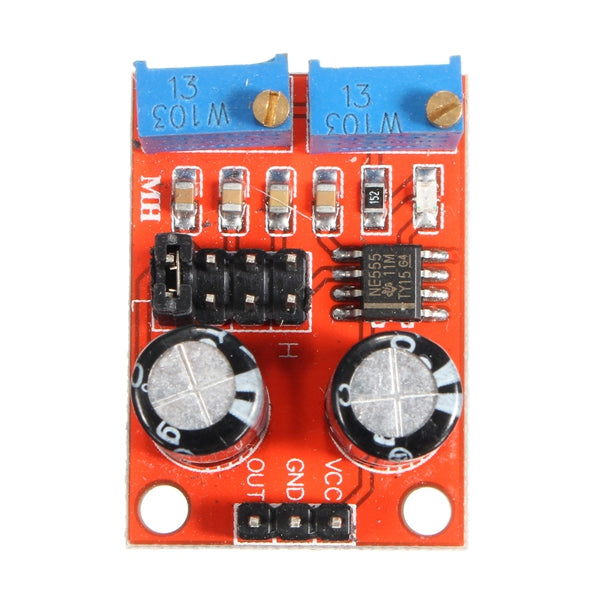

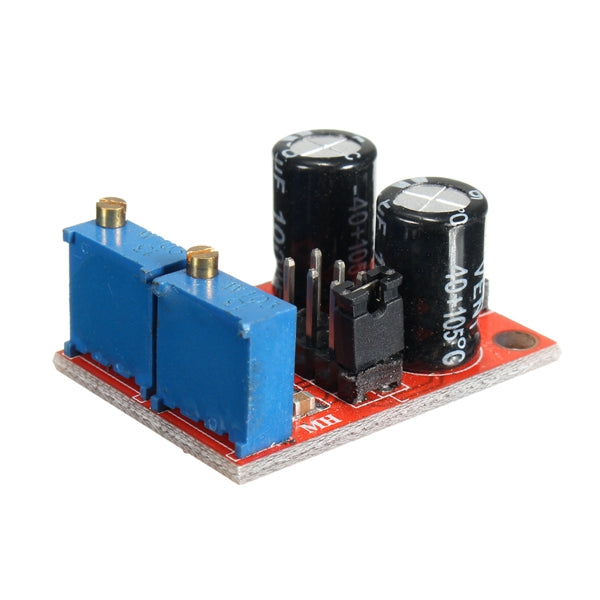

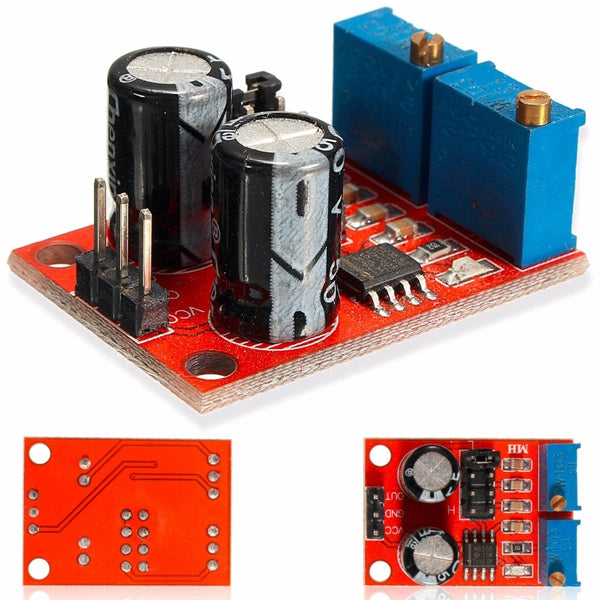

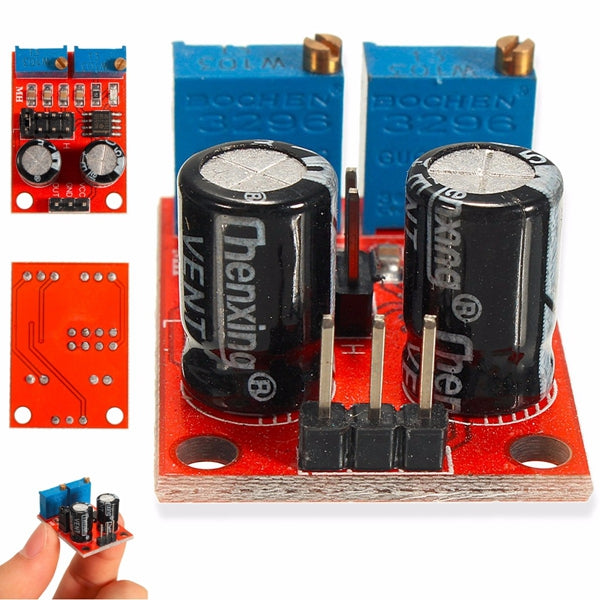

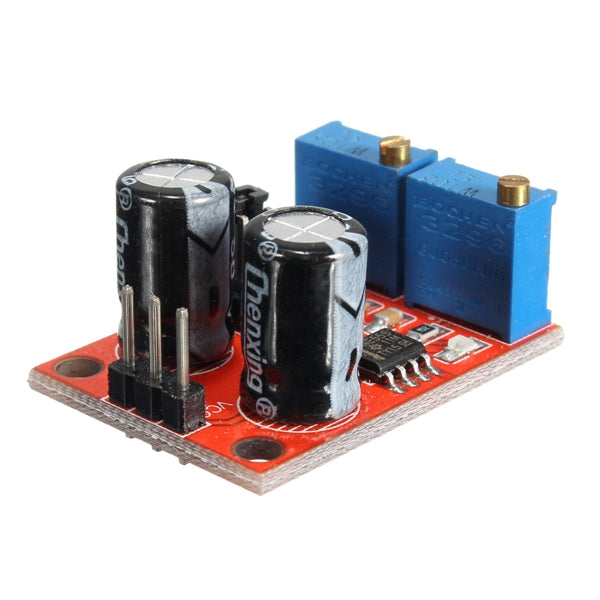

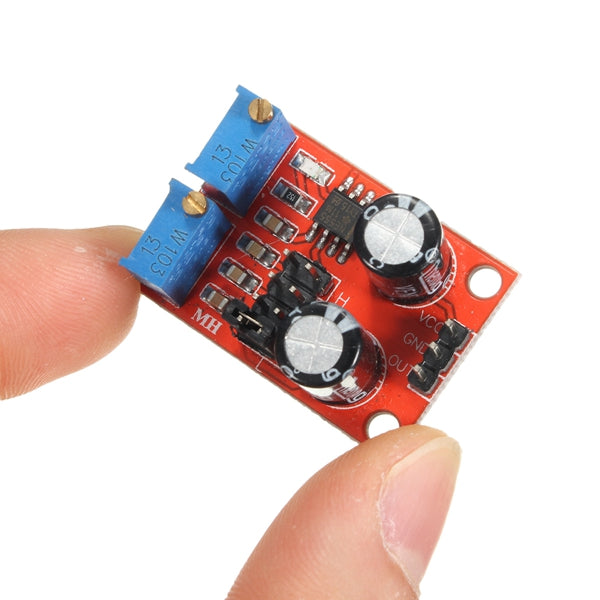

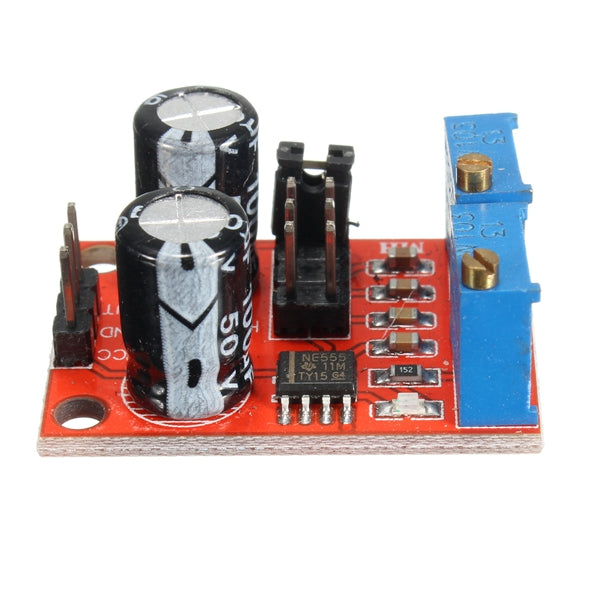

10pcs NE555 Pulse Frequency Duty Cycle Adjustable Module Rectangular Wave Signal Generator
Save 0
SKU: U2I-BG-1171962
Share this product
Description
Features:
1. As a square wave signal generator,generates a square wave signal used for experimental development. 2. Used to drive a stepper motor for generating a square wave drive signal. 3. Generate adjustable pulse for MCU. 4. Generate adjustable pulse,to control circuitry associated. 5. Size: 31mm x 22mm 6. Main chip: NE555 7. Input Voltage: 5V-15V DC. when power supply is 5 V , the output current can be 15 MA around; when 12V power supply, the output current can 35 MA around 8. Input current: >=100 MA 9. Output amplitude: 4.2V V-PP to 11.4V V-PP. (Different input voltage, the output amplitude will be different) 10. Maximum output current: >=15MA (5V power supply, V-PP greater than 50%), >=35MA (12V power supply, V-PP greater than 50%) 11. Output with LED indication(low level ,LED will on; high level,LED will off;low frequency, the LED flashes) 12. The output frequency range is selectable: LF file: 1Hz ~ 50Hz IF file: 50Hz ~ 1kHz High-frequency file: 1KHz ~ 10kHz HF file: 10kHz ~ 200kHz 13.The output duty cycle can fine-tune;duty cycle and frequency is not separately adjustable;adjusting the duty cycle will change the frequency
Package included:
10 x NE555 Pulse Frequency Duty Cycle Adjustable Module
