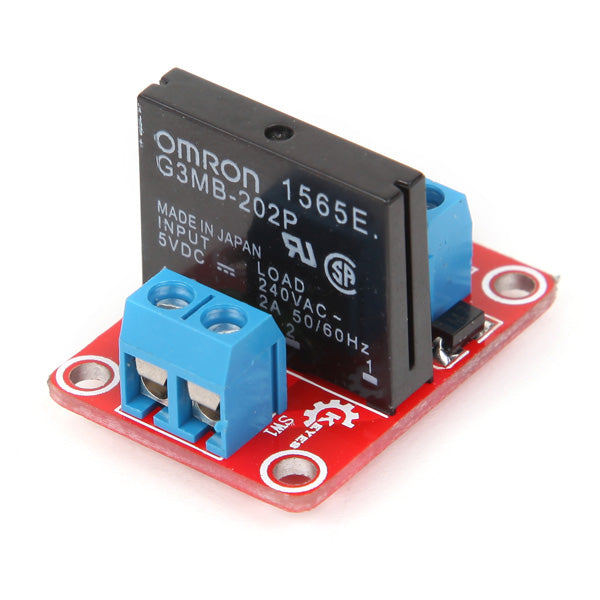

Description: 5V Omron solid state relays 240V / 2A, output with resistive fuse 240V / 2A.
Dimensions: 25x34x25 (length x width x height)
Input Power: 5VDC
Control signal input voltage: (0-2.5V low state relay ON) (3-5V state high relay OFF)
Feature:
Voltage:5V
Quiescent current: 0 mA
Operating current: 12.5mA
Trigger Voltage: 3.3-5V
Trigger current: 2mA DC +: positive power supply (according to the relay voltage supply)
DC-: negative power supply
CH1: relay module signal triggering end (low to trigger active)
Package included:
10 x One way Solid State Relay Module For
,,
