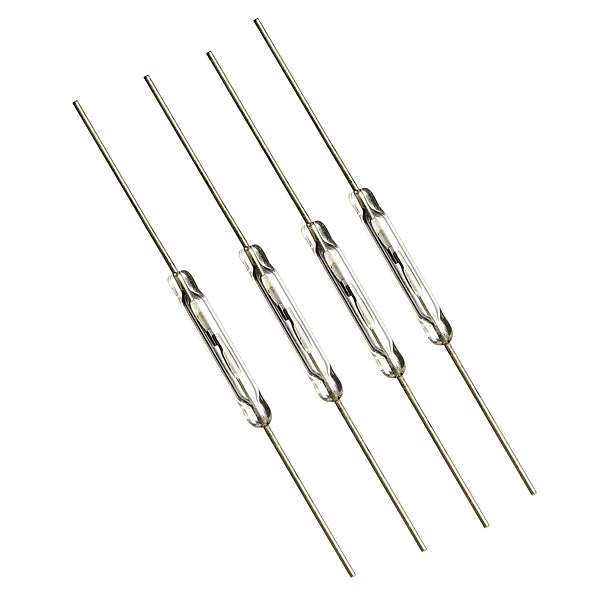

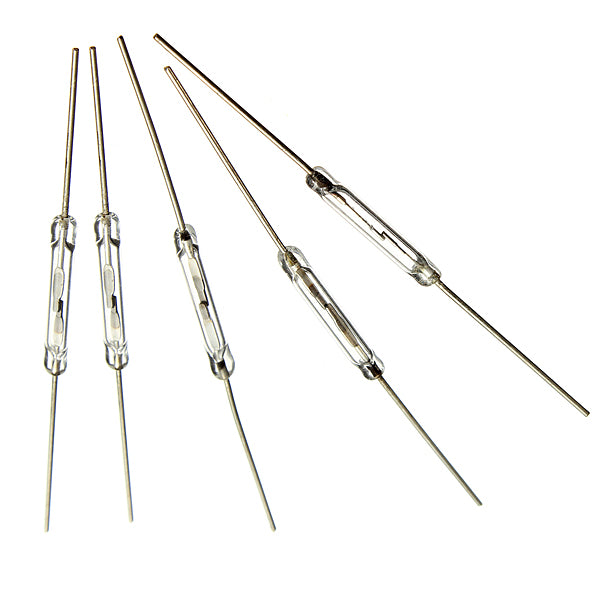

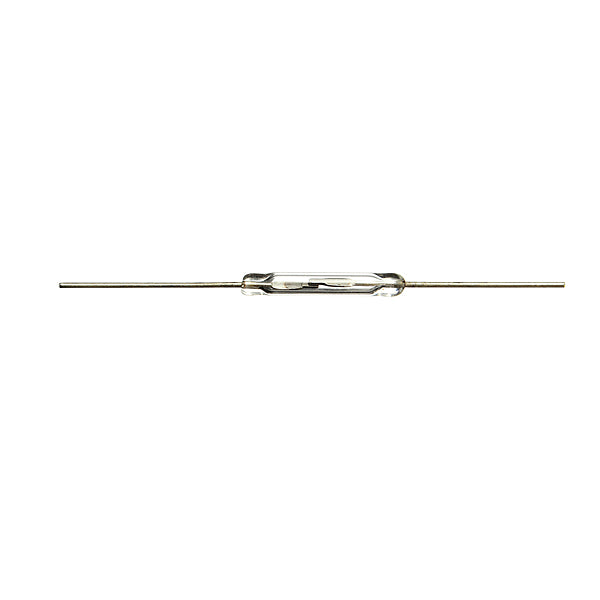

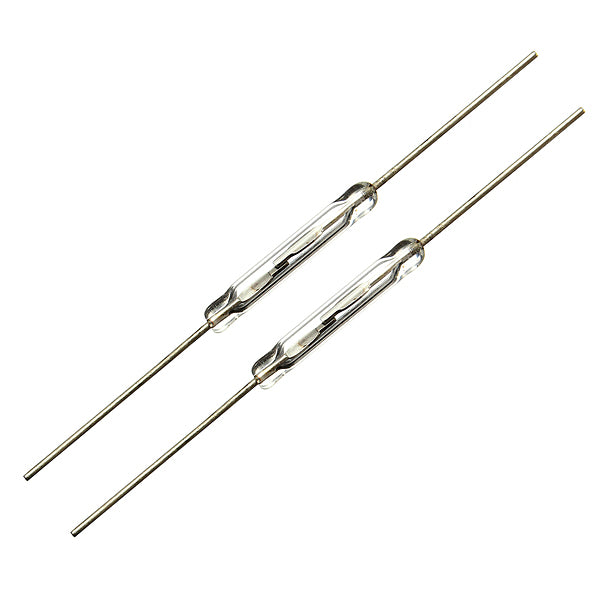

10pcs Reed Switch MagSwitch Normally Open Magnetic Induction SwitchDescription:This glass reed switch is normally open type with 14*2mm size.It has compact size and light weight which can be installed in extremely limited space,very suitable for miniaturization of devices.It doesn't use the sliding element, thus,metal fatigue phenomenon will not appear, ensuring virtually no limit mechanical life.It is suitable for various items ,such as PBX, photocopiers, washing machines, refrigerators, door, window magnetic, electromagnetic relays,etc.
Specifications:
| Total Length |
44mm |
| Glass Length |
14mm |
| Glass Diameter |
2mm |
| Contact Form |
A |
| Maximum power |
10W |
| Maximum switching voltage |
100VDC |
| High voltage |
250VDC |
| Maximum switching current |
0.5A |
| Maximum load current |
1.0A |
| Maximum contact resistance |
100M |
| Minimum insulation resistance |
1010 |
| Action time |
1.0ms |
| Bounce time |
0.6ms |
| Release Time |
0.4ms |
| Response frequency |
4000Hz |
| Maximum operating frequency |
500Hz |
| Sensitive Value |
10-15AT |
| Minimum reset Min Value |
4FT |
| Maximum contact capacitance |
0.7PF |
| Electrical life (load) |
108 (5VDC, 10mA) 105 (24VDC, 400mA) |
| Test line circle number / Resistance |
870/5000Ω |
Features:14*2mm size
Normally open type
Compact size ,light weight can be installed in extremely limited space, very suitable for miniaturization of devices. Do not
use the sliding element,
not having metal fatigue phenomenon, ensuring virtually no limit mechanical life. Fit for many items(

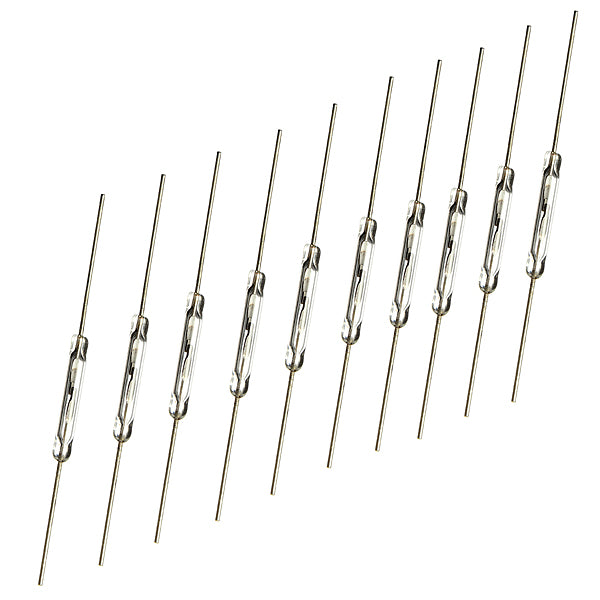

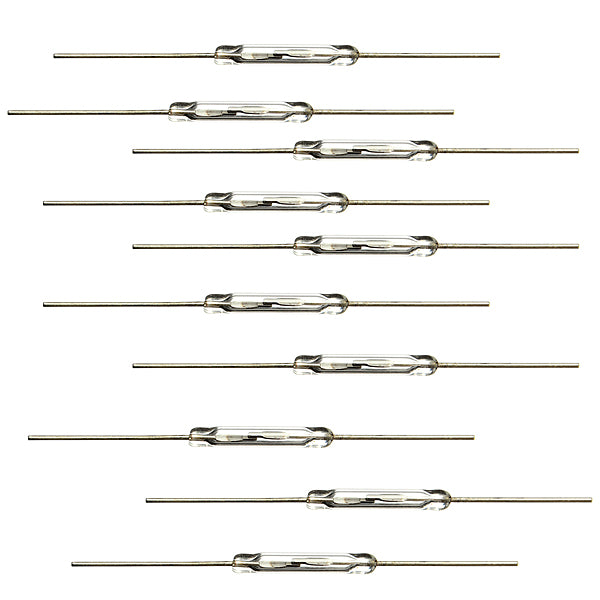

PBX, photocopiers, washing machines, refrigerators, door, window magnetic, electromagnetic relays, electronic weighing, level gauges, gas meter)Package included:10X Reed Switch
