Specification parameter:
Shell material: thermoplastic PA66
Insulator: thermoplastic PPS high temperature resistant 260
Contact material: copper (gold plated, silver plated)
Sealing ring: silica gel
Housing gender: male female seat
Connection: thread connection
Operating temperature: -25 degrees C~110 degrees C
Relative humidity: 90%~95% (40 + 2 degrees C)
Sealing: in line with IP68
Applicable wire diameter: diameter 4.0~6.5mm
Mechanical life: more than 500 times
Contact diameter: 1.8mm
Rated current: 10A
Rated voltage: 250VAC
Test voltage: 1500VAC
Contact resistance: 2MΩ
Insulation resistance: 2000MΩ
Package included:

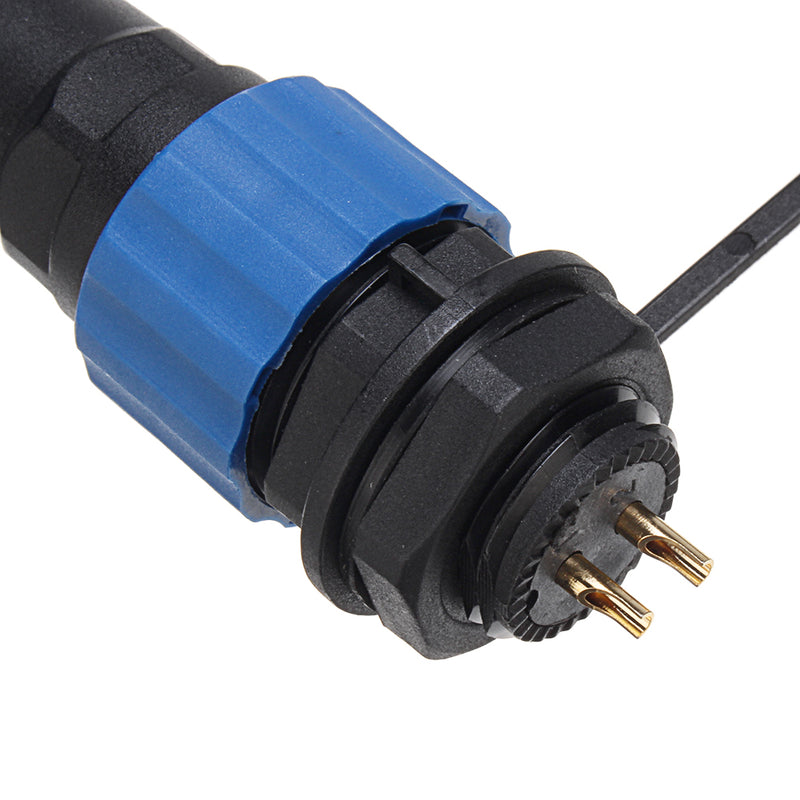

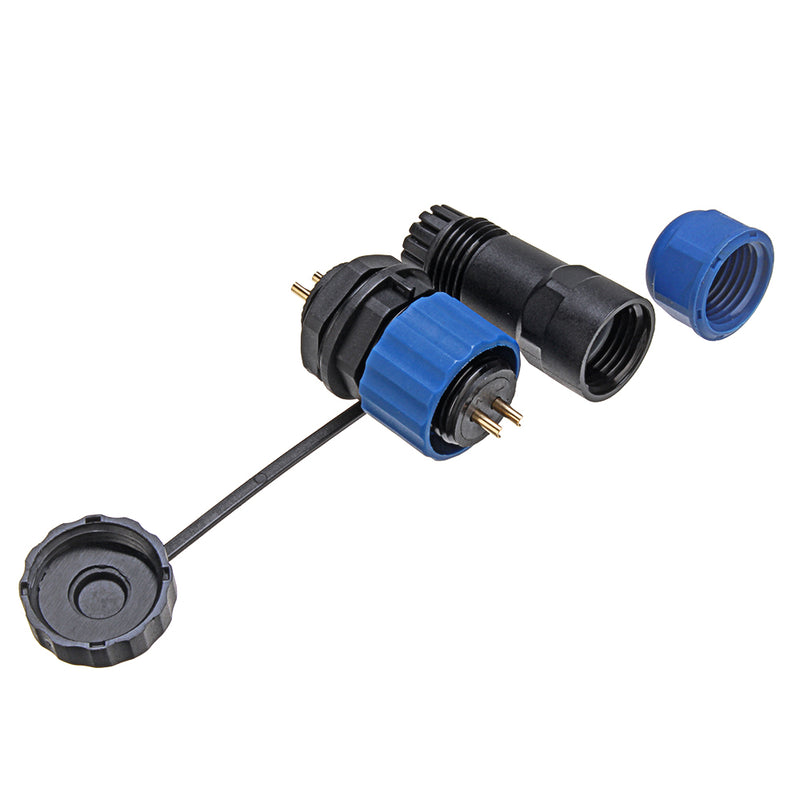

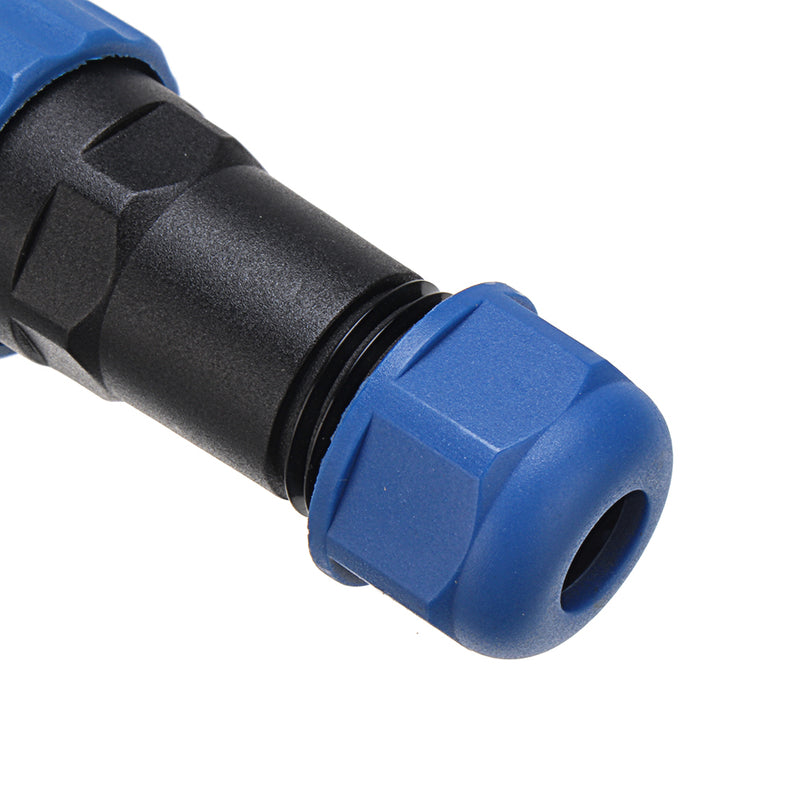

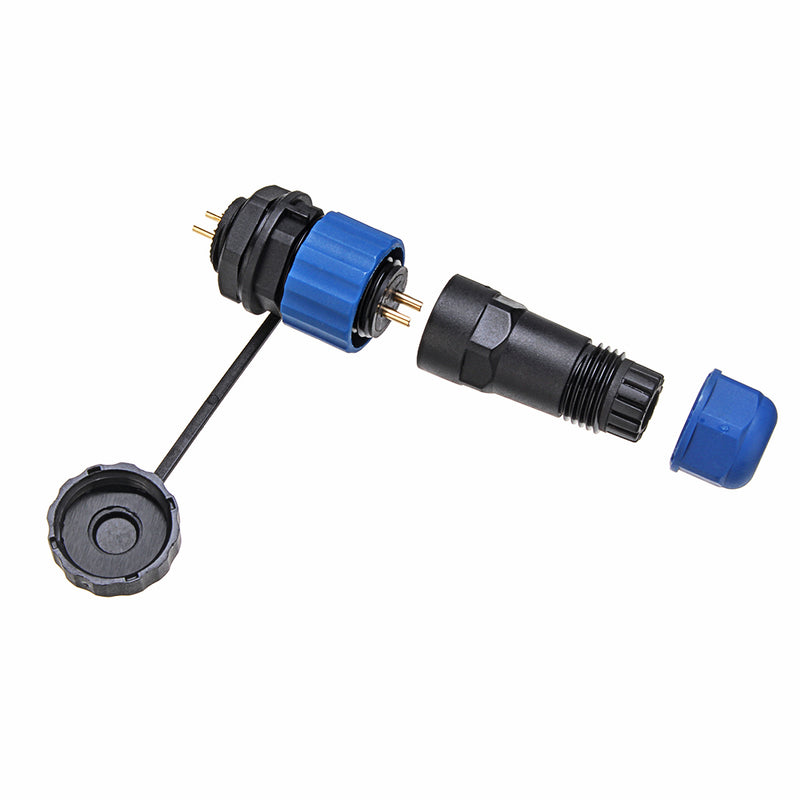

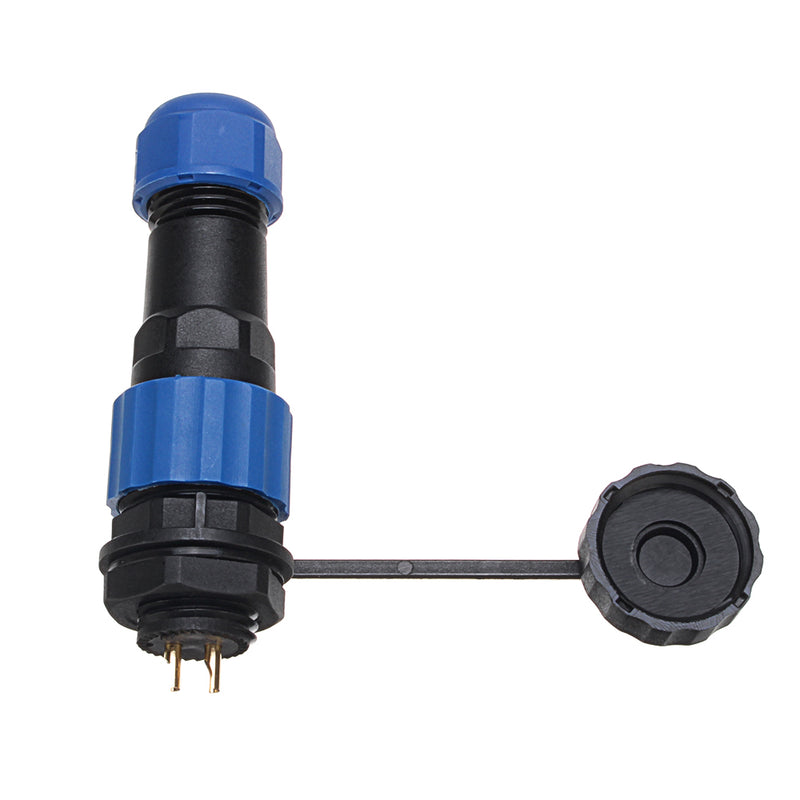

10 x 2 Pin Connector Aviation Plug
