Description:

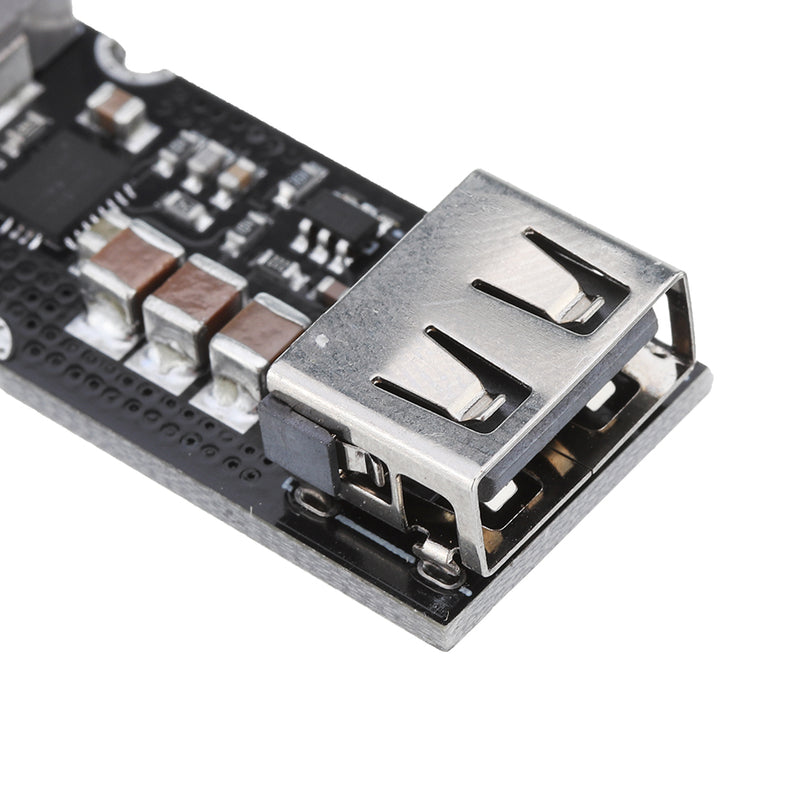

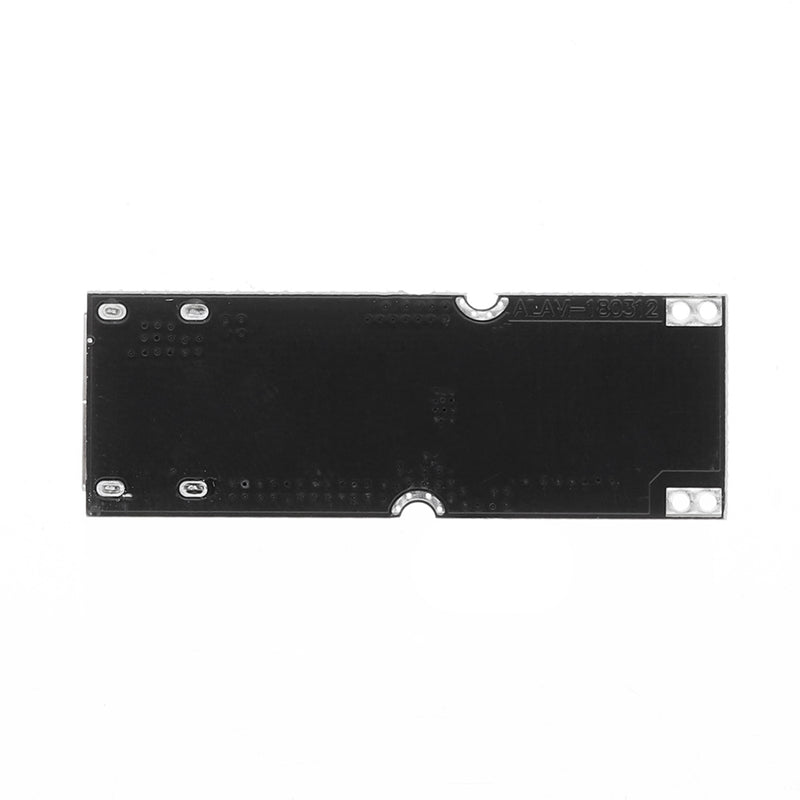

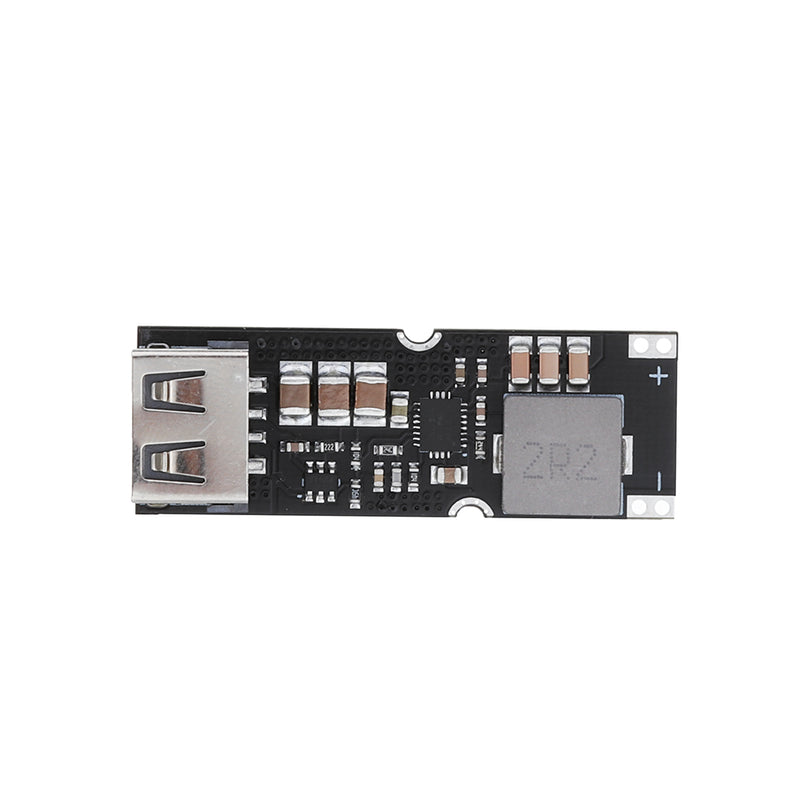

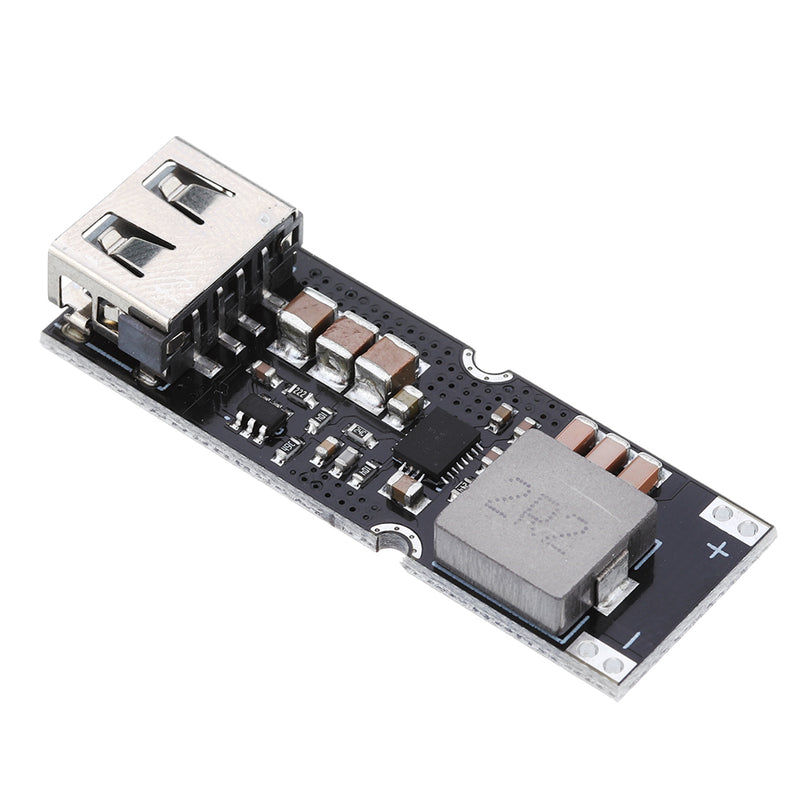

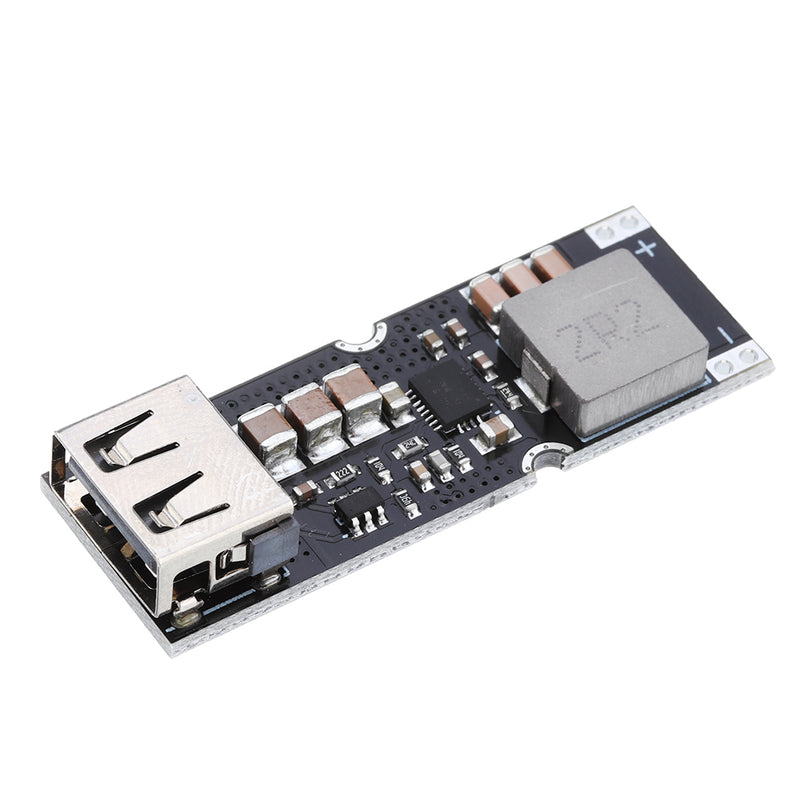

Name: Single-cell lithium battery boost fast charging source module
Main control chip: TPS61088A
Identification chip: FP6601Q
Input voltage: 2.8 ~ 4.5V, very suitable for 3.7V polymer lithium battery
Output voltage: The default is 5V. After triggering fast charge, it is between 4.5V and 12V according to the protocol.
Input rated current: 8A
Output current: 5V3A, 9V2A, 12V2A. Output current is adaptive.
Output power: up to 24W.
Support Agreement: QC2.0, QC3.0, Huawei FCP, DCP Agreement
Efficiency is up to 93%, with a typical value of 90%.
Input wiring method: wire bonding, try to use thick wire

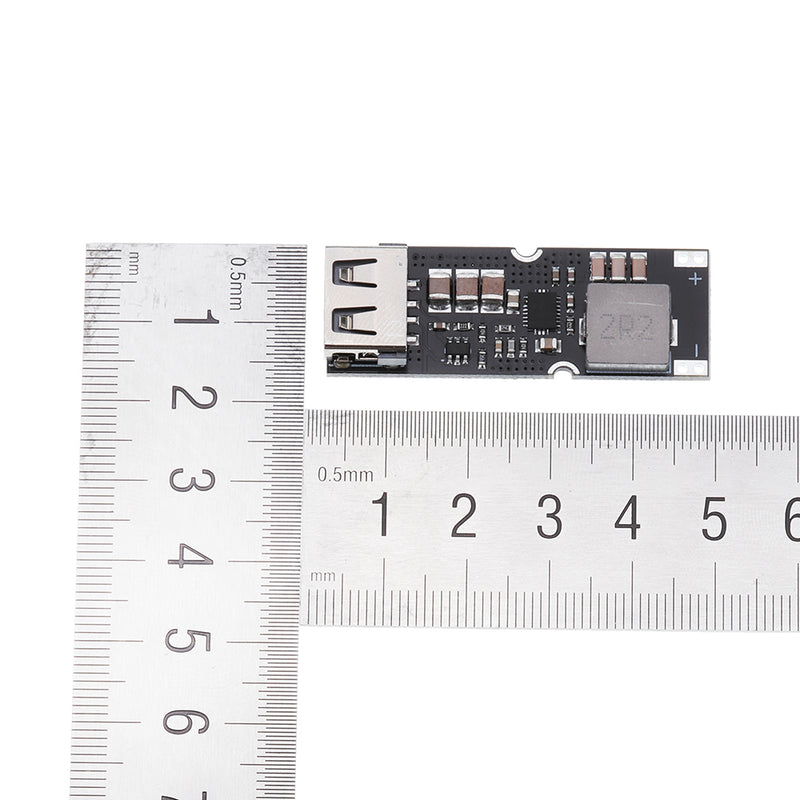

Module size: 47.5 (length) * 16.5 (width) * 8 (height) mm (including USB)
Module net weight: about 7 grams
Supporting agreement:
1. Support FCP voltage and current output protocol.
2, support Qual comm QC2.0/3.0 classA 5V, 9V, 12V voltage output.
3. Automatically recognize FCP and QC2.0/3.0 fast charge protocol.
4. Support the protocol equipment of telecom enterprise YD/T 1591.
Package includes:
10 x TPS61088 boost fast charging module
