Specifications:
Material: PVC
Fluid: Air,Vacuum
Normal Pressure Range: 0-0.9Mpa
Maximum Pressure: 1.32Mpa
Low Pressure Range: -99.9-0Kpa
Temperature: 0-60 (℃)
Size: Approx.34mmX26mmX13mm /41mmX30mmX15mm /46mmX37mmX18mm /55mmX40mmX21mm
Connector Diameter: 4mm/6mm/8mm/10mm/12mm
Features:
- This product are various forms to meet the needs of any pneumatic piping
- Plastic pipe can also be arbitrarily rotated
- Release ring oval design, demolition more convenient

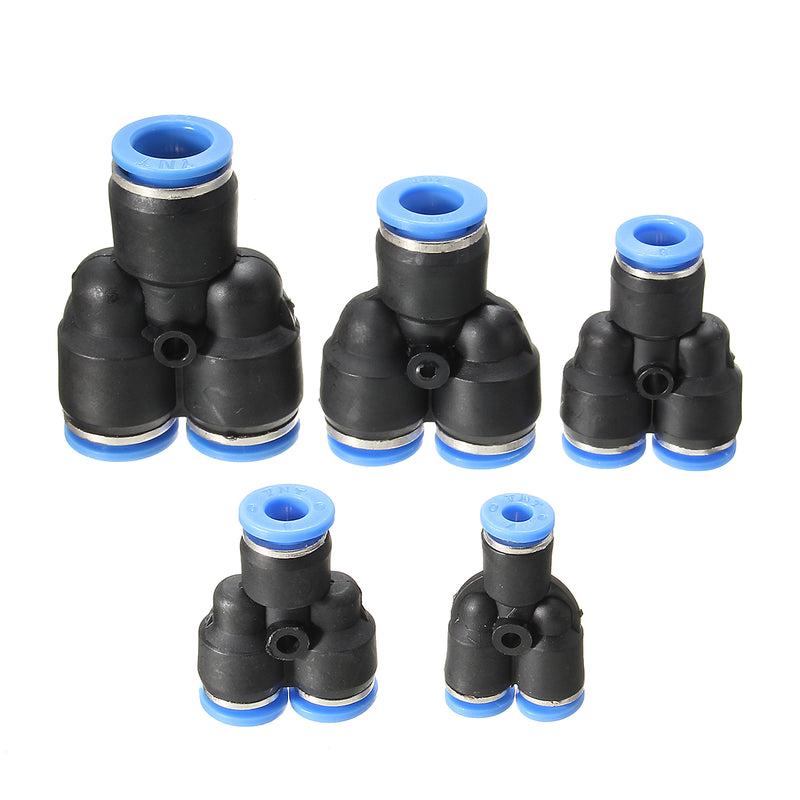

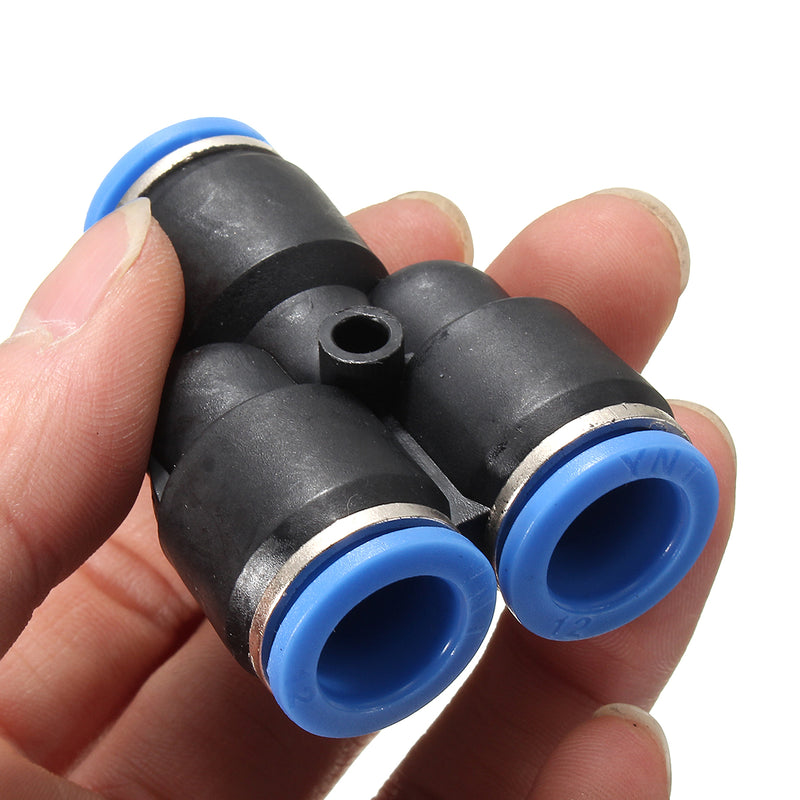

- This Y-shape fitting is a Polyvinyl chloride(PVC) push-to-connect fitting. The fitting is Y-shaped and connects a tube to two tubes running in the same direction. It has push-to-connect tube connections on all three ends. This fitting is made of PVC, which is very flexible and easy to install , has excellent abrasion resistance, is lightweight, and resists crushing and cracking.
Package includes:
10 x Y Union Connectors
