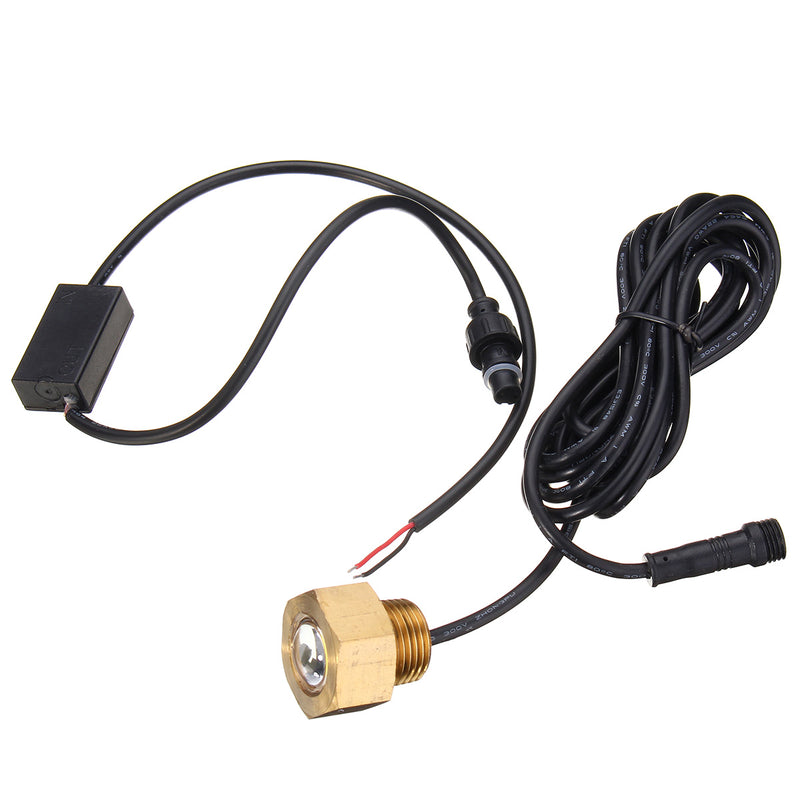

Specification:
Single LED 6W with 1 LED insides ,total 6W super brightness
Bronze housing materials, anti-corrosion
Standard "1/2 NPT thread type, connected with 2 meters cable
Connected with waterproof connector in order to easy installation, no drilling hole are needed, just screw it into the holes on your boat
Waterproof : IP68
Light Color: Blue(97LM) / White(538LM)
Connect to 10-30VDC battery or power sources only
Installation Instruction:
1. Loosen the drain light
2. Run the cable leads thru the garboard drain opening and screw the drain plug
light assembly into the existing garboard fitting .The garboard fitting is 1/2 NPT
3. Connecting the light wire to a 10-30VDC on/off switch. Plug in the waterproof connector
4. Attach the red lead the positive(+) with the included in line 3 AMP assembly fuse and the black lead to the negative (-)
5. Switch on the light to check if it works well
Packsge Included:
1 X 6W Marine Yacht Drainage Lights
1 X Cable
