Description:
10W Stainless Steel Liquid Water Level Sensor Horizontal Mounting Float Switch
A float switch is a device used to sense the level of liquid within a tank.
The switch may actuate a pump, an indicator, an alarm, or other device.
Use it with hydroponics, saltwater tank, freshwater tank, gardening, aquariums for power head control, pet bowls, fish tanks, filtration, heating, pumps, ponds, basement alarms, boats, air condition drain pans, pressure washers, carpet cleaning mach, reef aquarium, fluid control, ice machines, coffee pots, marine, automotive, automobiles, tropical fish tanks, evaporator coils, condensation line, in relays, or what ever your project may be.
Specification:
Color: Silver
Material: Stainless Steel SUS
Max Contact Rating: 10W
Max switching voltage: 100V DC
Max switching current: 0.5A
Max breakdown voltage: 220V DC
Max carry current: 1A
Max contact resistance: 100mΩ
Max temperature: -30℃ - +125℃
Thread Dia(Approx): 21mm, 1/2”PT
Thread Length: 15mm/0.59"
Switch Total Length: 115mm/4.5"
Cable Length: 38cm /15" 40cm/15.7"
Package Included:
1x Horizontal Mounting Float Switch

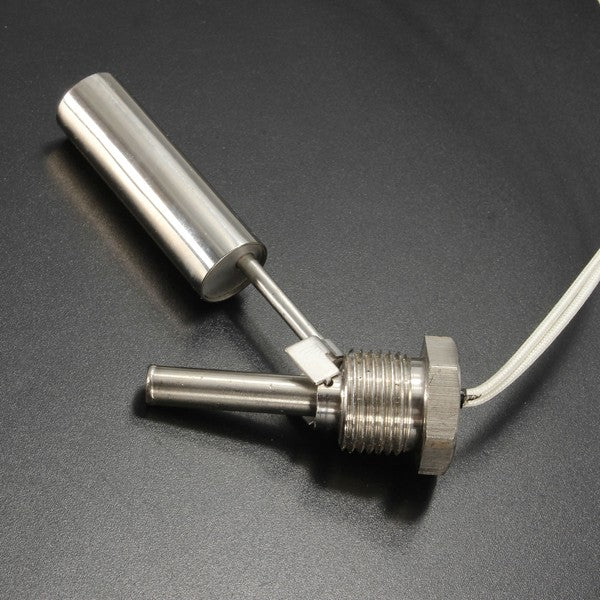

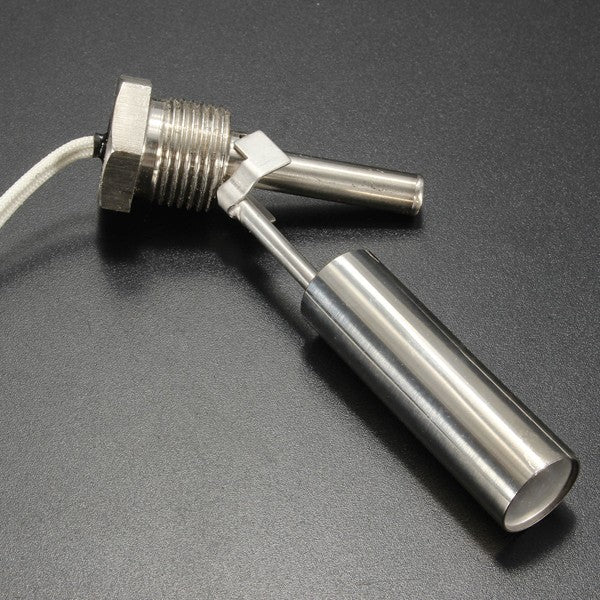

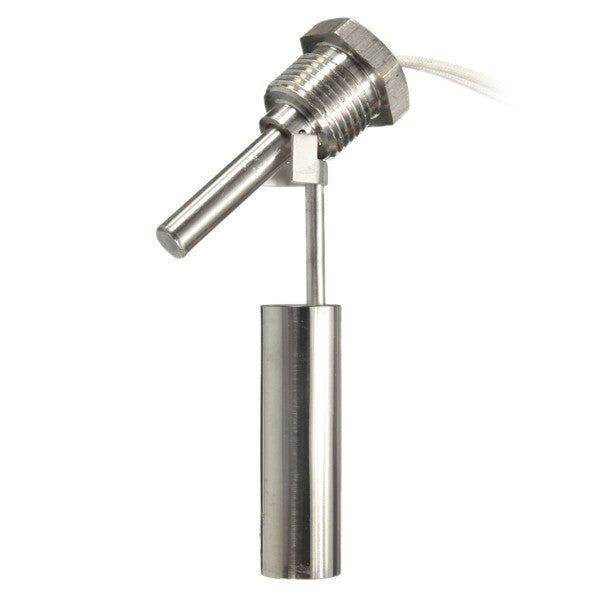

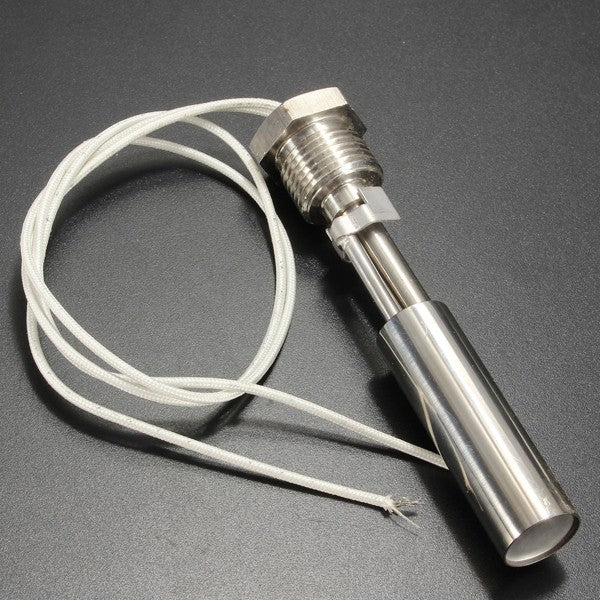

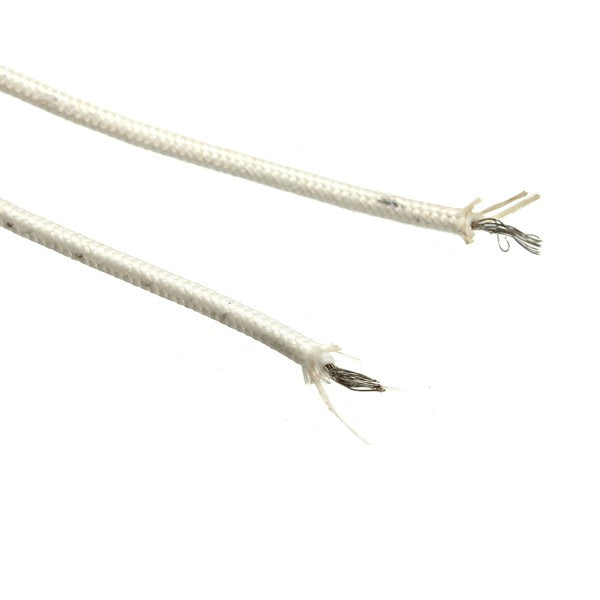

Details pictures:
