Package Included :
1 x REX-C100 PID Temperature Controller
1 x K Type Probe Sensor
1 x Max.40A SSR
REX-C100 110-240V 0-1300 Degree Digital PID Temperature Controller Kit
Features :

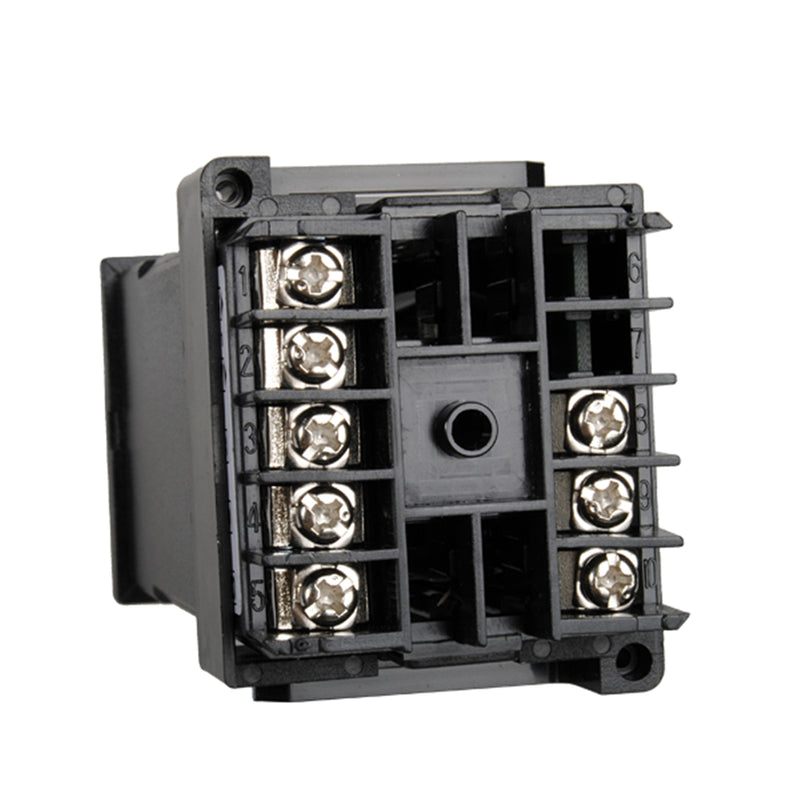

1.REX-C100 Temperature Controller
2.Measuring accuracy : ±0.5%FS
3.Cold-end compensation tolerance : ±2℃ can be modified by software in 0~50℃
4.Resolution : 14 bit
5.Sampling cycle : 0.5 Sec
6.Power : AC 110-240V 50/60HZ
7.Process value (PV), Setting value (SV)
8.Output, alarm and self-tuning can be indicated by : LED
9.PIN control (including ON/OFF, step-type PID and continuous PID)
10.Self-tuning control
11.Relay output : contact capacity 250V AC 3A (resistive load)
12.Alarm function output : 2 way
13.Proportional band (P) : 0~full range (ON/OFF control when set to 0)
14.Detective temperature range : 0 to 1300℃
15.Insulation resistance : >50M ohm(500V DC)
16.Insulation resistance : 1500V AC/min
17.Insulation resistance : Power Consumption < 10 VA
18.Service environment : 0~50℃
19.Environment with no corrosive gas 30~85% RH
K Thermocouple Probe Cable
1.Length : 1M
2.Sensor diameter : 4.5mm
3.Temperature rang : 0 to 400℃(U can install to 1300 ℃ K Thermocouple Probe(not included) )
4.Internal Insulation : Fiberglass
5.External Shielding : Insulated Shielding
Max.40A SSR
1.Output Voltage Range : Standard Type
2.Output Current : 40A
3.Input Voltage : DC 3-32V
4.Output Voltage : 24-380V AC
