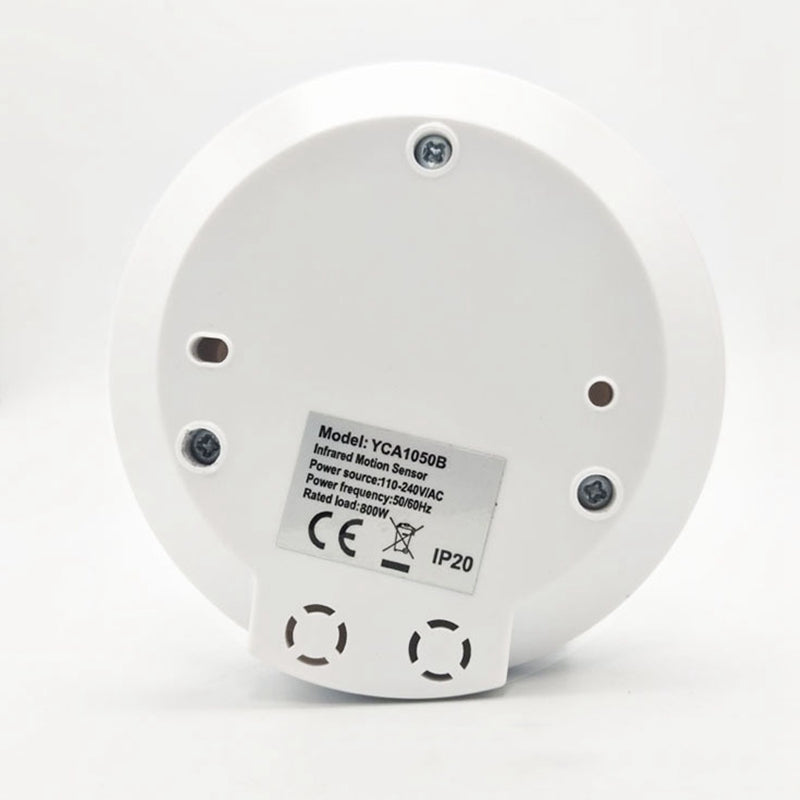

Specifications: Power source: 110-240VIAC Rated load:Max. 800W Power frequency: 50/60Hz Power consumption: 0.45W(static 0. 1W) Time delay: 5Sec.~5Min.(adjustable) Installation height: >1.5 3.5m Detection angle: 360° Detection motion speed: 0.6-1 .5m/s Ambient light: <5-2000Lux Working humidity: <93%RH Working temperature: -20~+40°C Detection distance : 8 m.max (dia.)
Features: - The product is a new saving-energy switch, it adopts good sensitivity detector, integrated circuitand SMT. - It gathers automatism, convenient safe,saving-energy and practical functions, Three detectors inside compose a wide range detection field, it utilizes the infrared energy from human as control-signal source, it can start the load at once when one enters detection field. It can identify day and night automatically. - It is easy to install and used widely, possessing the functions of power show and detecting show.
Installation: 1. Switch off the power. 2. Push down LED according to the sketch map in packing, take down the top cover by anti-clockwise turn. 3. The sensor is fixed on the selected position with the inflated screw: 4. Connect the power and the load into the connection-wire column according to the sketch map. 5. Put the top cover on the sensor, turn it clockwise and you will hear "pong", so you can use it.

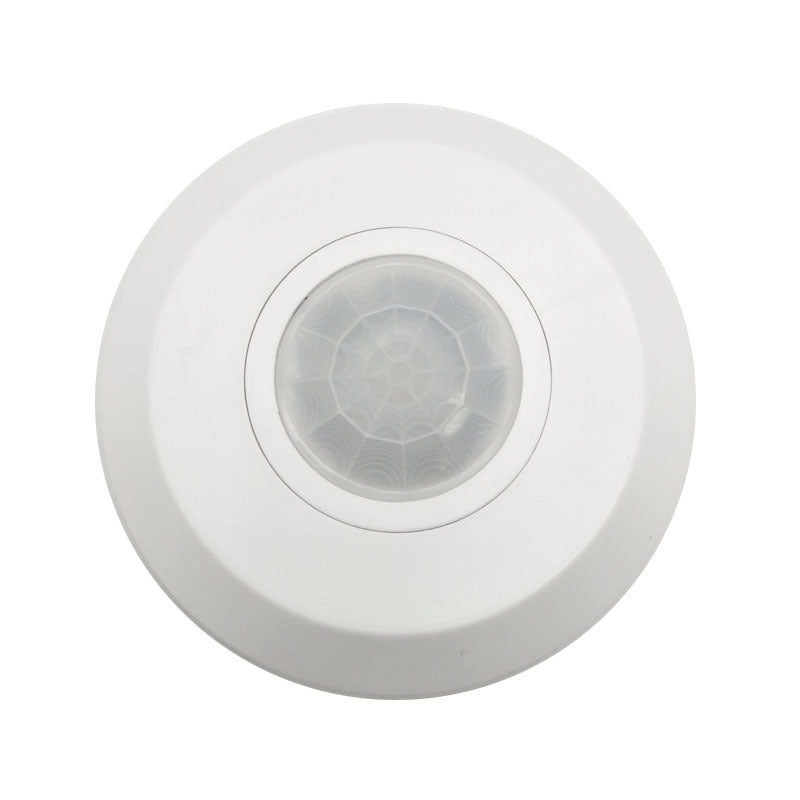

Package Included: 1x Body infrared sensor switch
